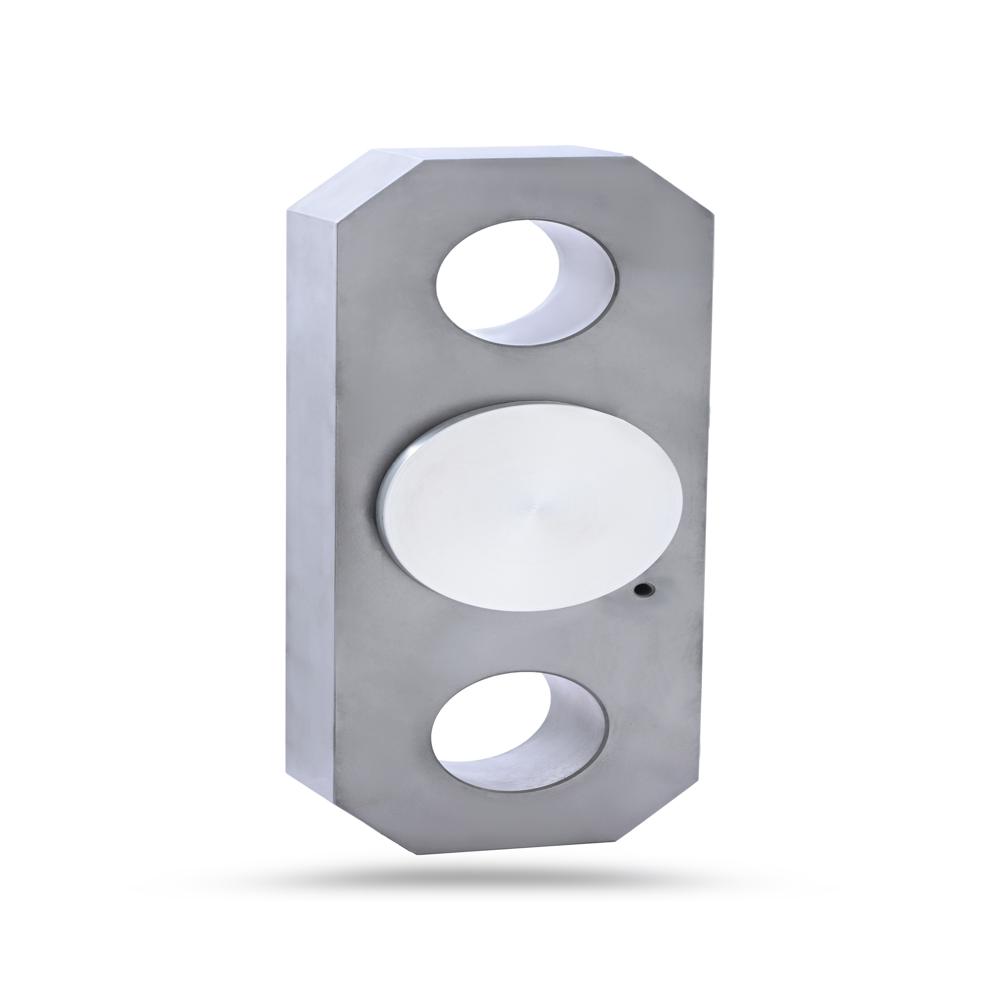

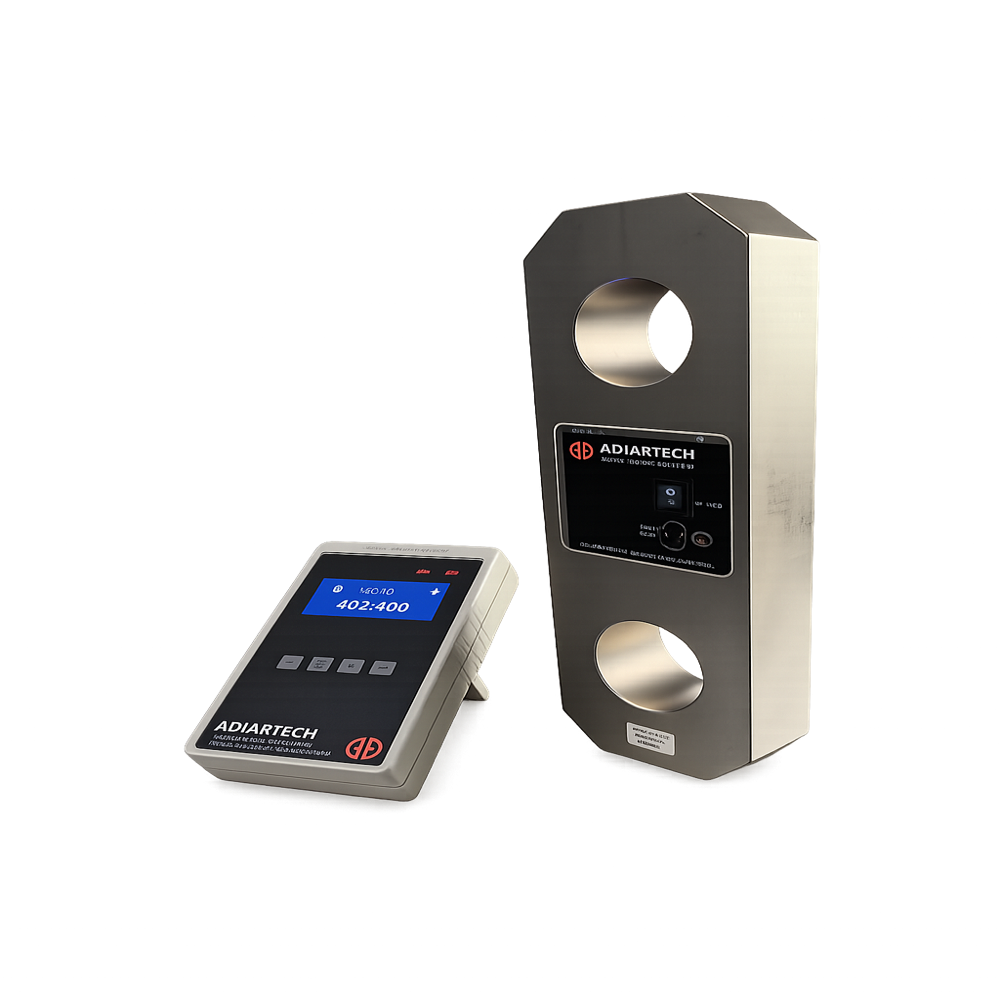

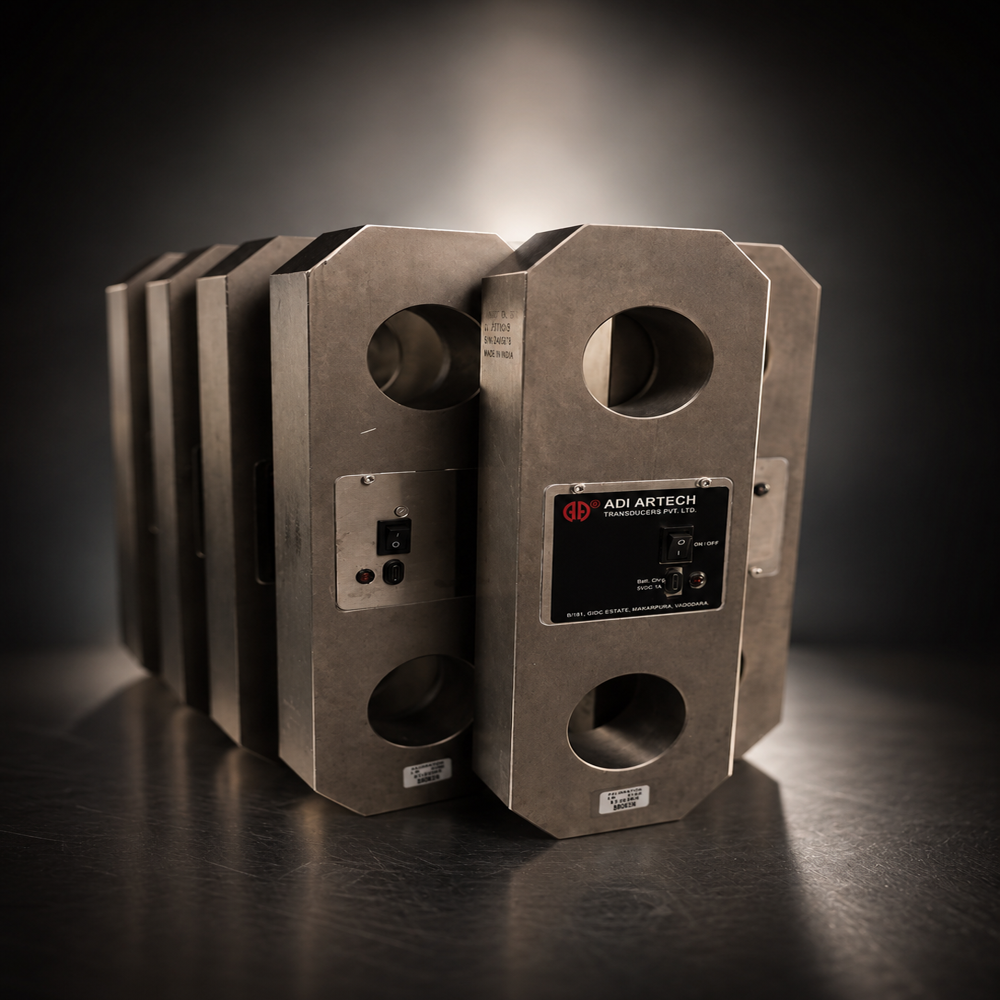

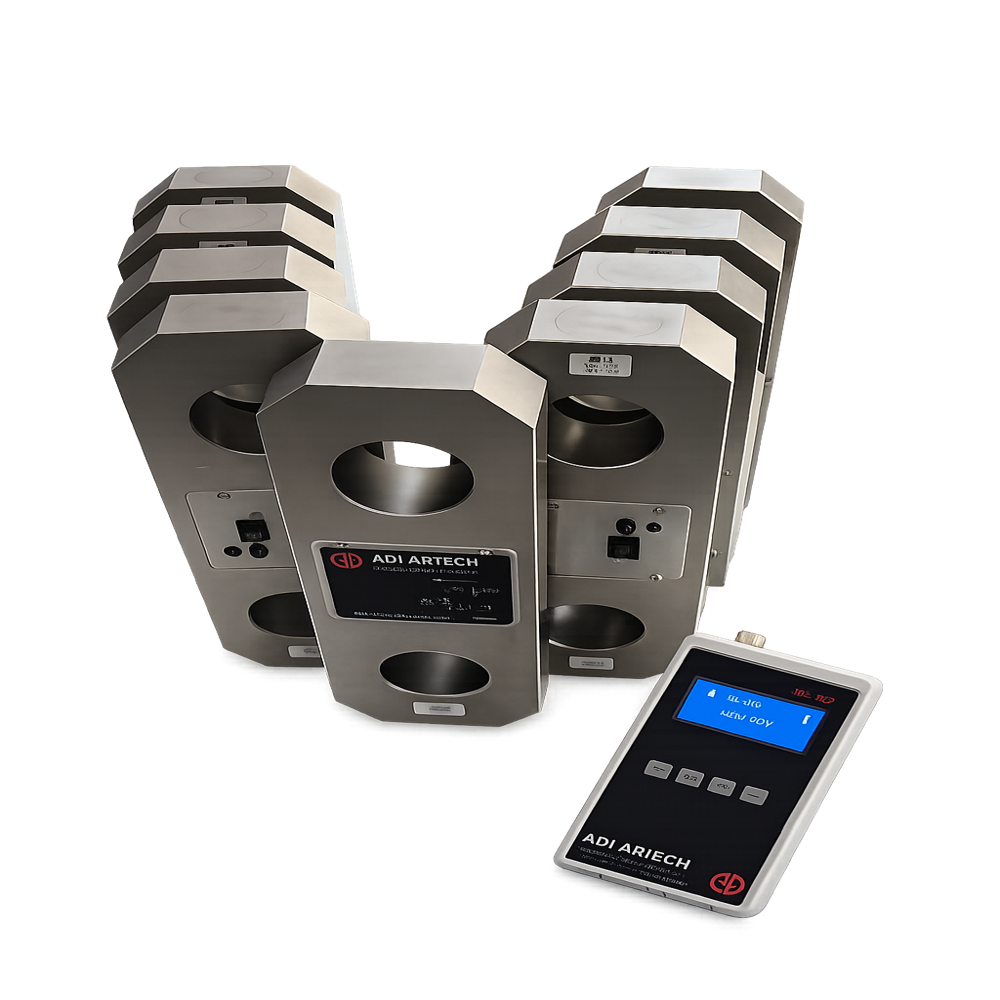

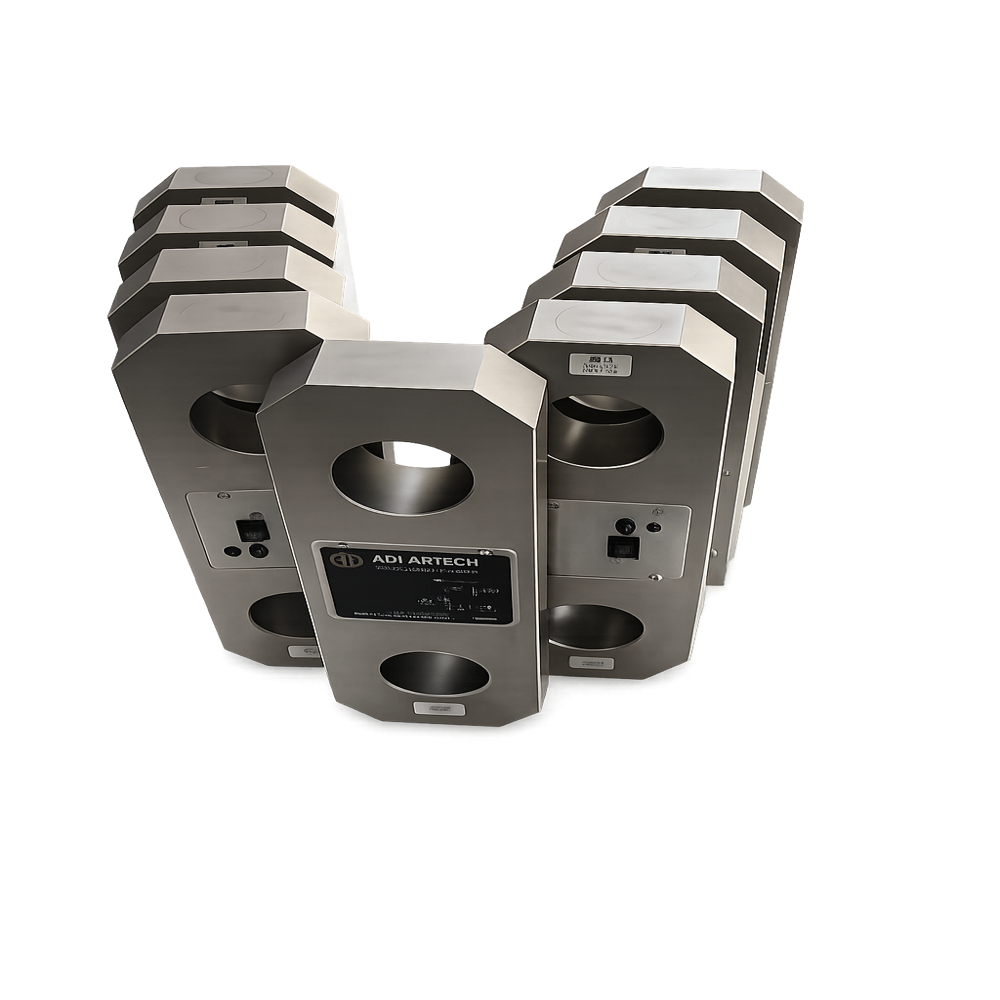

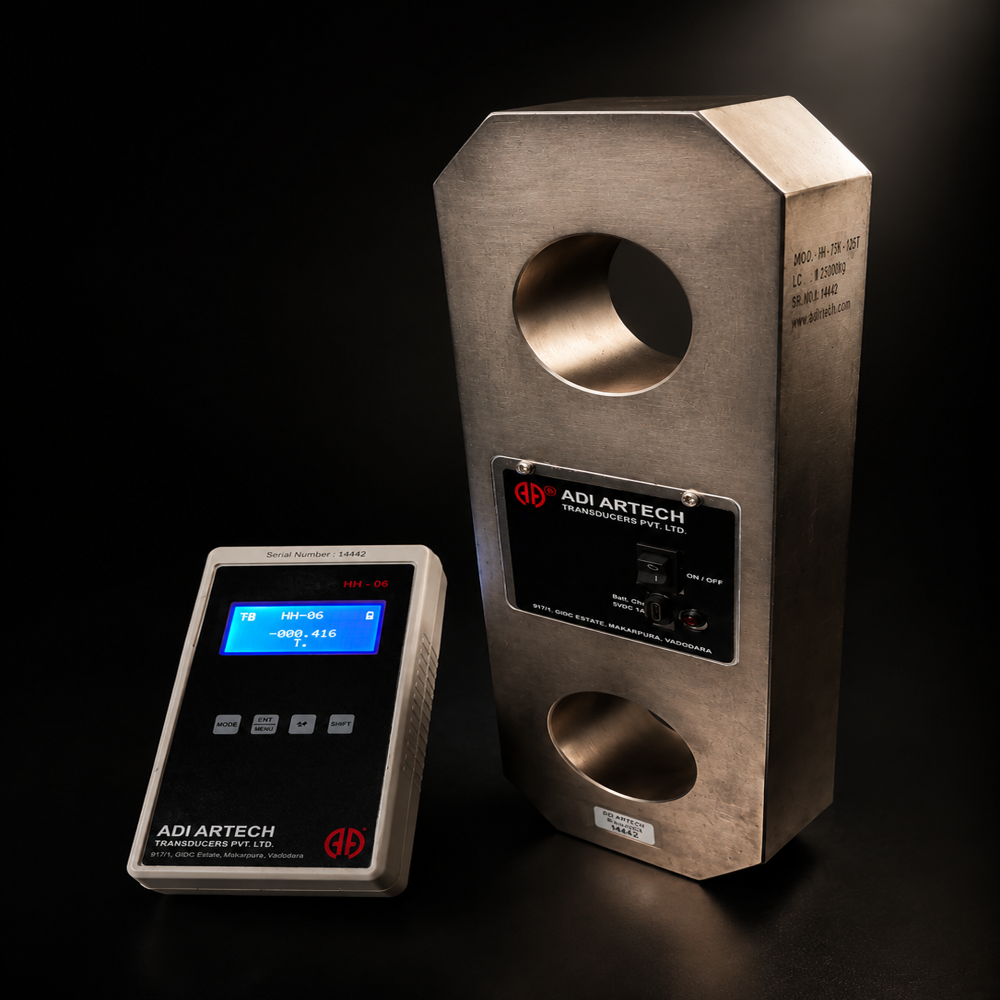

FLAT TENSION LINK LOAD CELL

Name: IN LINE TENSION LOAD CELL
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

15500.0 INR/Number

Get a Price/Quote

Product Details:

Classification Tension Type Load Cell
Resistance Input Resistance: 370 / 775 15 Ohms, Output Resistance: 350 / 700 3 Ohms
Power 10 VDC Volt (v)
Application Crane systems, Cargo handling in shipyards , Force measurement dynamometers, Industrial material handling
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Operate Method Tension loading through Dee / Bow Shackles
Product Type Flat Link Load Cell
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

FLAT TENSION LINK LOAD CELL Price And Quantity

Minimum Order Quantity 1 Number
Price 15500.0 INR/Number

Dimensions Custom options available
Capacity Range 5 kg to 50 T
Application Force measurement, tension monitoring, automation, material testing
Finish Nickel plated
Connector Type 4-pin cable or custom
Material Stainless Steel / Alloy Steel
Cable Length 3 m (customizable)
Overload Capacity 150% of Rated Capacity
Protection Class IP66
Mounting Threaded hole both ends

FLAT TENSION LINK LOAD CELL Product Specifications

Application Crane systems, Cargo handling in shipyards , Force measurement dynamometers, Industrial material handling
Theory Resistance Sensor
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Compensated Temperature 10 C to 50 C Celsius (oC)
Output Analog Sensor
Classification Tension Type Load Cell
Operating Voltage 5-12 V DC (Excitation) Volt (V)
Output Voltage 1.0 mV/V Volt (V)
Operating Temperature 10 C to 50 C Celsius (oC)
Power 10 VDC Volt (v)
Resistance Input Resistance: 370 / 775 15 Ohms, Output Resistance: 350 / 700 3 Ohms
Type Strain Gauge Based Load Cell
Usage Rope tension measurement, Towing force measurement, Crane weighing, Hanging scale applications, Material handling systems
Accuracy 0.15% FSO %
Product Type Flat Link Load Cell
Operate Method Tension loading through Dee / Bow Shackles
Material High Alloy Tool Steel
Storage Temperature 10 C to 50 C Celsius (oC)
Capacity 1 TF to 400 TF Ton

Dimensions Custom options available
Capacity Range 5 kg to 50 T
Application Force measurement, tension monitoring, automation, material testing
Finish Nickel plated
Connector Type 4-pin cable or custom
Material Stainless Steel / Alloy Steel
Cable Length 3 m (customizable)
Overload Capacity 150% of Rated Capacity
Protection Class IP66
Mounting Threaded hole both ends

FLAT TENSION LINK LOAD CELL Trade Information

FOB Port VADODAR
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Month
Delivery Time 4 Week
Sample Available Yes
Main Export Market(s) Australia, Eastern Europe, Western Europe, Middle East, Asia, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

The 20410Flat Link Load Cell is an ultra-precision strain gauge-based tension load cell designed for crane weighing and industrial tension measurement applications. It is CE certified, compact, rugged, and manufactured from high alloy tool steel with electroless nickel plating for superior resistance against shock, overload, and harsh environments.

This load cell is used in tension mode only and is installed using Dee/Bow shackles. It is suitable for rope tension monitoring, towing force measurement, crane scales, and cargo handling operations.

Available capacities range from 1 TF to 400 TF, with higher capacities and customized versions available on request.

Frequently Asked Questions (FAQs)

1 What is the working principle of the 20410 Flat Link Load Cell?

It operates on the electrical resistance strain gauge principle. When tension is applied, strain gauges detect deformation and generate a proportional electrical output signal (mV/V).

2 What type of load can it measure?

It measures tension force only.

3 What is the output signal?

Nominal Output: 1.0 mV/V
Compatible with:
- 420 mA output instruments
- 02 Volt output
- RS-485 interface
- Bluetooth / Wireless Telemetry

4 What is the operating voltage?

Recommended: 10 VDC
Maximum: 15 VDC

5 What is the accuracy level?

Non-linearity: 0.15% FSO
Hysteresis: 0.3% FSO
Non-repeatability: 0.1% FSO

6 What is the overload capacity?

Safe Overload: 150% of rated capacity
Ultimate Overload: 200% of rated capacity

7 What is the temperature range?

Compensated Temperature Range: 10C to 50C
Designed to meet IP65 environmental protection standards.

8 What industries commonly use this load cell?

Crane systems
Rope tension monitoring
Shipyard cargo handling
Towing force measurement
Material handling equipment

9 Is customization available?

Yes. It can be:

Supplied in custom capacities
Designed with special dimensions
Integrated with RF telemetry systems

What makes it suitable for harsh industrial environments?

High alloy tool steel construction
Electroless nickel plated finish
IP65 protection
CE certification
