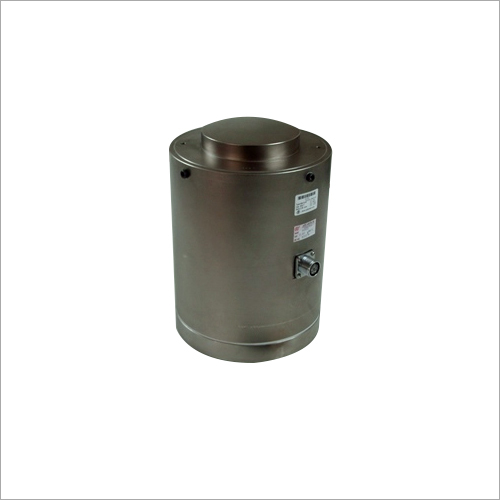

Heavy duty Compression Load cell

Model 90810 is a strain gaugebased, compact, and low-profile heavy-duty compression load cell designed for high-capacity force measurement applications. Manufactured from electroless nickel-plated tool steel, it offers excellent durability, corrosion resistance, and long-term stability.

The load cell is temperature compensated from 0C to 50C and provides reliable performance in demanding industrial environments. With capacities ranging from 50 Tf to 1000 Tf, it is ideal for tank and silo weighing, hydraulic press monitoring, and civil & structural testing applications.

It features IP65 environmental protection (gage area) and optional dual bridge configuration for sensor redundancy in critical applications.

Key Specifications (Highlights)

• Capacity Range: 50, 100, 200, 300, 500, 750, 1000 Tf

• Output: 2.0 mV/V

• Excitation Voltage: 10 VDC (Max 15 VDC)

• Accuracy:

  • Non-linearity: < 0.5% FSO

  • Hysteresis: < 0.2% FSO

  • Non-repeatability: < 0.15% FSO

• Safe Overload: 150%

• Ultimate Overload: 200%

• Material: Electroless Nickel-Plated Tool Steel

• Protection Class: IP65

• Cable Length: 5 meters (4-core)

• Deflection: < 0.4 mm at FSO

 Frequently Asked Questions (FAQs)

1 What type of load cell is Model 90810?

It is a compression type load cell, designed specifically for measuring compressive forces.

2 What industries commonly use this load cell?

It is widely used in:

• Hydraulic press systems

• Tank and silo weighing

• Civil & construction material testing

• Pile and structural load testing

3 What is the maximum capacity available?

The highest standard capacity available is 1000 Ton Force (Tf).

4 What makes this load cell suitable for heavy-duty applications?

• Robust tool steel construction

• Nickel-plated corrosion-resistant finish

• High overload protection (150% safe, 200% ultimate)

• Compact & low-profile design

5 What is the output signal?

The load cell provides a 2.0 mV/V analog output, compatible with most load cell indicators and transmitters.

6 Can it be supplied with digital output?

Yes. Optional versions are available with:

• RS-485 interface

• USB output

• Bluetooth telemetry

• Wireless telemetry

• 420 mA or 02 V output

7 Is it protected against environmental conditions?

Yes, it has IP65 protection for the gage area, making it suitable for industrial environments.
