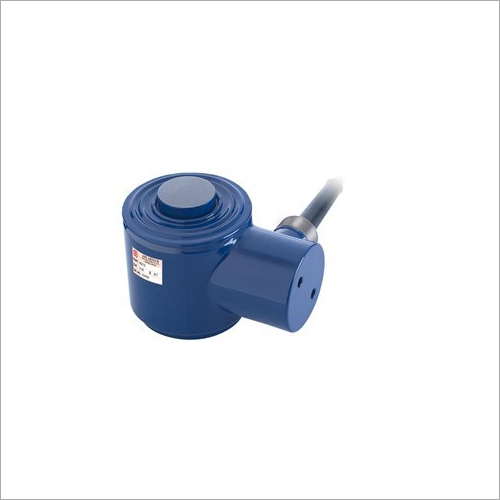

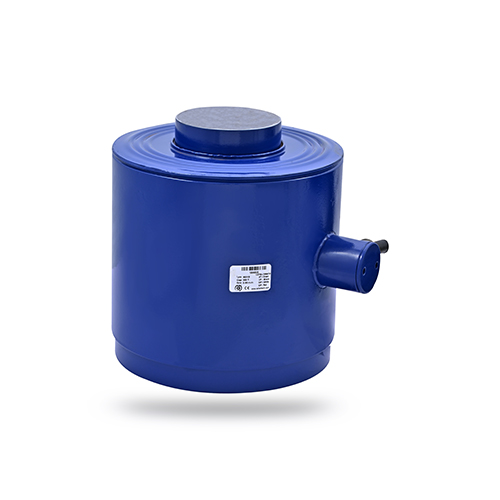

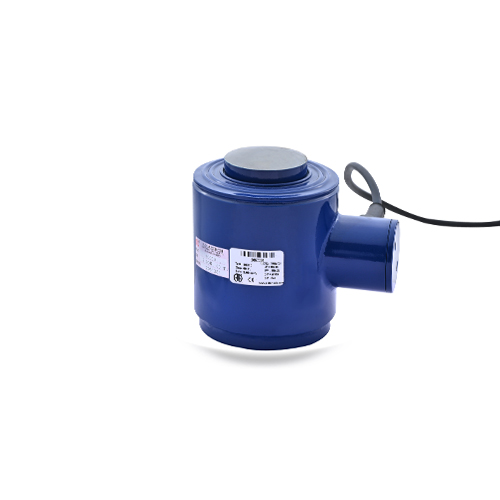

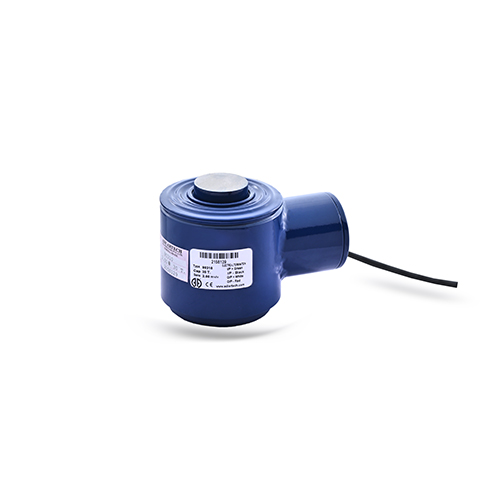

Compression Column type Canister Load Cell
Product Details:
- Resistance Input Resistance: 450 2 , Output Resistance: 480 3
- Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
- Weight 8 KG(Approx.) Kilograms (kg)
- Material Epoxy Enamel
- Power 10 VDC Volt (v)
- Capacity 5-500 Ton
- Operate Method Strain gauge principle (compression mode)
- Click to view more
Compression Column type Canister Load Cell Price And Quantity
- 1 Number
- 15500.0 INR/Number
Compression Column type Canister Load Cell Product Specifications
- Analog Sensor
- 73*83 Millimeter (mm)
- 10-50 Celsius (oC)
- Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
- multicolumn compression type load cell
- WEIGHING MACHINES
- 5-10 Volt (V)
- Model 90210: 0.15% FSO, Model 90310: 0.025% FSO %
- 10 VDC Volt (v)
- 0-50 Celsius (oC)
- Resistance Sensor
- Epoxy Enamel
- LOAD CELL
- 8 KG(Approx.) Kilograms (kg)
- 5-500 Ton
- Strain gauge principle (compression mode)
- Input Resistance: 450 2 , Output Resistance: 480 3
- 0-60 Celsius (oC)
- LOAD CELL
- 2mv Volt (V)
- WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Compression Column type Canister Load Cell Trade Information
- 100 Number Per Week
- 1 Week
- Asia, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
Product details
|
Insulation Resistance (50V) |
>1000 Mega Ohms at 50 VDC |
|
Material of Construction |
Epoxy Enamel |
|
Nominal Output |
2.0 mV/V |
|
Excitation Voltage |
10 VDC -15 VDC |
|
Output Resistance |
480 +- 3.0 Ohms |
|
Input Resistance |
450 +- 2.0 Ohms |
|
Load Capacity |
5TF to 450TF |
|
Brand |
ADI ARTECH TRANSDUCERS PVT LTD |
|
Nominal Sensitivity |
2 mv/v |
|
Type |
Compression |
|
Usage/Application |
Industrial |
Compression Column type Canister Load Cell
Multi Column Compression Load Cell
|
Model |
: | 90210/90310 | |
| Capacity | : | 0-5Tf to 0-100Tf | |
| Load Direction | : | Compression only | |
| Type | : | Canister Load Cell , Column Load Cell , Compression Load Cell , Tank Weigh Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell |
| Industries |
|
|
| Application |
|
|
| Description | : |
90210/90310 is multi coulmn compression load cell. |
| Features | : |
90210/90310 load cell is available from 5 to 100Tf capacities. |
| Electronic Instrumentation / Software | : |
Compatible Electronic Systems are available optionally- |
| Mounting Hardware | : |

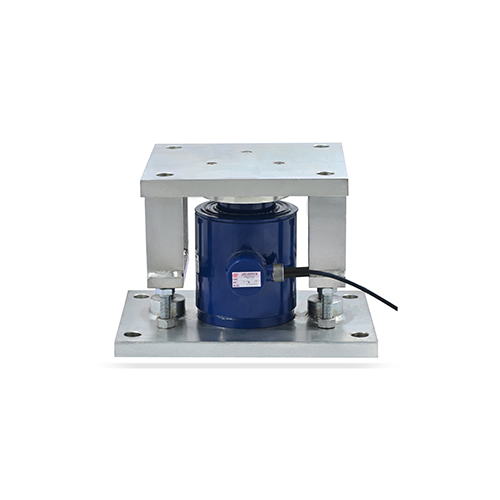

Compatible Mounting Assembly WM-VI is offered optionally. |
COMPRESSION Type LOAD CELLS are available as per the following table-
|
TYPE |
CAPACITY |
MATERIAL |
ENVIROMENT CLASS |
|
90210 |
5 to 100 TF. |
EPOXY ENAMEL |
IP 68 |
|
90310 |
5 to 100 TF. |
EPOXY ENAMEL |
IP 68 |
|
90210 - Heavy Duty |
200 to 500 TF. |
EPOXY ENAMEL |
IP 68 |
|
90410 |
20,30,40,50 TF. |
STAINLESS STEEL |
IP 68 |
Reliable Weight Measurement
Engineered for consistent and repeatable accuracy, this canister load cell is perfectly suited for applications such as weighing machines, online tension measurement, and tensile testing. Its compact design and compatibility with various industrial systems ensure seamless integration into new and existing setups.
Versatile Industrial Applications
This load cell excels not only in standard weighing tasks but also enhances automation and quality control in manufacturing processes. Its analog output and compatibility with 510V operating voltages allow for flexible integration, benefitting machine builders, suppliers, and industrial automation professionals.
FAQs of Compression Column type Canister Load Cell:
Q: How does the Compression Column Canister Load Cell function in weighing applications?
A: The load cell measures compressive force applied to it and converts it into an analog voltage signal (2mV output), which can be read by weighing scale controllers for precise weight determination.Q: What benefits does the electronic canister load cell offer for machine automation and tension measurements?
A: It provides high-accuracy readings (up to 0.1 accuracy) for real-time force monitoring in both automation and tension measurement tasks, ensuring improved process control and product quality.Q: Where can this load cell be installed for optimal performance?
A: The load cell should be installed on level, stable surfaces within its specified operating temperature (0C to 50C) and voltage range (510V), commonly in weighing platforms, tensile testers, or automated machinery.Q: What is the recommended usage process for maximum reliability?
A: Connect the load cell to a compatible signal amplifier or controller, ensure proper calibration, and regularly maintain both mechanical and electrical connections for sustained accuracy and performance.Q: When is it important to use a compensated temperature range with this load cell?
A: For the most accurate measurements, maintain the ambient temperature within the compensated range of 10C to 50C. This minimizes errors that could be caused by thermal variations.Q: Who supplies this compression column load cell in India?
A: It is available through a network of dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India, catering to diverse industrial requirements.
