Shear Beam Load cell

Shear Beam Load cell About

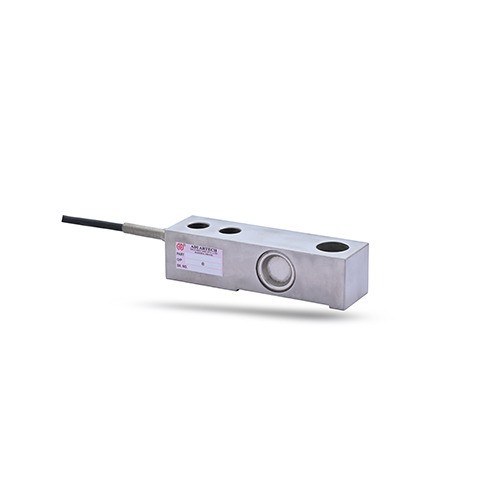

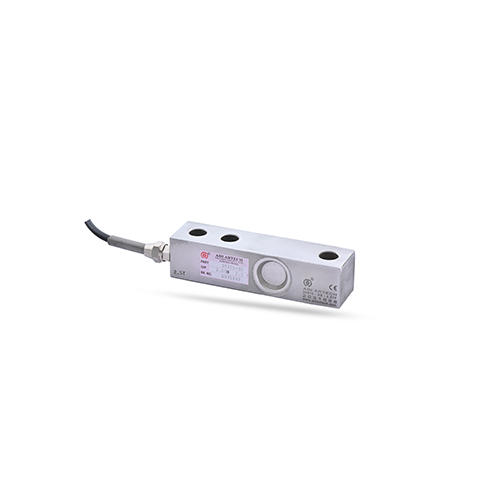

The 30310 / 30310-SS is a high-accuracy single-ended shear beam load cell designed for industrial weighing and force measurement applications. It is manufactured from electroless nickel-plated tool steel or stainless steel (SS 17-4 PH) for durability and reliable performance in harsh industrial environments. The load cell offers excellent accuracy, environmental protection up to IP67/IP68, and capacities ranging from 30 kgf to 20 tf. It is ideal for platform scales, tank and hopper weighing systems, crane scales, industrial automation, robotics, and tension measurement applications.

Key Features

• High accuracy and long-term stability
• Single-ended shear beam design
• Capacity range: 30 kgf to 20 tf
• IP67 protection (IP68 available in stainless steel version)
• Nickel-plated tool steel or stainless steel construction
• Standard output: 3.0 mV/V (30310) and 2.0 mV/V (30310-SS)
• Suitable for harsh industrial environments
• Custom outputs and high-temperature versions available

 (FAQs)

1. What type of load cell is the 30310?

The 30310 is a Single Ended Shear Beam Load Cell used for weighing and force measurement applications.

2. What capacity ranges are available?

Standard capacities range from:

• 30 kgf to 750 kgf
• 1 tf to 20 tf

3. What material is used in construction?

The load cell is available in:

• Electroless nickel-plated high-tensile tool steel
• Stainless Steel 17-4 PH

4. What is the output sensitivity?

• 30310: 3.00 mV/V 0.05%
• 30310-SS: 2.00 mV/V 0.05%

5. What is the operating temperature range?

The standard operating temperature range is 0C to 60C.

6. What applications is this load cell suitable for?

Typical applications include:

• Platform scales
• Tank and hopper weighing
• Crane and hanging scales
• Force and tension measurement
• Industrial automation
• Robotics
• Process control systems

7. What is the protection rating?

The load cell offers:

• IP67 as standard
• IP68 available with stainless steel construction

8. What excitation voltage is required?

• Recommended: 10 VDC
• Maximum: 15 VDC

9. Can customized outputs be provided?

Yes, customized output sensitivities can be supplied on request.

10. What overload protection does it offer?

• Safe Overload: 150% of rated capacity
• Ultimate Overload: 250% of rated capacity

11. What accessories are available?

Compatible accessories include:

• WM-1 / WM-IV Mounting Assembly
• DLC-6 Digital Load Controller

12. Is a high-temperature version available?

Yes, high-temperature compensated versions and Teflon cable options are available on request.
