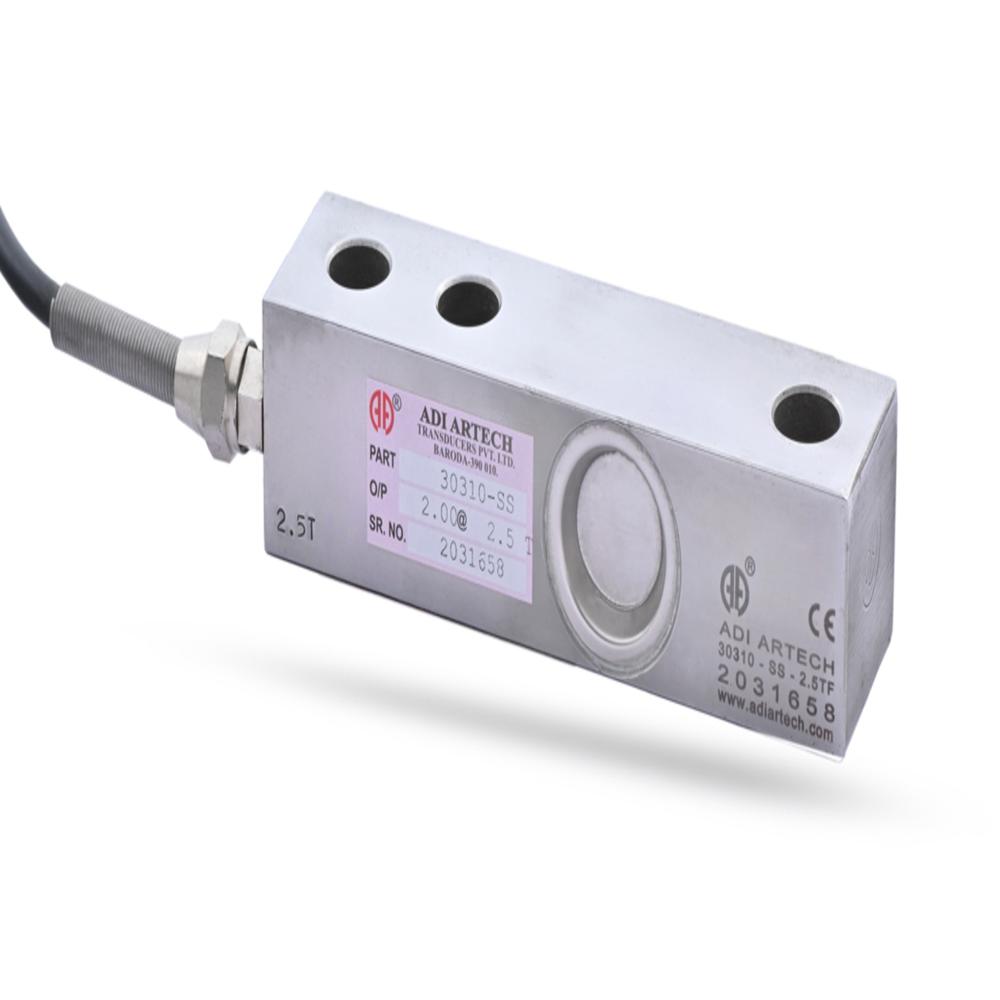

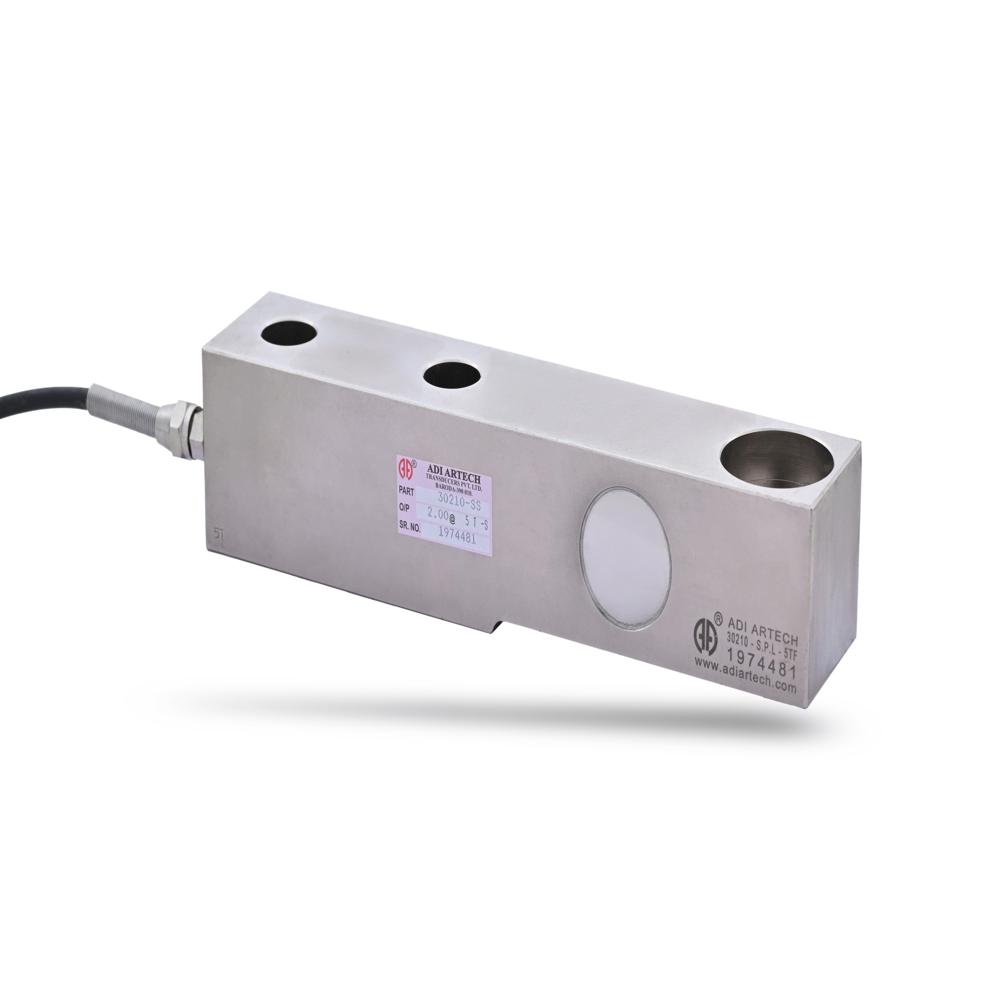

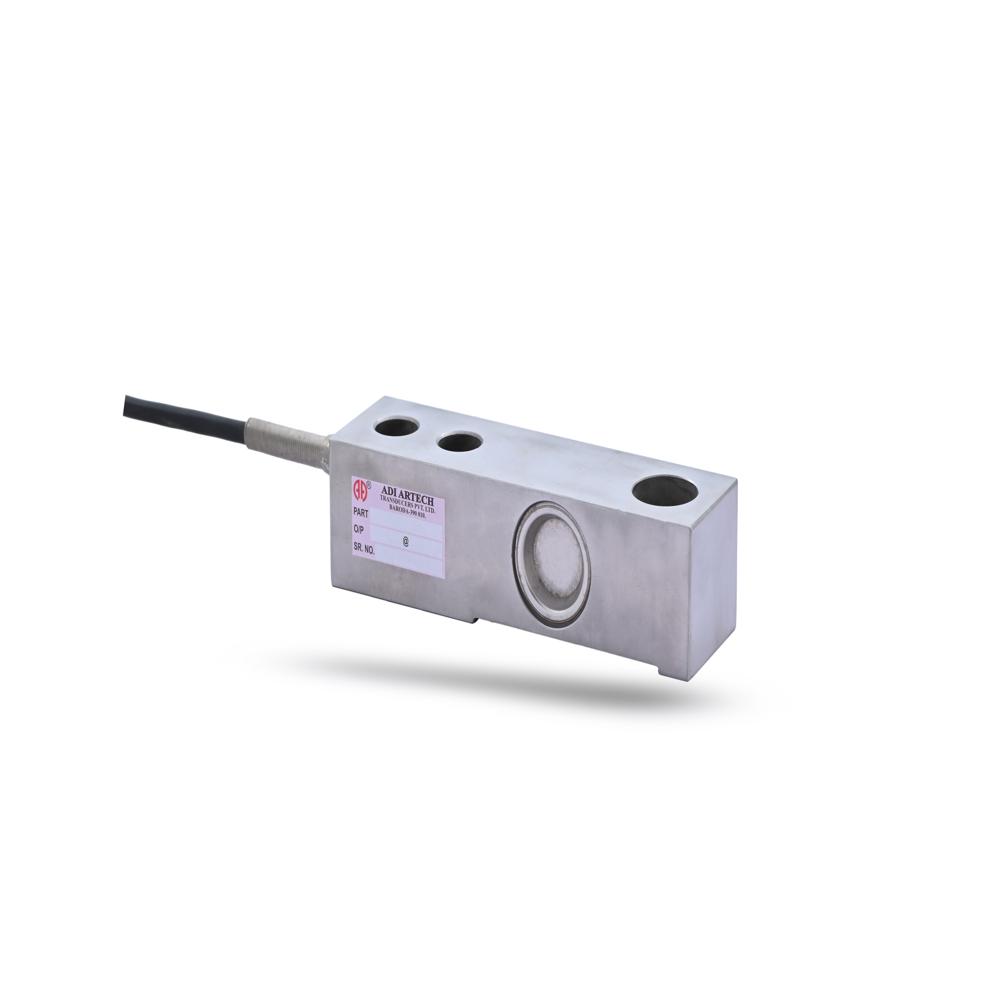

Single Ended Shear Beam Load Cell-SS

Name: Single Ended Shear Beam Load Cell-SS
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Single Ended Shear Beam Load Cell-SS Specification

Color
silver

Capacity
30 to 20000 Kg

Application
Tank, hopper & bag weighing, Hanging & crane scales , Mechanical to electronic scale conversion ,Force, tension & compression measurement , Industrial automation, Process & machine automation, Robotics

Resistance
Input resistance: 392 15 Output resistance: 350 5

Material
Stainless Steel 17-4 PH

Dimension (L*W*H)
130*32*32 Millimeter (mm)

Power
Electrical (DC excitation) Volt (v)

Usage
Industrial weight and force measurement in harsh environments

Voltage
10 VDC nominal, Maximum 15 VDC Volt (v)

Weight
1.5 Kilograms (kg)

Product Type
Single Ended Shear Beam Load cell-SS

Operate Method
Force/weight applied in shear; strain gauges convert mechanical load into electrical signal

Classification
Strain gauge based load cell (industrial weighing sensor)

Output
Analog Sensor

Theory
Resistance Sensor

Type
Single ended shear beam load cell

Accuracy
0.025% FSO %

Operating Voltage
10 15 VDC excitation voltage Volt (V)

Output Voltage
2 mV/V Volt (V)

Compensated Temperature
10 C to 50 C Celsius (oC)

Storage Temperature
10 C to 50 C Celsius (oC)

Operating Temperature
0 C to 60 C Celsius (oC)

Single Ended Shear Beam Load Cell-SS Trade Information

Minimum Order Quantity
1 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Per Week

Delivery Time
1 Week

Packaging Details
Standard

Main Export Market(s)
Middle East, Africa, Asia, Australia, North America, South America, Central America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
OEM TEST CERTIFICATE

About Single Ended Shear Beam Load Cell-SS

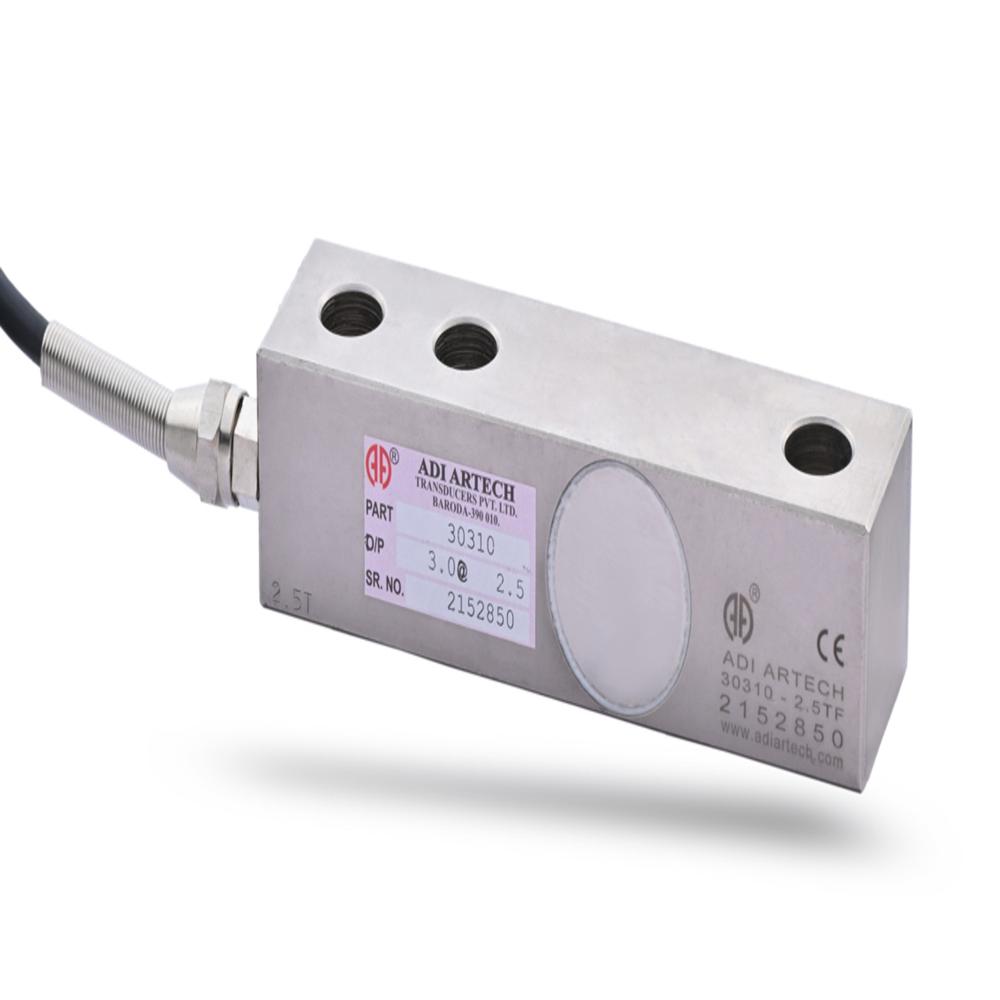

Single Ended Shear Beam Load Cell

Single Ended shear beam is strain gage based load cell in bending beam/shear beam configuration. It is designed for multiple cell configuration applications. It is constructed from high alloy tool steel for excellent resistance to shocks and over loads. This cell is sealed for moisture proofing for use in wash-down areas.

Application

Hopper , Tank , Silo Weighing
Small Vehicle Weighing
Washdown area Weighing Scale

Key Features

Capacities are available from 0 - 30 Kgf to 0 - 10,000 Kgf for vide applications.
Also available in standardized output 3.00+/-0.25% upon request, for multiple cell applications like floor scale , tank and hopper weighing
