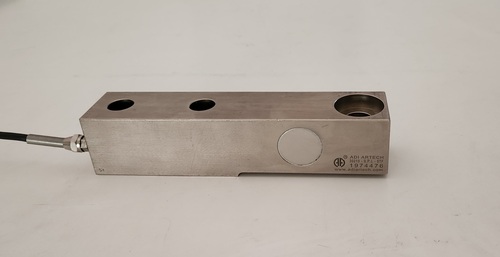

Shear Beam Load Cell

Shear Beam Load Cell


Product Details:


Price And Quantity

  • 1 Piece

Trade Information

  • 100 Piece Per Week
  • 1 Week
  • Africa, Middle East, Western Europe, Eastern Europe, Asia
  • All India

Product Description

Product details

Creep (30 minutes)

<+-0.03% FSO

Environmental Protection Class

IP 68


<+-0.02% FSO

Nominal Output

2.0 m V/ V

Temp. Compensated Range

0 - 60 Degree C

Ultimate Overload

200% of Rated Capacity

Zero Balance

+- 1% FSO

Excitation Voltage

10 VDC -15 VDC

Output Resistance

700 +- 2 Ohms

Input Resistance

770 +- 20.0 Ohms

Shear Beam Load Cell


:   30210
Capacity :   0-10Tf to 0-40Tf
Load Direction :   Compression only
Type :   Bin Weighing Load Cell , Hopper Wieghing Load Cell , On Board Weigh Load Cell , Platform Scale Load Cell , Silo Weighing Load Cell , Tank Weigh Load Cell , Truck Axle Weigh Load Cell
  • Weighing
  • Agriculture
  • Compressive Force Measurement & Testing
  • Hopper , Tank , Silo Weighing
  • Low Profile Floor Scale
  • Onboard Weighing
  • Small Vehicle Weighing
  • Steel Weigher
Description :   This is strain gage based load cell in shear beam design.
It is constructed from high alloy tool steel for excellent resitance to shocks and over loads.
This cell is sealed with IP 65 protection for moisture prooffing for use in wash-down areas.
Features :

Capacities are available from 0 - 10 Tf to 0 - 20 Tf for large platform scale applications.
Also available in standardised output 2 +/-0.25% upon request,for multiple cell applications like floor scale , tank and hopper weighing.
This can be customized to meet as per customer's specific requirements.

Electronic Instrumentation / Software :

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For more informations,please contact u
