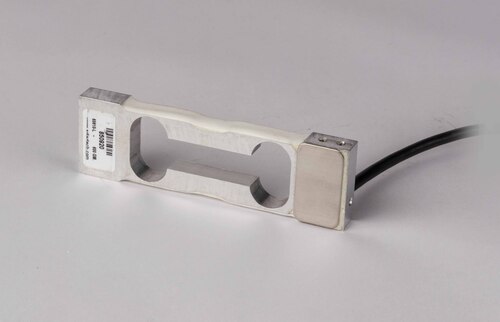

Single Point Jewelry Load Cell

Get a Price/Quote

Product Details:

Resistance Input: 4066; Output: 3503
Output Analog Sensor
Theory Resistance Sensor
Type Single Point Load Cell
Accuracy 0.02% F.S.
Operating Voltage 5-12V DC
Output Voltage 2.0 mV/V 10%
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Single Point Jewelry Load Cell Price And Quantity

Minimum Order Quantity 1 Set

Single Point Jewelry Load Cell Product Specifications

Storage Temperature -20C to +55C
Operating Temperature -10C to +40C
Compensated Temperature +5C to +35C
Operating Voltage 5-12V DC
Accuracy 0.02% F.S.
Output Analog Sensor
Type Single Point Load Cell
Resistance Input: 4066; Output: 3503
Output Voltage 2.0 mV/V 10%
Theory Resistance Sensor

Single Point Jewelry Load Cell Trade Information

Supply Ability 100 Set Per Week
Delivery Time 1 Week
Main Domestic Market All India

Product Description

Single Point Jewelry Load Cell

Model	:	60610-L
Capacity	:	0-200Gmf to 0-2000Gmf
Load Direction	:	Tension & Compression - Universal
Type	:	Miniature Load Cell,Single Point Load Cell,Off Center Load Cell,Bending Beam Load Cell,Jewelery Load Cell

Industries

Weighing
Textile
Batch Weigh
Bagging Machinerys

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Counting Scale
Medical Instrumentation
Postal Scale
Precision Jewelery Scale
Small Bagging Machines
Table Top Weigh Scale

Description

60610-L is strain gage based load cell with temperature compensated range of 0 to 60 Deg.C.
It is designed for low eccentric load sensitivity for 120 mm dia.platter.
This is constructed from aluminum alloy and is light weight suitable for portable scales.

Features

It is available from 200 Gmf. to 2000 Gmf.capacity.
This is very much suited for precision jewelery scale applications.
This readily replaces various brand cells remove to fit condition.
For further information , please contact us.

Precision and Durability

Constructed with high-quality aluminum alloy and engineered to deliver consistent performance, this single-point load cell is protected with an IP65 rating. The load cells exceptional accuracy and overload capacity make it a dependable choice for jewelry weighing and other sensitive applications.

Wide Range of Applications

Designed for weighing small quantities, this load cell suits jewelry shops, laboratories, and manufacturing settings. Its compact structure and adaptability cater to both single-point requirements and integration into larger system solutions.

FAQs of Single Point Jewelry Load Cell:

Q: How is the Single Point Jewelry Load Cell installed for optimal performance?

A: The load cell should be mounted securely on a flat surface using appropriate hardware, ensuring that force is applied only on the designated active area. Proper cable routing and connection to compatible weighing electronics will maximize accuracy and reliability.

Q: What are the benefits of using an aluminum alloy load cell with IP65 protection?

A: Aluminum alloy offers a lightweight yet strong structure, enhancing durability and corrosion resistance. IP65 protection safeguards the load cell from dust and moisture, ensuring stable operation in diverse environmental conditions.

Q: Where can this load cell be effectively used?

A: It is suitable for precise weighing tasks in jewelry stores, gem labs, and small-scale production units. Its configuration allows integration into bench scales or compact weighing systems requiring sensitive measurement.

Q: What process ensures the load cells accuracy and creep performance?

A: Strict calibration and quality control ensure the load cell maintains an accuracy of 0.02% F.S., with a minimal creep effect of 0.016% F.S. over 30 minutes. This guarantees reliable measurements during prolonged use.

Q: When should safe and maximum overload specifications be considered?

A: Safe overload (120% of rated capacity) and maximum overload (150%) should be monitored during operation to prevent sensor damage. Exceeding these limits risks compromising measurement precision or permanently affecting the load cell.

Q: How does the analog output benefit users in weighing applications?

A: Analog sensor output provides seamless integration with various weighing indicators and controllers, enabling real-time weight measurements with high responsiveness and flexibility for custom system configurations.
