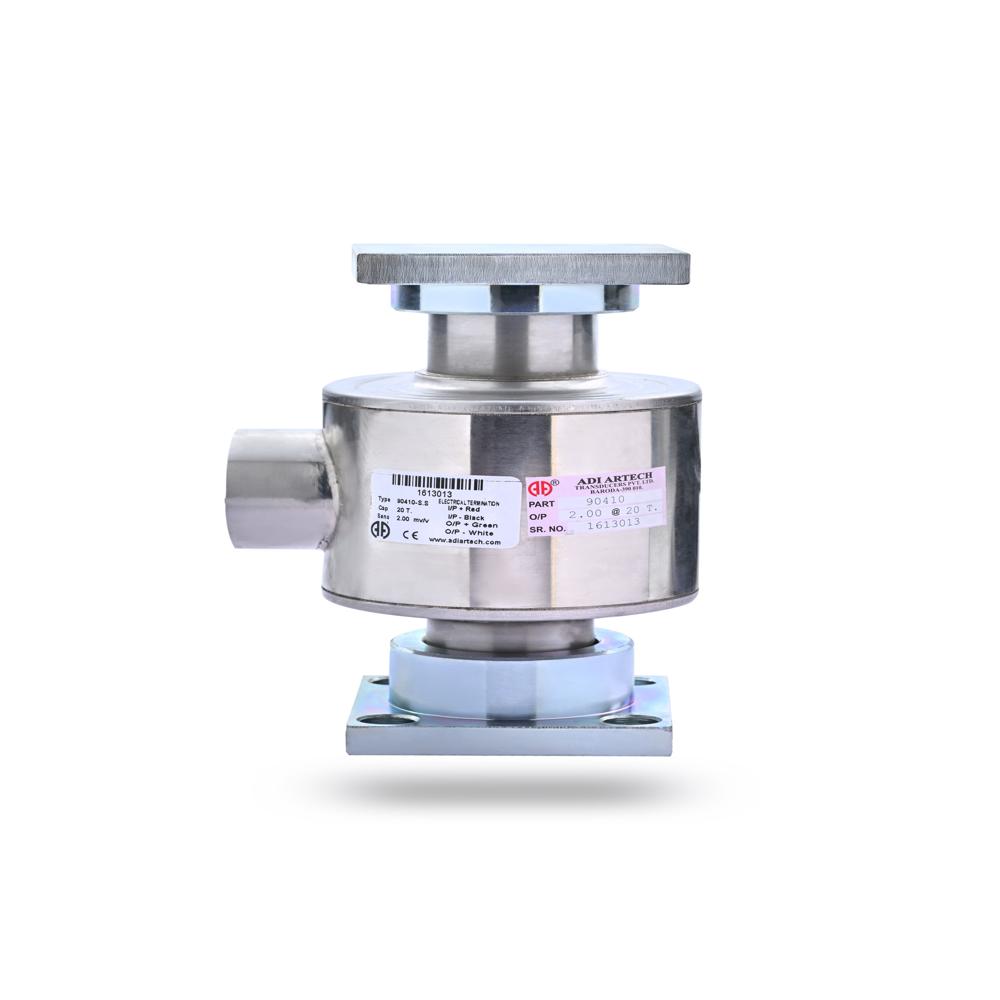

Weighing Module for 90410-SS Mounting Load Cell

Name: Weighing Module for 90410-SS Mounting Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 1100.0 INR
Availability: InStock

Price 1100.0 INR/ Number

Get a Price/Quote

Weighing Module for 90410-SS Mounting Load Cell Specification

Operate Method
Mechanical load transfer through top and bottom mounting buttons with self-centering and anti-rotation mechanism

Product Type
Weigh Module / Weighing Assembly

Resistance
Not applicable

Usage
Proper mounting and protection of single column compression load cells in static weighing systems

Classification
Industrial Weigh Module for Medium Capacity Weighing Systems

Application
Weigh Bridges , Tank Weighing, Hopper Weighing, Tensile Testing

Capacity
10 TF to 60 TF Ton

Material
Zinc plated Mild Steel

Output
Other

Theory
Other

Type
Low Profile, Self-Centering Weigh Module

Weighing Module for 90410-SS Mounting Load Cell Trade Information

Minimum Order Quantity
100 Number

FOB Port
VADODARA

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
40 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

Weighing Module for 90410-SS Mounting Load Cell About

Model

WM-VIII

Description

WM-VIII is mounting module for load cell model 90410.
It is available in two parts - top and bottom.
For fixing them,4 holes are provided on both parts while lower one is provided with additional slot for anti rotation of cell.
This is made out of Zink plated MS.

Features

This can be used very well with truck scale,tank and hopper weighing.
It is self centering and low profile.

Reliable Mechanical Design for Medium Capacity Loads

The weighing module is constructed with robust, zinc-plated mild steel to withstand tough industrial environments. Featuring a low-profile, self-centering configuration, it supports static weighing applications with exceptional precision and stability. Its innovative anti-rotation mechanism enhances the longevity and accuracy of installed load cells.

Versatile Applications in Industrial Weighing Systems

This module is the ideal solution for a range of static weighing tasks including weigh bridges, tanks, hoppers, and tensile testing frames. Its mechanical design allows for the secure and responsive mounting of load cells, ensuring optimal operation in diverse settings.

FAQ's of Weighing Module for 90410-SS Mounting Load Cell:

Q: How is the 90410-SS weighing module installed in industrial applications?

A: The module uses top and bottom mounting buttons to mechanically transfer loads, ensuring proper load alignment. Its self-centering and anti-rotation mechanism simplifies installation, and it is typically mounted under weigh bridges, tanks, or hoppers.

Q: What are the primary benefits of using the 90410-SS mounting load cell module?

A: This module protects load cells from misalignment or excessive force, provides stability, and guarantees accurate, repeatable measurements due to its self-centering design. Its zinc-plated steel construction adds durability and corrosion resistance.

Q: When should the 90410-SS module be used in weighing systems?

A: It should be used in medium-capacity static weighing systems where single column compression load cells are installed, such as industrial weigh bridges, tanks, hopper weighing stations, and in tensile testing applications.

Q: Where can the 90410-SS weighing module be applied?

A: The module is suitable for a variety of locations within industrial and commercial facilities requiring precise static measurements, including weigh bridges, storage tanks, material hoppers, and laboratory tensile testers.

Q: What is the process for ensuring proper use of this weighing module?

A: Proper use involves mounting the module securely, aligning its buttons with the load cell column, and confirming the anti-rotation feature is engaged. Routine checks and minimal maintenance protect both the module and the installed load cell.

Q: What makes the 90410-SS module distinct from other weigh modules?

A: Its low-profile, self-centering construction and integrated anti-rotation mechanism set it apart, ensuring safe handling of medium capacities (10 TF to 60 TF) in environments demanding stability and accuracy.
