Pancake Compression Load cell

Get a Price/Quote

Product Details:

Product Type LOAD CELL
Output Analog Sensor
Type PANCAKE BUTTON TYPE LOW PROFILE LOAD CELL
Accuracy 0.1 %
Operating Voltage 5-10
Output Voltage 2mv
Compensated Temperature 10-50
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pancake Compression Load cell Price And Quantity

Minimum Order Quantity 1 Set

Pancake Compression Load cell Product Specifications

Compensated Temperature 10-50
Operating Temperature 0-50
Output Voltage 2mv
Type PANCAKE BUTTON TYPE LOW PROFILE LOAD CELL
Output Analog Sensor
Product Type LOAD CELL
Accuracy 0.1 %
Storage Temperature 0-60
Operating Voltage 5-10

Pancake Compression Load cell Trade Information

Supply Ability 10 Set Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Asia, Africa
Main Domestic Market All India

Product Description

Product details

Brand	ADI
Cable Length	5 Meters
Capacity	450TF
Ingress Protection	IP65
Input Resistance	390 +- 10 Ohms up to 1000 Kgf 770 +- 20 Ohms 1.5 T & Above
Insulation resistance at 50V DC	>= 1000 M Ohm
Material	Stainless Steel
Maximum Safe Overload	150% FS
Model	90610
Output Resistance	390 +- 10 Ohms up to 1000 Kgf 700 +- 7Ohms 1.5 T & Above
Ultimate Safe Overload	200% FS
Zero balance	+/- 1% FS

Model	:	Â	90610-B
Capacity	:	Â	0 - 50 Kgf to 0 - 450 Tf
Load Direction	:	Â	Compression only
Type	:	Â	Pancake Load Cell

Industries

Defence
Weighing
Fertilizer , Cement , Chemical , Steel industries
Robotics
Pharmaceutical
Material Testing
Egineering & Technical Institutes
Force & Reference Standard Metrology Laboratory
Automotive
Automation Machineries
Aerospace

Application

Civil Structure Testing
Crash Test Dynamometer
Force & Impact Testing
Force in Product Testing
Hopper , Tank , Silo Weighing
Hydraulic Press Testing
Impact Force in Crash Test
Impact Measurement
Industrial Automation Equipments
Low Profile Floor Scale
Pharmaceutical Machines
Press Force Checking and Calibration
Recoil Force in Rocket Engine Test

Description

90610-B is strain gage based force sensor with temperature compensation over 0 - 60 deg.C.
This is low profile button type pancake force transducer.

Features

It is laser welded with IP-68 protection.
It is very light weight and easy to install.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For more information,please contact us.

High Precision in a Compact Design

Our Pancake Compression Load Cell combines low-profile construction with precise measurement capabilities. The advanced analog output of 2mV ensures dependable results across a variety of load-measuring tasks, all within a compact footprint that integrates easily into most mechanical assemblies.

Versatile Temperature Tolerance

Engineered to endure fluctuating environments, this load cell operates efficiently between 0 to 50C and can be safely stored from 0 to 60C. The compensated temperature range enhances stability, making it ideal for industrial settings throughout India.

Reliable Supply Network Across India

Whether you are a manufacturer, dealer, or end-user, sourcing the Pancake Compression Load Cell is convenient through an extensive network of dealers, distributors, suppliers, and wholesalers present across India. This ensures prompt availability and technical support whenever needed.

FAQs of Pancake Compression Load cell:

Q: How is the Pancake Compression Load Cell installed and used in industrial applications?

A: The Pancake Compression Load Cell is installed using its button-type, low-profile design that fits easily on flat surfaces or within tight assemblies. For optimal performance, connect the analog output to your measurement system and ensure the operating voltage is maintained between 510V. It provides accurate compression force readings for process control, material testing, or automation.

Q: What are the main benefits of choosing a Pancake Button Type Low Profile Load Cell?

A: This load cell offers high precision with 0.1% accuracy, a compact profile for easy integration, reliable analog output, and broad temperature tolerance. These features make it ideal for users seeking consistent and dependable force measurement, particularly in industrial and research environments.

Q: When should I consider replacing or recalibrating the load cell?

A: Routine recalibration is advisable at regular intervals or if you notice inconsistent readings. Replacement might be necessary if the sensor is exposed to extreme conditions outside its rated temperature ranges (0-60C storage, 0-50C operating) or if physical damage occurs.

Q: Where can I purchase or source the Pancake Compression Load Cell in India?

A: You can obtain this load cell from reputable dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers situated throughout India. Local availability ensures timely delivery and support.

Q: What process should I follow for exporting these load cells from India?

A: To export the load cell, connect with authorized exporters or manufacturers who comply with international shipping standards and certifications. They will guide you through packaging, documentation, and liaising with logistics partners to ensure safe and compliant overseas delivery.

Q: How does the accuracy of 0.1% improve measurement outcomes?

A: A 0.1% accuracy level significantly reduces measurement uncertainty, providing highly reliable force data. This precision is especially beneficial in quality control and advanced automation processes where even minor discrepancies can impact product integrity or research validity.

Q: What usage scenarios is this load cell most suited for?

A: Given its low-profile, high-accuracy design, the Pancake Compression Load Cell excels in material testing, press-force measurement, automation, and industrial weighing systems. Its particularly useful where space constraints and precision are critical.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Low Profile Pancake Load Cell' category

Miniature Pancake Load Cell Minimum Order Quantity : 1 Compensated Temperature : 10C to +60C Theory : Other, Resistance Strain Gauge Type : Miniature Pancake Load Cell Resistance : 350 (Input/Output) Accuracy : 0.1% F.S. Operating Voltage : 5V DC (Excitation) Operating Temperature : 20C to +80C Output Voltage : 1.0 2.0 mV/V Output : Other, Analog Voltage Storage Temperature : 30C to +100C

Send Inquiry

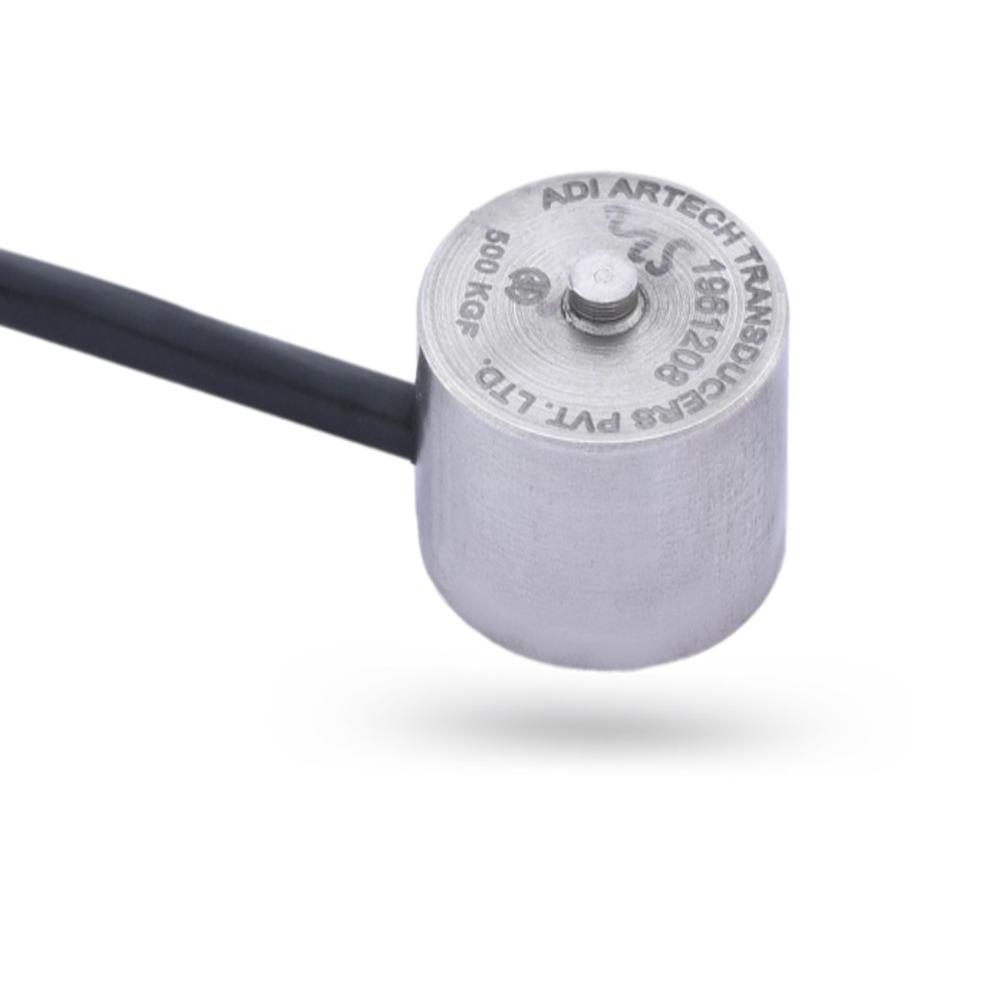

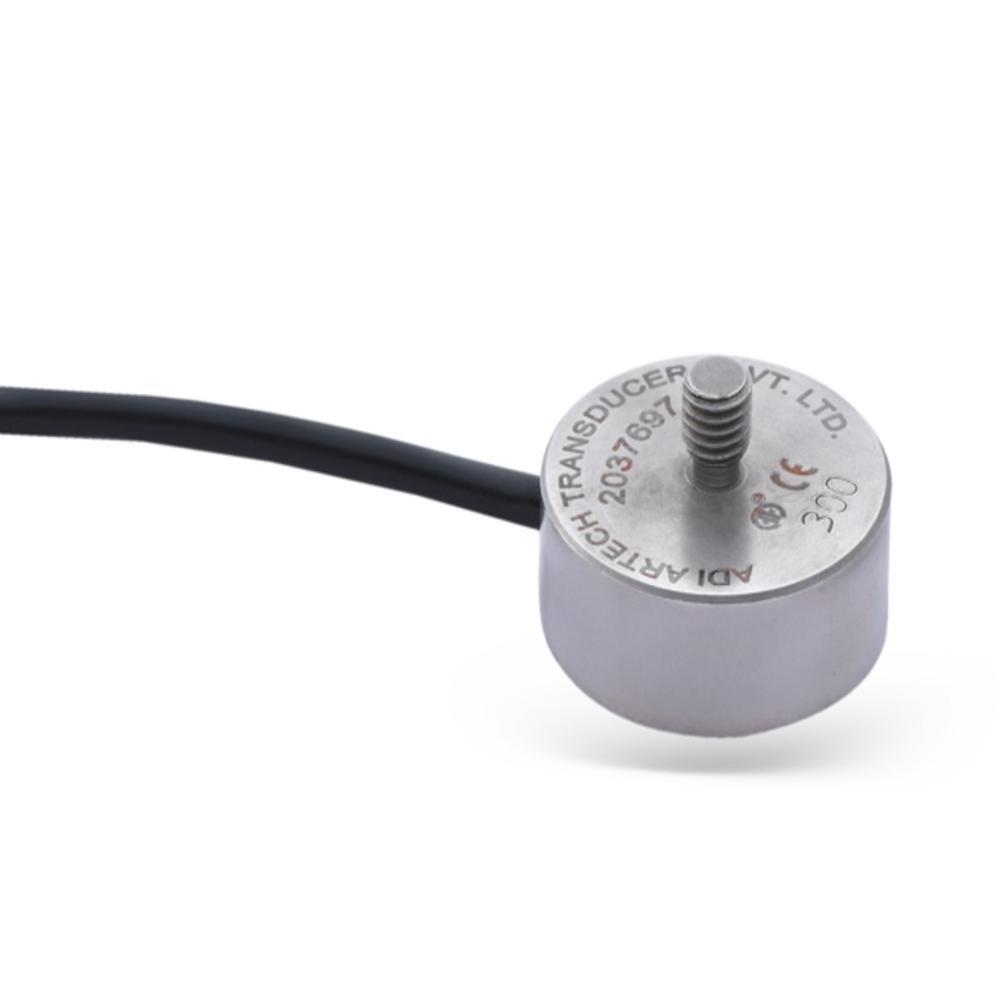

Mini Pancake Load Cell with Threaded loading Button Minimum Order Quantity : 1 Compensated Temperature : 10C to +40C Theory : Other, Strain Gauge Type : Mini Pancake Load Cell with Threaded loading Button Resistance : Input: 350 , Output: 350 Accuracy : 0.05% F.S. Operating Voltage : 5V to 12V DC Operating Temperature : 20C to +80C Output Voltage : 1.0mV/V nominal Output : Other, Analog Voltage Storage Temperature : 30C to +100C

Send Inquiry

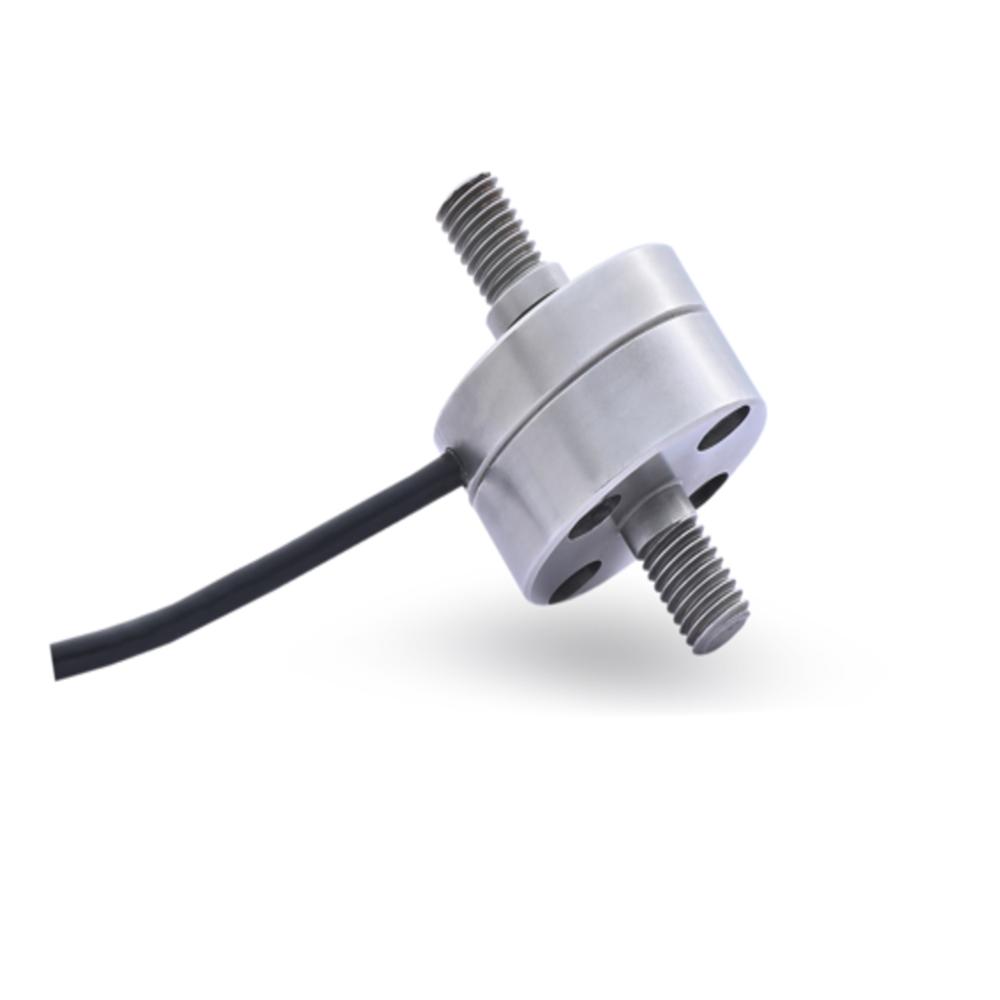

Mini pancake Load Cell Minimum Order Quantity : 1 Compensated Temperature : 10C to +40C Theory : Resistance Sensor Type : Mini Pancake Load Cell Resistance : 350 Accuracy : 0.05% F.S. Operating Voltage : 5V DC to 12V DC Operating Temperature : 20C to +65C Output Voltage : 1.0 mV/V to 2.0 mV/V Output : Other, Analog Storage Temperature : 30C to +80C
