Low Profile Pancake Load Cell

• Accuracy
• 0.1 % %

• Application
• Compression Testing , Tablet Hardness Tester ,Tank & Silo Weighing, Low Profile Floor Scale, Robotics & Automation

• Capacity
• 50 Kgf to 1000 Kgf , 1.5 Tf to 450 Tf Ton

• Classification
• Compression Type Load Cell (Low Profile)

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• SS 17-4 PH Stainless Steel , Tool Steel, Electroless Nickel Plated (for selected models)

• Operate Method
• Strain Gauge Based Measurement (Compression Loading with Integral Button)

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Pancake Compression Load Cell

• Resistance
• Input Resistance: 390 10 Ohms (up to 1000 Kgf) 770 20 Ohms (1.5T & Above),Output Resistance: 350 5 Ohms (up to 1000 Kgf) 700 7 Ohms (1.5T & Above)

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• PANCAKE BUTTON TYPE LOW PROFILE LOAD CELL

• Usage
• Force & Impact Testing,Compression Measurement, Weighing Applications

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1 KG(Approx.) Kilograms (kg)

• Accuracy
• 0.25% FSO %

• Application
• Compression & Tensile Force Testing, Impact Testing, Robotics, Pharma Machinery, Test Bench Automation

• Capacity
• 10, 20, 50, 100, 200, 500,1000 ,1500 Kg

• Classification
• Strain Gauge Based Compression & Tension Inline Load Cell

• Color
• Metallic (Natural Aluminum / Stainless Steel Finish)

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Aluminum Alloy / Stainless Steel 17-4 PH

• Operate Method
• Measures inline tensile and compressive forces through threaded mounting on both ends (M8 threads).

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 5~12V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.5 mV/V Volt (V)

• Power
• Externally powered via DC excitation supply Volt (v)

• Product Type
• Mini Pancake Inline Load Cell

• Resistance
• Input Resistance: 390 10 , Output Resistance: 350 3

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• S-Beam Load Cell

• Usage
• Used for inline force measurement where installation space is limited.

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.1% FSO %

• Application
• Material Testing Fatigue Testing Industrial Automation Robotics Research Uniaxial Testing Machines

• Capacity
• 50 KGF - 400 TON F Ton

• Classification
• Pancake Type Load Cell (Tension & Compression)

• Color
• Silver

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 50*24 Millimeter (mm)

• Material
• SS 17-4 PH Stainless Steel,High Tensile Grade Tool Steel,Electroless Nickel Plated (for selected models)

• Operate Method
• Strain Gauge Based Measurement (Axial Loading Tension/Compression)

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 10V DC (Recommended), Max 15V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Universal Pancake Load Cell (Strain Gauge Based Sensor)

• Resistance
• Input Resistance: 770 20 Ohms (2T & Above) 390 10 Ohms (Up to 1T), Output Resistance: 700 7 Ohms (2T & Above) 350 5 Ohms (Up to 1T)

• Storage Temperature
• 10 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type

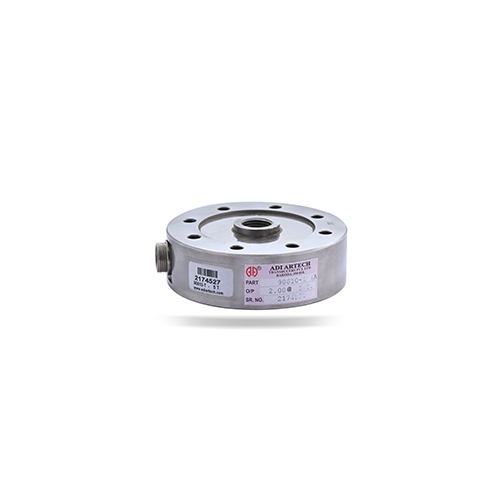

• Universal Pan Cake Load Cell

• Usage
• Static & Dynamic Force Measurement, Reference Standard, Force Calibration

• Voltage
• 10 VDC (Max 15 VDC) Volt (v)

• Weight
• 1 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.1% FSO %

• Application
• Tensile Testing, Force & Impact Testing, Robotics , Test Bench, Automation, Industrial Force Measurement

• Capacity
• 50, 100, 200, 500, 1000 Kg

• Classification
• Strain Gauge Based Compression Load Cell

• Color
• Silver

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 22*12*4 Millimeter (mm)

• Material
• Hardened Stainless Steel 17-4 PH

• Operate Method
• Strain Gauge Based Compression Type (Integral Load Button)

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 5V DC to 12V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.0 mV/V to 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Mini Pancake Compression Load Cell

• Resistance
• Input Resistance: 390 10 Ohms , Output Resistance: 350 3 Ohms

• Storage Temperature
• 10 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Mini Pancake Load Cell

• Usage
• Industrial force measurement in space-constrained applications

• Voltage
• 10 VDC (Max 15 VDC) Volt (v)

• Accuracy
• 0.25% FSO %

• Application
• Tension / Compression Testing, Force & Impact Testing, Robotics , Pharma Machinery ,Test Bench Automation , Spring Testing Machine, Pharmacy Machines

• Capacity
• 10, 20, 50, 100, 200, 500, 1000, 1500 Kg

• Classification
• Strain Gauge Based Compression Load Cell

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Aluminum Alloy (10, 20 Kgf), Stainless Steel 17-4 PH (50, 100 Kgf)

• Operate Method
• Strain Gauge Based Compression Loading through Threaded Button

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 5V to 12V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.50 mV/V 0.5 Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• from given pdf filr i need below point; Product type: Classification: Power: Voltage: Mterial: operate method: Accuracy: Type: Theory: Output: operating temperature: compensated temperature: Operating voltage: storage temoerature: output voltage: resistance: usage: Application: capacity

• Resistance
• Input Resistance: 390 25 Ohms, Output Resistance: 350 3 Ohms

• Storage Temperature
• 20 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Mini Pancake Load Cell with Threaded loading Button

• Usage
• Force measurement where space is constrained

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 500 Grams (g)
