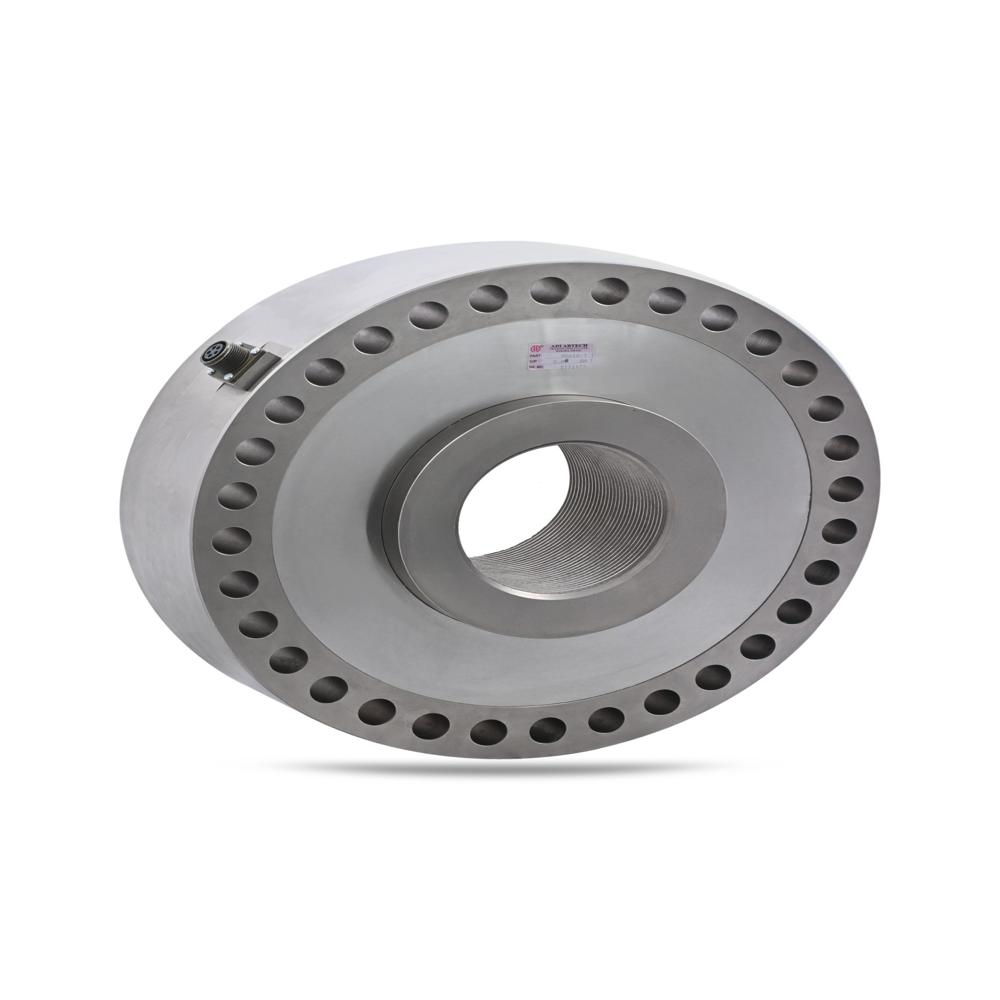

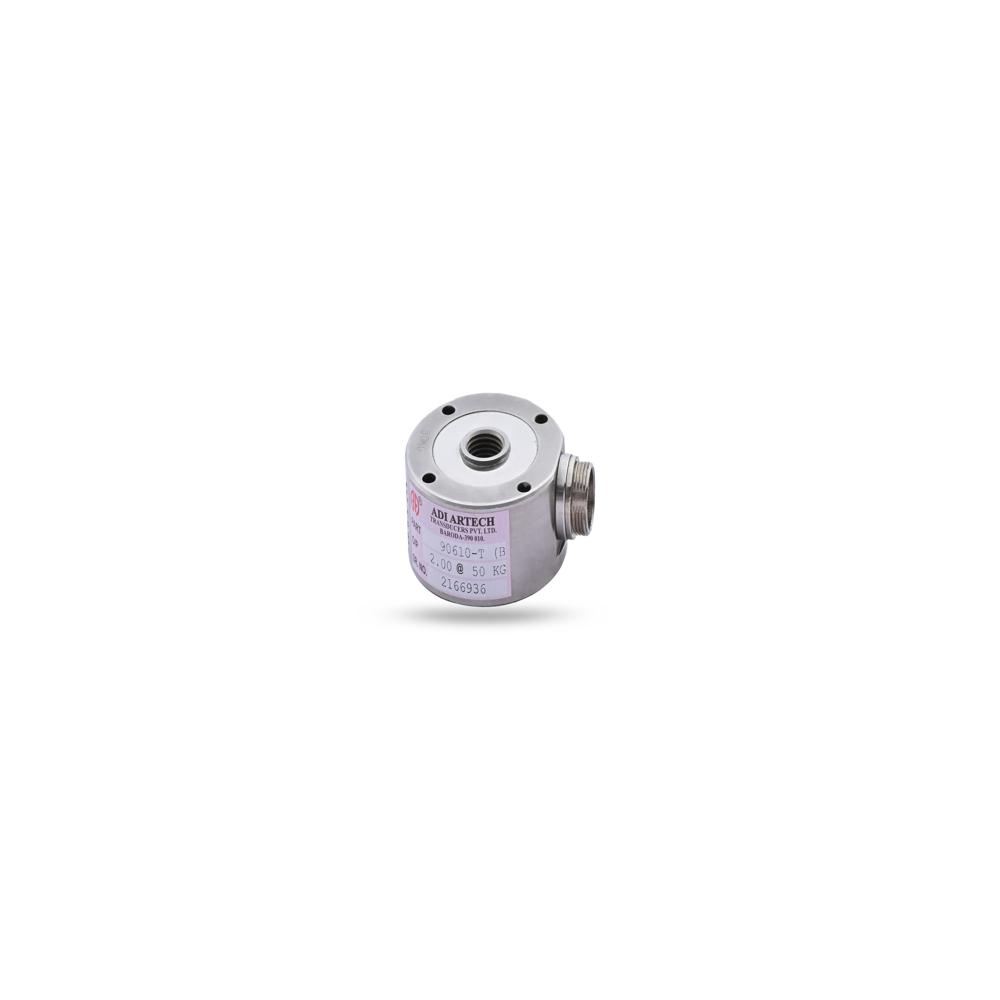

Universal Pan Cake Load Cell

11500.0 INR/Number

Get a Price/Quote

Product Details:

Resistance Input Resistance: 770 20 Ohms (2T & Above) 390 10 Ohms (Up to 1T), Output Resistance: 700 7 Ohms (2T & Above) 350 5 Ohms (Up to 1T)
Usage Static & Dynamic Force Measurement, Reference Standard, Force Calibration
Dimension (L*W*H) 50*24 Millimeter (mm)
Weight 1 KG(APPROX) Kilograms (kg)
Application Material Testing Fatigue Testing Industrial Automation Robotics Research Uniaxial Testing Machines
Voltage 10 VDC (Max 15 VDC) Volt (v)
Capacity 50 KGF - 400 TON F Ton
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Universal Pan Cake Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 11500.0 INR/Number

Universal Pan Cake Load Cell Product Specifications

Material SS 17-4 PH Stainless Steel,High Tensile Grade Tool Steel,Electroless Nickel Plated (for selected models)
Classification Pancake Type Load Cell (Tension & Compression)
Color Silver
Output Analog Sensor
Storage Temperature 10 C to 60 C Celsius (oC)
Weight 1 KG(APPROX) Kilograms (kg)
Application Material Testing Fatigue Testing Industrial Automation Robotics Research Uniaxial Testing Machines
Operate Method Strain Gauge Based Measurement (Axial Loading Tension/Compression)
Power 10 VDC Volt (v)
Dimension (L*W*H) 50*24 Millimeter (mm)
Compensated Temperature 0 C to 60 C Celsius (oC)
Product Type Universal Pancake Load Cell (Strain Gauge Based Sensor)
Capacity 50 KGF - 400 TON F Ton
Accuracy 0.1% FSO %
Type Universal Pan Cake Load Cell
Resistance Input Resistance: 770 20 Ohms (2T & Above) 390 10 Ohms (Up to 1T), Output Resistance: 700 7 Ohms (2T & Above) 350 5 Ohms (Up to 1T)
Operating Voltage 10V DC (Recommended), Max 15V DC Volt (V)
Output Voltage 2.0 mV/V Volt (V)
Usage Static & Dynamic Force Measurement, Reference Standard, Force Calibration
Voltage 10 VDC (Max 15 VDC) Volt (v)
Theory Resistance Sensor
Operating Temperature 0 C to 60 C Celsius (oC)

Universal Pan Cake Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST REPORT

Product Description

Product details

Allowable Side Load	50% of Rated Capacity
Cable Length	5 Meters
Deflection	< 0.4 mm at FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0-60 Degree C
Temperature Effect on Output	< 0.005% FSO/ 0C
Temperature Effect on Zero	< 0.005% FSO/ 0C
Ultimate Overload	200% of Rated Capacity
Safe Overload	150% of Rated Capacity
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Load Capacity	50kgf to 450TF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Nominal Sensitivity	2 mv/v
Type	Pan Cake
Usage/Application	Industrial

Pancake Load Cell Universal Type :

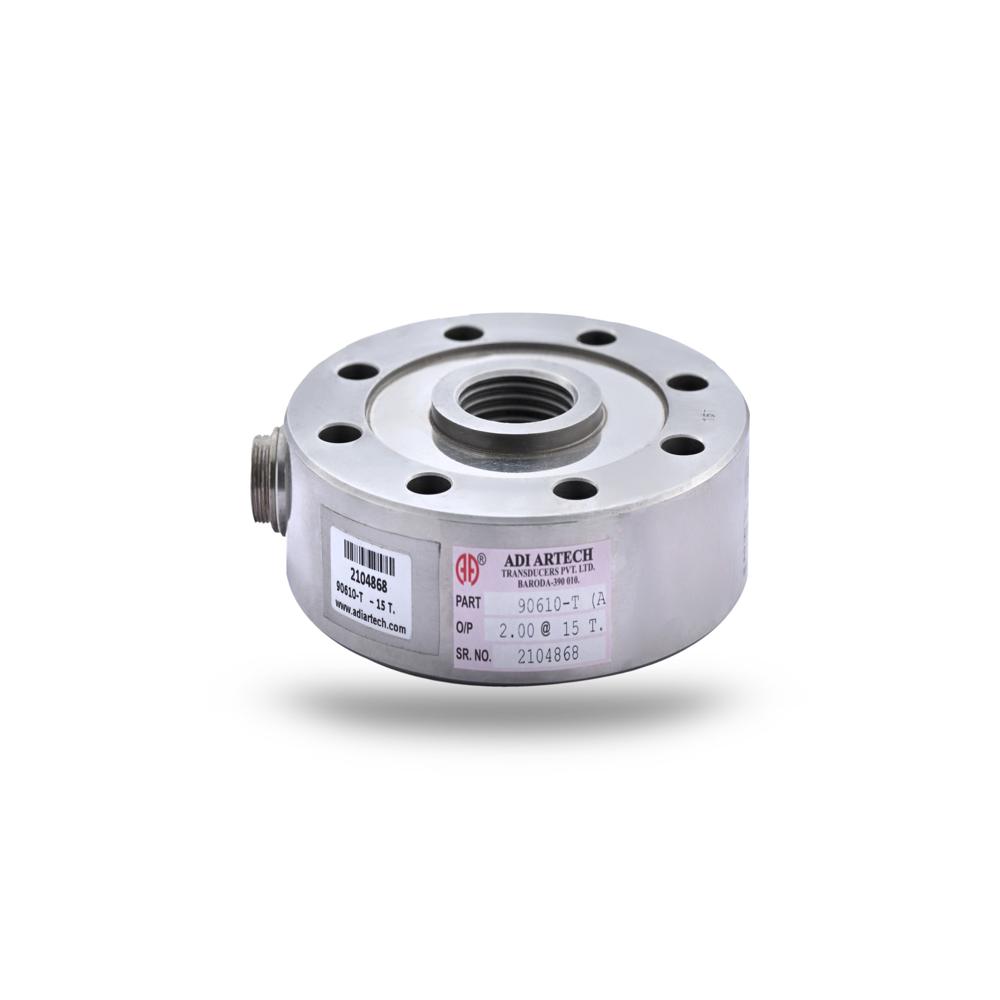

Model	:		90610-T
Capacity	:		0 - 50Kgf to 0 - 500Tf
Load Direction	:		Tension & Compression - Universal
Type	:		Pancake Load Cell
Industries		Defence Weighing Testing Machineries Tensile Testing Robotics R & D Establishments Material Testing Egineering & Technical Institutes Force & Reference Standard Metrology Laboratory Automotive Automation Machineries Aerospace

Applications

Actuator Force Measurement

Anchor Force Measurement

Automotive Research

Calibration of Load Cell and Force Sensor

Calibration of Universal Testing Machine

Compressive Force Measurement & Testing

Crash Test Dynamometer

Force & Impact Testing

Force Measurement Tension & or Compression Dynamometer

Hopper , Tank , Silo Weighing

Hydraulic Press Testing

Impact Force in Crash Test

Industrial Automation Equipments

Low Profile Floor Scale

Recoil Force in Rocket Engine Test

Description

90610-T is strain gage based force sensor with temperature compensation over 0 - 60 deg.C.
This is low profile thread type pancake force transducer in universal mode-for tension & compression force measurements.

Features	:		It is laser welded with IP-68 protection. It is very light weight and easy to install. Can be customized dimensionally and capacity wise to meet customer's specification. Dual bridge configuration can be offered for sensor redundancy.
Electronic Instrumentation / Software	:		Compatible Electronic Systems are available optionally- Stand alone digital display indicator. Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface. Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment. Data acquisition system and software. For more informations,please contact us.

High-Precision Force Measurement

The Universal Pan Cake Load Cell delivers exceptional accuracy, making it ideal for environments where precise force or weight readings are crucial. Its low tolerance rating ensures consistent measurement results even in demanding industrial conditions.

Reliable Strain Gauge Technology

Utilizing strain gauge theory, this load cell offers reliable and robust performance over time. The integrated strain gauge elements are engineered for minimal drift and high repeatability, supporting sustained usage in critical applications.

Flexible Supply and Wide Availability in India

This load cell is accessible through a comprehensive network of dealers, distributors, manufacturers, exporters, producers, suppliers, traders, and wholesalers throughout India. Customers can easily source it for their project or operational needs.

FAQs of Universal Pan Cake Load Cell:

Q: How does the Universal Pan Cake Load Cell ensure high measurement accuracy?

A: The Universal Pan Cake Load Cell achieves high measurement accuracy (0.05% to 0.1% F.S.) by utilizing advanced strain gauge technology and precision engineering. This setup minimizes errors and ensures reliable force or weight readings in industrial applications.

Q: What is the recommended range for operating voltage and compensated temperature for this load cell?

A: The load cell operates optimally at a recommended voltage of 10V DC and can withstand up to 15V DC. It is compensated for temperatures between +10C and +40C, guaranteeing stable performance within this range.

Q: When should I consider using a Universal Pan Cake Load Cell in my operations?

A: You should consider this load cell when your application requires accurate and repeatable force or weight measurement, especially in quality-critical environments such as production lines, testing rigs, or load monitoring setups.

Q: Where can I purchase Universal Pan Cake Load Cells in India?

A: These load cells are widely available through authorized dealers, distributors, manufacturers, exporters, suppliers, traders, and wholesalers across India, ensuring easy procurement regardless of your location.

Q: What is the process for installing and integrating this load cell?

A: Installation involves mounting the load cell as per design requirements and connecting the electrical wiring according to manufacturer guidelines. Calibration should be performed to optimize accuracy before regular use.

Q: How does using a strain gauge-based load cell benefit my measurement system?

A: Strain gauge-based load cells offer superior accuracy, wide dynamic range, and resistance to mechanical fatigue. This enhances the reliability of your measurement system and ensures dependable data over prolonged usage.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Low Profile Pancake Load Cell' category

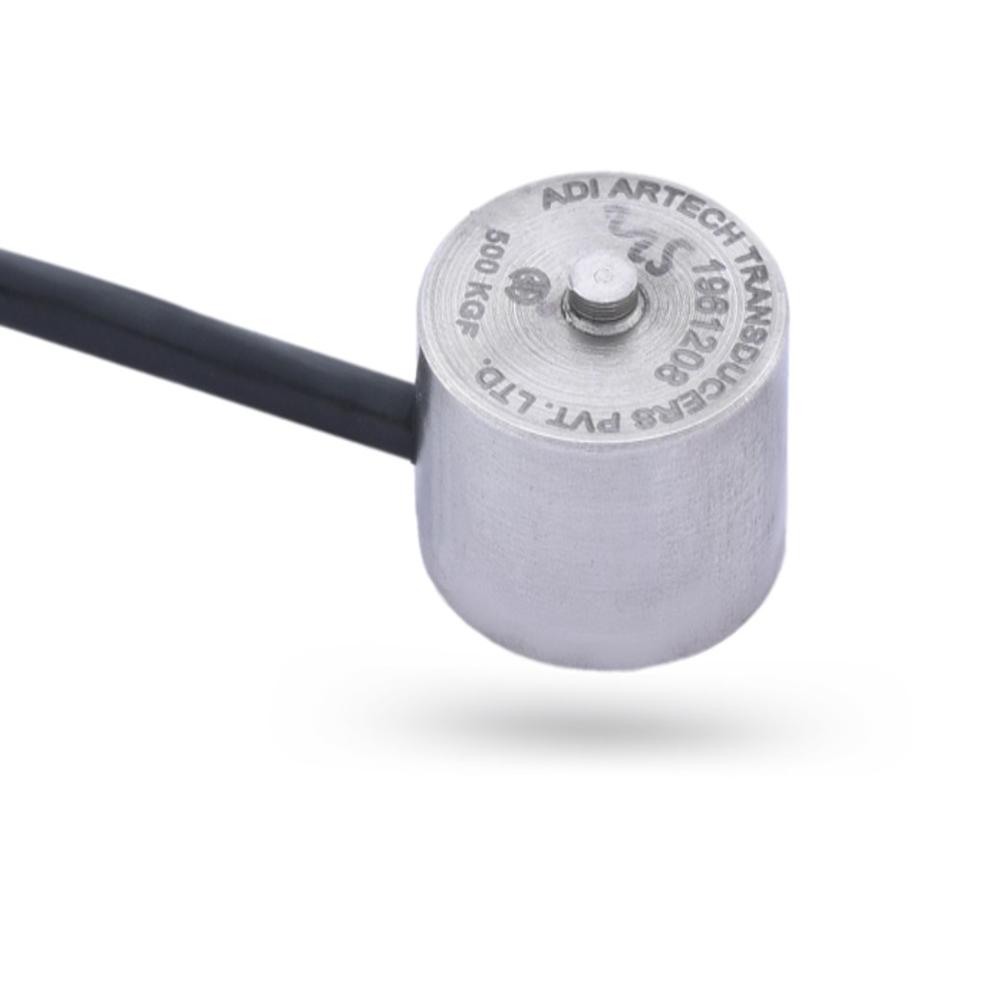

Mini pancake Load Cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Output Voltage : 1.0 mV/V to 2.0 mV/V Volt (V) Operating Voltage : 5V DC to 12V DC Volt (V) Resistance : Input Resistance: 390 10 Ohms , Output Resistance: 350 3 Ohms Accuracy : 0.1% FSO % Type : Mini Pancake Load Cell Operating Temperature : 0 C to 60 C Celsius (oC) Theory : Resistance Sensor Storage Temperature : 10 C to 60 C Celsius (oC) Output : Analog Sensor Compensated Temperature : 0 C to 60 C Celsius (oC) Usage : Industrial force measurement in spaceconstrained applications Capacity : 50, 100, 200, 500, 1000 Kg Voltage : 10 VDC (Max 15 VDC) Volt (v) Application : Tensile Testing, Force & Impact Testing, Robotics , Test Bench, Automation, Industrial Force Measurement Classification : Strain Gauge Based Compression Load Cell Material : Hardened Stainless Steel 174 PH Product Type : Mini Pancake Compression Load Cell Power : 10 VDC Volt (v) Operate Method : Strain Gauge Based Compression Type (Integral Load Button) Color : Silver

Send Inquiry

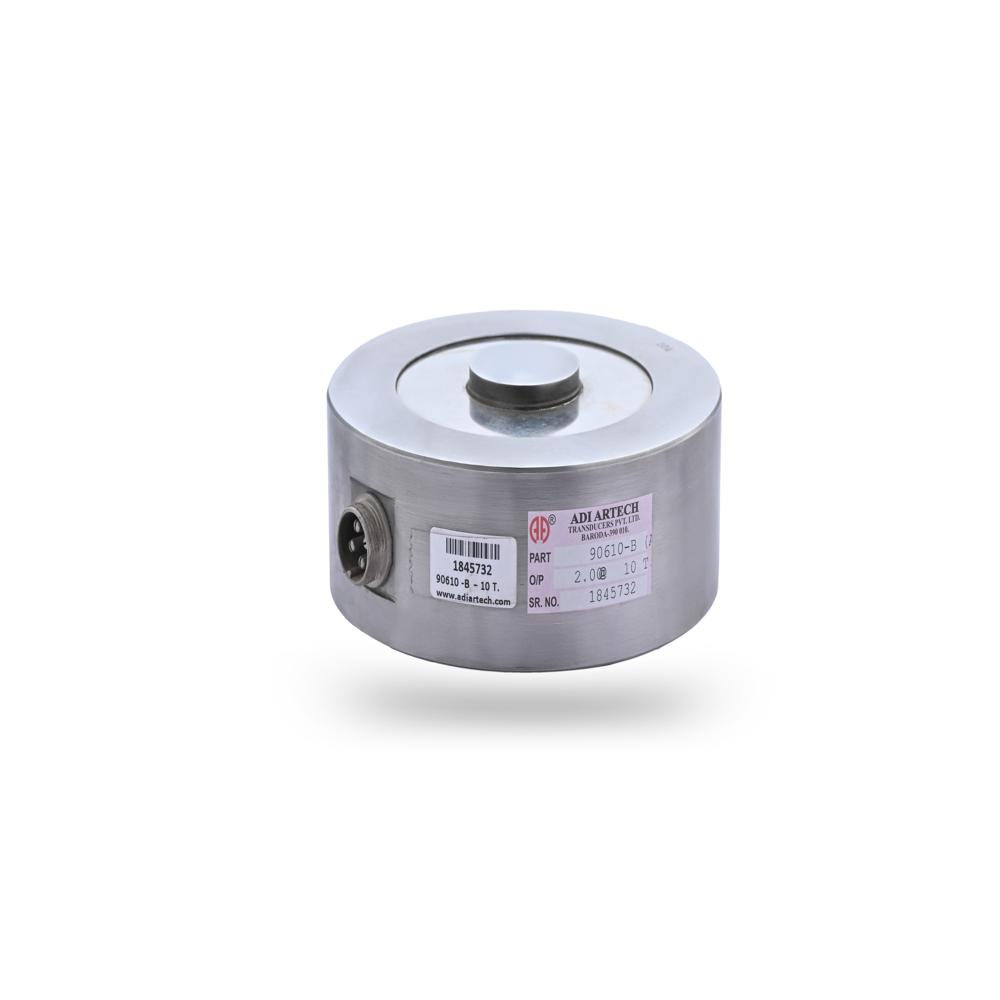

Pancake Compression Load cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Output Voltage : 2.0 mV/V Volt (V) Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 390 10 Ohms (up to 1000 Kgf) 770 20 Ohms (1.5T & Above),Output Resistance: 350 5 Ohms (up to 1000 Kgf) 700 7 Ohms (1.5T & Above) Accuracy : 0.1 % % Type : PANCAKE BUTTON TYPE LOW PROFILE LOAD CELL Operating Temperature : 050 Celsius (oC) Theory : Resistance Sensor Storage Temperature : 060 Celsius (oC) Output : Analog Sensor Compensated Temperature : 1050 Celsius (oC) Usage : Force & Impact Testing,Compression Measurement, Weighing Applications Capacity : 50 Kgf to 1000 Kgf , 1.5 Tf to 450 Tf Ton Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Application : Compression Testing , Tablet Hardness Tester ,Tank & Silo Weighing, Low Profile Floor Scale, Robotics & Automation Classification : Compression Type Load Cell (Low Profile) Material : SS 174 PH Stainless Steel , Tool Steel, Electroless Nickel Plated (for selected models) Product Type : Pancake Compression Load Cell Power : 10 VDC Volt (v) Operate Method : Strain Gauge Based Measurement (Compression Loading with Integral Button) Weight : 1 KG(Approx.) Kilograms (kg) Color : Silver
