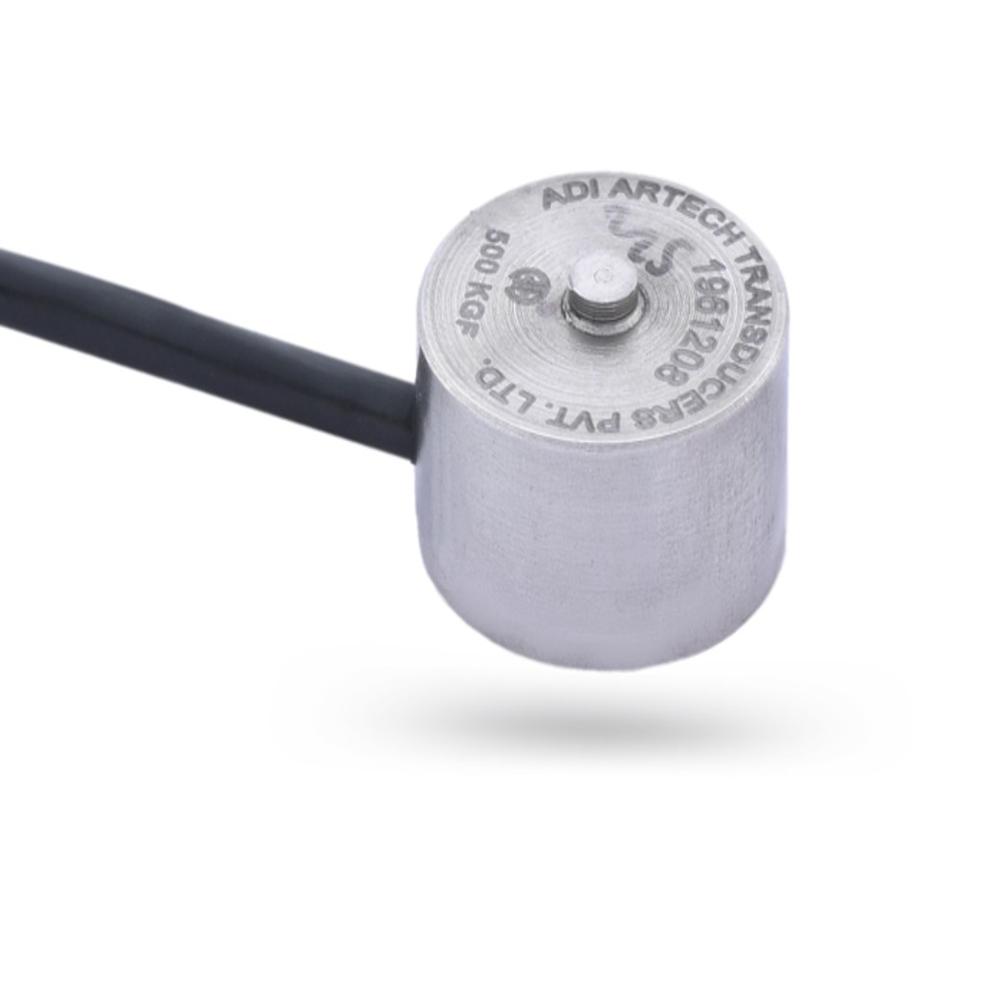

Mini pancake Load Cell

11500.0 INR/Number

Get a Price/Quote

Product Details:

Operate Method Strain Gauge Based Compression Type (Integral Load Button)
Resistance Input Resistance: 390 10 Ohms , Output Resistance: 350 3 Ohms
Capacity 50, 100, 200, 500, 1000 Kg
Power 10 VDC Volt (v)
Application Tensile Testing, Force & Impact Testing, Robotics , Test Bench, Automation, Industrial Force Measurement
Material Hardened Stainless Steel 17-4 PH
Usage Industrial force measurement in space-constrained applications
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Mini pancake Load Cell Price And Quantity

Price 11500.0 INR/Number
Minimum Order Quantity 1 Number

Safe Overload 150% of Rated Capacity
Protection Class IP65
Mounting Through-hole (center tapped holes)
Dimensions Miniature, typically 35mm diameter 12mm height
Cable Length 2 meters (standard)
Material Stainless Steel
Capacity Range 10kg, 20kg, 50kg, 100kg (customized options available)
Creep (30 min) 0.03% F.S.
Ultimate Overload 200% of Rated Capacity
Connector Type Shielded cable
Application Force measurement, industrial weighing, automation, feedback control, robotics
Zero Balance 1% F.S.

Mini pancake Load Cell Product Specifications

Operate Method Strain Gauge Based Compression Type (Integral Load Button)
Capacity 50, 100, 200, 500, 1000 Kg
Output Voltage 1.0 mV/V to 2.0 mV/V Volt (V)
Theory Resistance Sensor
Resistance Input Resistance: 390 10 Ohms , Output Resistance: 350 3 Ohms
Material Hardened Stainless Steel 17-4 PH
Type Mini Pancake Load Cell
Output Analog Sensor
Classification Strain Gauge Based Compression Load Cell
Application Tensile Testing, Force & Impact Testing, Robotics , Test Bench, Automation, Industrial Force Measurement
Color Silver
Voltage 10 VDC (Max 15 VDC) Volt (v)
Product Type Mini Pancake Compression Load Cell
Operating Voltage 5V DC to 12V DC Volt (V)
Usage Industrial force measurement in space-constrained applications
Power 10 VDC Volt (v)
Dimension (L*W*H) 22*12*4 Millimeter (mm)
Compensated Temperature 0 C to 60 C Celsius (oC)
Storage Temperature 10 C to 60 C Celsius (oC)
Accuracy 0.1% FSO %
Operating Temperature 0 C to 60 C Celsius (oC)

Safe Overload 150% of Rated Capacity
Protection Class IP65
Mounting Through-hole (center tapped holes)
Dimensions Miniature, typically 35mm diameter 12mm height
Cable Length 2 meters (standard)
Material Stainless Steel
Capacity Range 10kg, 20kg, 50kg, 100kg (customized options available)
Creep (30 min) 0.03% F.S.
Ultimate Overload 200% of Rated Capacity
Connector Type Shielded cable
Application Force measurement, industrial weighing, automation, feedback control, robotics
Zero Balance 1% F.S.

Mini pancake Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Product details

Cable Length (4 Core Screened)	1 Meter
Material	Stainless Steel
Insulation Resistance	1000 Mega Ohms
Operating Temperature	0 to 60D C
Excitation Voltage	10 VDC -15 VDC
Output Resistance	350 +- 5 Ohms
Input Resistance	350 +- 5 Ohms
Capacity	Up to 1TF
Load Capacity	Up to 1TF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Shape	Round
Nominal Sensitivity	2 mv/v
Type	Pan Cake mini
Usage/Application	Industrial

Mini pancake Load Cell

Model	:	90610-M
Capacity	:	0-50Kgf to 0-1000Kgf
Load Direction	:	Compression only
Type	:	Pancake Load Cell

Industries

Robotics
Pharmaceutical
Manufacturing

Application

Brake Force Measurement
Impact Measurement
Industrial Automation Equipments
Pedal Force Monitor
Pharmaceutical Machines

Description

90610-M is miniature pancake type load cell.
It is strain gage based sensor with temperature compensation over 0 - 60 deg.C.

Features

This is very small size and finds applications where space is constrain.
It can be customized to customer's specification.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For more information,please contact us.

Precision Measurement in a Compact Design

Thanks to its miniature footprint and robust stainless steel construction, this mini pancake load cell fits into tight spaces while providing highly accurate force readings. It is suitable for demanding environments, offering IP65 protection and exceptional overload tolerance. The device is ideal for applications requiring precise measurement and reliable feedback, such as industrial automation and robotics.

Flexible Capacities and Easy Integration

Available in 10kg, 20kg, 50kg, and 100kg capacities, this load cell can also be customized to meet specific requirements. It features center tapped through-hole mounting, facilitating straightforward installation within mechanical assemblies. The included 2-meter shielded cable ensures signal integrity, while the analog output and broad voltage compatibility enable seamless connection with most standard instrumentation.

FAQs of Mini pancake Load Cell:

Q: How is the mini pancake load cell installed in industrial systems?

A: The load cell features a center through-hole with tapped threads for secure mounting, making it easy to integrate in machinery or platforms that require force measurement. Its compact size (35mm diameter 12mm height) allows it to fit in tight or limited spaces.

Q: What are the main benefits of using a stainless steel mini pancake load cell?

A: Constructed from stainless steel, the load cell provides durability, corrosion resistance, and long-term stability, making it well-suited for challenging industrial environments. Its compact design enables precise measurements even in space-constrained applications.

Q: When should I choose a customized capacity for this load cell?

A: Customization is beneficial when your application requires force measurement outside the standard 10kg, 20kg, 50kg, or 100kg options. Custom capacities ensure optimal accuracy and reliability tailored to your specific operational requirements.

Q: Where can the mini pancake load cell be used?

A: This load cell is versatile and can be utilized in various scenarios, such as force measurement, industrial weighing systems, automation processes, robotics, and feedback control applications, typically within manufacturing and research settings.

Q: What is the process for connecting the load cell to measurement equipment?

A: The device comes with a 2-meter shielded cable and analog output (1.0 mV/V to 2.0 mV/V), which is compatible with most digital amplifiers or data acquisition systems. Simply wire the cable to your instrument, ensuring a stable 5V to 12V DC input voltage supply.

Q: How does the IP65 protection rating benefit users?

A: The IP65 rating indicates that the load cell is dust-tight and resistant to water jets, providing reliable operation in dusty or moderately wet environments, and thereby protecting internal components during standard industrial use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Low Profile Pancake Load Cell' category

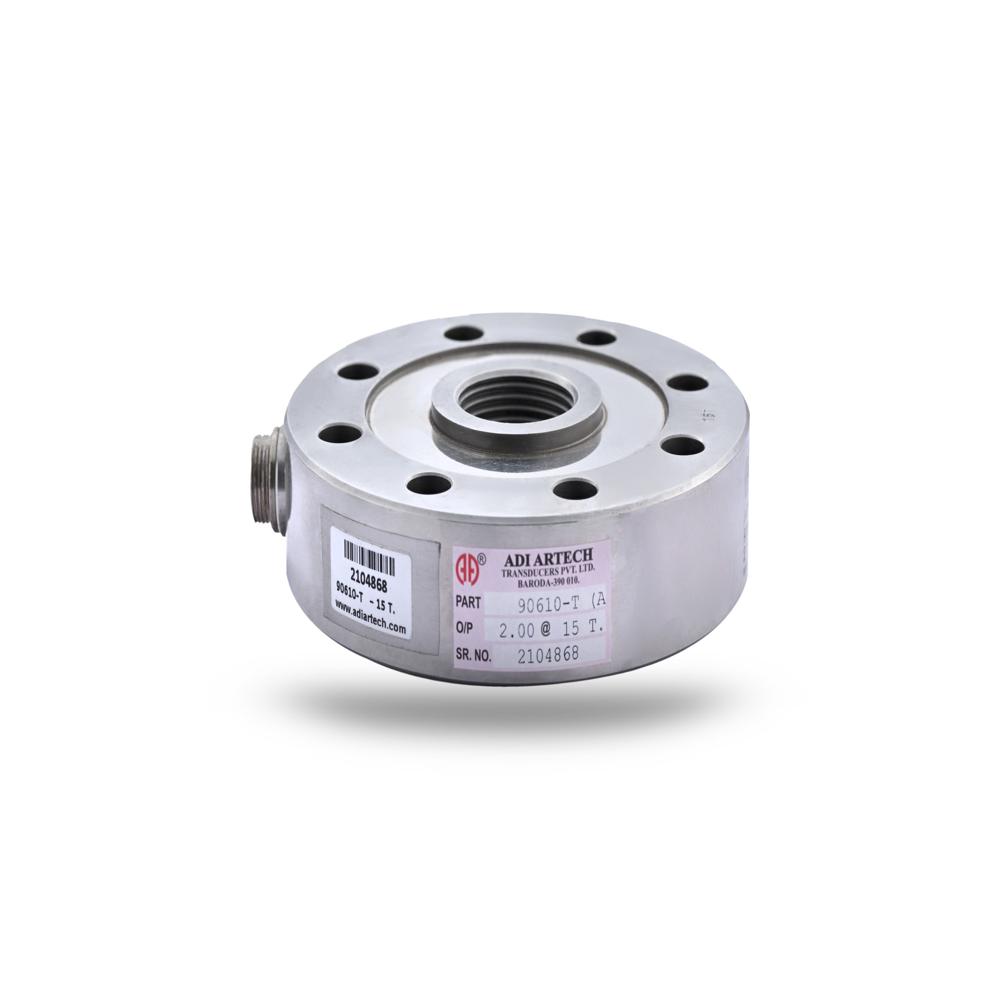

Universal Pan Cake Load Cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 0 C to 60 C Celsius (oC) Accuracy : 0.1% FSO % Storage Temperature : 10 C to 60 C Celsius (oC) Compensated Temperature : 0 C to 60 C Celsius (oC) Operating Voltage : 10V DC (Recommended), Max 15V DC Volt (V) Resistance : Input Resistance: 770 20 Ohms (2T & Above) 390 10 Ohms (Up to 1T), Output Resistance: 700 7 Ohms (2T & Above) 350 5 Ohms (Up to 1T) Theory : Resistance Sensor Output Voltage : 2.0 mV/V Volt (V) Output : Analog Sensor Type : Universal Pan Cake Load Cell Voltage : 10 VDC (Max 15 VDC) Volt (v) Product Type : Universal Pancake Load Cell (Strain Gauge Based Sensor) Application : Material Testing Fatigue Testing Industrial Automation Robotics Research Uniaxial Testing Machines Classification : Pancake Type Load Cell (Tension & Compression) Usage : Static & Dynamic Force Measurement, Reference Standard, Force Calibration Power : 10 VDC Volt (v) Material : SS 174 PH Stainless Steel,High Tensile Grade Tool Steel,Electroless Nickel Plated (for selected models) Capacity : 50 KGF 400 TON F Ton Operate Method : Strain Gauge Based Measurement (Axial Loading Tension/Compression) Weight : 1 KG(APPROX) Kilograms (kg) Color : Silver
