MINI PAN CAKE INLINE LOAD CELL

15500.0 INR/Number

Get a Price/Quote

Product Details:

Resistance Input Resistance: 390 10 , Output Resistance: 350 3
Operate Method Measures inline tensile and compressive forces through threaded mounting on both ends (M8 threads).
Application Compression & Tensile Force Testing, Impact Testing, Robotics, Pharma Machinery, Test Bench Automation
Classification Strain Gauge Based Compression & Tension Inline Load Cell
Material Aluminum Alloy / Stainless Steel 17-4 PH
Color Metallic (Natural Aluminum / Stainless Steel Finish)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

MINI PAN CAKE INLINE LOAD CELL Price And Quantity

Price 15500.0 INR/Number
Minimum Order Quantity 1

Maximum Capacity 10 kg to 5,000 kg
Ingress Protection IP67
Application Weighing, Force Measurement, Industrial Automation
Material Alloy Steel or Stainless Steel
Dimensions Customized as per model
Mounting Threaded hole, center through-hole
Load Direction Tension & Compression
Cable Length 3 meters (standard)

MINI PAN CAKE INLINE LOAD CELL Product Specifications

Classification Strain Gauge Based Compression & Tension Inline Load Cell
Usage Used for inline force measurement where installation space is limited.
Operating Voltage 5~12V DC Volt (V)
Resistance Input Resistance: 390 10 , Output Resistance: 350 3
Operate Method Measures inline tensile and compressive forces through threaded mounting on both ends (M8 threads).
Application Compression & Tensile Force Testing, Impact Testing, Robotics, Pharma Machinery, Test Bench Automation
Operating Temperature 0 C to 50 C Celsius (oC)
Color Metallic (Natural Aluminum / Stainless Steel Finish)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Accuracy 0.25% FSO %
Compensated Temperature 0 C to 50 C Celsius (oC)
Output Voltage 1.5 mV/V Volt (V)
Storage Temperature 0 C to 50 C Celsius (oC)
Theory Resistance Sensor
Type S-Beam Load Cell
Output Analog Sensor
Material Aluminum Alloy / Stainless Steel 17-4 PH
Product Type Mini Pancake Inline Load Cell
Capacity 10, 20, 50, 100, 200, 500,1000 ,1500 Kg
Power Externally powered via DC excitation supply Volt (v)

Maximum Capacity 10 kg to 5,000 kg
Ingress Protection IP67
Application Weighing, Force Measurement, Industrial Automation
Material Alloy Steel or Stainless Steel
Dimensions Customized as per model
Mounting Threaded hole, center through-hole
Load Direction Tension & Compression
Cable Length 3 meters (standard)

MINI PAN CAKE INLINE LOAD CELL Trade Information

FOB Port VADODARA
Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 15 Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Western Europe, Eastern Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

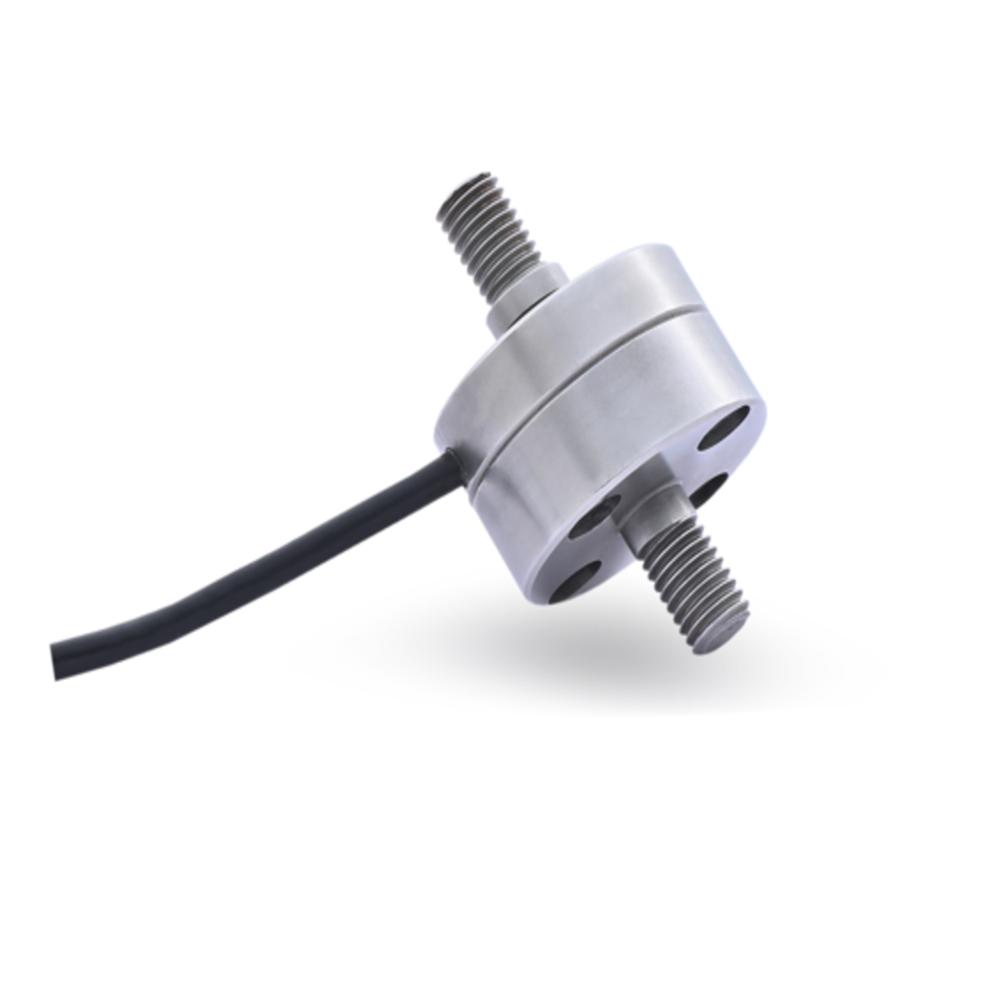

The 90610MTH-U Mini Pan Cake Inline Load Cell is a compact, strain gaugebased sensor designed for tension and compression inline force measurement where installation space is limited.

Built from Aluminum Alloy or Stainless Steel 17-4 PH, this load cell is suitable for harsh and hygienic industrial environments. It features M8 threaded mounting on both ends, allowing easy integration into machinery for tensile or compressive applications.

With IP65 environmental protection and temperature compensation from 0C to 50C, the sensor ensures stable and reliable performance. It is available in capacities ranging from 10 Kgf to 1.5 Ton Force, with higher capacities available upon request.

Key Highlights

Compact Mini Pancake design

Measures both tension and compression forces

Standard output: 1.5 mV/V

IP65 protection class

Safe overload: 150%

Ultimate overload: 250%

Excitation voltage: 10 VDC (Max 15 VDC)

2-meter 4-core screened cable

Frequently Asked Questions (FAQs)

1 What type of load cell is this?

It is a Mini Pancake Inline Load Cell designed for both tension and compression measurements.

2 What capacities are available?

Standard capacities include:
10, 20, 50, 100, 200, 500 Kgf, 1 Tf, and 1.5 Tf.

3 What material options are available?

Aluminum Alloy
Stainless Steel 17-4 PH

4 What is the accuracy level?

Non-linearity: < 0.25% FSO
Hysteresis: < 0.1% FSO
Non-repeatability: < 0.1% FSO
Creep (30 min): < 0.03% FSO

5 What is the operating temperature range?

Temperature compensated range: 0C to 50C.

6 Is it suitable for harsh environments?

Yes. It offers IP65 protection, making it resistant to dust and water ingress.

7 Where is this load cell commonly used?

It is widely used in:

Compression & tensile force testing
Robotics
Pharma machinery
Automation systems
Test benches
Impact testing

8 Are digital output options available?

Yes. Optional versions are available with:

420 mA or 02 V output
RS-485 interface
USB output
Bluetooth or wireless telemetry
Software for analysis and reporting

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Low Profile Pancake Load Cell' category

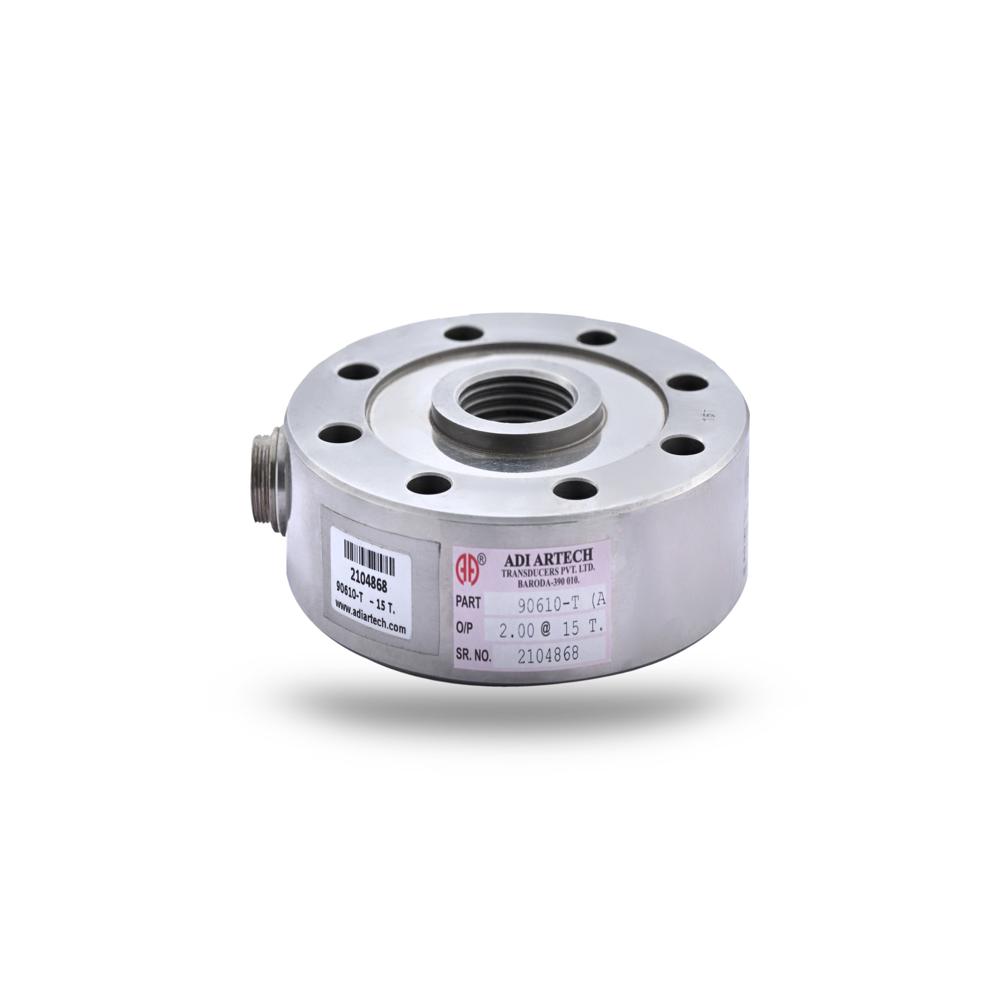

Universal Pan Cake Load Cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain Gauge Based Measurement (Axial Loading Tension/Compression) Application : Material Testing Fatigue Testing Industrial Automation Robotics Research Uniaxial Testing Machines Resistance : Input Resistance: 770 20 Ohms (2T & Above) 390 10 Ohms (Up to 1T), Output Resistance: 700 7 Ohms (2T & Above) 350 5 Ohms (Up to 1T) Operating Temperature : 0 C to 60 C Celsius (oC) Classification : Pancake Type Load Cell (Tension & Compression) Operating Voltage : 10V DC (Recommended), Max 15V DC Volt (V) Material : SS 174 PH Stainless Steel,High Tensile Grade Tool Steel,Electroless Nickel Plated (for selected models) Storage Temperature : 10 C to 60 C Celsius (oC) Output Voltage : 2.0 mV/V Volt (V) Compensated Temperature : 0 C to 60 C Celsius (oC) Accuracy : 0.1% FSO % Type : Universal Pan Cake Load Cell Voltage : 10 VDC (Max 15 VDC) Volt (v) Usage : Static & Dynamic Force Measurement, Reference Standard, Force Calibration Output : Analog Sensor Power : 10 VDC Volt (v) Product Type : Universal Pancake Load Cell (Strain Gauge Based Sensor) Capacity : 50 KGF 400 TON F Ton Theory : Resistance Sensor Weight : 1 KG(APPROX) Kilograms (kg) Color : Silver Dimension (L*W*H) : 50*24 Millimeter (mm)

Send Inquiry

Mini pancake Load Cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain Gauge Based Compression Type (Integral Load Button) Application : Tensile Testing, Force & Impact Testing, Robotics , Test Bench, Automation, Industrial Force Measurement Resistance : Input Resistance: 390 10 Ohms , Output Resistance: 350 3 Ohms Operating Temperature : 0 C to 60 C Celsius (oC) Classification : Strain Gauge Based Compression Load Cell Operating Voltage : 5V DC to 12V DC Volt (V) Material : Hardened Stainless Steel 174 PH Storage Temperature : 10 C to 60 C Celsius (oC) Output Voltage : 1.0 mV/V to 2.0 mV/V Volt (V) Compensated Temperature : 0 C to 60 C Celsius (oC) Accuracy : 0.1% FSO % Type : Mini Pancake Load Cell Voltage : 10 VDC (Max 15 VDC) Volt (v) Usage : Industrial force measurement in spaceconstrained applications Output : Analog Sensor Power : 10 VDC Volt (v) Product Type : Mini Pancake Compression Load Cell Capacity : 50, 100, 200, 500, 1000 Kg Theory : Resistance Sensor Color : Silver Dimension (L*W*H) : 22*12*4 Millimeter (mm)

Send Inquiry

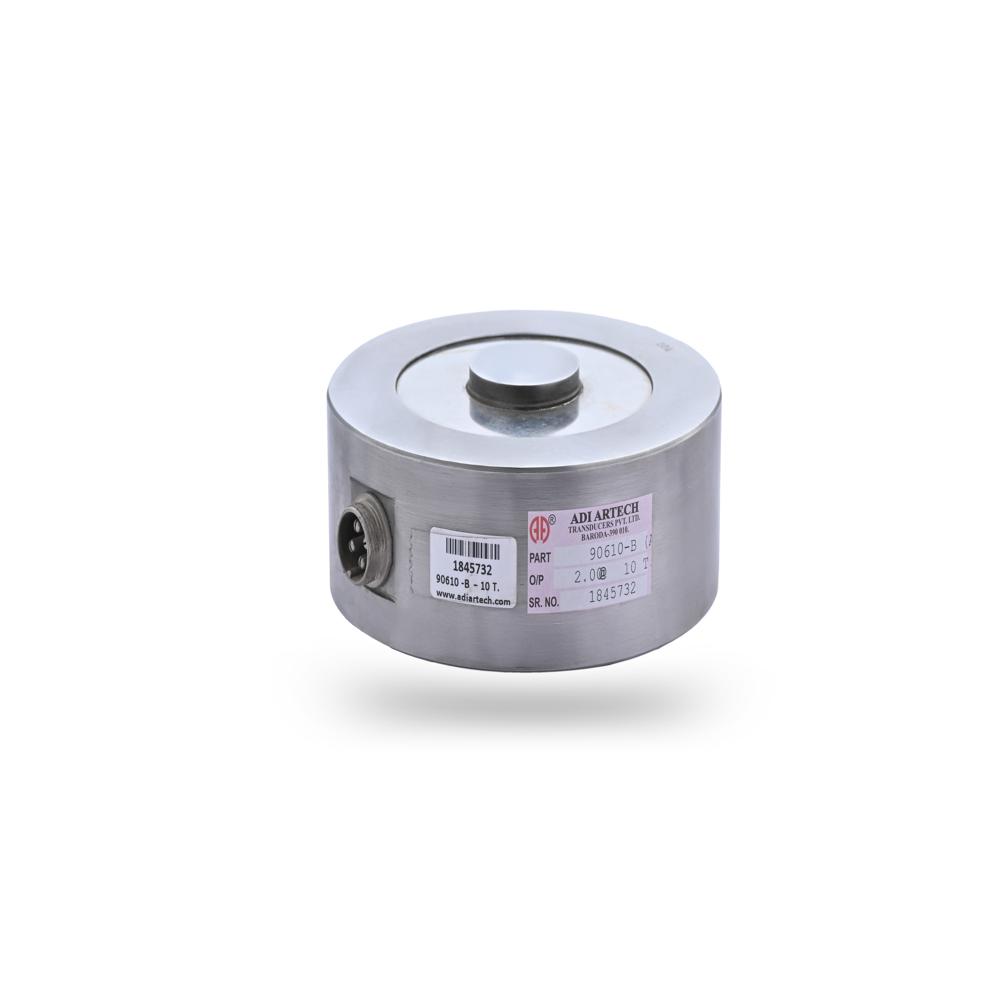

Pancake Compression Load cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain Gauge Based Measurement (Compression Loading with Integral Button) Application : Compression Testing , Tablet Hardness Tester ,Tank & Silo Weighing, Low Profile Floor Scale, Robotics & Automation Resistance : Input Resistance: 390 10 Ohms (up to 1000 Kgf) 770 20 Ohms (1.5T & Above),Output Resistance: 350 5 Ohms (up to 1000 Kgf) 700 7 Ohms (1.5T & Above) Operating Temperature : 050 Celsius (oC) Classification : Compression Type Load Cell (Low Profile) Operating Voltage : 510 Volt (V) Material : SS 174 PH Stainless Steel , Tool Steel, Electroless Nickel Plated (for selected models) Storage Temperature : 060 Celsius (oC) Output Voltage : 2.0 mV/V Volt (V) Compensated Temperature : 1050 Celsius (oC) Accuracy : 0.1 % % Type : PANCAKE BUTTON TYPE LOW PROFILE LOAD CELL Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Usage : Force & Impact Testing,Compression Measurement, Weighing Applications Output : Analog Sensor Power : 10 VDC Volt (v) Product Type : Pancake Compression Load Cell Capacity : 50 Kgf to 1000 Kgf , 1.5 Tf to 450 Tf Ton Theory : Resistance Sensor Weight : 1 KG(Approx.) Kilograms (kg) Color : Silver
