Calibration Grade Load Cell

Discover the strength and durability of our Calibration Grade Load Cell, designed for manufacturers, suppliers, and exporters seeking peerless accuracy in force measurement. With over 35 years of exclusive expertise, we deal in prime products like the Calibration Master Load Cell and Compression Calibration Grade Load Cell, ensuring every unit upholds the highest standards of performance. Personalise your solutions with our astounding supply ability, reaching all of India domestically and exporting across Asia, Eastern Europe, and the Middle East. Our Calibration Grade Load Cell stands out with its unmatched high precision, supreme long-term stability, rugged construction for enduring the harshest environments, user-friendly installation process, and reliable repeatability-features that position this load cell as the prime choice for critical calibration applications. Rely on our decades of experience to deliver tailored solutions and the peerless support you deserve, making us your preferred partner for all calibration needs.

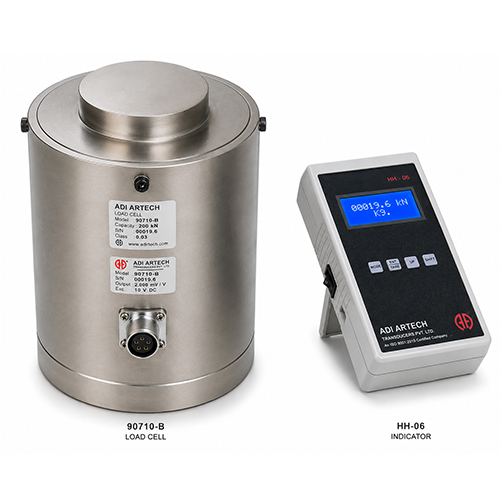

Compression Calibration Grade Load Cell

Price 20000.0 INR/ Number

MOQ : 1 Number

  • Accuracy
  • ISO 376:2011 Class 1, Class 0.5, Class 00 %
  • Application
  • Compression Force Testing, Hydraulic Press, Force Calibration Laboratories, Civil & Construction Material Testing, Pile & Structure Testing
  • Capacity
  • 300, 500, 750, 1000, 2000, 3000, 5000, 7500, 10000 kN Kg
  • Classification
  • Strain Gauge Based Compression Load Cell
  • Compensated Temperature
  • 10 C to 50 C Celsius (oC)
  • Material
  • Electroless Nickel-Plated Tool Steel / SS 17-4 PH
  • Operate Method
  • Compression Force Measurement
  • Operating Temperature
  • 0 C to 55 C Celsius (oC)
  • Operating Voltage
  • 10 VDC (Max. 15 VDC) Volt (V)
  • Output
  • Analog Sensor
  • Output Voltage
  • 2.00 mV/V Volt (V)
  • Product Type
  • Compression Calibration Grade Load Cell
  • Resistance
  • Input: 770 5 , Output: 700 3
  • Storage Temperature
  • 10 C to 50 C Celsius (oC)
  • Theory
  • Resistance Sensor
  • Type
  • Column Compression Type Load Cell
  • Usage
  • Force Calibration, Compression Testing, Load Measurement
  • Voltage
  • 10 VDC Volt (v)

Calibration Master Load Cell

Price 10.0 INR/ Number

MOQ : 1 Number

  • Accuracy
  • 0.025% FSO %
  • Application
  • Tank & Hopper Weighing, Crane Scales, Hanging Scales, Process Automation, Robotics, Line Tension Measurement, Shore Hardness Testing, Automotive Structural Testing, Material Strain Testing
  • Capacity
  • 20, 50, 75, 100, 200, 250, 300, 500, 750 kgf and 1, 1.5, 2, 2.5, 3, 5, 7.5, 10, 15, 20, 30 tf Kg
  • Classification
  • Precision Universal Calibration grade Load Cell
  • Compensated Temperature
  • 10 C to 50 C Celsius (oC)
  • Material
  • Electroless Nickel-Plated Tool Steel / SS 17-4 PH Stainless Steel
  • Operate Method
  • Tension and Compression Force Measurement
  • Operating Temperature
  • 0 C to 60 C Celsius (oC)
  • Operating Voltage
  • 10 VDC Volt (V)
  • Output
  • Analog Sensor
  • Output Voltage
  • 3.00 mV/V 0.05% Volt (V)
  • Product Type
  • Beam Load Cell
  • Resistance
  • Input Resistance: 392 15 , Output Resistance: 350 3
  • Storage Temperature
  • 10 C to 50 C Celsius (oC)
  • Theory
  • Resistance Sensor
  • Type
  • Beam Type Load Cell
  • Usage
  • Weighing, Force Measurement, Tension Measurement, Compression Measurement, Industrial Automation
  • Voltage
  • 10 VDC Volt (v)
