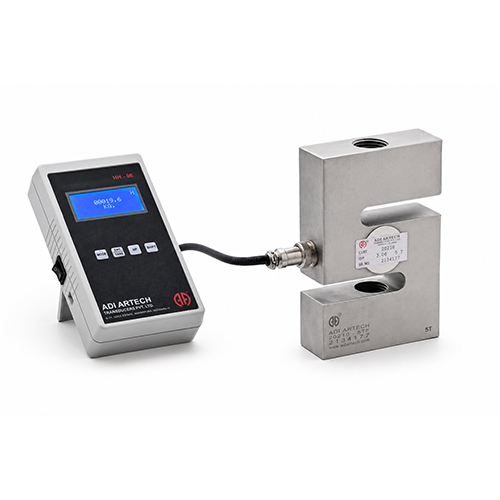

About Calibration Master Load Cell

The Model 20210 is a precision strain gauge-based beam load cell designed for tension, compression, hanging weighing, process automation, and force measurement applications. Manufactured from high-tensile electroless nickel-plated tool steel or stainless steel, it offers excellent durability and accuracy in demanding industrial environments. With capacities ranging from 20 kgf to 30 tf, IP67 environmental protection, and standardized output options, the 20210 is ideal for weighing systems, crane scales, automation equipment, and material testing applications.

Key Features

• High accuracy beam load cell
• Strain gauge technology
• Capacity range: 20 kgf to 30 tf
• Electroless nickel-plated tool steel / stainless steel construction
• IP67 protection (IP68 optional)
• Standard output: 3.0 mV/V
• Suitable for tension and compression measurements
• Custom outputs and high-temperature versions available

FAQs

1. What is the 20210 Beam Load Cell used for?

It is used for force measurement, hanging scales, crane scales, tank and hopper weighing, industrial automation, process control, and material testing applications.

2. What capacities are available?

The load cell is available from 20 kgf to 750 kgf and 1 tf to 30 tf capacities.

3. What technology does the load cell use?

The 20210 uses strain gauge technology for precise load measurement.

4. Can it measure both tension and compression?

Yes. It is suitable for both tension and compression force measurement applications.

5. What is the rated output?

The standard output is 3.00 mV/V 0.05%, with customized outputs available on request.

6. What excitation voltage is required?

The recommended excitation voltage is 10 VDC, with a maximum of 15 VDC.

7. What is the operating temperature range?

The standard operating temperature range is 0C to 60C.

8. Is the load cell suitable for harsh environments?

Yes. The load cell offers IP67 protection, and an IP68 stainless steel version is available for more demanding environments.

9. What overload protection does it provide?

• Safe Overload: 150% of rated capacity
• Ultimate Overload: 250% of rated capacity

10. Which industries commonly use the 20210?

Industries including manufacturing, automation, material testing, robotics, construction, weighing systems, and automotive testing commonly use the 20210 Beam Load Cell.

11. Are high-temperature versions available?

Yes. A high-temperature version with operating temperatures from 40C to 90C is available as an option.

12. What accessories are available?

Optional accessories include:

• Eye Bolt
• Threaded Loading Button
• Threaded Base Plate
• HH-06/DLC-6 Digital Load Controller
