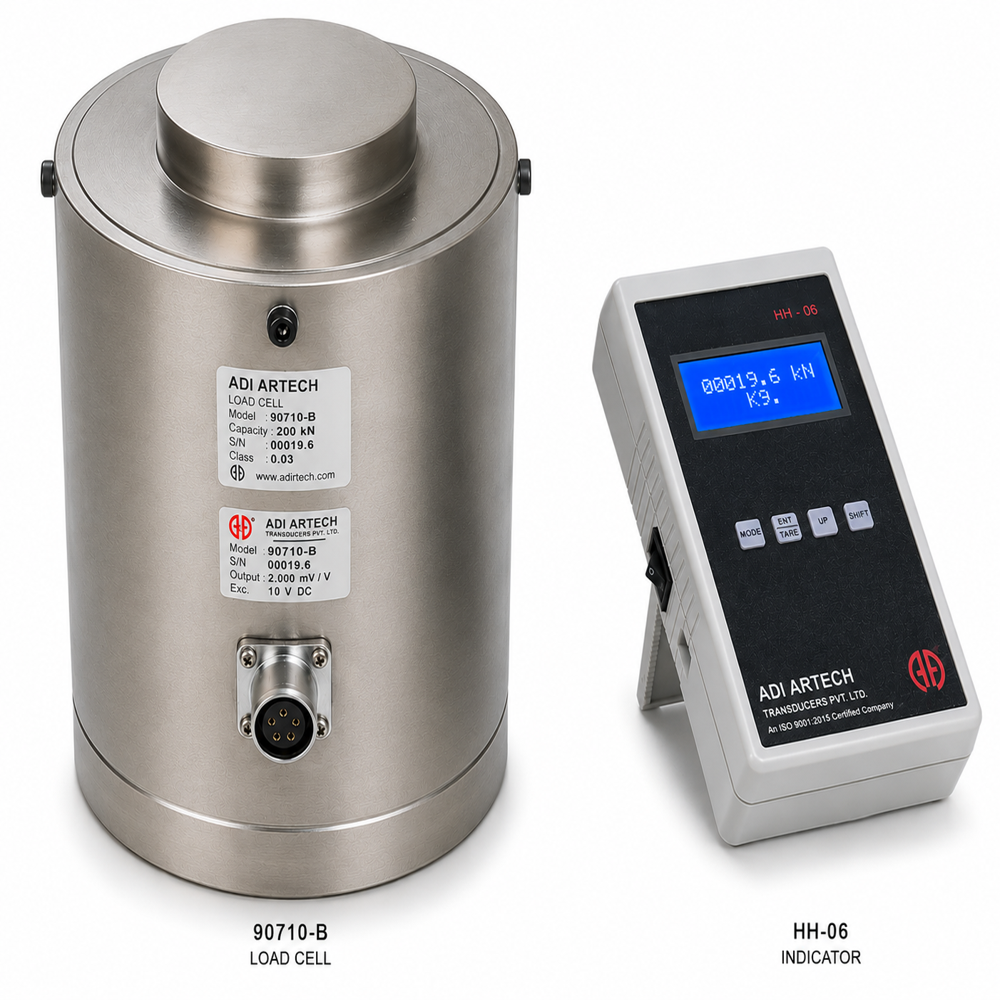

The HH-06 is a portable, battery-operated digital load indicator designed for field and remote load measurement applications where mains power is unavailable. It provides accurate load monitoring for both wired and wireless load cells and features a high-visibility 16 4 LCD display, making it suitable for outdoor and industrial environments. The indicator supports field programming, RS-485 Modbus RTU communication, and rechargeable lithium battery operation, offering a versatile solution for weighing and force measurement applications.

Key Features

• Battery-operated portable load indicator
• Supports single wired and multiple wireless load cells
• 16 4 character LCD display for clear visibility
• RS-485 Modbus RTU communication interface
• Field programmable configuration
• Internal count up to 100,000
• USB Type-C charging support
• Suitable for industrial weighing and force measurement applications
•


Technical Specifications

• Power Supply: Internal 4.2 V Lithium-Ion / Lithium-Polymer Battery
• A/D Converter: 24-bit Delta Sigma
• Sampling Rate: Up to 30 Hz (wired), 10 Hz (wireless)
• Display: 16 4 Character LCD
• Display Range: -99,999 to 999,999
• Measurement Range: 19.5 mV
• Communication: 1 RS-485 Modbus RTU Port
• Maximum Divisions: 500,000
• Usable Divisions: 50,000

---

FAQs

1. What is the HH-06 used for?

The HH-06 is used for portable load, force, and weighing measurements in locations where mains power is not available.

2. Can the HH-06 work with wireless load cells?

Yes. It supports both single wired and multiple wireless load cells.

3. What type of display does the HH-06 have?

It features a 16 4 character LCD display for easy reading in outdoor and industrial conditions.

4. How is the unit powered?

The HH-06 operates on an internal 4.2 V rechargeable Lithium-Ion/Lithium-Polymer battery.

5. How is the battery charged?

The device supports charging through a USB Type-C charger.

6. What communication interface is available?

The HH-06 is equipped with an RS-485 Modbus RTU communication port for integration with external systems.

7. Is the indicator configurable by the user?

Yes. The HH-06 is field programmable, allowing users to configure scaling and operational parameters as required.

8. What is the maximum display range?

The indicator can display values from -99,999 to 999,999.

9. What applications is the HH-06 suitable for?

It is ideal for:

• Load testing
• Force measurement
• Crane and lifting applications
• Calibration activities
• Portable weighing systems
• Remote industrial monitoring

10. What are the advantages of using the HH-06?

The HH-06 offers portability, rechargeable battery operation, wireless load cell compatibility, clear LCD visibility, and industrial communication capability, making it a convenient solution for field measurement tasks.
