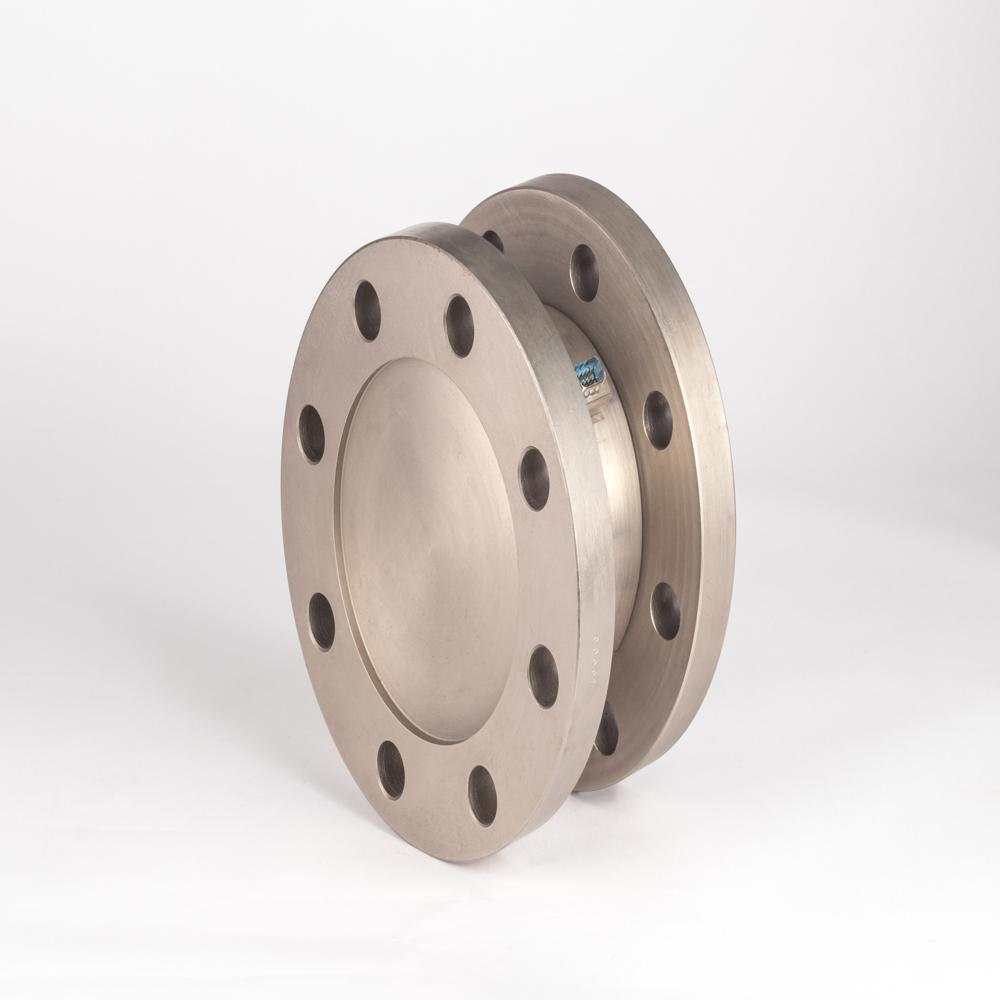

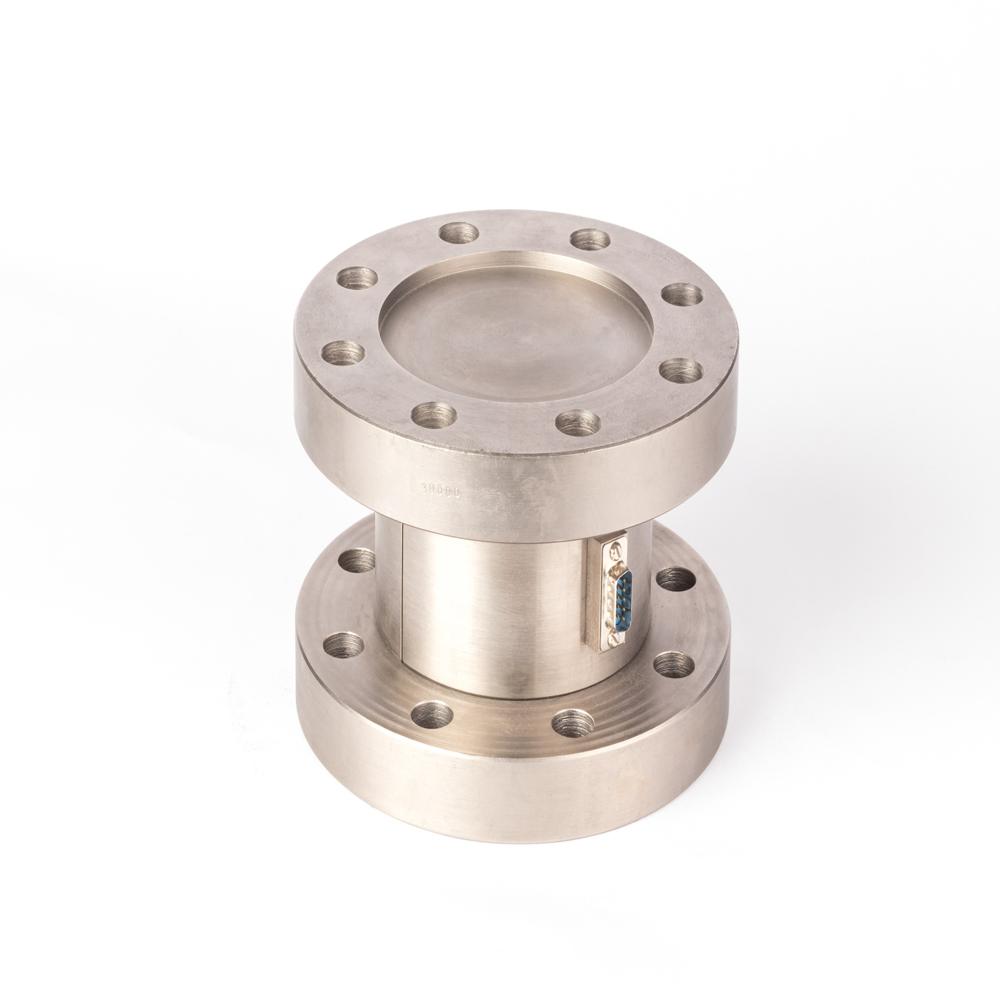

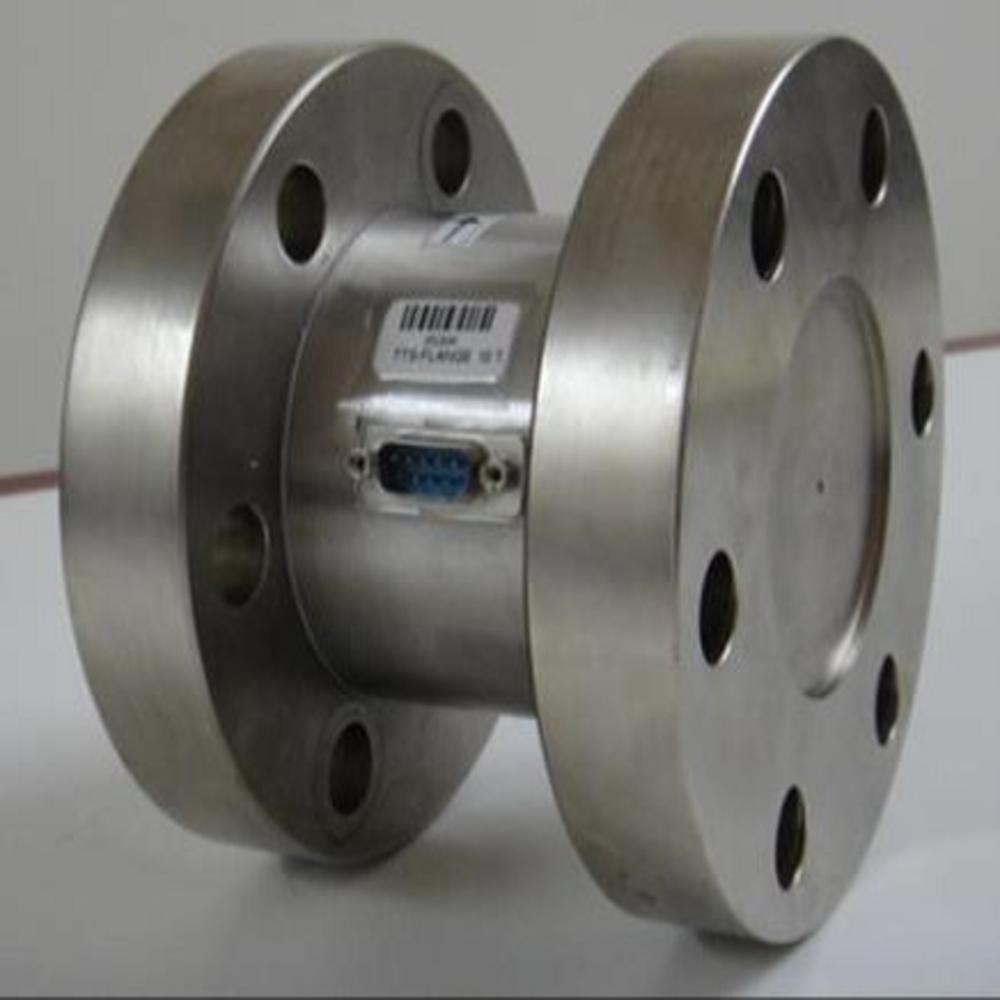

Static Torque Transducer Flange Type
36000.0 INR/Number
Product Details:
- Weight 11 KGF(Approx) Kilograms (kg)
- Product Type Torque cum Thrust Transducer
- Resistance Input Resistance: 390 Output Resistance: 350
- Voltage 10 VDC (Maximum 15 VDC) Volt (v)
- Classification Dual-axis static torque and thrust transducer
- Operate Method Strain gauge based torque and thrust measurement, compensated for bending forces
- Application Electrical tool testing, gearbox testing, axle/shaft torsion test, bearing friction measurement, testing of starters/slip rings/brushes/clutches/brakes, electric/hydraulic/pneumatic motor testing, alternators, pumps, gas & diesel turbine engine testing, engine dynamometer, automobile testing
- Click to view more
X
Static Torque Transducer Flange Type Price And Quantity
- 36000.0 INR/Number
- 1 Number
- 3 meters standard
- 150% of rated capacity
- 0.1% F.S.
- IP65
- 10 Nm to 1000 Nm
- 0.1% F.S.
- Alloy Steel
- 4-pin connector
- 1% F.S.
- 0.2% F.S.
- Flange to Flange
- Static and non-rotating torque measurement
Static Torque Transducer Flange Type Product Specifications
- 0 C to 60 C Celsius (oC)
- 0 C to 60 C Celsius (oC)
- 70*10*55.6 Millimeter (mm)
- Dual-axis static torque and thrust transducer
- 50NM-50KNM, 25KN-3000KN Kg
- 0 C to 60 C Celsius (oC)
- Measurement of static torque and compressive thrust on shafts and equipment
- 10 VDC (Maximum 15 VDC) Volt (v)
- Stainless Steel 17-4 PH / Tool Steel
- 2.0 mV/V 0.5 Volt (V)
- Analog Sensor
- 0.2% FSO (Torque), 0.5% FSO (Thrust) %
- Flange Type
- Input Resistance: 390 Output Resistance: 350
- Strain gauge based torque and thrust measurement, compensated for bending forces
- Torque cum Thrust Transducer
- Resistance Sensor
- 11 KGF(Approx) Kilograms (kg)
- Silver
- 10 VDC Volt (v)
- Electrical tool testing, gearbox testing, axle/shaft torsion test, bearing friction measurement, testing of starters/slip rings/brushes/clutches/brakes, electric/hydraulic/pneumatic motor testing, alternators, pumps, gas & diesel turbine engine testing, engine dynamometer, automobile testing
- 10 VDC nominal, 15 VDC maximum Volt (V)
- 3 meters standard
- 150% of rated capacity
- 0.1% F.S.
- IP65
- 10 Nm to 1000 Nm
- 0.1% F.S.
- Alloy Steel
- 4-pin connector
- 1% F.S.
- 0.2% F.S.
- Flange to Flange
- Static and non-rotating torque measurement
Static Torque Transducer Flange Type Trade Information
- VADODARA
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 10 Number Per Week
- 2 Week
- Yes
- Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
- All India
- FACTORY OEM CERTIFICATE
Product Description
Product details
|
Frequency |
50 Hz |
|
Non-Repeatability |
< +-0.5% FSO |
|
Span Drift |
+- 0.02% / Degree C |
|
Temp. Compensated Range |
10 to 50 Degree C |
|
Ultimate Overload |
200% OF RC |
|
Voltage |
230 V |
|
Type |
Flange to Flange Static Torque sensor |
|
Model/Type |
TTS-FF |
|
Brand |
ADI ARTECH TRANSDUCERS PVT LTD |
|
Range |
10NM to 50KNM |
Static Torque Transducer Flange Type
|
Model |
: | TTS-FF | |
| Capacity | : | 0-10NM to 0-50,000NM | |
| Load Direction | : | Clock & Anti clock Wise | |
| Type | : | Torque Sensor / Transducer - Shaft to Shaft - Static |
| Industries |
|
|
| Application |
|
|
Description : This is static type torque sensor, both ends flanged. It is strain gage based with temperature compensation over 10 to 60 Deg.C.
It is easy to install from end flanges. High grade tool steel construction makes it very rugged and capable to absorb heavy shock loads. It can be customizzed to suit individual requirements for replacement for existing damaged sensor.
|
Electronic Instrumentation / Software |
: |
Compatible Electronic Systems are available optionally- |
Versatile Torque Measurement
This flange-type torque transducer is tailored for measuring static and non-rotating torque in diverse scenarios. The robust capacity options of up to 1000 Nm make it suitable for machinery diagnostics, assembly testing, and quality assurance tasks. Its strain gauge theory base ensures reliable analogue output for precise data acquisition.
Durable and Reliable Build
Constructed from high-strength alloy steel, this torque transducer provides durability for demanding applications. The IP65 rating ensures strong resistance against dust and water, making it ideal for industrial settings. Its 150% overload capacity further extends the lifespan, offering protection during unintentional over-torquing incidents.
Ease of Integration and Connectivity
With a flange-to-flange mounting style, installation is straightforward and accommodates various machine setups. Standardized 3-meter cable and 4-pin connector make connection swift and error-free. The transducers design supports consistency and repeatability, maintaining stable performance across temperature variations from -10C to 45C.
FAQs of Static Torque Transducer Flange Type:
Q: How is the Static Torque Transducer Flange Type installed in an industrial setup?
A: The transducer is designed with flange-to-flange mounting, allowing it to be directly bolted between machine flanges. Ensure proper alignment and secure attachment for optimal performance. The 3-meter standard cable with a 4-pin connector simplifies electrical integration with your data acquisition system.Q: What are the main benefits of using an IP65-rated static torque transducer in industrial environments?
A: An IP65 rating protects the transducer against dust ingress and low-pressure water jets, ensuring stable operation even in harsh or wet conditions. This durability reduces maintenance needs and enhances the reliability of torque measurements in demanding industrial locations.Q: When should I select a torque transducer with a capacity range of up to 1000 Nm?
A: Choose this transducer for applications where you need to measure moderate to high static or non-rotating torque, such as test benches, assembly machines, or industrial presses. The wide capacity range covers most requirements in production, quality control, and research environments.Q: Where can I purchase the Static Torque Transducer Flange Type in India?
A: This product is widely available through reputable dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India. Check with authorized distributors for availability, technical support, and after-sales services.Q: What process does the transducer use to measure torque?
A: The device uses a strain gauge principle, where applied torque causes minute deformations in the alloy steel body. These deformations alter the resistance in the strain gauges, producing an analog voltage output proportional to the applied torque, with output voltage typically 2.0 mV/V nominal.Q: How accurate and repeatable are the measurements from this torque transducer?
A: The transducer delivers high accuracy, with non-linearity and overall accuracy within 0.2% of the full scale. It offers repeatability within 0.1% of full scale, ensuring consistent readings in repetitive operations. Long-term stability is also supported with low creep and zero balance specifications.Q: What is the recommended usage environment for optimal transducer performance?
A: For best results, operate the transducer within a temperature range of -10C to 45C, and store it between -20C and 70C. The IP65 protection allows it to withstand industrial conditions; however, avoid exposing it to extreme mechanical shocks or corrosive chemicals.Tell us about your requirement
