REACTION AND ROTARY TORQUE TRANSDUCERS

• Accuracy
• 0.2% FSO %

• Application
• Motor & engine testing, Gearbox testing, Dynamometer systems, Pumps, turbines & alternators testing, Automotive and R&D applications

• Capacity
• 0 20 Nm to 0 10,000 Nm Kg

• Classification
• Rotary, Dynamic Torque Sensor

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless Steel (17-4 PH)

• Monitor Display
• Analog

• Operate Method
• Rotary shaft with slip ring & brush mechanism

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Power Supply
• 10VOLT MAX.

• Product Type

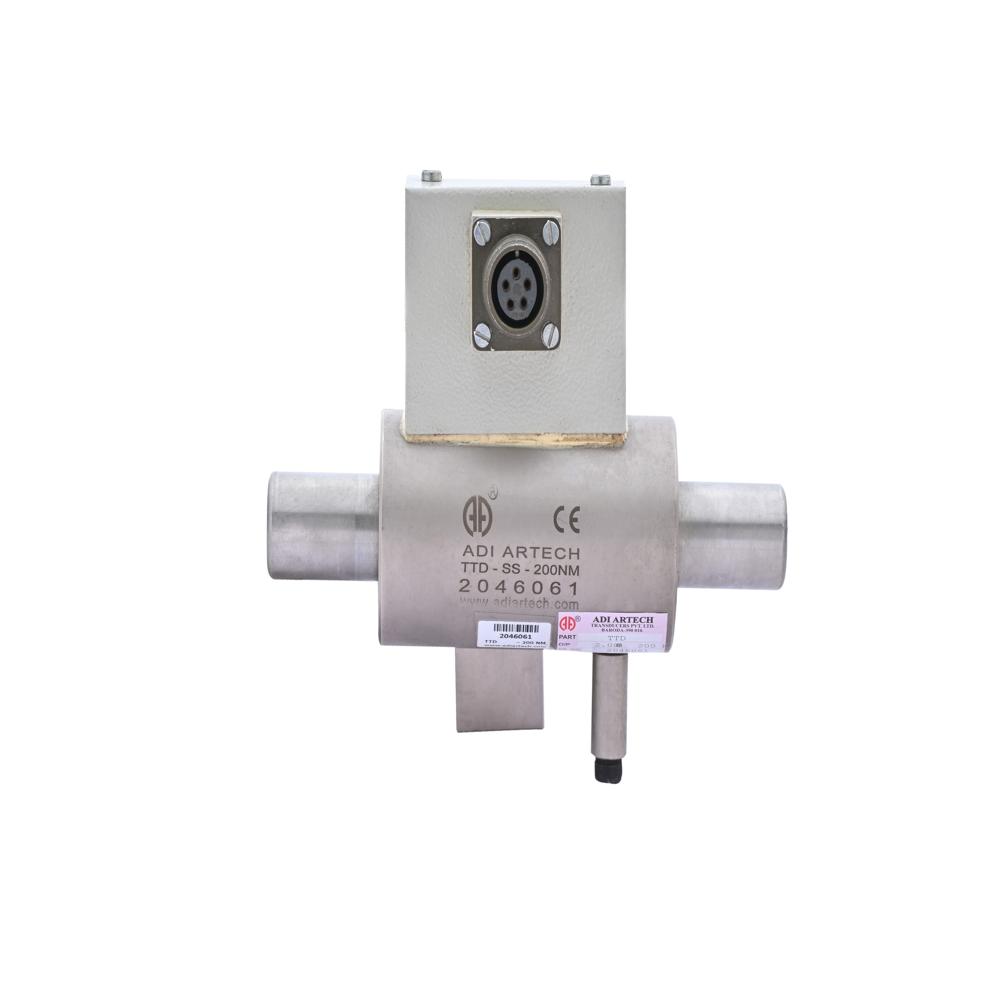

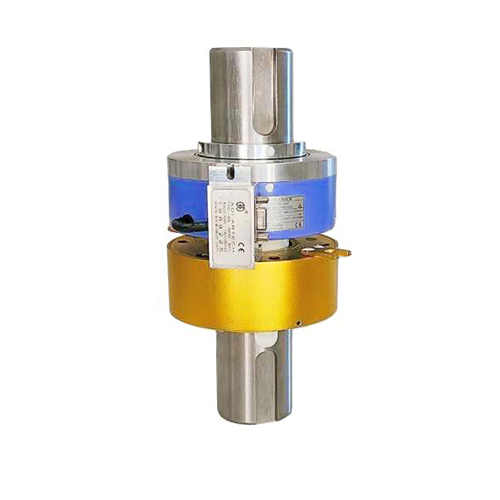

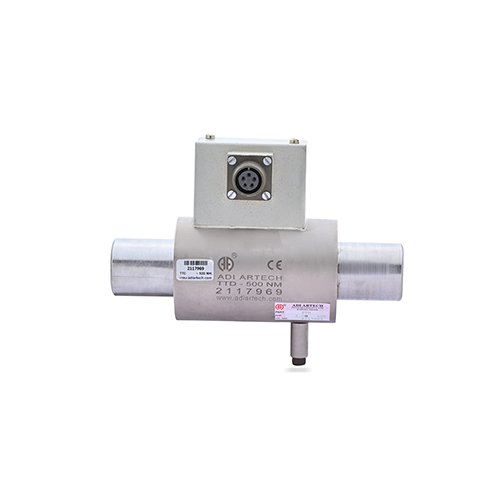

• Dynamic Torque Transducer with RPM - Angle Sensing

• Resistance
• Input: 390 Ohms, Output: 350 Ohms

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Strain Gauge based Dynamic Torque Sensor

• Usage
• Dynamic torque, RPM, and angular measurement in rotating systems

• Voltage
• 10 VDC Volt (v)

• Warranty
• ONE YEAR - TERMS APPLY

• Weighing Scale Type
• Other

• Accuracy
• 0.1% FSO %

• Application
• Electrical tool testing, gearbox testing, axle/shaft torsion test, bearing friction measurement, testing of starters/slip rings/brushes/clutches/brakes, electric/hydraulic/pneumatic motor testing, alternators, pumps, gas & diesel turbine engine testing, engine dynamometer, automobile testing

• Classification
• Rotary type torque sensor (Dynamic)

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Dimension (L*W*H)
• 180*20 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge based rotary torque measurement with slip ring and brush mechanism

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 10 VDC nominal, 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Dynamic Torque Transducer

• Resistance
• Input Resistance: 390 , Output Resistance: 350

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type

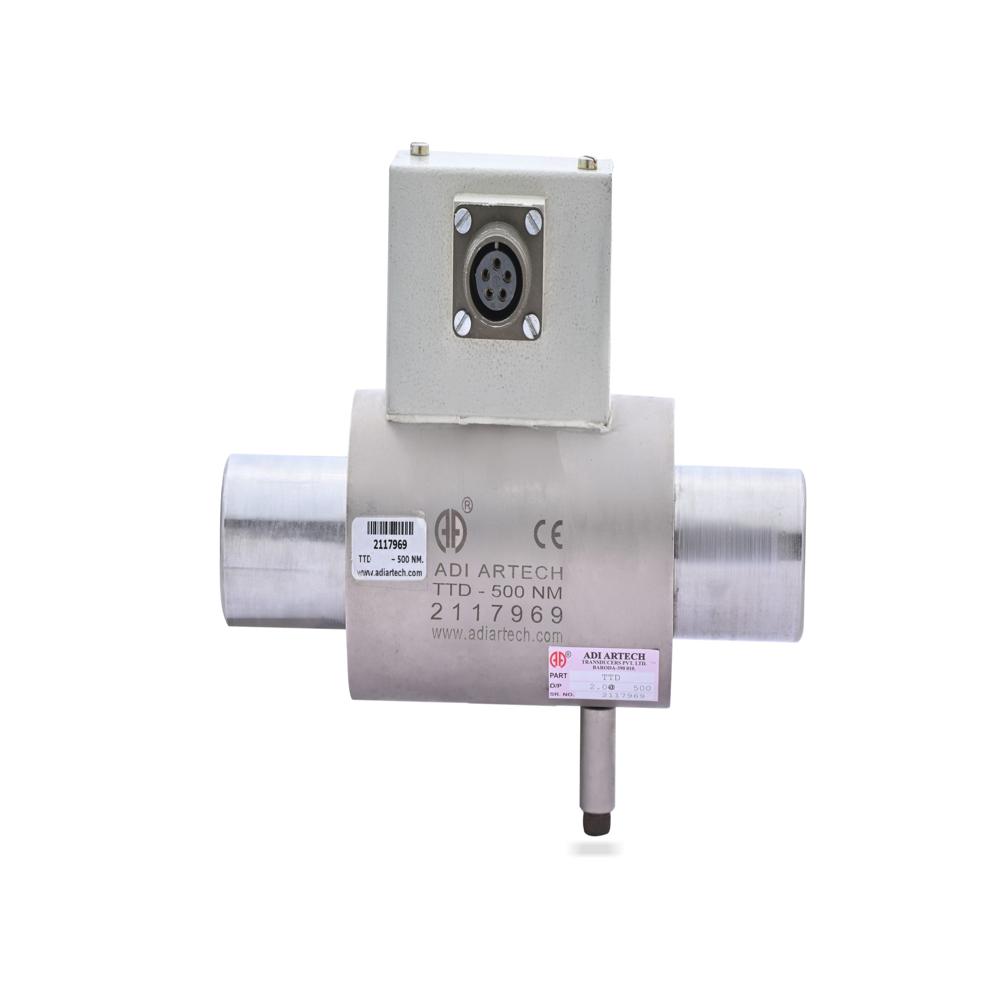

• DYNAMIC ROTATING TORQUE SENSOR

• Usage
• Measurement of dynamic torque in rotating shafts and equipment

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 2 KG(APPROX.) Kilograms (kg)

• Accuracy
• 0.5% FSO %

• Application
• Actuator / Valve testing Shaft & axle torsion testing Bearing friction measurement Motor, pump, turbine engine testing Automotive drive shaft & crank shaft torque testing Aerospace, Defense & R&D applications

• Capacity
• 50, 100, 200, 300, 500 Nm; 1K, 1.5K, 2K, 3K, 5K, 10K, 20K, 30K, 50K Nm Kg

• Classification
• CE Certified Static Reaction Torque Sensor (Strain Gauge Based)

• Color
• Metallic (Nickel-Plated Tool Steel Finish)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Electroless Nickel-Plated Tool Steel (Optional: Stainless Steel 17-4 PH)

• Operate Method
• Measures static reaction torque via flange mounting; suitable for clockwise and anticlockwise torque measurement.

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Recommended), Maximum 15 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• Externally powered through DC excitation supply Volt (v)

• Product Type
• Flange Type Static Torque Transducer

• Resistance
• Input Resistance: 392 15 , Output Resistance: 350 3

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type

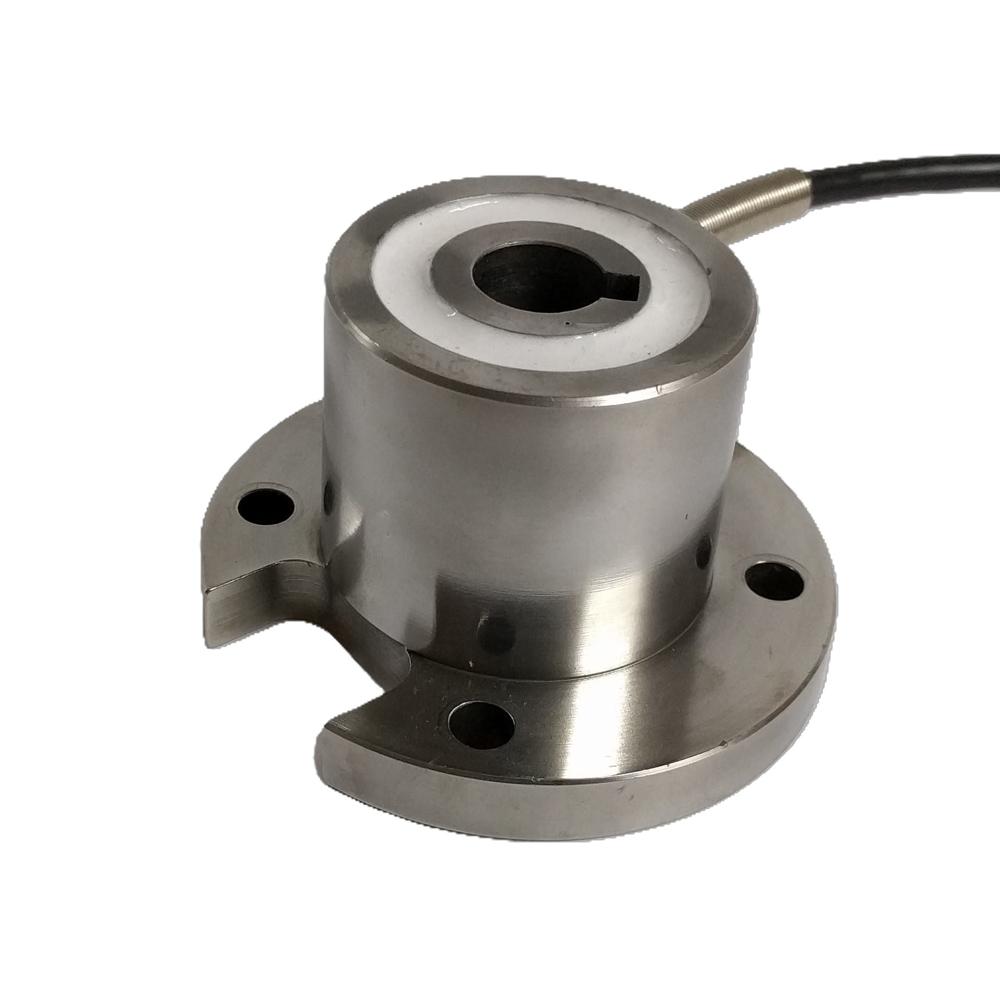

• Flange Mount Static Torque Transducer

• Usage
• Used for static torque measurement in industrial and research testing setups.

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.1% FSO %

• Application
• Motor torque measurement, Shaft & axle torque testing , Industrial valve & actuator torque testing , Automotive, aerospace & offshore valve test rigs , Industrial fastener torque measurement

• Capacity
• 50 Nm to 50 kNm Kg

• Classification
• Strain Gauge Based Torque Sensor

• Color
• Metallic (Stainless Steel finish)

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain Gauge Technology (Reaction Torque Measurement through shaft ends with keyways)

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• Passive sensor (externally excited) Volt (v)

• Product Type
• Static Reaction Torque Transducer

• Resistance
• Input Resistance: 392 15 , Output Resistance: 350 3

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Torque cum Force Sensor

• Usage
• Accurate static torque measurement in industrial and research setups

• Voltage
• 10 VDC (Recommended) Maximum 15 VDC Volt (v)

• Accuracy
• 0.1% FSO %

• Application
• Electrical tool testing , Gearbox testing ,Axle/Shaft torsion testing, Bearing friction measurement , Starter, clutch & brake testing, Electric / Hydraulic / Pneumatic motor testing, Engine dynamometer, Automobile testing , Alternator, pump & turbine testing

• Capacity
• 50, 100, 200, 300, 500, 1K, 2K, 3K, 5K, 10K, 15K, 20K, 30K, 40K, 50K Nm Kg

• Classification
• Rotary Strain Gauge Based Torque Sensor (Slip Ring Type)

• Color
• Natural Metallic (Stainless Steel Finish)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH (Hardened Grade)

• Operate Method
• Measures torsional strain in rotating shaft. Electrical signals are transferred through a high-quality slip ring and brush mechanism during rotation.

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V at rated torque Volt (V)

• Power
• Passive sensor (requires external excitation) Volt (v)

• Product Type
• Dynamic Torque Transducer

• Resistance
• Input Resistance: 390 Ohms, Output Resistance: 350 Ohms

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Dynamic Rotary Type (Shaft / Flange Mounting Options)

• Usage
• Dynamic torque measurement in rotating machinery

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.1% FSO %

• Application
• Electrical tool testing, Gearbox testing , Axle/Shaft torsion testing, Bearing friction measurement , Starter, clutch & brake testing, Electric / Hydraulic / Pneumatic motor testing Engine dynamometer, Automobile testing, Alternator, pump & turbine testing

• Capacity
• 20, 50, 100, 200, 300, 500, 1K, 2K, 3K, 5K, 10K, 15K, 20K, 30K, 40K, 50K Nm Kg

• Classification
• Rotary Strain Gauge Based Torque Sensor with Wireless Telemetry

• Color
• Natural Metallic (Stainless Steel Finish)

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Stainless Steel 17-4 PH (Hardened Grade)

• Operate Method
• Measures torsional strain in rotating shaft using strain gauges. Signal is processed by inbuilt ADC & microcontroller and transmitted via radio telemetry to stationary receiver (non-contact signal transmission).

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• Digital telemetry output (Optional analog: 4 20 mA / 0 2 V) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• Wireless Radio Telemetry Output to Receiver Volt (V)

• Power
• Battery OInbuilt Rechargeable Li-Ion Batteryperated (Inbuilt Rechargeable Li-Ion Battery approx. 20 hours runtime) Watt (w)

• Product Type
• Dynamic Torque Transducer (Non-Contact Type)

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type

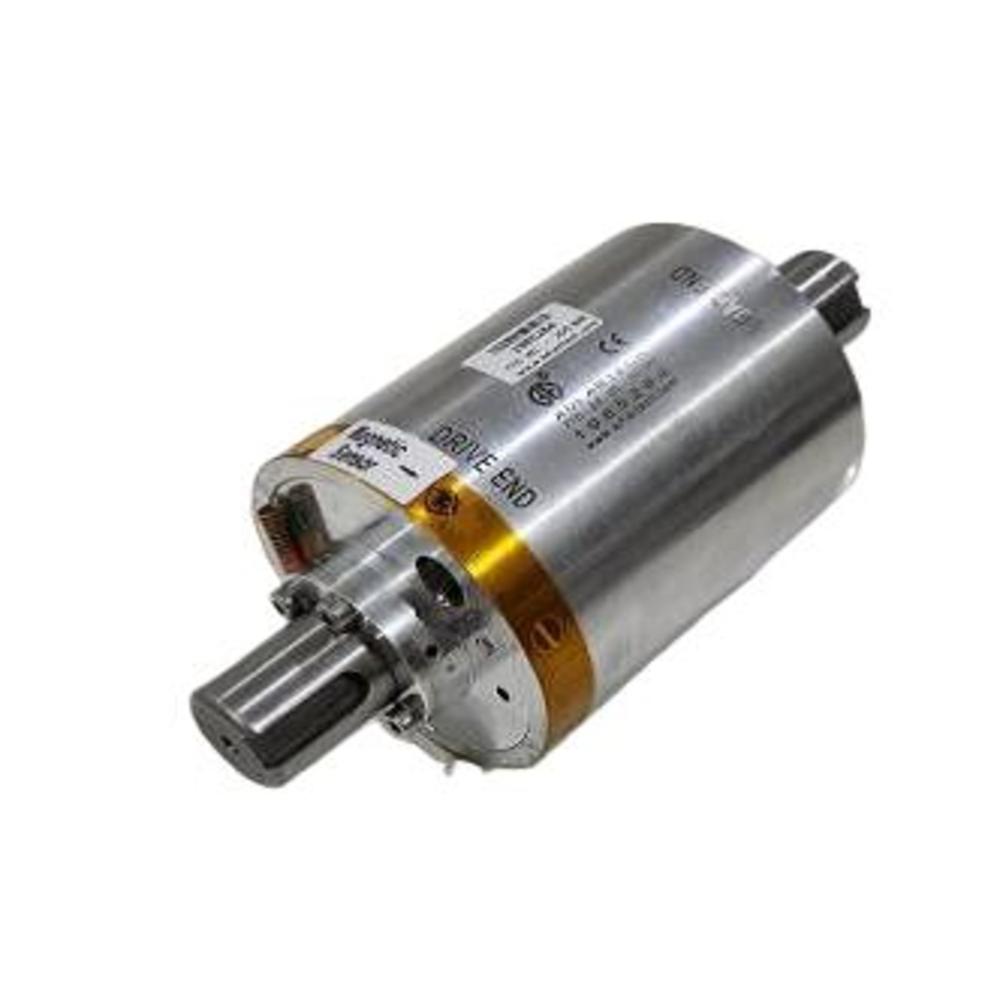

• Dynamic Rotary Type Non-Contact (Wireless Telemetry System)

• Usage
• High-speed dynamic torque measurement in rotating machinery without slip rings

• Voltage
• Display &5-Digit LED Display Receiver Power Supply: 230 VAC @ 50 Hz Volt (v)

• Accuracy
• 0.1 %

• Compensated Temperature
• 10-50 Celsius (oC)

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Product Type
• TORQUE TRANSDUCER

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STATIC REACTION TORQUE SENSOR

• Accuracy
• 0.2% FSO (Torque), 0.5% FSO (Thrust) %

• Application
• Electrical tool testing, gearbox testing, axle/shaft torsion test, bearing friction measurement, testing of starters/slip rings/brushes/clutches/brakes, electric/hydraulic/pneumatic motor testing, alternators, pumps, gas & diesel turbine engine testing, engine dynamometer, automobile testing

• Capacity
• 50NM-50KNM, 25KN-3000KN Kg

• Classification
• Dual-axis static torque and thrust transducer

• Color
• Silver

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 70*10*55.6 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH / Tool Steel

• Operate Method
• Strain gauge based torque and thrust measurement, compensated for bending forces

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 10 VDC nominal, 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V 0.5 Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Torque cum Thrust Transducer

• Resistance
• Input Resistance: 390 Output Resistance: 350

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Flange Type

• Usage
• Measurement of static torque and compressive thrust on shafts and equipment

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 11 KGF(Approx) Kilograms (kg)

• Accuracy
• 0.1% FSO %

• Application
• Motor torque testing , Shaft & axle torque measurement Valve & actuator operating torque Automotive & aerospace test rigs , Industrial fastener torque testing, Offshore valve systems

• Capacity
• 50 Nm, 100 Nm, 200 Nm, 300 Nm, 500 Nm, 1 kNm, 2 kNm, 3 kNm, 5 kNm, 10 kNm Kg

• Classification
• Strain Gauge Based Static Torque Sensor (CE Certified, IP65 Protected)

• Color
• Natural Stainless Steel Finish (Metallic)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge measurement of torque with integrated rotary encoder for angular measurement (0 360 )

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mV/V Volt (V)

• Power
• Externally excited (DC supply operated) Volt (v)

• Product Type
• Static Torque Transducer with Angle

• Resistance
• Input Resistance: 392 15 Ohms, Output Resistance: 350 3 Ohms

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Shaft Type Static Torque Transducer with Keyway Mounting

• Usage
• Industrial torque measurement in static applications and controlled rotational testing.

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.1% FSO %

• Application
• Bottle cap sealing & removal , Valve testing, Fastener testing

• Capacity
• 1, 2, 3, 5, 10, 20, 30 Nm Kg

• Classification
• CE Certified Precision Type

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Aluminum Alloy 2024-T4 (1 to 10 Nm), Stainless Steel 17-4 PH (20 & 30 Nm)

• Operate Method
• Strain Gauge Based (Static Reaction Torque Measurement)

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 5~12 V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Static Reaction Torque Transducer

• Resistance
• Input Resistance: 392 15 Ohms , Output Resistance: 350 3 Ohms

• Storage Temperature
• 20 C to 80 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Static Torque Transducer Miniature Type

• Usage
• Torque measurement in industrial applications

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• ±0.1% F.S.

• Compensated Temperature
• -10°C to +50°C

• Operating Temperature
• -10°C to +60°C

• Operating Voltage
• 5-15 V DC

• Output
• Other, Analog

• Output Voltage
• 1.0 mV/V (±0.1 mV/V)

• Resistance
• 350 Ω

• Storage Temperature
• -20°C to +80°C

• Theory
• Other

• Type
• Rotary Torque Transducer

• Accuracy
• 0.5% FSO %

• Application
• Actuator / valve / electrical tool testing Axle & shaft torsion testing Bearing friction measurement Testing of motors, pumps, engines, brakes, clutches Automobile drivetrain & crankshaft torque testing Defense, Aerospace, R&D labs, Offshore test rigs, Machine tools, Electrical & Engineering industries

• Capacity
• 10 NM - 50 KNM Kg

• Classification
• Industrial & Research Grade

• Compensated Temperature
• 10 C to 40 C Celsius (oC)

• Material
• Electroless Ni plated Tool Steel / Stainless Steel 17-4 PH

• Operate Method
• Static reaction torque measurement using strain gauges

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 10 VDC (Excitation Voltage) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V nominal Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Static Reaction Torque Transducer

• Resistance
• Input Resistance: 392 15 , Output Resistance: 350 3

• Storage Temperature
• 20 C to 80 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Static Torque Transducer

• Usage
• Measurement of static torque in shafts, actuators, motors, tools, and rotating machinery

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.2% FSO %

• Application
• Electrical tool testing, Gearbox testing , Axle/Shaft torsion testing, Bearing friction measurement , Starter, slip ring, clutch & brake testing ,Electric/Hydraulic/Pneumatic motor testing , Engine dynamometer, Automobile testing,Alternator, pump, gas & diesel turbine testing

• Capacity
• 50 NM-50 KNM// 15 KN-1500 KN Kg

• Classification
• Rotary Strain Gauge Based Torque & Axial Thrust Sensor

• Color
• Natural Metallic (Stainless Steel Finish)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH (Hardenable Grade)

• Operate Method
• Measures torsional strain and axial thrust in rotating shafts. Electrical signals are transmitted through slip ring and brush mechanism during rotation.

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Dynamic Torque Cum Thrust Transducer

• Resistance
• Input Resistance: 390 Ohms , Output Resistance: 350 Ohms

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Dynamic Rotary Type (Shaft/Flange Mounting Options Available)

• Usage
• Dynamic torque and axial thrust measurement in rotating machinery

• Voltage
• 10 VDC Volt (v)

• Accuracy
• 0.5% FSO %

• Application
• Valve testing, Fastener testing, Gearbox testing, Drilling performance testing, Thrust bearing testing, Aircraft propulsion testing

• Capacity
• 0 50 Nm / 0 1500 N up to 0 50 kNm / 0 1500 kN Kg

• Classification
• Industrial Torque & Thrust Measurement Sensor

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless steel metallic finish

• Operate Method
• Strain Gauge Based Measurement

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V (Torque), 1.0 mV/V (Thrust) Volt (V)

• Power
• Excitation powered sensor (strain gauge based) Volt (v)

• Product Type
• Dynamic Torque cum Thrust Transducer

• Resistance
• Input: 390 , Output: 350

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Static Type Torque & Thrust Sensor

• Usage
• Industrial torque and thrust measurement in testing systems

• Voltage
• 10 VDC nominal excitation (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.5% FSO %

• Application
• Actuator testing, valve testing, axle/shaft torsion testing, motor testing, alternators, pumps, diesel/gas turbine engines, automotive drive shaft testing, aerospace & R&D testing

• Capacity
• 10 Nm to 50,000 Nm Kg

• Classification
• Industrial Torque Measurement Sensor

• Color
• Actuator testing, valve testing, axle/shaft torsion testing, motor testing, alternators, pumps, diesel/gas turbine engines, automotive drive shaft testing, aerospace & R&D testing

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Electroless Nickel Plated Tool Steel / Stainless Steel 17-4 PH

• Operate Method
• Strain Gauge Based Measurement

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 C to 50 C Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• Strain gauge excitation powered sensor Volt (v)

• Product Type
• Static Torque Transducer

• Resistance
• Input: 392 15 , Output: 350 3

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Static Reaction Torque Sensor

• Usage
• Industrial torque measurement and testing systems

• Voltage
• 10 VDC nominal excitation (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.5% FSO %

• Application
• Valve Testing , Fastener Testing ,Gearbox Testing , Drilling Performance Testing , Thrust Bearing Performance Testing, Aircraft Propulsion Testing

• Capacity
• 0 50 Nm / 0 1500 N, Up to 0 50 kNm / 0 1500 kN Kg

• Classification
• Strain Gauge Based, CE-Certified Industrial Torque & Thrust Sensor

• Color
• Metallic (Natural Stainless Steel Finish)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Measures torque (rotational force) and axial thrust force simultaneously during dynamic operation

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Recommended), Max 15 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V (Torque), 1.0 mV/V (Thrust) Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Dynamic Torque cum Thrust Transducer

• Resistance
• Input Resistance: 390 , Output Resistance: 350

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Reaction Shaft Torque Transducer

• Usage
• Used for simultaneous measurement of torque and axial thrust in industrial testing systems.

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)
