TTS FLANGE TYPE STATIC TORQUE TRANSDUCER

TTS FLANGE TYPE STATIC TORQUE TRANSDUCER

Name: TTS FLANGE TYPE STATIC TORQUE TRANSDUCER
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 50000.0 INR
Availability: InStock

50000.0 INR/Number

Get a Price/Quote

Product Details:

Resistance Input Resistance: 392 15 , Output Resistance: 350 3
Color Metallic (Nickel-Plated Tool Steel Finish)
Application Actuator / Valve testing Shaft & axle torsion testing Bearing friction measurement Motor, pump, turbine engine testing Automotive drive shaft & crank shaft torque testing Aerospace, Defense & R&D applications
Material Electroless Nickel-Plated Tool Steel (Optional: Stainless Steel 17-4 PH)
Power Externally powered through DC excitation supply Volt (v)
Capacity 50, 100, 200, 300, 500 Nm; 1K, 1.5K, 2K, 3K, 5K, 10K, 20K, 30K, 50K Nm Kg
Usage Used for static torque measurement in industrial and research testing setups.
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

TTS FLANGE TYPE STATIC TORQUE TRANSDUCER Price And Quantity

Price 50000.0 INR/Number
Minimum Order Quantity 1 Number

Mounting Flange Type
Cable Length 3 meters
Measuring Range 0-500 Nm (torque), 0-10 kN (thrust)
Connector Type 4-pin connector
Excitation Voltage 10 V DC
Response Time <1 ms
Safe Overload 150% of Rated Capacity
Protection Class IP65
Creep 0.03% F.S./30 min
Material Alloy Steel

TTS FLANGE TYPE STATIC TORQUE TRANSDUCER Product Specifications

Product Type Flange Type Static Torque Transducer
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Operate Method Measures static reaction torque via flange mounting; suitable for clockwise and anticlockwise torque measurement.
Capacity 50, 100, 200, 300, 500 Nm; 1K, 1.5K, 2K, 3K, 5K, 10K, 20K, 30K, 50K Nm Kg
Usage Used for static torque measurement in industrial and research testing setups.
Output Voltage 2.0 mV/V Volt (V)
Classification CE Certified Static Reaction Torque Sensor (Strain Gauge Based)
Accuracy 0.5% FSO %
Material Electroless Nickel-Plated Tool Steel (Optional: Stainless Steel 17-4 PH)
Type Flange Mount Static Torque Transducer
Power Externally powered through DC excitation supply Volt (v)
Theory Resistance Sensor
Application Actuator / Valve testing Shaft & axle torsion testing Bearing friction measurement Motor, pump, turbine engine testing Automotive drive shaft & crank shaft torque testing Aerospace, Defense & R&D applications
Output Analog Sensor
Storage Temperature 10 C to 50 C Celsius (oC)
Operating Voltage 10 VDC (Recommended), Maximum 15 VDC Volt (V)
Resistance Input Resistance: 392 15 , Output Resistance: 350 3
Operating Temperature 10 C to 50 C Celsius (oC)
Compensated Temperature 10 C to 50 C Celsius (oC)
Color Metallic (Nickel-Plated Tool Steel Finish)

Mounting Flange Type
Cable Length 3 meters
Measuring Range 0-500 Nm (torque), 0-10 kN (thrust)
Connector Type 4-pin connector
Excitation Voltage 10 V DC
Response Time <1 ms
Safe Overload 150% of Rated Capacity
Protection Class IP65
Creep 0.03% F.S./30 min
Material Alloy Steel

TTS FLANGE TYPE STATIC TORQUE TRANSDUCER Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available No
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICTE

Product Description

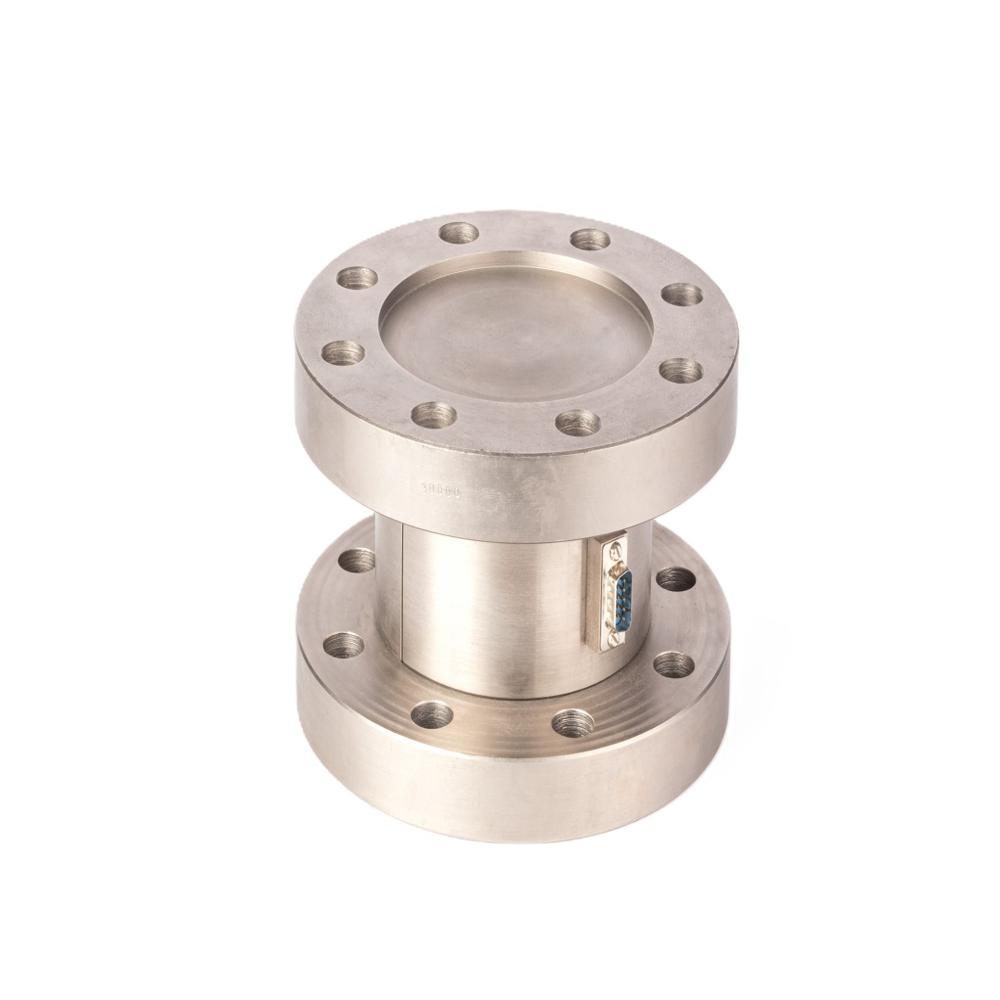

The TTS Flange Type Static Torque Transducer is a CE-certified reaction torque sensor designed for accurate static torque measurement in industrial and research applications.

Constructed from electroless nickel-plated tool steel (optional Stainless Steel 17-4 PH), the sensor is rugged and suitable for harsh environments. It features dual flange mounting, making it compact, rigid, and easy to install in torque testing setups.

The transducer uses strain gauge technology and is fully temperature compensated from 10C to 50C. It is compensated for axial and side loads to ensure high linearity and low hysteresis.

Available in a wide capacity range from 50 Nm to 50,000 Nm (50 kNm), it supports both clockwise and anticlockwise torque measurement.

With IP65 environmental protection and optional digital or analog outputs, it is ideal for demanding testing applications.

Key Highlights

Capacity range: 50 Nm to 50 kNm

Nominal output: 2.0 mV/V 0.5

Excitation: 10 VDC (Max 15 VDC)

IP65 protection

Safe overload: 150%

Ultimate overload: 250%

High linearity & low hysteresis

Suitable for CW & CCW torque measurement

Frequently Asked Questions (FAQs)

1 What type of torque does this sensor measure?

It measures static reaction torque in both clockwise and anticlockwise directions.

2 What is the construction material?

It is made from Electroless Nickel-Plated Tool Steel, with optional Stainless Steel 17-4 PH.

3 What industries use this torque transducer?

Common applications include:

Motor & actuator testing
Pump and turbine testing
Automotive drive shaft testing
Aerospace & defense testing
R&D laboratories
Machine tool testing

4 What is the accuracy level?

Non-linearity: < 0.5% FSO
Hysteresis: < 0.2% FSO
Non-repeatability: < 0.1% FSO

5 What is the operating voltage?

Recommended excitation is 10 VDC, maximum 15 VDC.

6 Is it protected against environmental conditions?

Yes, it has IP65 protection, with sealed gage area for industrial environments.

7 Are digital output options available?

Yes. Optional outputs include:

420 mA
02 V
RS-485
USB
Bluetooth or wireless telemetry

8 Can it be customized?

Yes, the sensor can be supplied in custom sizes, shaft/flange combinations, and capacity ranges as per customer requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'REACTION AND ROTARY TORQUE TRANSDUCERS' category
