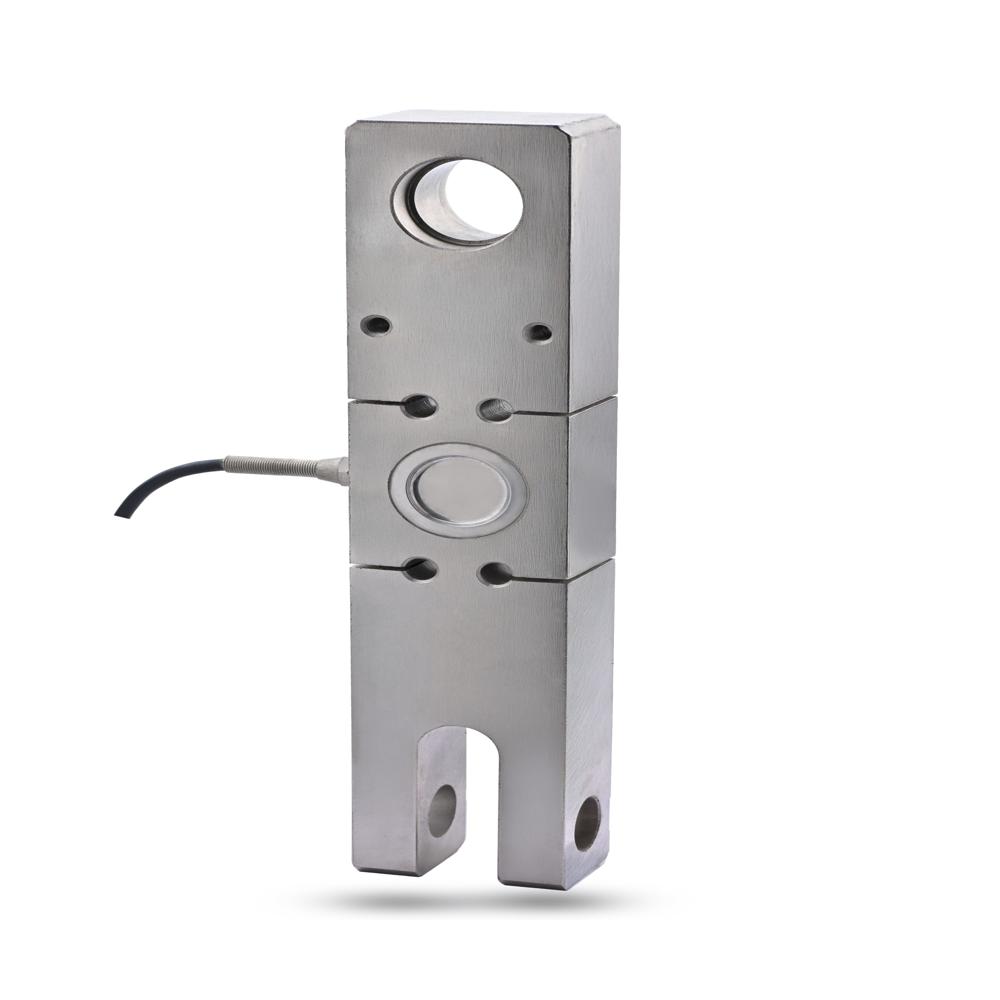

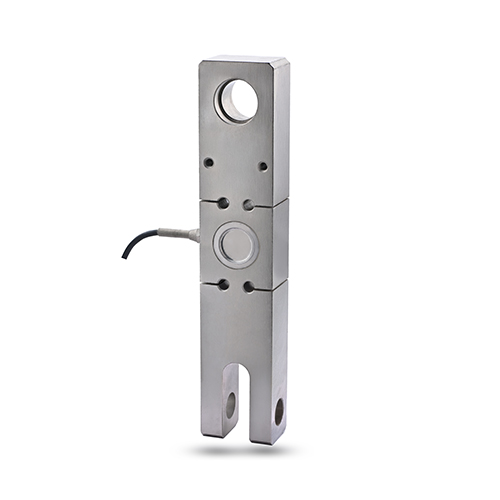

Crane Load Cell

25000.0 INR/Number

Get a Price/Quote

Product Details:

Capacity 3, 5, 7.5, 10, 15, 20, 30 Ton
Operate Method Tension Mode Only (Shackle at one end & Hook at other)
Resistance Input Resistance: 370 / 780 15 Ohms , Output Resistance: 350 / 700 3 Ohms
Power 10 VDC Volt (v)
Usage Rope tension measurement
Product Type Crane Load Cell
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Crane Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 25000.0 INR/Number

Ingress Protection IP67
Creep 0.03% of full scale
Ultimate Overload 250% of rated capacity
Mounting Threaded hole at each end
Application Tension and Compression measurement
Zero Balance 1% of full scale
Safe Overload 150% of rated capacity
Cable Length 3 meters
Material Stainless Steel
Capacity Range 50 kg to 5000 kg

Crane Load Cell Product Specifications

Output Voltage 1.0 mV/V Volt (V)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Operating Voltage 5-15V DC Volt (V)
Product Type Crane Load Cell
Classification Tension Type Load Cell
Compensated Temperature 10 C to 50 C Celsius (oC)
Application Crane weighing, Towing force measurement (Vehicles & Ships), Tension Dynamometer , Hanging & Crane Scale, Material handling equipment, Cargo handling in shipyards
Output Analog Sensor
Material High Alloy Tool Steel
Type Strain Gauge Based Load Cell
Operating Temperature 10 C to 50 C Celsius (oC)
Operate Method Tension Mode Only (Shackle at one end & Hook at other)
Capacity 3, 5, 7.5, 10, 15, 20, 30 Ton
Resistance Input Resistance: 370 / 780 15 Ohms , Output Resistance: 350 / 700 3 Ohms
Power 10 VDC Volt (v)
Storage Temperature 0 C to 50 C Celsius (oC)
Usage Rope tension measurement
Accuracy 0.15% FSO %
Theory Resistance Sensor

Ingress Protection IP67
Creep 0.03% of full scale
Ultimate Overload 250% of rated capacity
Mounting Threaded hole at each end
Application Tension and Compression measurement
Zero Balance 1% of full scale
Safe Overload 150% of rated capacity
Cable Length 3 meters
Material Stainless Steel
Capacity Range 50 kg to 5000 kg

Crane Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

The 20510 Crane Load Cell is an ultra-precision strain gauge-based tension load cell designed for crane weighing and tension measurement applications. It operates only in tension mode and is typically installed using a shackle at one end and a hook at the other.

Manufactured from high alloy tool steel with electroless nickel plating, it offers excellent resistance to shock, overload, and harsh industrial environments.

The load cell is compact, rugged, lightweight, and portable, making it ideal for field operations such as crane load monitoring, towing force measurement, and rope tension measurement.

It is available in standard capacities ranging from 3 TF to 30 TF, with customization options available.

Key Specifications (Summary)

Product Type: Crane Load Cell

Classification: Strain Gauge Based Tension Load Cell

Capacities: 3, 5, 7.5, 10, 15, 20, 30 TF

Material: High Alloy Tool Steel

Finish: Electroless Nickel Plated

Excitation Voltage: 10 VDC (Max 15 VDC)

Output: 1.0 mV/V

Accuracy (Non-linearity): 0.15% FSO

Safe Overload: 150% of Rated Capacity

Ultimate Overload: 200% of Rated Capacity

Temp. Compensated Range: 10C to 50C

Ingress Protection: Industrial grade (High insulation resistance >1000 M)

Cable Length: 5 meters (4 Core Screened)

Frequently Asked Questions (FAQs)

1 What is the working principle of the 20510 Crane Load Cell?

It works on the strain gauge principle, where applied tension force causes deformation in the load cell body. This deformation changes the resistance of strain gauges, generating a proportional electrical output (mV/V).

2 Can this load cell measure compression?

No. It is designed only for tension measurement.

3 What industries commonly use this load cell?

Crane & lifting equipment
Shipyards & cargo handling
Towing force measurement
Material handling systems
Tension dynamometers

4 What is the output signal?

Standard analog output: 1.0 mV/V
Optional outputs available:

420 mA
02 V
RS-485
USB
Bluetooth / Wireless telemetry

5 What is the operating voltage?

Recommended: 10 VDC
Maximum: 15 VDC

6 What is the overload capacity?

Safe Overload: 150% of rated capacity
Ultimate Overload: 200% of rated capacity

7 Can it be used in high-temperature environments?

Yes, a high-temperature version is available upon request for foundry applications.

8 Is customization available?

Yes. The load cell can be:

Designed for higher capacities
Manufactured as per required dimensions
Supplied with compatible shackles & hooks

9 What is the temperature compensation range?

10C to 50C with minimal temperature effect on output and zero.

What makes this load cell safe for crane applications?

Perpendicular hole design minimizes external moment effects
High-strength alloy steel construction
High overload protection
Rugged industrial design

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number
