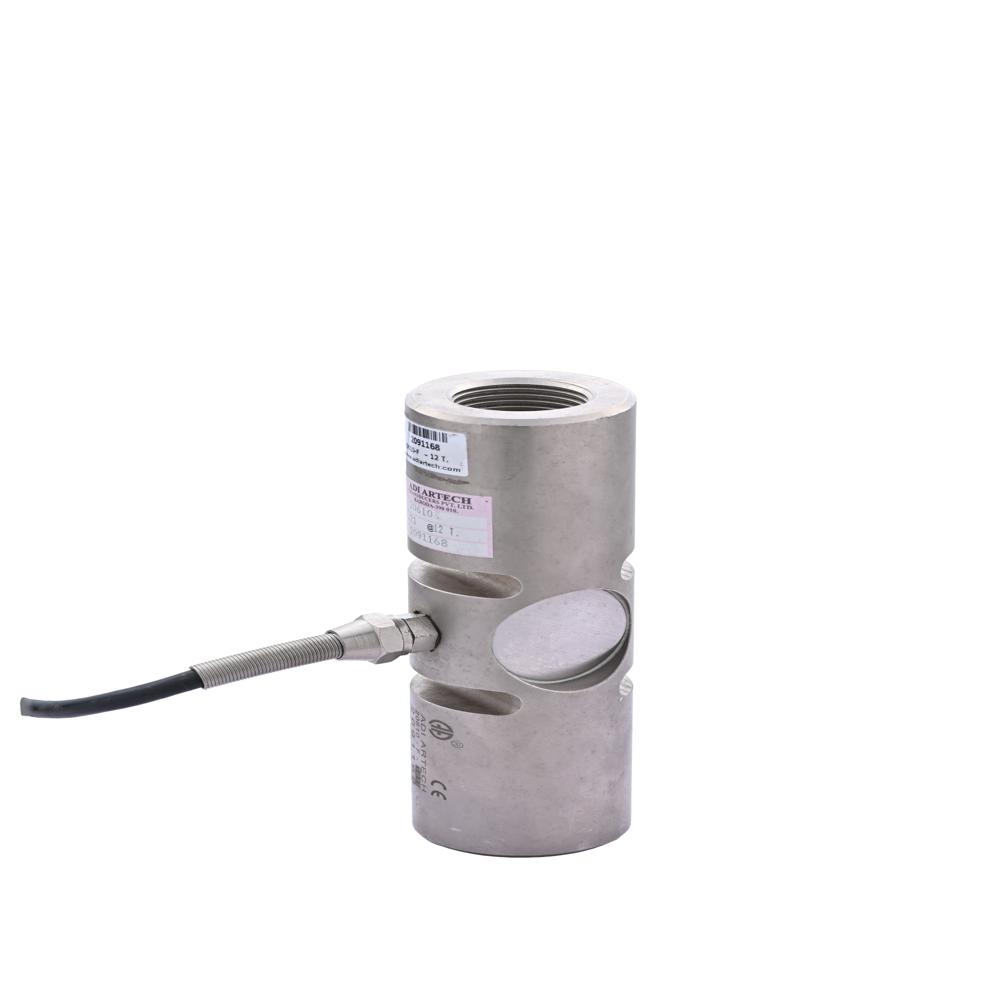

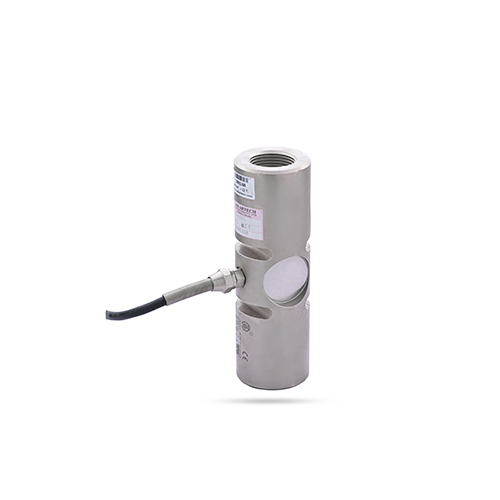

Tension Link with Female Threadings

Name: Tension Link with Female Threadings
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 12500.0 INR
Availability: InStock

Price 12500.0 INR/ Number

Get a Price/Quote

Tension Link with Female Threadings Specification

Application
Line tension measurement, hanging weighing, hydraulic force measurement, testing machine calibration, thrust measurement, industrial process control

Dimension (L*W*H)
100*38 Millimeter (mm)

Operate Method
Strain gauge sensing with mechanical deformation under load

Material
High Alloy Tool Steel (Electroless Nickel Plated)

Resistance
Input Resistance: 775 15 , Output Resistance: 700 3

Product Type
Tension Link Load Cell

Classification
Strain gauge based load cell (Tension & Compression)

Color
Silver

Capacity
1-450 Ton

Power
10 VDC Volt (v)

Weight
3 KG(Approx.) Kilograms (kg)

Usage
Inline force and tension measurement applications

Voltage
Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)

Output
Analog Sensor

Theory
Resistance Sensor

Type
Tension Link with Female Threadings

Accuracy
0.2% FSO %

Operating Voltage
10 vdc Volt (V)

Output Voltage
2 .0 Mv/v Volt (V)

Compensated Temperature
0to 60 C Celsius (oC)

Storage Temperature
1to 60 C Celsius (oC)

Operating Temperature
10 to 60 C Celsius (oC)

Cable Length
5 meters (standard, customizable)

Application
Crane Scales, Hanging Scales, Force Measurement

Thread Type
Female (custom sizes available)

Protection Class
IP65

Material
Alloy Steel or Stainless Steel

Ultimate Overload
300% of Rated Capacity

Safe Overload
150% of Rated Capacity

Finish
Nickel-Plated or Painted

Capacity Range
500 kg to 100 Ton

Tension Link with Female Threadings Trade Information

Minimum Order Quantity
100 Number

Supply Ability
10 Per Week

Delivery Time
1 Week

About Tension Link with Female Threadings

Tension Link with Female threading

Model	:	20610 - F
Capacity	:	0 - 1 Tf to 0 - 500 Tf
Load Direction	:	Tension & Compression - Universal
Type	:	Rod End In - Line Force/Tension Sensor

Industries

Ship Yards
Weighing
Shipbuilding
Bridge & Road Building
Port Trust
Crane Manufacturing

Application

Anchor Force Measurement
Bollard Pull Test Dynamo meter
Bridge Rope Tension Measurement
Compressive Force Measurement & Testing
Crane & Hoist Load Monitoring
Hopper , Tank , Silo Weighing
In-Line Force Measurement
Marin Towing
Material Handling
Pulling Force Measurement
Rope Tension Measurement
Winch Pull Force Measurement

Description

20610-F is tension link load cell with female connecting threads on both ends.
It is strain gage based sensor with full temperature compensation over 0 - 60 Deg.C.
This is universal type force sensor for tension and compression measurements.
Its high alloy tool steel construction provides capability to withstand heavy shock loads.

Features

This cell is provided with environmental sealing protection for IP 65 class.
High temperature version for foundry application can be provided.
This can be designed to fit customer's dimensional requirements.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
Please contact us for more details.

Exceptional Performance & Durability

Designed for longevity and precision, the Tension Link with Female Threadings utilizes strain gauge technology, offering dependable analog output and accuracy within 0.1% of full scale. Constructed from alloy steel or stainless steel, it withstands harsh environments while retaining excellent mechanical integrity. The nickel-plated or painted surface finish further boosts resistance against corrosion and wear, ensuring reliable service in heavy-duty applications.

Versatile Applications & Customization

Suitable for integration into crane scales, hanging scales, and diverse force measurement systems, this tension link supports varied industrial needs. Custom thread sizes and adjustable cable lengths empower manufacturers, suppliers, and operators to adapt the product to specific setups. Wide temperature tolerances and IP65-rated protection make it practical for both indoor and outdoor industrial environments.

FAQs of Tension Link with Female threadings:

Q: How is the Tension Link with Female Threadings commonly used in industrial settings?

A: This tension link is mainly deployed for accurate force measurement in crane scales, hanging scales, and lifting systems, ensuring safe load monitoring and operational efficiency in warehouses, construction sites, and industrial plants.

Q: What materials are available for the Tension Link, and how do they benefit the end-user?

A: The Tension Link is available in alloy steel and stainless steel, both providing excellent strength and corrosion resistance. This guarantees long-term durability and suitability for various environmental conditions, from humid outdoors to chemically exposed zones.

Q: Where can I install the Tension Link, and are customizations possible?

A: It can be installed in any compatible lifting or weighing system with female threading. Custom thread sizes and cable lengths can be tailored to your specific system requirements by the manufacturer or supplier, providing a perfect fit for your application.

Q: What is the process for selecting the right Tension Link capacity for my application?

A: First, determine the maximum load you need to measure, then select a model within the capacity range of 500 kg to 100 tons. For additional safety, choose a tension link with a rating comfortably above your expected load, considering the 150% safe and 300% ultimate overload thresholds.

Q: How does the IP65 protection class benefit daily operations?

A: With an IP65 protection class, the tension link is dust-tight and resistant to water jets, safeguarding sensitive internal components during operation in harsh or outdoor environments, thus reducing maintenance requirements and potential downtimes.

Q: What makes the strain gauge load cell theory advantageous for force measurement?

A: Strain gauge technology offers high accuracy, reliability, and repeatability in force measurement, which is crucial for industrial weighing and lifting operations, ensuring precise control and enhanced safety during all processes.
