Crane Scale Load Cell

Name: Crane Scale Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 12500.0 INR
Availability: InStock

Price 12500.0 INR/ Number

Get a Price/Quote

Crane Scale Load Cell Specification

Capacity
3-300 Ton

Weight
3 KG(APPROX.) Kilograms (kg)

Resistance
Input Resistance: 775 15 , Output Resistance: 700 3

Classification
Strain gauge based load cell (Tension type only)

Material
Rope tension measurement, towing force measurement, tension dynamometer, hanging & crane scale, cargo handling, bollard pull test, overload detection, drag force measurement

Usage
Crane weighing and inline tension force measurement

Application
Rope tension measurement, towing force measurement, tension dynamometer, hanging & crane scale, cargo handling, bollard pull test, overload detection, drag force measurement

Product Type
Crane Load Cell

Voltage
Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)

Dimension (L*W*H)
150*48 Millimeter (mm)

Power
10 VDC Volt (v)

Operate Method
Strain gauge sensing under applied tensile load

Color
Silver

Output
Analog Sensor

Theory
Resistance Sensor

Type
Crane Scale Load Cell

Accuracy
0.15% FSO (Non-linearity) %

Operating Voltage
10V DC (recommended), Max 15V DC Volt (V)

Output Voltage
1.0 mV/V Volt (V)

Compensated Temperature
0 to 60 C Celsius (oC)

Storage Temperature
Up to 60 C Celsius (oC)

Operating Temperature
Up to 60 C Celsius (oC)

Crane Scale Load Cell Trade Information

Minimum Order Quantity
100 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
OIML TEST REPORT

About Crane Scale Load Cell

Product details

Cable Length (4 Core Screened)	5 Meters
Input Resistance	775 +- 15 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Nominal Output	1.0 m V/ V
Output Resistance	700 +- 3 Ohms
Safe Overload of Rated Capacity	150%
Temp. Compensated Range	Upto 600 Degree C
Zero Balance	+- 1.0% FSO
Max Load Capacity	5TF to 450TF
Material	SS 17-4 PH/ Tool Steel

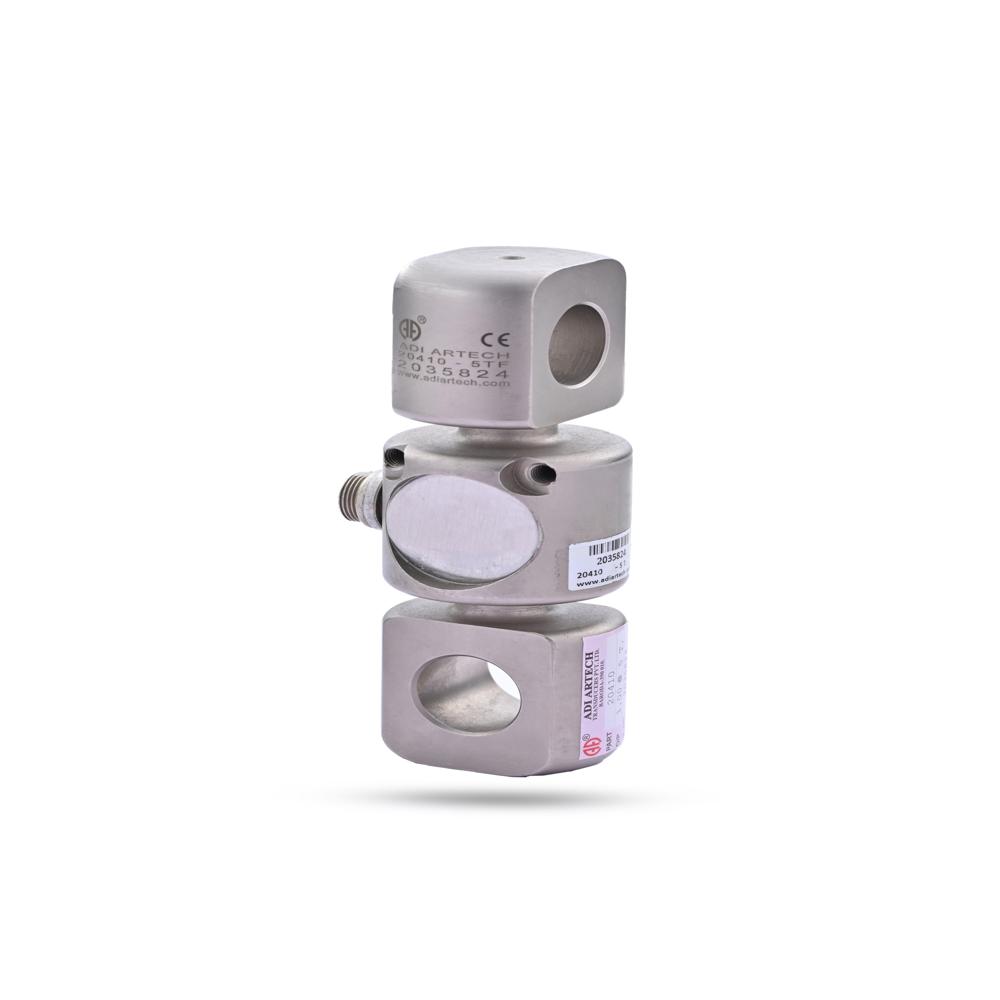

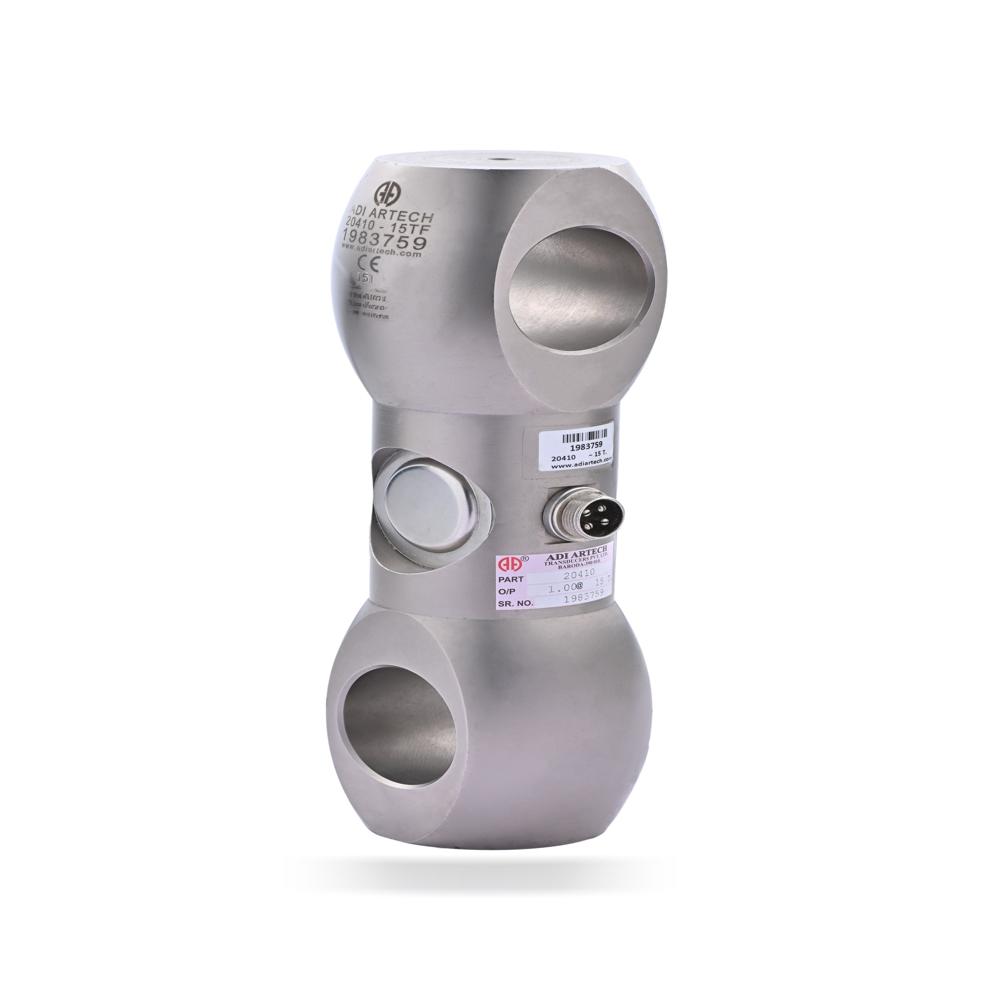

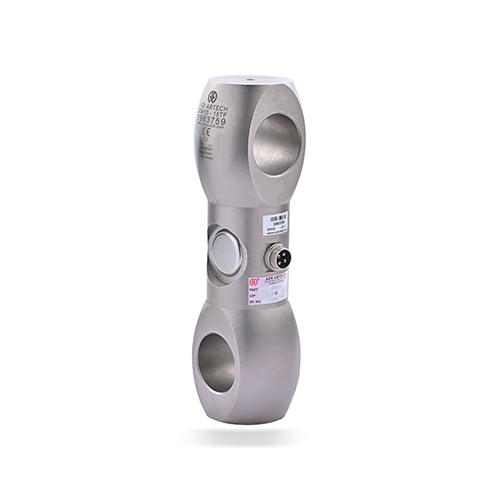

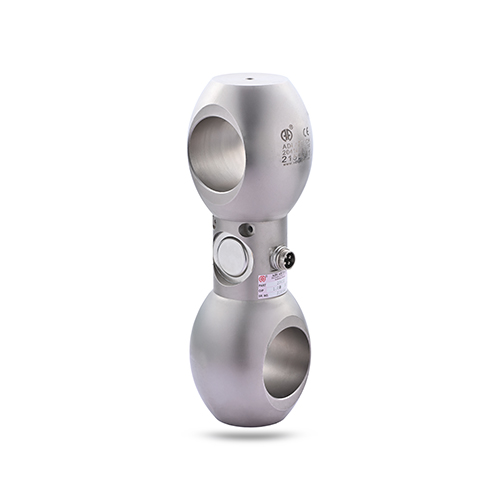

Crane Scale Load Cell

Model	:	20410
Capacity	:	0-2Tf to 0-300Tf
Load Direction	:	Tension & Compression - Universal
Type	:	Crane Load Cell , Force Transducer , Rod End In - Line Force/Tension Sensor , Rope Tension Load Cell , Tension Link Load Cell

Industries

Weighing *Shipbuilding *Port Trust Material Handling *Crane Manufacturing

Application

Anchor Force Measurement *Bollard Pull Test Dynamo meter
Bridge Rope Tension Measurement *Cargo Handling in Ship Yards
Crane Test Dynamo meter *Force Measurement Tension & or Compression Dynamo meter
Impact Measurement *In-Line Force Measurement
Lifting Equipment Load Measurement *Marin Towing
Material Handling *Pulling Force Measurement *Rope Tension Measurement
Tension Force Measurement *Tension Measurement in Railway Catenary
Suspension & Stay Ropes *Tow Bar Connection
Transmission Line Rope Tension Measurement *Vehicle Pull Test
Winch Pull Force Measurement *Wire Tension Measurement

Description

Strain gage based load cell model 20410 is versatile,compact and rugged.
It is used for tension measurements,crane weighing.
Tension loading is applied through a pair of shackles.
It meets to IP 67 environmental class protection.

Features

2 Tf to 300 Tf capacities are available.
This load cell is compact and light weight for portability.
High alloy tool steel construction is for ruggedness and safety.
Perpendicular loading holes design helps in minimizing external moment effects and improves safety and accuracy.
Optionally High temperature version for foundry applications can be offered upon request.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For details,please contact us.

Mounting Hardware

Please contact us for more details for Shackles.

Precision Load Sensing for Industrial Cranes

Designed for seamless integration into crane weighing systems, this load cell delivers exceptional accuracy of 0.02% Full Scale. It ensures reliable measurement, supporting safety and efficiency during lifting operations. Utilized by leading industries across India, its resistance-based operation ensures minimal error and long-lasting performance under heavy-duty use.

Engineered for Durability and Versatility

Constructed with robust materials, the Crane Scale Load Cell stands up to demanding environments found in material handling, warehousing, and industrial settings. Its compatibility with a broad voltage range (10V to 15V DC) and precise output meets varied operational needs, ensuring optimal results for distributors, wholesalers, and end users alike.

FAQs of Crane Scale Load Cell:

Q: How is the Crane Scale Load Cell installed and used in industrial applications?

A: The Crane Scale Load Cell is typically mounted directly onto the crane or integrated within the weighing system. Connect its wiring as per the manufacturers instructions, ensuring correct voltage supply (recommended 10V DC). Once installed, it accurately senses load through resistance changes and relays the weight data for measurement or monitoring.

Q: What are the benefits of the 0.02% F.S. accuracy in this load cell?

A: With a high accuracy rate of 0.02% Full Scale, the load cell significantly enhances weighing reliability, especially in safety-critical lifting operations. This precision helps minimize errors, ensure compliance with regulatory requirements, and safeguards against overloading or underloading scenarios.

Q: When should a resistance sensor-type load cell like this be chosen over other types?

A: A resistance sensor-type load cell should be selected when superior accuracy, stability, and durability are required in tough industrial environments. Its resistance-to-load technology is less susceptible to environmental factors, making it highly suitable for crane-based weighing applications where precise measurement is crucial.

Q: Where can I purchase this Crane Scale Load Cell in India?

A: This load cell is available through reputable dealers, distributors, exporters, manufacturers, suppliers, traders, and wholesalers throughout India. Many companies offer local and national distribution networks, ensuring prompt delivery and support.

Q: What is the process for calibrating the Crane Scale Load Cell?

A: To calibrate, connect the load cell to its corresponding indicator and apply standard known weights. Adjust the system as outlined in the user manual, making sure the voltage and resistance ratings are matched. Regular calibration maintains the cells accuracy and prolongs service life.

Q: How does the recommended operating voltage affect the performance of the load cell?

A: Operating at the recommended 10V DC ensures stable output and protects the load cells internal circuitry, maximizing lifespan and measurement accuracy. Exceeding the maximum of 15V DC can lead to errors or damage, so strict adherence to voltage specifications is vital.
