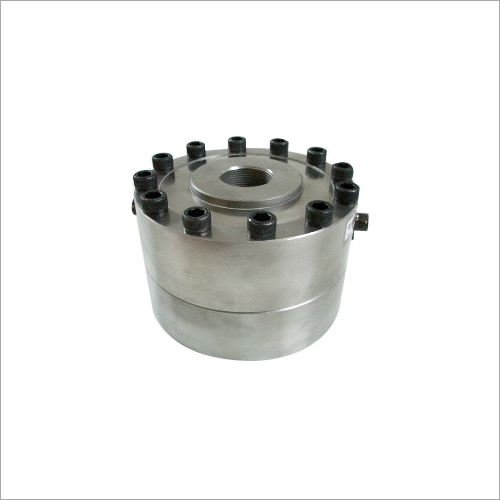

Precision Pancake Load Cell

ON REQUEST INR/Piece

Get a Price/Quote

Product Details:

Product Type CALIBRATION GRADE LOAD CELL
Output Analog Sensor
Type PANCAKE LOAD CELL
Accuracy 0.1
Output Voltage 2mv
Compensated Temperature 10-50
Storage Temperature 0-60
Supply Ability : 10 , , Piece Per Week
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 , , Piece
Price ON REQUEST INR/Piece

Product Specifications

Output Voltage 2mv
Accuracy 0.1
Storage Temperature 0-60
Product Type CALIBRATION GRADE LOAD CELL
Operating Temperature 0-50
Compensated Temperature 10-50
Output Analog Sensor
Type PANCAKE LOAD CELL

Trade Information

Supply Ability 10 , , Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Precision Pancake Olad Cell

Model	:	90610-T-Precision
Capacity	:	0-1Tf to 0 - 500Tf
Load Direction	:	Tension & Compression - Universal
Type	:	Pancake Load Cell

Industries

Defence
Weighing
Testing Machineries
Tensile Testing
Robotics
R & D Establishments
Material Testing
Egineering & Technical Institutes
Force & Reference Standard Metrology Laboratory
Automotive
Automation Machineries
Aerospace

Application

Actuator Force Measurement
Anchor Force Measurement
Automotive Research
Calibration of Load Cell and Force Sensor
Calibration of Universal Testing Machine
Compressive Force Measurement & Testing
Crash Test Dynamometer
Force & Impact Testing
Force Measurement Tension & or Compression Dynamometer
Hopper , Tank , Silo Weighing
Hydraulic Press Testing
Impact Force in Crash Test
Industrial Automation Equipments
Low Profile Floor Scale
Recoil Force in Rocket Engine Test

Description

90610-T is strain gage based force sensor with temperature compensation over 0 - 60 deg.C.
This is low profile thread type pancake force transducer in universal mode-for tension & compression force measurements.

Features

It is laser welded with IP-68 protection.
It is very light weight and easy to install.
Can be customized dimensionally and capacity wise to meet customer's specification.
Dual bridge configuration can be offered for sensor redundancy.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
