S Type SS Load Cell

Get a Price/Quote

Product Details:

Resistance 350 Ohms
Output Analog Voltage Signal
Theory Resistance Strain Gauge
Type S Type SS Load Cell
Accuracy 0.02% of full scale
Operating Voltage 5-15V DC
Output Voltage 2.0 mV/V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

S Type SS Load Cell Price And Quantity

Minimum Order Quantity 1 Set

S Type SS Load Cell Product Specifications

Output Analog Voltage Signal
Resistance 350 Ohms
Operating Temperature -20C to +60C
Compensated Temperature -10C to +40C
Output Voltage 2.0 mV/V
Theory Resistance Strain Gauge
Operating Voltage 5-15V DC
Accuracy 0.02% of full scale
Type S Type SS Load Cell
Storage Temperature -30C to +70C

S Type SS Load Cell Trade Information

Supply Ability 10 Set Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

Product details

Material	Stainless Steel
Nominal Output	2.0 m V/ V
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	350 +- 3 Ohms
Input Resistance	392 +- 15 Ohms
Load Capacity	50kgf to 10TF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Shape	S
Nominal Sensitivity	2 mv/v
Type	S-type
Usage/Application	Industrial

S Type SS Load Cell

Model	20210-SS-Round
Capacity	0-250Kgf to 0-20000Kgf
Load Direction	Tension & Compression - Universal
Type	S Beam Load Cell
Industries	Weighing Testing Machineries Tensile Testing Food & Dairy Industries Batch Weigh Bagging Machineries Automation Machineries Assembly Lines
Application	Assembly Processes Bag Weighing Machine Check Weighing Conveyor Belt Weighing Crane & Hoist Load Monitoring Engine Test Dynamometer Force & Impact Testing Force Gage Force in Product Testing Hand held Push / Pull Force Gage Hanging Scale Hopper , Tank , Silo Weighing Materials Testing Pulling Force Measurement Rope Tension Measurement Steel Weigher Structural Material Testing Tablet Hardness Testing Machine Tensile Testing

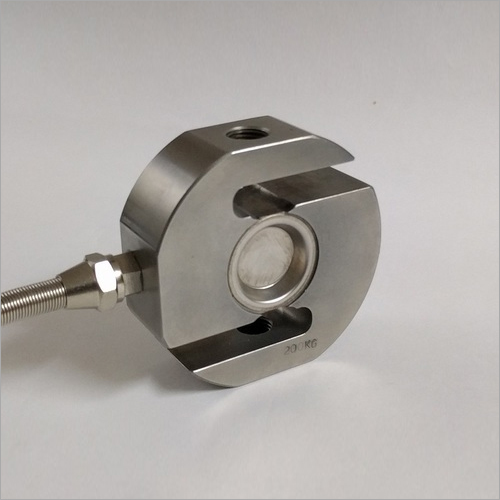

Description	This is S type round shape Load Cell in SS 17-4 PH construction. It is available from 250Kgf. to 20000Kgf.capacity. It is very compact and easy to handle and install.
Features	This SS load cell is suitable for corrossive environment. It can be availed in customized dimensions to suit specific application.
Electronic Instrumentation / Software	20201-SS-Round shape load cell can be supplied with suitable Compatible Electronic Systems - Stand alone digital display indicator. Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface. Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment. Data acquisition system and software.

Superior Precision and Reliability

Engineered with resistance strain gauge technology, this S Type SS Load Cell guarantees measurement accuracy up to 0.02% of full scale. It is designed to minimize drift and creep, offering consistent results even in challenging industrial settings. The robust stainless steel body with IP67 rating shields against dust and moisture, maximizing operational longevity.

Versatile Applications and Easy Integration

This load cell is ideal for a range of tension and compression measurement needs across industries such as manufacturing, logistics, and material testing. Its threaded hole mounting ensures straightforward installation, while the 3-meter cable allows flexible connectivity to existing systems. The analog output fits seamlessly with standard measurement and control equipment.

FAQs of S Type SS Load Cell:

Q: How is the S Type SS Load Cell installed for tension and compression applications?

A: The load cell features a threaded hole at each end, enabling secure mounting onto mechanical assemblies for both tension and compression measurement tasks. Ensure proper alignment during installation for optimal sensor performance.

Q: What benefits does the stainless steel construction offer?

A: Stainless steel construction provides enhanced corrosion resistance and mechanical strength, ensuring reliable operation in harsh industrial conditions and extending the life of the load cell.

Q: Which environments are suitable for using this load cell?

A: Thanks to its IP67 ingress protection and wide operating temperature range (-20C to +60C), the S Type SS Load Cell is suited for use in dusty, moist, or fluctuating temperature environments commonly found in industrial settings across India.

Q: What electrical output does the load cell deliver and how is it integrated?

A: The load cell outputs an analog voltage signal of 2.0 mV/V and operates with a voltage supply between 5 to 15V DC. This makes it compatible with most standard amplification and data acquisition systems.

Q: What is the safe and ultimate overload capacity of the load cell?

A: The device can safely handle loads up to 150% of its rated capacity, and its ultimate overload limit reaches 250%, providing security against accidental overloading during operations.

Q: Who can benefit from using this load cell in India?

A: Dealers, distributors, exporters, manufacturers, suppliers, traders, and wholesalers involved in weighing, force measurement, or process automation can benefit from the versatility, accuracy, and robustness of this load cell.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Tension Force Sensor' category

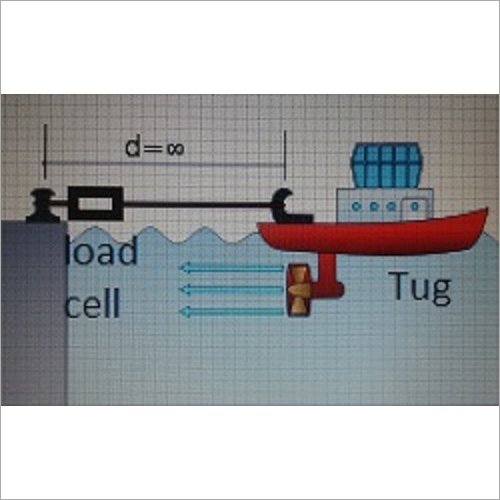

Load Cell , Instrument , Assembly and Software Minimum Order Quantity : 1 Compensated Temperature : 10C to +40C Theory : Other, Resistance Strain Output Voltage : 1.5mV/V to 3.0mV/V Operating Temperature : 10C to +55C Resistance : 350 Output : Other, Analog Storage Temperature : 20C to +65C Type : S Type Accuracy : 0.03% F.S. Operating Voltage : 5V to 12V DC
