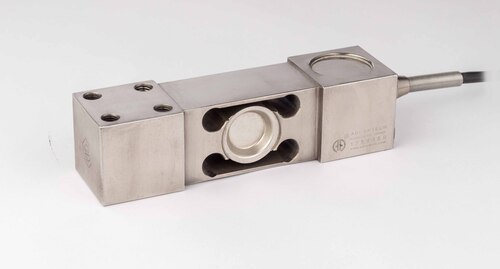

Stain Less Steel Hermatically sealed Platform Load Cell

Get a Price/Quote

Product Details:

Resistance Input: 40515, Output: 3505
Output Analog
Theory Strain Gauge
Type Platform Load Cell
Accuracy C3 Class (0.02% of full scale)
Operating Voltage 5V to 15V DC (Excitation Voltage)
Output Voltage 2.0 mV/V 0.1%
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Stain Less Steel Hermatically sealed Platform Load Cell Price And Quantity

Minimum Order Quantity 1 Piece

Stain Less Steel Hermatically sealed Platform Load Cell Product Specifications

Storage Temperature -25C to +70C
Operating Temperature -10C to +40C
Resistance Input: 40515, Output: 3505
Type Platform Load Cell
Compensated Temperature -10C to +40C
Theory Strain Gauge
Accuracy C3 Class (0.02% of full scale)
Output Voltage 2.0 mV/V 0.1%
Operating Voltage 5V to 15V DC (Excitation Voltage)
Output Analog

Stain Less Steel Hermatically sealed Platform Load Cell Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Domestic Market All India

Product Description

Stain Less Steel Hermatically sealed Platform Load Cell

Model	:	60310-SS-HS
Capacity	:	0-150Kgf to 0-500Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Single Point Platform Load Cell ,Off Center Platform Load Cell ,Bending Beam Platform Load Cell

Industries

Weighing
Fertilizer , Cement , Chemical , Steel industries
Pharmaceutical
Food & Dairy Industries
Batch Weigh
Bagging Machineries

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Food Packaging
Low Profile Floor Scale
Marine Scale
Platform Scale

Description

Strain Gage based low profile single point load cell is made out of SS materail and is sealed by Laser Welded Gaging area.
Off center load compensated for 550x550 mm platter.
It is rugged and low profile.

Features

Stainless Steel 17-4 ph construction for harsh,corrossive industrial applications.
It is compact,light weight and economical.
Meets to IP 68 degree of protection class for environmental protection..

Superior Protection and Durability

With hermetically sealed stainless steel construction and an IP68 protection rating, this platform load cell is designed to withstand challenging industrial environments. Its resistant build protects against dust, water, and extreme temperatures, ensuring consistent operation and minimal maintenance requirements.

Reliable Accuracy and Performance

Featuring C3 Class accuracy (0.02% of full scale) and advanced strain gauge theory, this load cell delivers precise results for platform scales and industrial applications. The low creep and stable zero balance guarantee consistent measurements, even during extended use cycles.

Flexible Capacity and Easy Integration

This model supports capacities from 10 kg to 200 kg, making it suitable for a variety of weighing needs. Its analog output and adaptable cable length (standard 2 meters, customizable) allow for seamless integration with new or existing weighing systems, providing versatile solutions for manufacturers and suppliers.

FAQs of Stain Less Steel Hermatically sealed Platform Load Cell:

Q: How does the hermetic sealing contribute to the longevity of the platform load cell?

A: Hermetic sealing prevents the ingress of moisture, dust, and contaminants, which significantly extends the operational lifespan of the load cell, especially in harsh industrial environments.

Q: What applications is this stainless steel platform load cell best suited for?

A: It is ideal for platform scales, industrial weighing systems, and check weighers where reliable and precise measurements are essential.

Q: When is it necessary to customize the cable length for installation?

A: Cable length customization is necessary when the standard 2-meter cable does not meet the specific installation requirements of your facility or connecting equipment.

Q: Where is the optimal place to install this load cell for maximum accuracy?

A: The load cell should be installed on a stable, vibration-free platform with secure mounting hardware to ensure accurate and consistent readings.

Q: What process is involved in ensuring safe overload protection for the load cell?

A: The load cell is designed to safely withstand loads up to 150% of its rated capacity and up to 200% for ultimate overload, preventing damage and ensuring reliability during accidental overloading events.

Q: How can users benefit from the load cells C3 Class accuracy?

A: Users enjoy enhanced measurement precision, regulatory compliance, and reduced error rates in industrial weighing tasks, leading to more efficient operational processes and better quality control.
