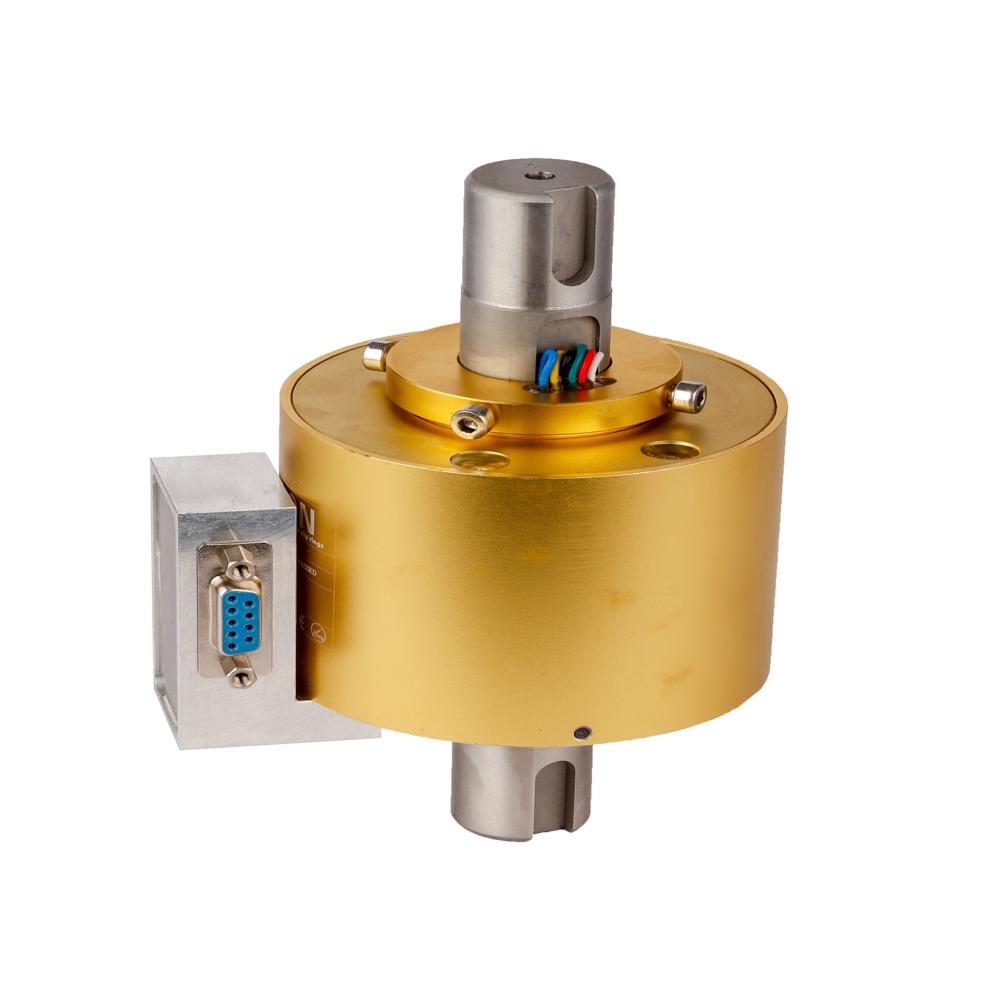

TTD-SS-TT DYNAMIC TORQUE CUM THRUST TRANSDUCER

TTD-SS-TT DYNAMIC TORQUE CUM THRUST TRANSDUCER

50000.0 INR/Number

Get a Price/Quote

Product Details:

Application Electrical tool testing, Gearbox testing , Axle/Shaft torsion testing, Bearing friction measurement , Starter, slip ring, clutch & brake testing ,Electric/Hydraulic/Pneumatic motor testing , Engine dynamometer, Automobile testing,Alternator, pump, gas & diesel turbine testing
Power 10 VDC Volt (v)
Usage Dynamic torque and axial thrust measurement in rotating machinery
Color Natural Metallic (Stainless Steel Finish)
Classification Rotary Strain Gauge Based Torque & Axial Thrust Sensor
Product Type Dynamic Torque Cum Thrust Transducer
Resistance Input Resistance: 390 Ohms , Output Resistance: 350 Ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

TTD-SS-TT DYNAMIC TORQUE CUM THRUST TRANSDUCER Price And Quantity

Minimum Order Quantity 1 Number
Price 50000.0 INR/Number

Capacity 10kg to 5000kg
Material Alloy Steel / Stainless Steel
Response Time 1ms
Instrument Display Digital / LCD
Overload Limit 150% F.S.
Signal Transmission Shielded Cable
Zero Balance 1% F.S.
Insulation Resistance >5000M (50V DC)
Creep 0.02% F.S./30min
Cable Length 2m
Software Feature Real-time data acquisition and calibration
Connector Type Waterproof Plug
Protection Class IP65
Safe Overload 120% F.S.
Assembly Configuration Single Channel / Multi Channel

TTD-SS-TT DYNAMIC TORQUE CUM THRUST TRANSDUCER Product Specifications

Classification Rotary Strain Gauge Based Torque & Axial Thrust Sensor
Color Natural Metallic (Stainless Steel Finish)
Usage Dynamic torque and axial thrust measurement in rotating machinery
Theory Resistance Sensor
Material Stainless Steel 17-4 PH (Hardenable Grade)
Capacity 50 NM-50 KNM// 15 KN-1500 KN Kg
Resistance Input Resistance: 390 Ohms , Output Resistance: 350 Ohms
Operate Method Measures torsional strain and axial thrust in rotating shafts. Electrical signals are transmitted through slip ring and brush mechanism during rotation.
Output Analog Sensor
Product Type Dynamic Torque Cum Thrust Transducer
Power 10 VDC Volt (v)
Storage Temperature 10 C to 50 C Celsius (oC)
Voltage 10 VDC Volt (v)
Type Dynamic Rotary Type (Shaft/Flange Mounting Options Available)
Output Voltage 2 mV/V Volt (V)
Application Electrical tool testing, Gearbox testing , Axle/Shaft torsion testing, Bearing friction measurement , Starter, slip ring, clutch & brake testing ,Electric/Hydraulic/Pneumatic motor testing , Engine dynamometer, Automobile testing,Alternator, pump, gas & diesel turbine testing
Compensated Temperature 10 C to 50 C Celsius (oC)
Accuracy 0.2% FSO %
Operating Voltage 10 VDC Volt (V)
Operating Temperature 10 C to 50 C Celsius (oC)

Capacity 10kg to 5000kg
Material Alloy Steel / Stainless Steel
Response Time 1ms
Instrument Display Digital / LCD
Overload Limit 150% F.S.
Signal Transmission Shielded Cable
Zero Balance 1% F.S.
Insulation Resistance >5000M (50V DC)
Creep 0.02% F.S./30min
Cable Length 2m
Software Feature Real-time data acquisition and calibration
Connector Type Waterproof Plug
Protection Class IP65
Safe Overload 120% F.S.
Assembly Configuration Single Channel / Multi Channel

TTD-SS-TT DYNAMIC TORQUE CUM THRUST TRANSDUCER Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Australia, Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

The TTD-SS-TT Dynamic Torque Cum Thrust Transducer is a CE-certified rotary torque sensor designed for precise measurement of dynamic torque and axial thrust in rotating shafts and equipment.

Manufactured from hardened Stainless Steel 17-4 PH, it is a strain gauge-based sensor with full temperature compensation from 10C to 50C. The torque sensing shaft is supported on ball journals, and electrical signals are transmitted via a high-quality, low-noise slip ring and brush mechanism, ensuring stable output during rotation.

The transducer is compensated for axial and bending forces, delivering accurate torque measurement even in demanding industrial environments. It supports speeds up to 2500 RPM (depending on capacity) and is available in multiple mounting configurations such as shaft-to-shaft, flange-to-flange, and shaft-flange combinations.

Capacity ranges from 50 Nm to 50 kNm (and corresponding thrust ranges up to 1500 kN). Higher capacities can be offered in wireless telemetry versions.

Key Highlights

Type: Dynamic Rotary Torque & Thrust Transducer

Construction: Stainless Steel 17-4 PH

Excitation Voltage: 10 VDC

Nominal Output: 2 mV/V

Non-Linearity: 0.2% FSO

Hysteresis: 0.1% FSO

Non-Repeatability: 0.1% FSO

Safe Overload: 150% of Rated Capacity

Ultimate Overload: 200% of Rated Capacity

Temperature Compensated Range: 10C to 50C

Protection Class: IP65 (gage area)

Maximum Speed: Up to 2500 RPM (varies by capacity)

Frequently Asked Questions (FAQs)

1. What does a torque cum thrust transducer measure?

It simultaneously measures rotational torque (Nm / kNm) and axial thrust force (kN) in rotating shafts or machinery.

2. What is the working principle?

It works on strain gauge technology, where strain gauges bonded to the shaft detect torsional and axial deformation, converting it into an electrical signal (mV/V output).

3. What is the output signal?

The standard output is 2 mV/V, proportional to applied torque and thrust.

4. What is the operating speed limit?

Maximum speed ranges from 100 RPM to 2500 RPM, depending on the selected capacity.

5. What temperature range is supported?

It is temperature compensated from 10C to 50C for stable performance.

6. Is it protected against industrial environments?

Yes, the gage area has IP65 protection, making it suitable for industrial applications.

7. What mounting options are available?

Both ends shaft
Both ends flange
Combination of shaft & flange
Custom dimensions as per requirement

8. What are typical applications?

Engine dynamometers
Electric/hydraulic/pneumatic motor testing
Gearbox testing
Axle/shaft torsion testing
Bearing friction measurement
Automobile testing
Alternator and pump testing
Drilling & rigging processes

9. Are digital or telemetry options available?

Yes, optional versions include:

420 mA or 02V output
RS-485 interface
USB output
Bluetooth telemetry
Wireless telemetry
Software for data logging, analysis, and reporting

10. What makes this model reliable for industrial use?

High-strength 17-4 PH stainless steel construction
Compensation for axial & bending forces
Slip ring signal transmission
High overload capacity
CE certification

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'REACTION AND ROTARY TORQUE TRANSDUCERS' category

Dynamic type Rotary Torque Transduser Price : 110000.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 050 Celsius (oC) Operating Voltage : 10 VDC nominal, 15 VDC maximum Volt (V) Accuracy : 0.1% FSO % Compensated Temperature : 1050 Celsius (oC) Type : DYNAMIC ROTATING TORQUE SENSOR Storage Temperature : 060 Celsius (oC) Output Voltage : 2mV/V Volt (V) Product Type : Dynamic Torque Transducer Output : Analog Sensor Resistance : Input Resistance: 390 , Output Resistance: 350 Theory : Resistance Sensor Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Operate Method : Strain gauge based rotary torque measurement with slip ring and brush mechanism Material : Stainless Steel 174 PH Application : Electrical tool testing, gearbox testing, axle/shaft torsion test, bearing friction measurement, testing of starters/slip rings/brushes/clutches/brakes, electric/hydraulic/pneumatic motor testing, alternators, pumps, gas & diesel turbine engine testing, engine dynamometer, automobile testing Power : 10 VDC Volt (v) Color : Silver Usage : Measurement of dynamic torque in rotating shafts and equipment Classification : Rotary type torque sensor (Dynamic)

Send Inquiry

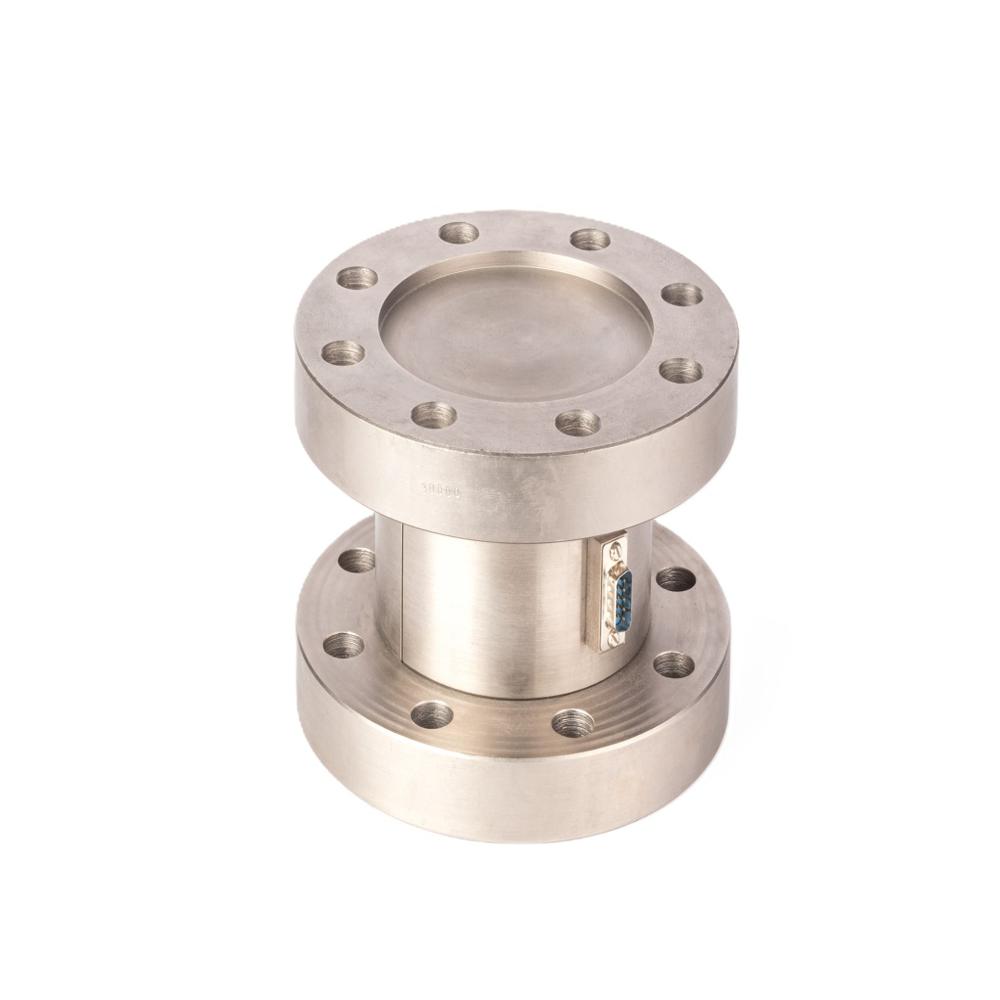

TTS FLANGE TYPE STATIC TORQUE TRANSDUCER Price : 50000.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 10 C to 50 C Celsius (oC) Operating Voltage : 10 VDC (Recommended), Maximum 15 VDC Volt (V) Accuracy : 0.5% FSO % Compensated Temperature : 10 C to 50 C Celsius (oC) Type : Flange Mount Static Torque Transducer Storage Temperature : 10 C to 50 C Celsius (oC) Output Voltage : 2.0 mV/V Volt (V) Product Type : Flange Type Static Torque Transducer Output : Analog Sensor Resistance : Input Resistance: 392 15 , Output Resistance: 350 3 Theory : Resistance Sensor Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Operate Method : Measures static reaction torque via flange mounting; suitable for clockwise and anticlockwise torque measurement. Material : Electroless NickelPlated Tool Steel (Optional: Stainless Steel 174 PH) Application : Actuator / Valve testing Shaft & axle torsion testing Bearing friction measurement Motor, pump, turbine engine testing Automotive drive shaft & crank shaft torque testing Aerospace, Defense & R&D applications Power : Externally powered through DC excitation supply Volt (v) Color : Metallic (NickelPlated Tool Steel Finish) Usage : Used for static torque measurement in industrial and research testing setups. Classification : CE Certified Static Reaction Torque Sensor (Strain Gauge Based) Capacity : 50, 100, 200, 300, 500 Nm; 1K, 1.5K, 2K, 3K, 5K, 10K, 20K, 30K, 50K Nm Kg
