Crane Scale Load Cell

Crane Scale Load Cell
Crane Scale Load Cell
Send Inquiry
Product Code : 20510
Brand Name : ADI ARTECH
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • 65000 INR
Product Description

Crane Scale Load Cell

Model

:   20510
Capacity :   0-10Tf to 0-100Tf
Load Direction :   Tension only
Type :   Tension Link Load Cell
Industries
  • Defence
  • Weighing
  • Port Trust
  • Crane Manufacturing
Application
  • Bollard Pull Test Dynamo meter
  • Cargo Handling in Ship Yards
  • Crane & Hoist Load Monitoring
  • Crane Test Dynamo meter
  • Crash Test Dynamo meter
  • Lifting Equipment Load Measurement
  • Marin Towing
  • Material Handling
  • Over Load Limitting
  • Pulling Force Measurement
  • Rope Tension Measurement
  • Steel Weigher
  • Tension Force Measurement
  • Vehicle Pull Test
Description :

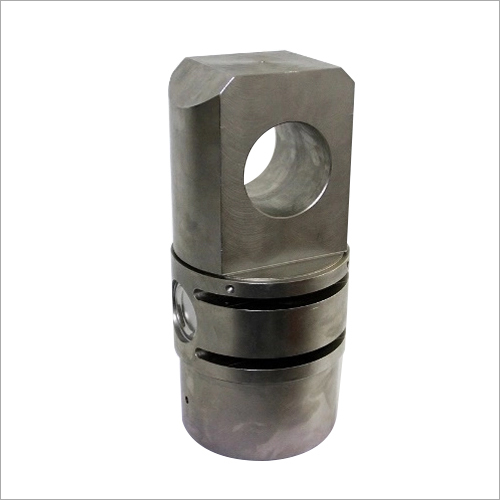

20510 is column type link beam Load Cell / Force Sensor and it is strain gage based.
It is temperature compensated for 0 - 60 Deg.C.and meets to IP 67 environmental protection class.
This is constructed from electroless nickel plated high alloy tool steel for high shock loads and corrossion.

Features :

20510 crane load cell is loaded with shackle at one end and threaded hook on other end,which can be made swiveling.
This can be supplied in 0 - 10 Tf to 0 - 100 Tf capacities.
It is very much suited for cargo handling in shipyards.

Electronic Instrumentation / Software :

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 MA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For details,please contact us.

Mounting Hardware :

Compatible Mounting Assembly WM-IX is offered optionally.
Please contact us for details.
