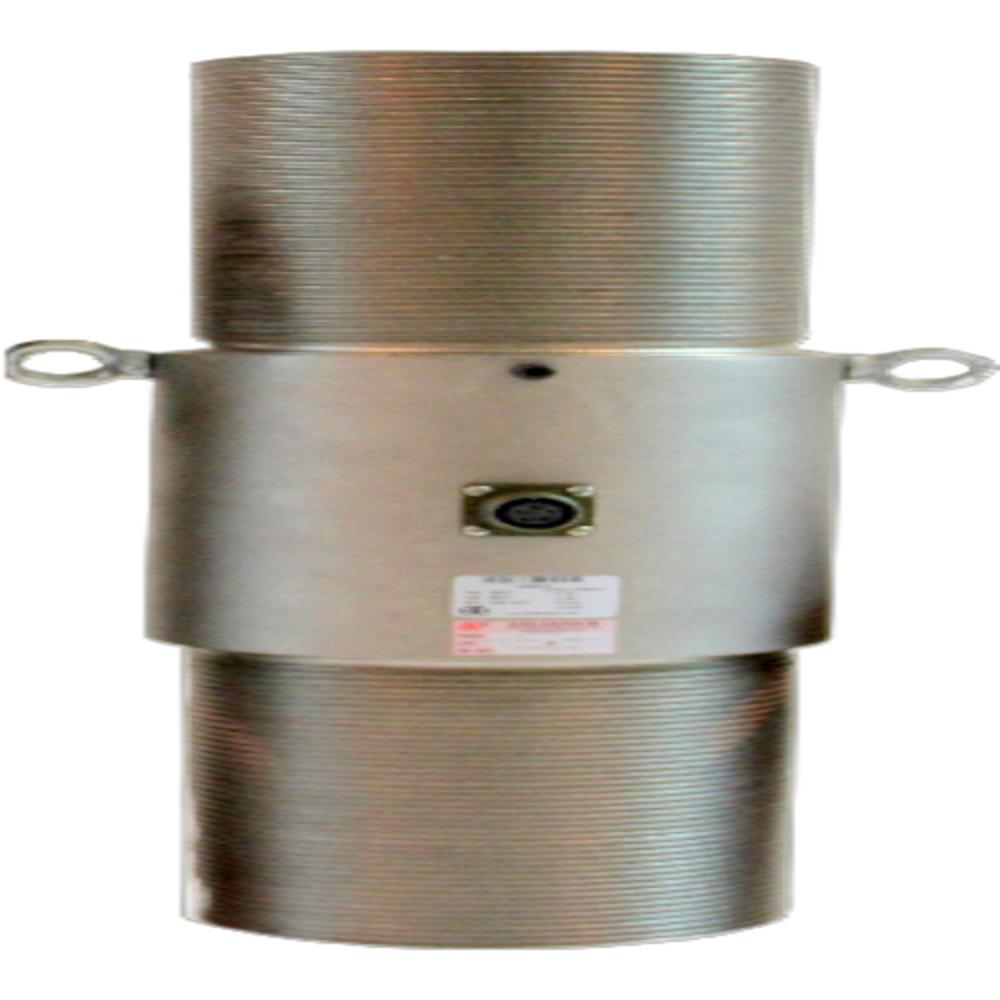

Tension Link with Male threadings

Name: Tension Link with Male threadings
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 12500.0 INR
Availability: InStock

Price 12500.0 INR/ Number

Get a Price/Quote

Tension Link with Male threadings Specification

Weight
5 KG(APPROX) Kilograms (kg)

Power
10 VDC Volt (v)

Resistance
Input Resistance: 775 15 , Output Resistance: 700 3

Application
Line tension measurement, hanging weighing, hydraulic force measurement, testing machine calibration, extrusion process, industrial process control

Usage
Inline force and tension measurement

Product Type
Tension Link Load Cell

Operate Method
Strain gauge sensing with mechanical deformation under applied load

Color
Silver

Classification
Strain gauge based load cell (Tension & Compression)

Material
High Alloy Tool Steel (Electroless Nickel Plated)

Voltage
10 VDC (Maximum 15 VDC) Volt (v)

Dimension (L*W*H)
157*89 Millimeter (mm)

Capacity
1-500 Ton

Output
Analog Sensor

Theory
Resistance Sensor

Type
Rod end dual stud mount load cell (Male thread both ends)

Accuracy
0.2% FSO %

Operating Voltage
5~15V DC Volt (V)

Output Voltage
2.0 mV/V Volt (V)

Compensated Temperature
0 to 60 C Celsius (oC)

Storage Temperature
Up to 60 C Celsius (oC)

Operating Temperature
Up to 60 C Celsius (oC)

Repeatability
<0.1% F.S.

Cable Length
3 meters standard

Ultimate Overload
200% of rated capacity

Zero Balance
1% of F.S.

Hysteresis
<0.2% F.S.

Capacity Range
1 Ton to 100 Ton

Non-Linearity
<0.2% F.S.

Thread Size
M20, M24, M30 and custom options

Creep
<0.03% in 30 min

Finish
Electro-galvanized

Connector Type
4-wire shielded cable

Safe Overload
150% of rated capacity

Protection Class
IP67

Application
Industrial weighing, crane scale, load monitoring systems

Material
High-strength Alloy Steel

Tension Link with Male threadings Trade Information

Minimum Order Quantity
100 Number

FOB Port
VADODARA

Payment Terms
Cheque, Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
OEM TEST REPORT

About Tension Link with Male threadings

Product details

Load Capacity	75KGF to 2000KGF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Nominal Sensitivity	2 mv/v
Type	Tension Sensing Block
Usage/Application	Industrial

Tension Link with Male threadings

Model	:	20610 - M
Capacity	:	0 - 1 Tf to 0 - 500 Tf
Load Direction	:	Tension & Compression - Universal
Type	:	Rod End In - Line Force/Tension Sensor

Industries

Ship Yards
Weighing
Shipbuilding
Bridge & Road Building
Port Trust
Crane Manufacturing

Application

Crane & Hoist Load Monitoring
Crane Test Dynamo meter
Hanging Scale
Impact Measurement
Lifting Equipment Load Measurement
Marin Towing
Material Handling
Pulling Force Measurement
Tension Force Measurement

Description

20610-M is male threaded Rod end load cell / force sensor.It is strain gage based transducer with temperature compensation over 0 - 60 Deg.C.
Its tool steel constrution provides capability to absorb heavy shock loads.
It is sealed for IP65 protection class for environment.

Features

This sensor is available in wide range of capacity to meet the industrial demands.
It is light weight for easy portability for field measurements.
This can be customized to fit to individual requirements.
High temperature version for foundry application can be provided.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
Please contact us for more details-

Robust Construction for Demanding Applications

With its high-strength alloy steel build, our Tension Link ensures durability and dependability even in harsh industrial environments. The electro-galvanized finish provides robust protection against corrosion, while the IP67 rating safeguards the internal components from dust and water ingress, making it ideal for both indoor and outdoor applications.

Versatile Performance and Configuration

Designed to accommodate diverse requirements, the Tension Link is offered in capacities from 1 to 100 tons, with standard thread sizes M20, M24, and M30 as well as customization options. Its analog output, high accuracy, and wide operating temperature range guarantee performance and adaptability for varied weighing or force measurement needs.

FAQs of Tension Link with Male threadings:

Q: How can the Tension Link with Male Threadings be installed in industrial weighing setups?

A: The Tension Link is equipped with male threadings (M20, M24, M30, or custom), allowing for straightforward integration into crane scales, shackle systems, or load monitoring assemblies. Its standard 3-meter shielded cable supports flexible connection to indicators or controllers.

Q: What applications are best suited for this tension link load cell?

A: This tension link is ideal for industrial weighing, crane scales, and load monitoring systems where precise force measurement and reliable performance are needed. Its robust construction and high capacity range make it suitable for heavy-duty environments.

Q: When should a custom thread size or different capacity be selected?

A: Custom thread sizes and capacities may be required if your existing equipment or specific application needs non-standard dimensions or higher/lower load limits. Contact the manufacturer or dealer for tailored solutions to match your requirements.

Q: Where can the Tension Link be used considering its protection class and finish?

A: With an IP67 rating and electro-galvanized finish, the tension link can be safely operated in harsh environments such as construction sites, factories, ports, or outdoor industrial locations with exposure to dust and moisture.

Q: What is the process for ordering this product in India?

A: You can purchase the Tension Link through authorized dealers, distributors, exporters, manufacturers, producers, suppliers, traders, or wholesalers across India. Specify your required capacity, thread size, and any customization during inquiry.

Q: How does this tension link benefit industrial operations?

A: By delivering accurate force measurements (0.5% FS accuracy) and supporting overload protection up to 200% of rated capacity, this load cell enhances operational safety, process control, and equipment longevity in critical weighing applications.
