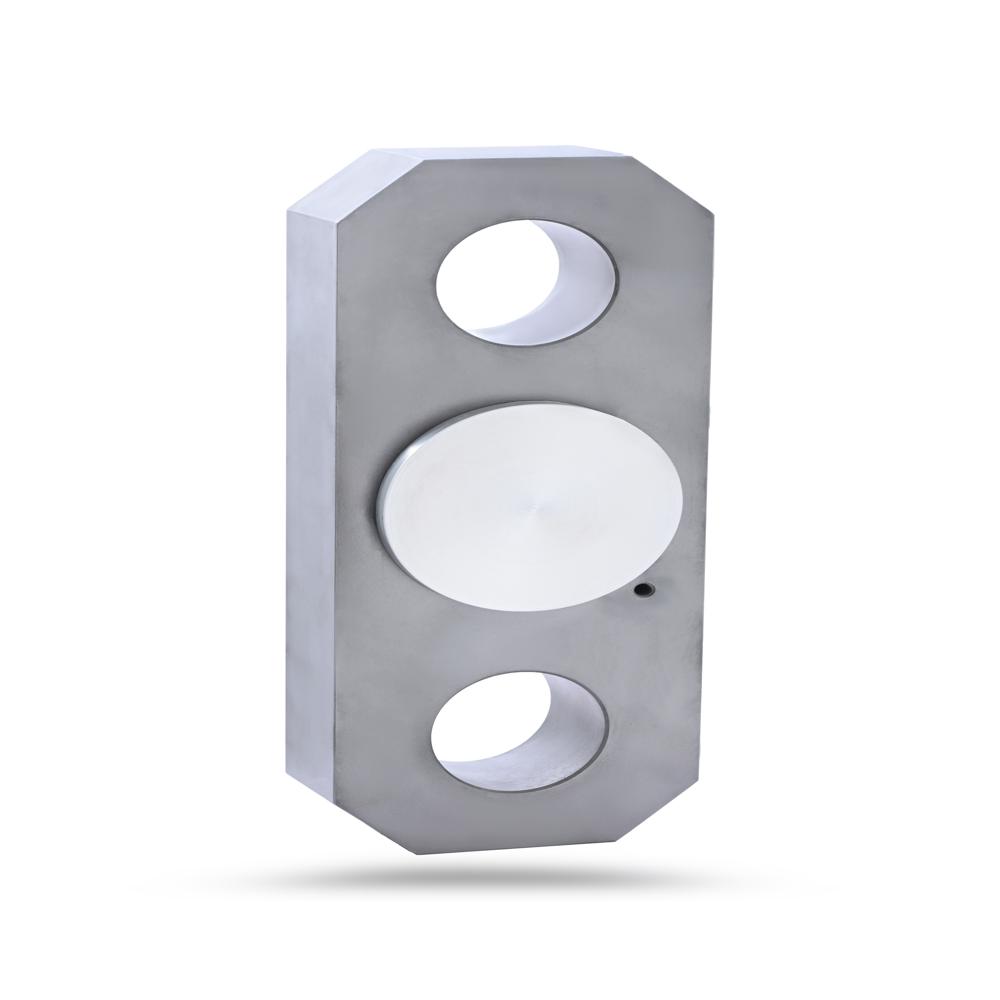

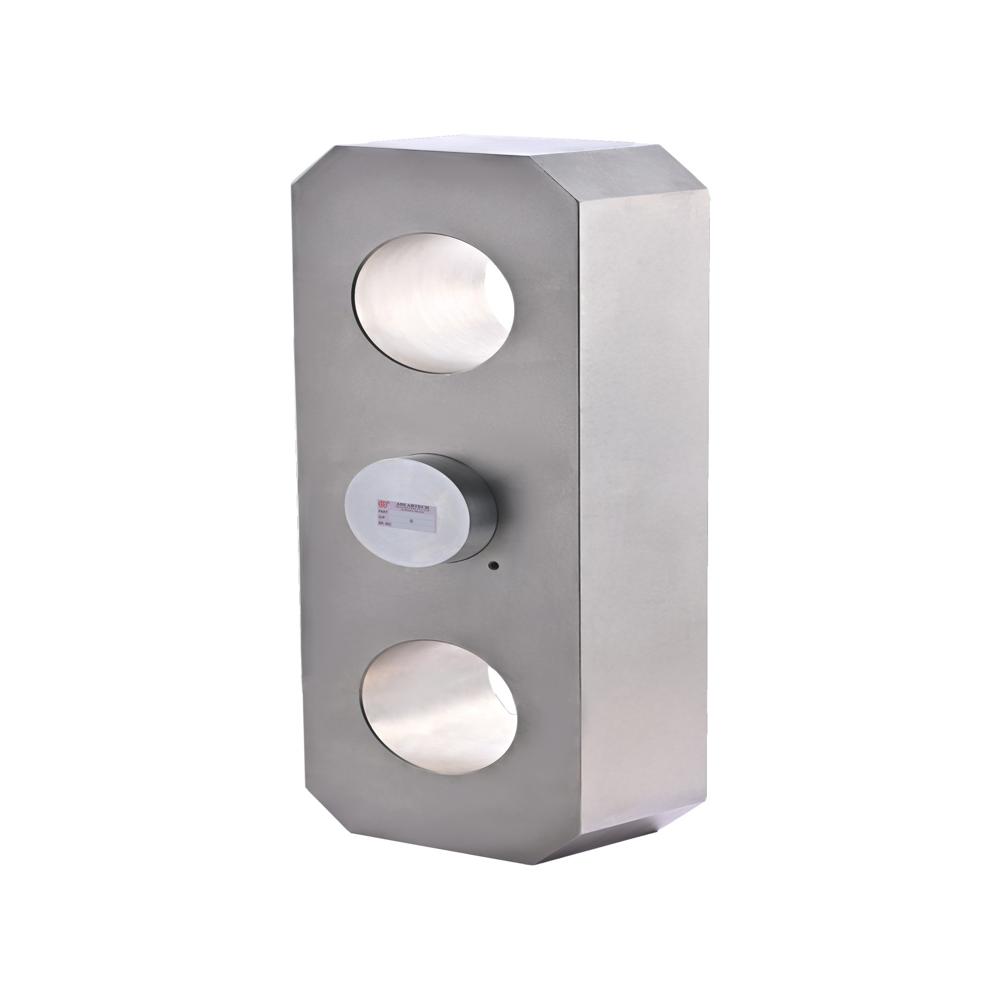

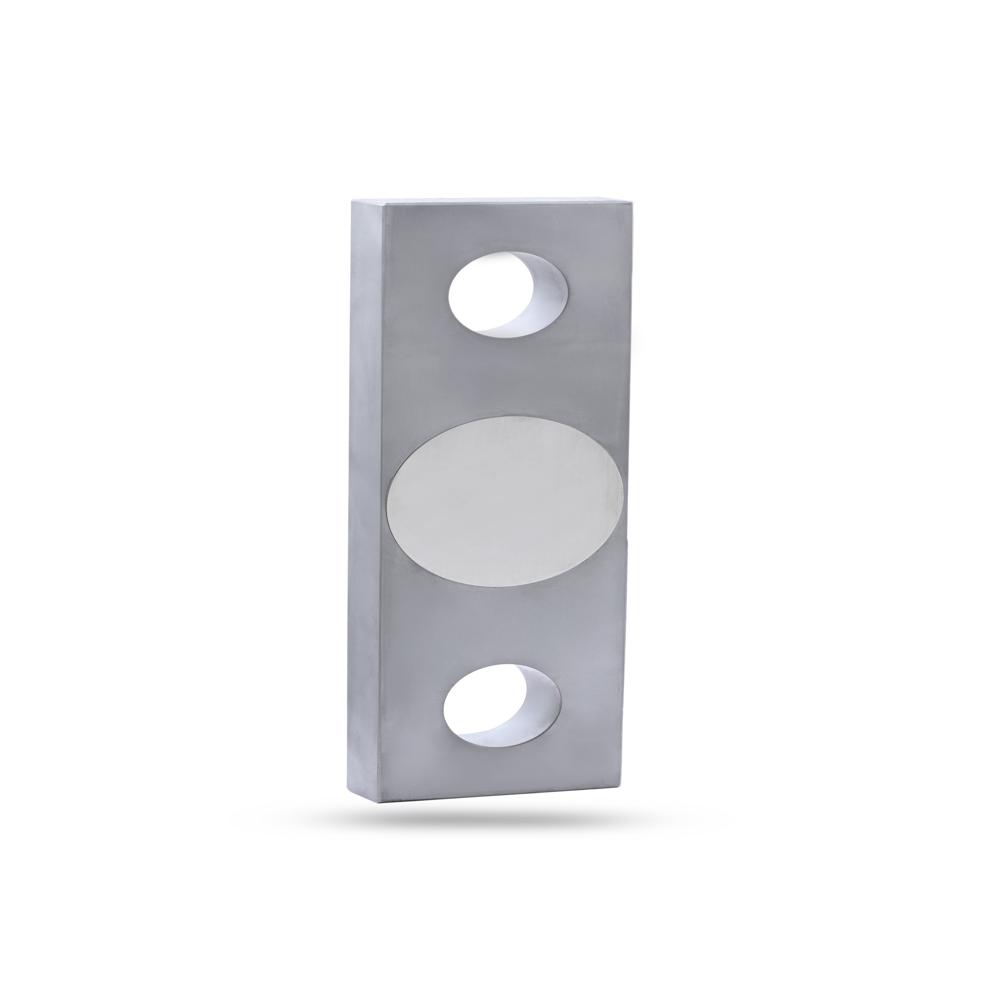

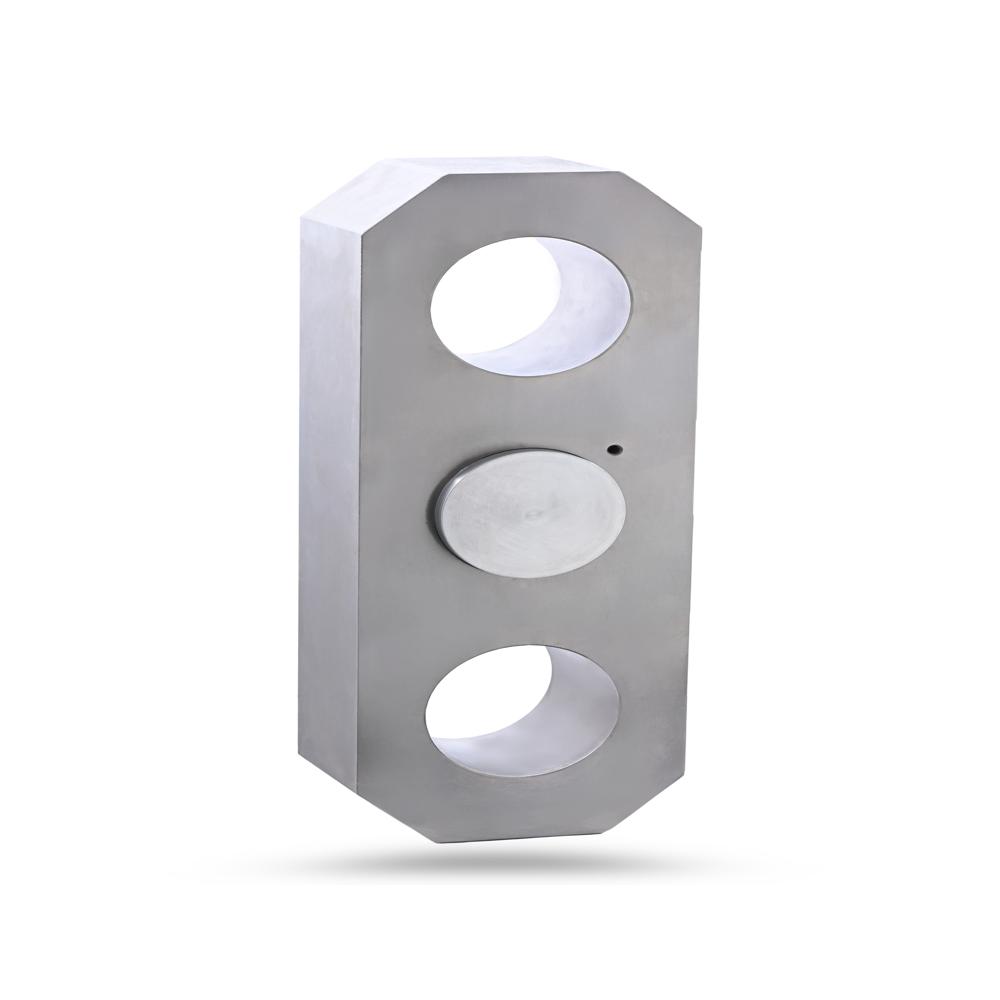

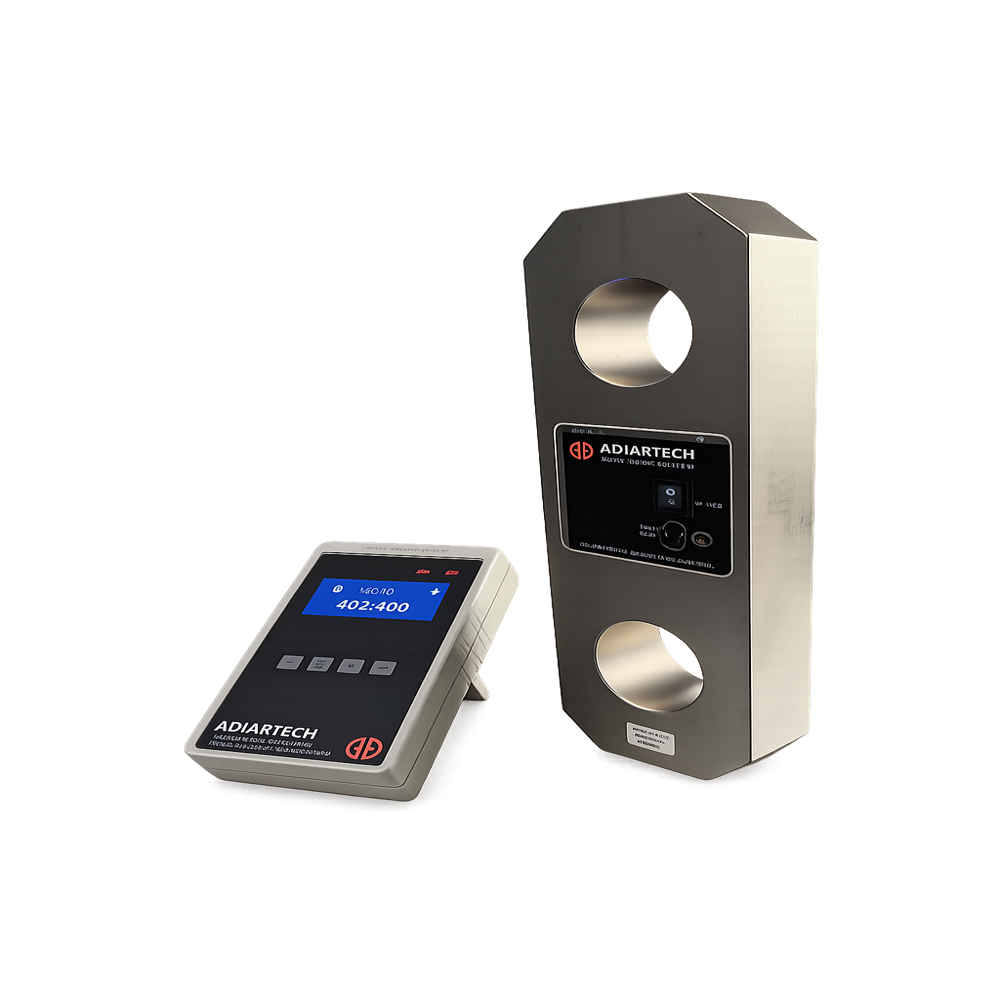

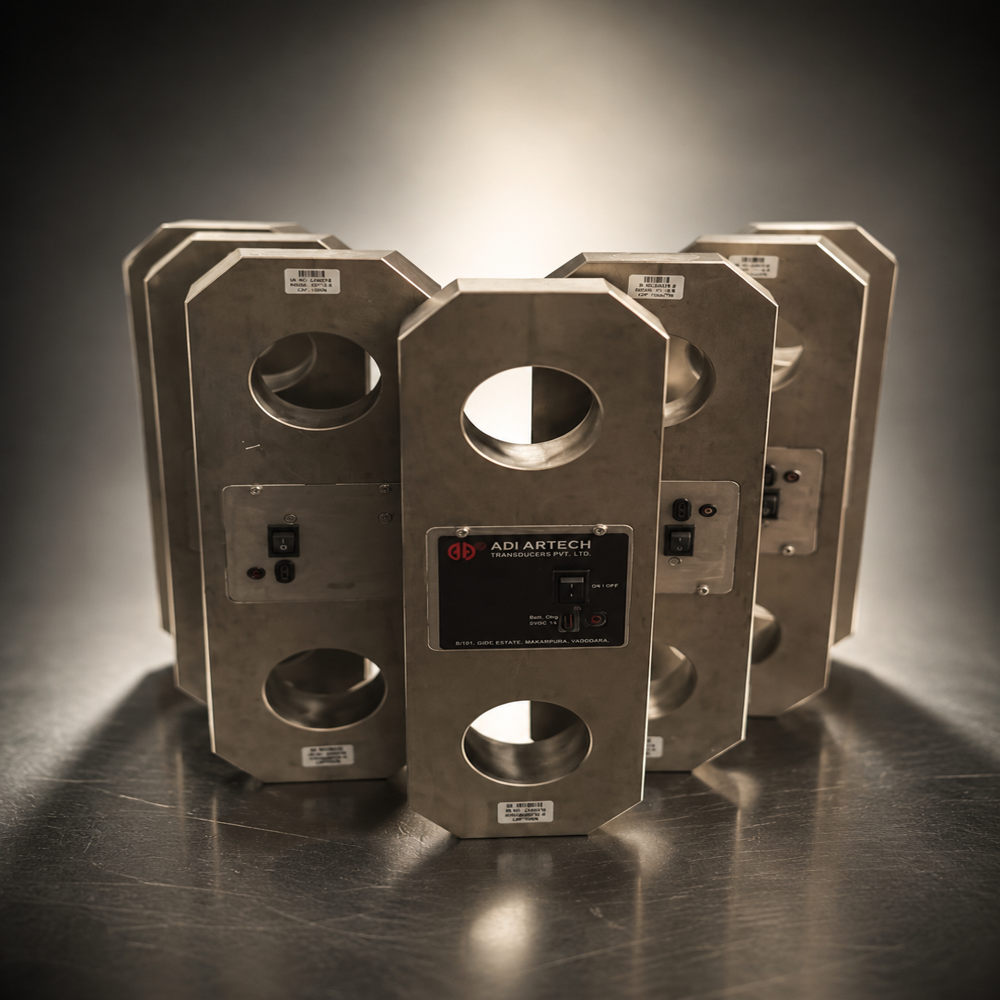

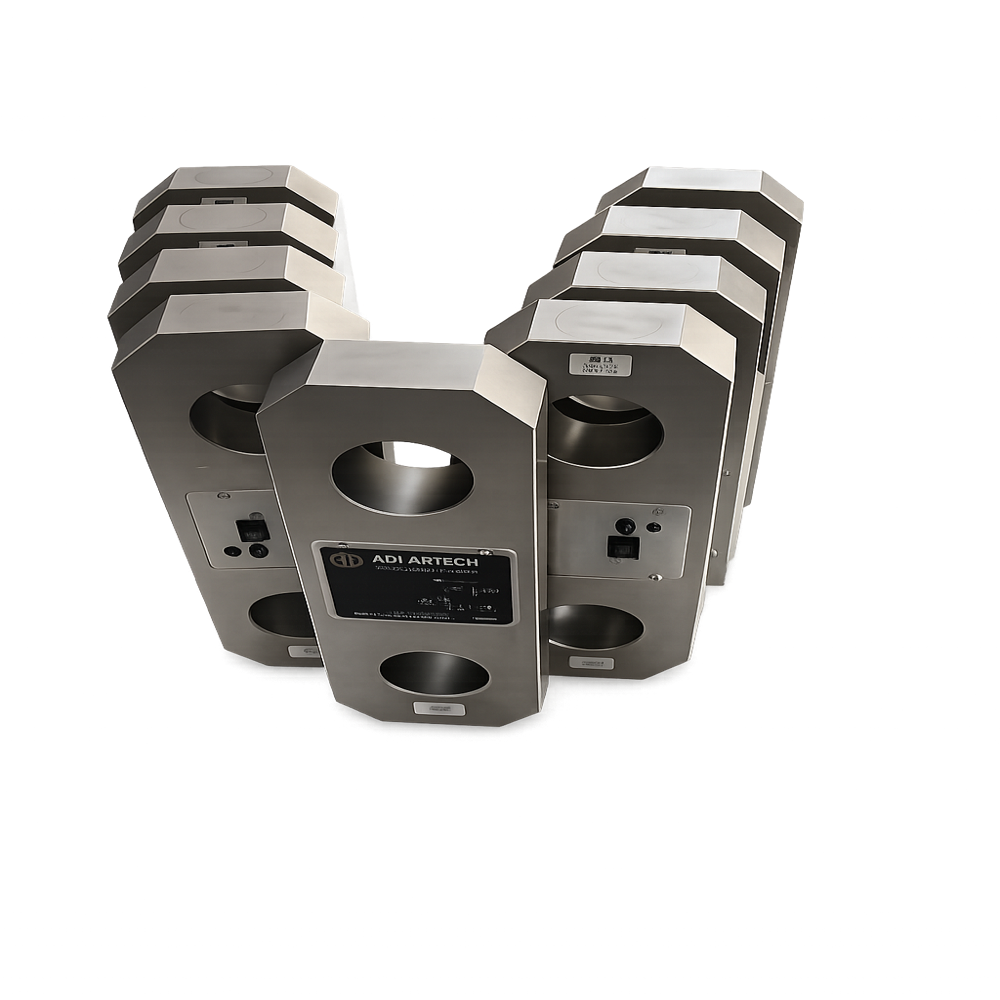

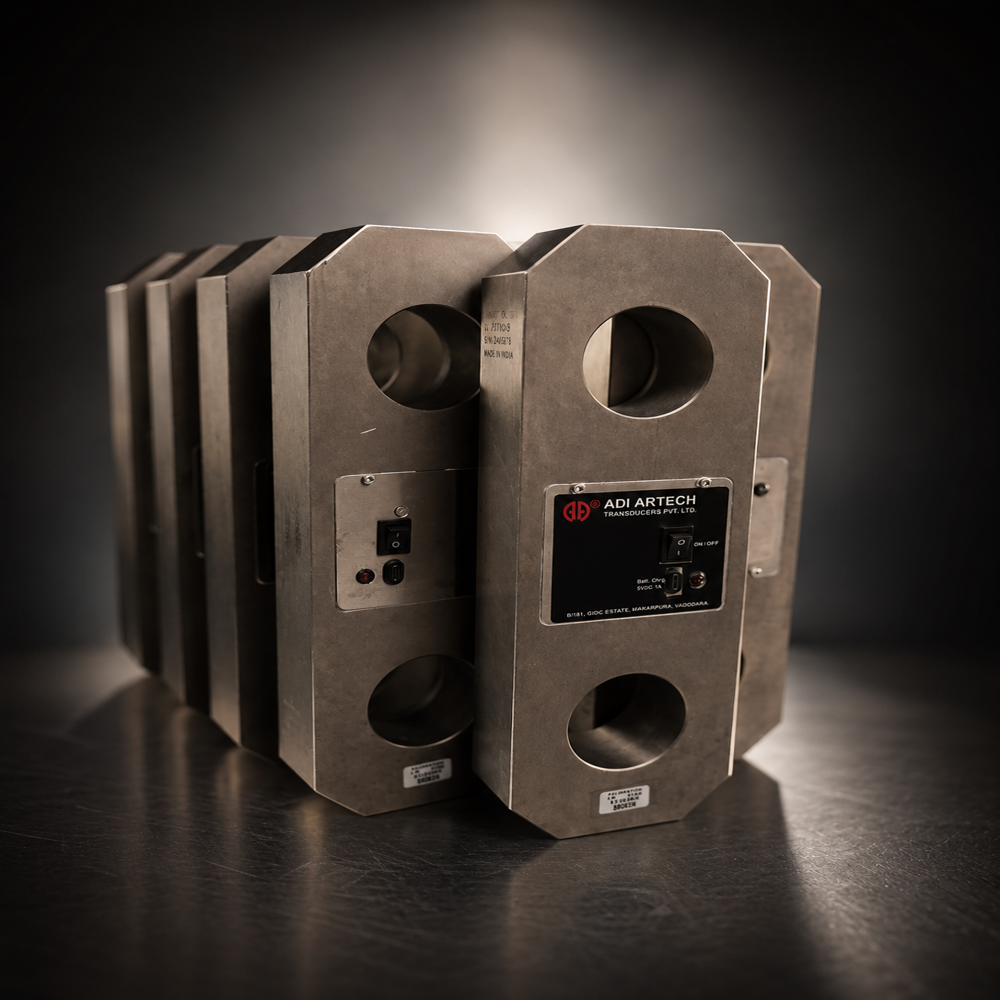

FLAT TYPE TENSION LINK

15500.0 INR/Number

Get a Price/Quote

Product Details:

Operate Method Tension link (inline installation using shackles)
Resistance Input: 370 / 775 15 , Output: 350 / 700 3
Voltage Max 15 VDC (Recommended: 5 10 VDC) Volt (v)
Material High alloy tool steel (electroless nickel plated)
Application Crane weighing & hanging scales , Rope tension measurement,Towing force measurement (vehicles/ships), Material handling systems, Shipyard cargo handling, Dynamometer applications
Product Type Flat Link Load Cell
Usage Tension force measurement in ropes, cables, and lifting systems
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

FLAT TYPE TENSION LINK Price And Quantity

Minimum Order Quantity 1 Number
Price Range 7500.00 - 250000.00 INR/Number
Price 15500.0 INR/Number

Mounting Type Through Holes
Cable Length 5m (Standard)
Capacity Range 1T to 35T
Application Crane Scales, Tension Measurement, Lifting Applications
Material Alloy Steel
Protection Class IP67
Finish Nickel Plated
Safe Overload 150% F.S.
Ultimate Overload 200% F.S.

FLAT TYPE TENSION LINK Product Specifications

Storage Temperature 10 C to 60 C Celsius (oC)
Operate Method Tension link (inline installation using shackles)
Compensated Temperature 10 C to 50 C Celsius (oC)
Output Voltage 1.0 mV/V Volt (V)
Resistance Input: 370 / 775 15 , Output: 350 / 700 3
Operating Temperature 0 C to 60 C Celsius (oC)
Operating Voltage 10V DC (Excitation) Volt (V)
Material High alloy tool steel (electroless nickel plated)
Voltage Max 15 VDC (Recommended: 5 10 VDC) Volt (v)
Accuracy 0.015% FSO %
Application Crane weighing & hanging scales , Rope tension measurement,Towing force measurement (vehicles/ships), Material handling systems, Shipyard cargo handling, Dynamometer applications
Product Type Flat Link Load Cell
Usage Tension force measurement in ropes, cables, and lifting systems
Output Analog Sensor
Type Flat Type Tension Link
Classification Tension Load Cell / Force Measurement Sensor
Theory Resistance Sensor
Capacity 3 TF to 500 TF Ton
Power 10 VDC Volt (v)

Mounting Type Through Holes
Cable Length 5m (Standard)
Capacity Range 1T to 35T
Application Crane Scales, Tension Measurement, Lifting Applications
Material Alloy Steel
Protection Class IP67
Finish Nickel Plated
Safe Overload 150% F.S.
Ultimate Overload 200% F.S.

FLAT TYPE TENSION LINK Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

The 20410 Flat Link Load Cell is a high-precision, strain gauge-based tension load cell designed for accurate force and tension measurement in heavy-duty industrial applications. Manufactured from high alloy tool steel with electroless nickel plating, it offers excellent resistance to shock, overload, and harsh environmental conditions.

This load cell is compact, rugged, and easy to install inline using dee/bow shackles, making it ideal for applications such as crane weighing, rope tension monitoring, towing force measurement, and material handling systems. With a wide capacity range from 3 TF to 500 TF, it ensures reliable performance across diverse industries.

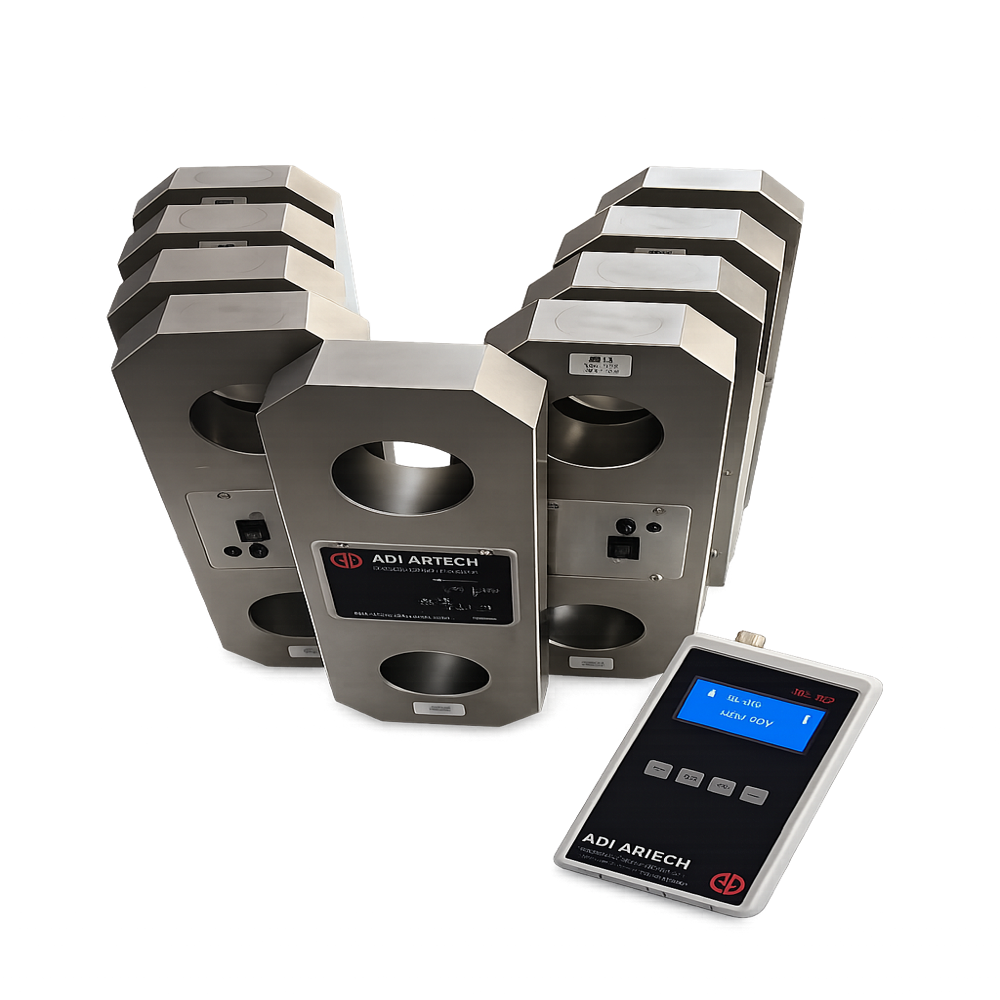

It features high accuracy (as per ISO 376 standards), IP65 protection, and optional enhancements like high-temperature versions and RF telemetry systems for wireless data transmission.

FAQs

1. What does the Flat Link Load Cell measure?

It measures tension force in ropes, cables, and lifting systems.

2. What is the working principle?

It works on the strain gauge principle, where applied force causes deformation that is converted into an electrical signal.

3. How is it installed?

It is installed inline as a link using dee or bow shackles, making it easy to integrate into existing systems.

4. What is the output signal?

The standard output is 1.0 mV/V, which is proportional to the applied load.

5. What is the operating voltage?

Recommended excitation voltage is 510 VDC (maximum 15 VDC).

6. What is the capacity range available?

It is available from 3 TF to 500 TF, with higher capacities available on request.

7. Is it suitable for outdoor or harsh environments?

Yes, it has IP65 protection and robust construction for industrial environments.

8. Can it be used in high-temperature conditions?

Yes, optional versions are available for up to 150C.

9. What are the common applications?

Crane and hanging scale systems
Rope tension measurement
Towing force monitoring (vehicles/ships)
Material handling equipment
Shipyard cargo operations

10. Can it be customized?

Yes, custom capacities, dimensions, and special features can be provided as per requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Crane Scale Load Cell' category

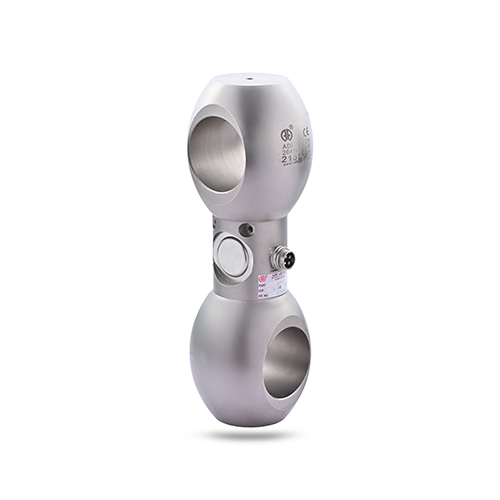

Tension Link with Female threadings Price : 12500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain gauge sensing with mechanical deformation under load Compensated Temperature : 0to 60 C Celsius (oC) Operating Temperature : 10 to 60 C Celsius (oC) Operating Voltage : 10 vdc Volt (V) Application : Line tension measurement, hanging weighing, hydraulic force measurement, testing machine calibration, thrust measurement, industrial process control Accuracy : 0.2% FSO % Product Type : Tension Link Load Cell Classification : Strain gauge based load cell (Tension & Compression) Theory : Resistance Sensor Power : 10 VDC Volt (v) Capacity : 1450 Ton Storage Temperature : 1to 60 C Celsius (oC) Output Voltage : 2 .0 Mv/v Volt (V) Resistance : Input Resistance: 775 15 , Output Resistance: 700 3 Voltage : Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v) Material : High Alloy Tool Steel (Electroless Nickel Plated) Usage : Inline force and tension measurement applications Output : Analog Sensor Type : Tension Link with Female Threadings Color : Silver Dimension (L*W*H) : 100*38 Millimeter (mm) Weight : 3 KG(Approx.) Kilograms (kg)

Send Inquiry

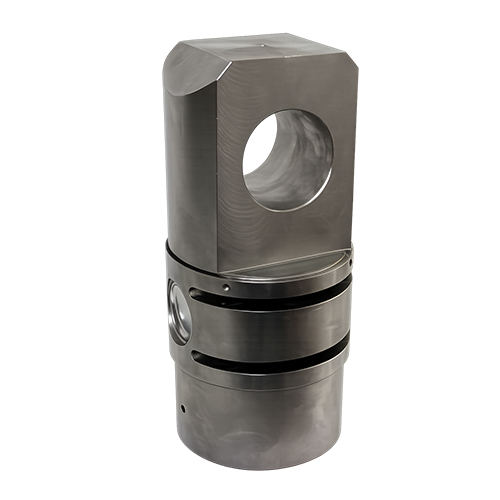

Crane Scale Load Cell Price : 12500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain gauge sensing under applied tensile load Compensated Temperature : 0 to 60 C Celsius (oC) Operating Temperature : Up to 60 C Celsius (oC) Operating Voltage : 10V DC (recommended), Max 15V DC Volt (V) Application : Rope tension measurement, towing force measurement, tension dynamometer, hanging & crane scale, cargo handling, bollard pull test, overload detection, drag force measurement Accuracy : 0.15% FSO (Nonlinearity) % Product Type : Crane Load Cell Classification : Strain gauge based load cell (Tension type only) Theory : Resistance Sensor Power : 10 VDC Volt (v) Capacity : 3300 Ton Storage Temperature : Up to 60 C Celsius (oC) Output Voltage : 1.0 mV/V Volt (V) Resistance : Input Resistance: 775 15 , Output Resistance: 700 3 Voltage : Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v) Material : Rope tension measurement, towing force measurement, tension dynamometer, hanging & crane scale, cargo handling, bollard pull test, overload detection, drag force measurement Usage : Crane weighing and inline tension force measurement Output : Analog Sensor Type : Crane Scale Load Cell Color : Silver Dimension (L*W*H) : 150*48 Millimeter (mm) Weight : 3 KG(APPROX.) Kilograms (kg)

Send Inquiry

Tension Link with Male threadings Price : 12500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain gauge sensing with mechanical deformation under applied load Compensated Temperature : 0 to 60 C Celsius (oC) Operating Temperature : Up to 60 C Celsius (oC) Operating Voltage : 5~15V DC Volt (V) Application : Line tension measurement, hanging weighing, hydraulic force measurement, testing machine calibration, extrusion process, industrial process control Accuracy : 0.2% FSO % Product Type : Tension Link Load Cell Classification : Strain gauge based load cell (Tension & Compression) Theory : Resistance Sensor Power : 10 VDC Volt (v) Capacity : 1500 Ton Storage Temperature : Up to 60 C Celsius (oC) Output Voltage : 2.0 mV/V Volt (V) Resistance : Input Resistance: 775 15 , Output Resistance: 700 3 Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Material : High Alloy Tool Steel (Electroless Nickel Plated) Usage : Inline force and tension measurement Output : Analog Sensor Type : Rod end dual stud mount load cell (Male thread both ends) Color : Silver Dimension (L*W*H) : 157*89 Millimeter (mm) Weight : 5 KG(APPROX) Kilograms (kg)

Send Inquiry

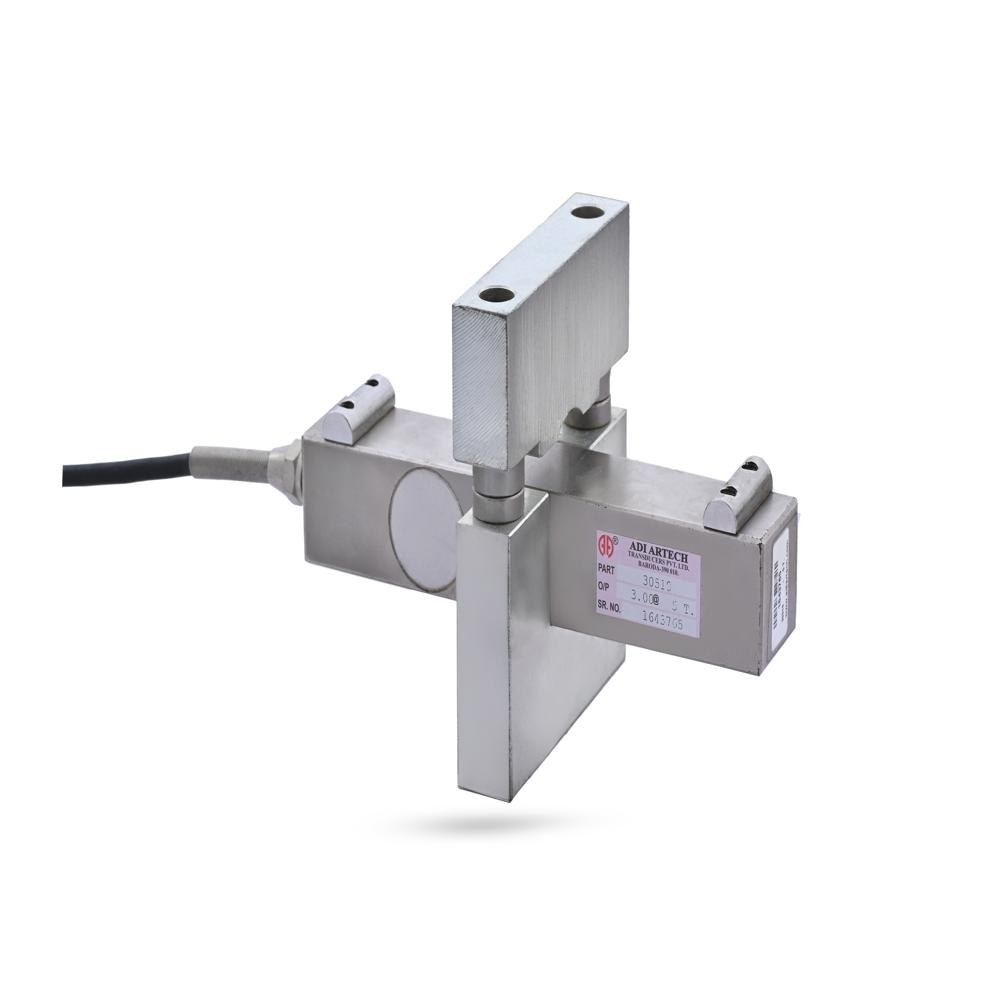

ROPE TENSION SHEAR BEAM LOAD CELL Price : 15500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Strain gauge sensing Compensated Temperature : 1050 Celsius (oC) Operating Temperature : 050 Celsius (oC) Operating Voltage : 510 2.0% FSO (above 20% range) Volt (V) Application : Elevator load monitoring, Crane and hoist overload protection, Tension measurement in stay ropes and suspension ropes, Railway catenary rope tension measurement, Vehicle pull testing, Ship bollard pull testing Accuracy : 5.0% FSO (up to 20% range), 2.0% FSO (above 20% range) % Product Type : Rope Tension Load Cell Classification : Environmental Protection Class IP65 Theory : Resistance Sensor Power : 10 VDC excitation Volt (v) Capacity : 1 TF to 30 TF rope tension Ton Storage Temperature : 060 Celsius (oC) Output Voltage : 1.0 mV/V 0.5 Volt (V) Resistance : Input resistance: 390 20 , Output resistance: 350 10 Voltage : Max 15 VDC Volt (v) Material : Electroless Nickel Plated Tool Steel Usage : Monitoring tension in wire ropes, Preventing equipment overload in industrial systems Output : Analog Sensor Type : STRAIN GAGE BASED SHEAR BEAM LOAD CELL
