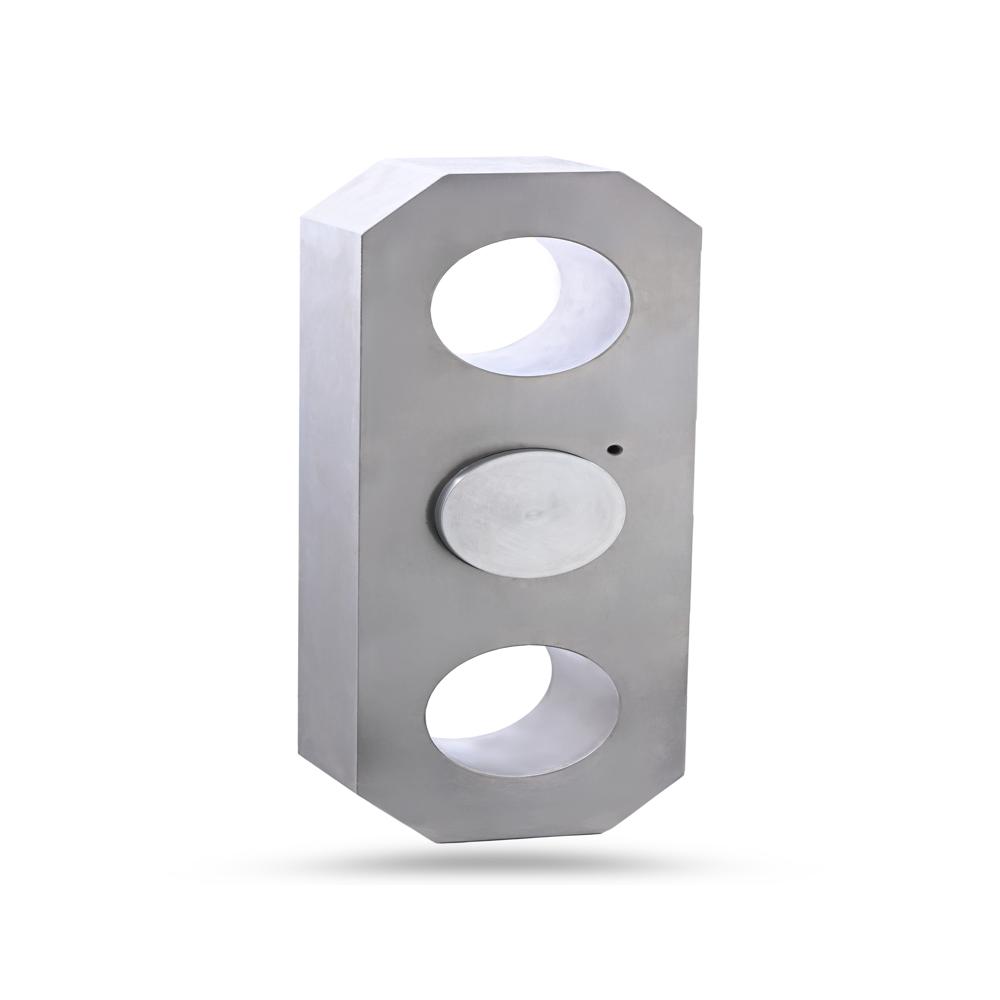

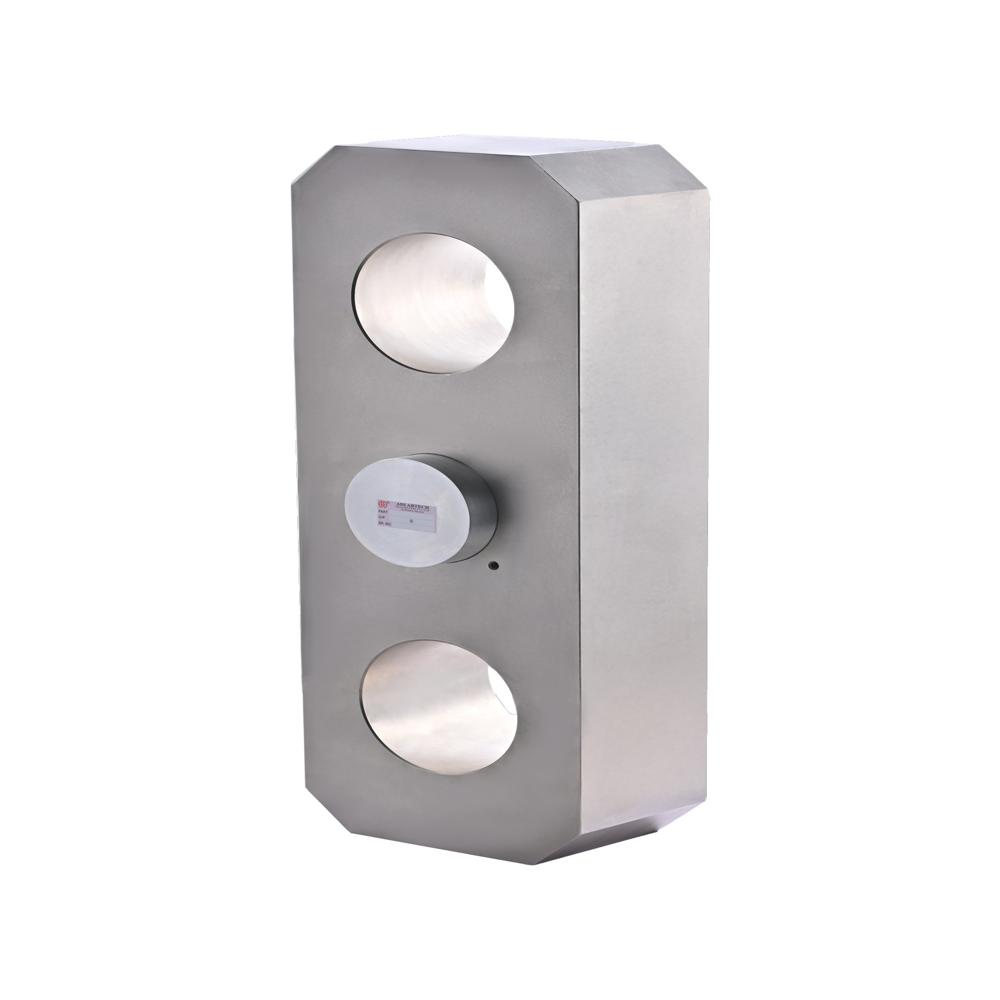

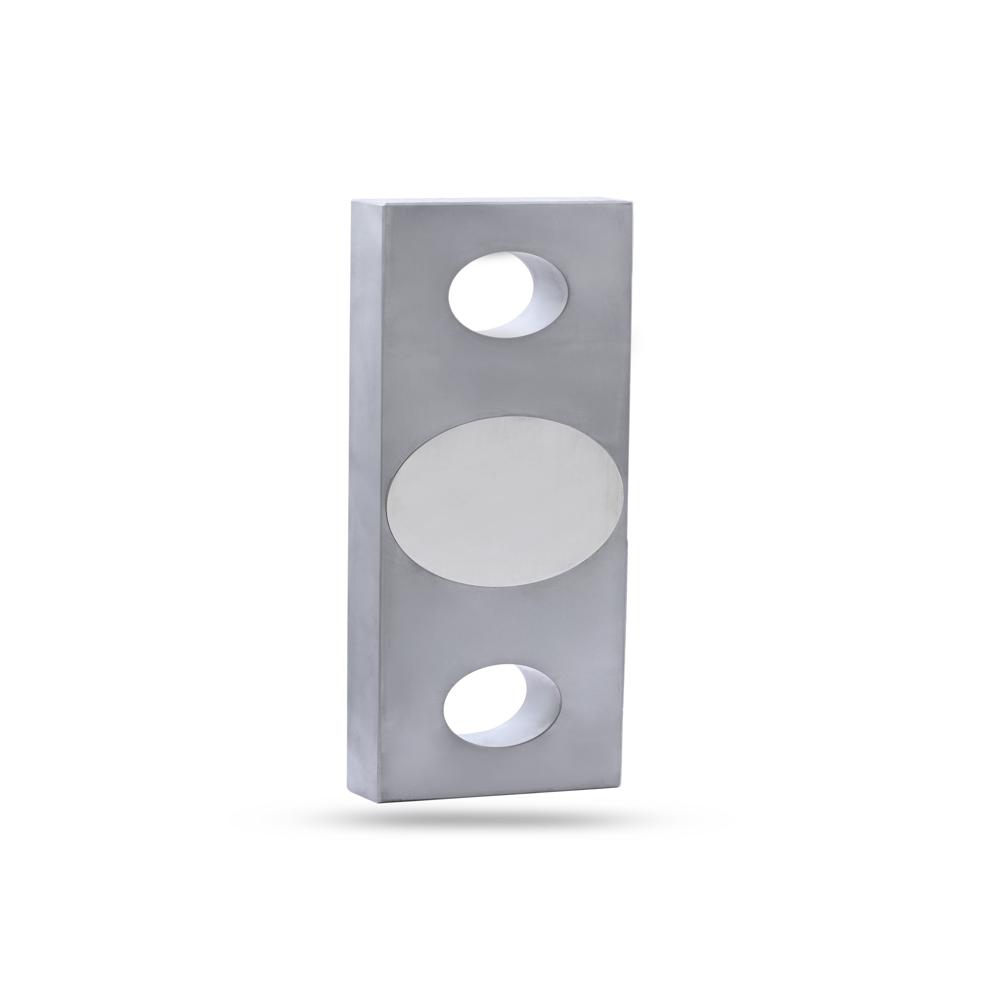

Flat Wireless Link Load Cell

85000.0 INR/Piece

Get a Price/Quote

Product Details:

Classification Strain Gauge Based Wireless Tension Load Cell
Voltage Battery Powered (Internal Supply) Volt (v)
Usage Rope tension measurement, towing force measurement, crane weighing
Product Type Flat Wireless Link Load Cell
Power In-built Rechargeable Battery (Approx. 100 hours operation) Watt (w)
Application Crane & Hanging Scale , Rope Tension Monitoring , Vehicle & Ship Towing Force , Material Handling Equipment , Cargo Handling in Shipyards ,Tension/Compression Dynamometer
Material Electroless Nickel Plated High Alloy Tool Steel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Flat Wireless Link Load Cell Price And Quantity

Price 85000.0 INR/Piece
Minimum Order Quantity 1 Number

Hysteresis ±0.1% F.S.
Creep ±0.05% F.S. (30 min)
Response Frequency Up to 2kHz
Overload Limit 150% F.S.
Material Stainless Steel
Cable Length 2 meters (shielded)
Safe Side Load 50% F.S.
Dimensions Diameter 60mm, Height 12mm
Connector Standard four-wire
Protection Class IP65
Zero Balance ±1% F.S.
Capacity Range 10kg to 10T
Non-linearity ±0.1% F.S.

Flat Wireless Link Load Cell Product Specifications

Usage Rope tension measurement, towing force measurement, crane weighing
Material Electroless Nickel Plated High Alloy Tool Steel
Voltage Battery Powered (Internal Supply) Volt (v)
Resistance Input Resistance: 370 / 775 15 , Output Resistance: 350 / 700 3
Capacity 1.5, 3, 5, 10, 20, 30, 50, 80, 100 Ton
Product Type Flat Wireless Link Load Cell
Operate Method Strain Gauge Technology (Tension & Compression via Shackle / Pin loading)
Accuracy 0.15% FSO %
Power In-built Rechargeable Battery (Approx. 100 hours operation) Watt (w)
Storage Temperature 10 C to 50 C Celsius (oC)
Operating Temperature 10 C to 50 C Celsius (oC)
Operating Voltage Internal Rechargeable Battery System Volt (V)
Classification Strain Gauge Based Wireless Tension Load Cell
Compensated Temperature 10 C to 50 C Celsius (oC)
Type Wireless Link Type Load Cell
Color Metallic (Nickel Plated Steel Finish)
Application Crane & Hanging Scale , Rope Tension Monitoring , Vehicle & Ship Towing Force , Material Handling Equipment , Cargo Handling in Shipyards ,Tension/Compression Dynamometer
Theory Resistance Sensor
Output Voltage 1.0 mV/V (Nominal, proportional to load) Volt (V)
Output Analog Sensor

Hysteresis ±0.1% F.S.
Creep ±0.05% F.S. (30 min)
Response Frequency Up to 2kHz
Overload Limit 150% F.S.
Material Stainless Steel
Cable Length 2 meters (shielded)
Safe Side Load 50% F.S.
Dimensions Diameter 60mm, Height 12mm
Connector Standard four-wire
Protection Class IP65
Zero Balance ±1% F.S.
Capacity Range 10kg to 10T
Non-linearity ±0.1% F.S.

Flat Wireless Link Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Middle East, Africa, Western Europe
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

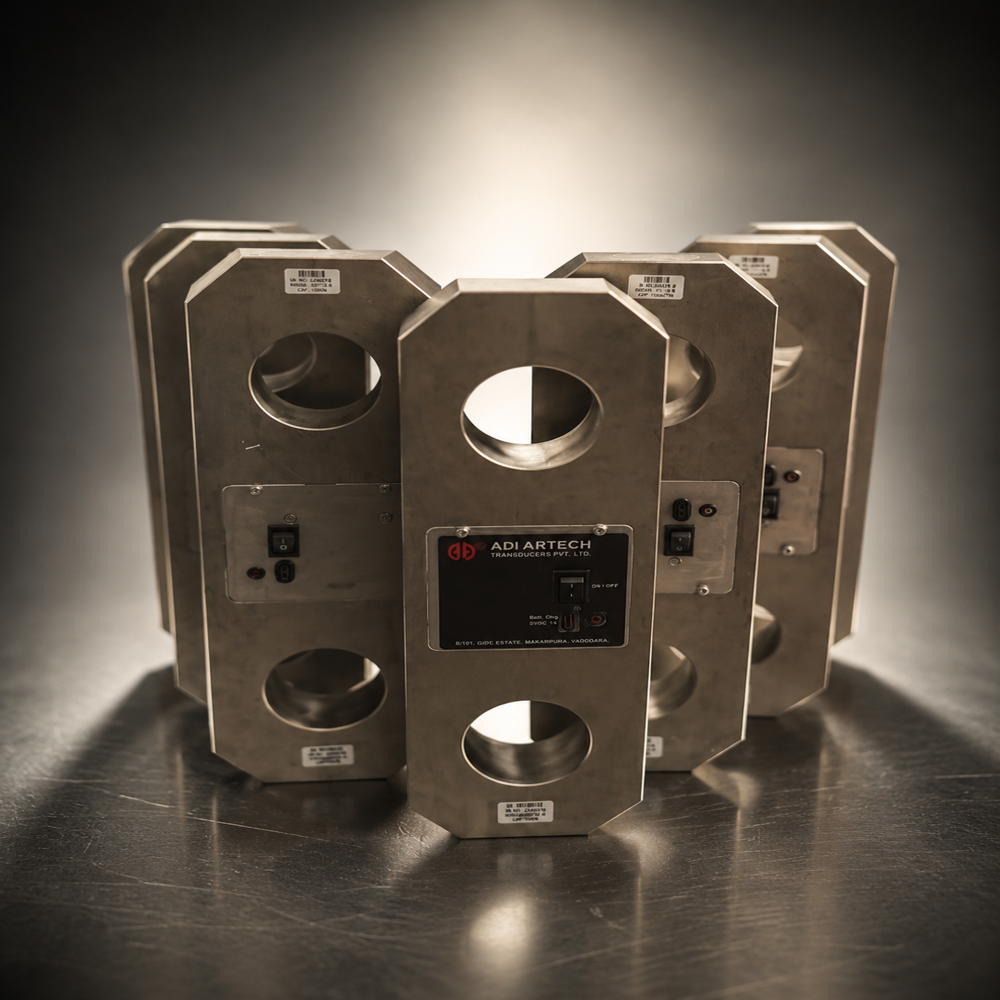

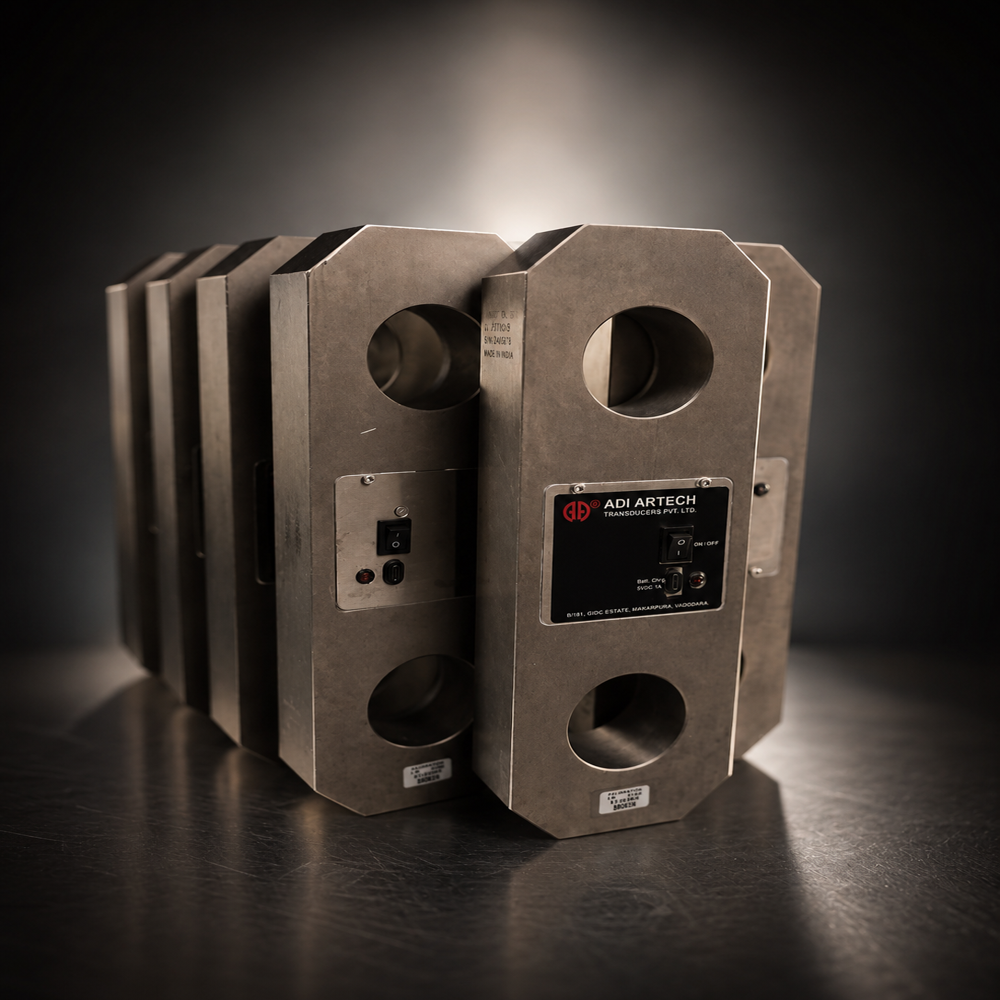

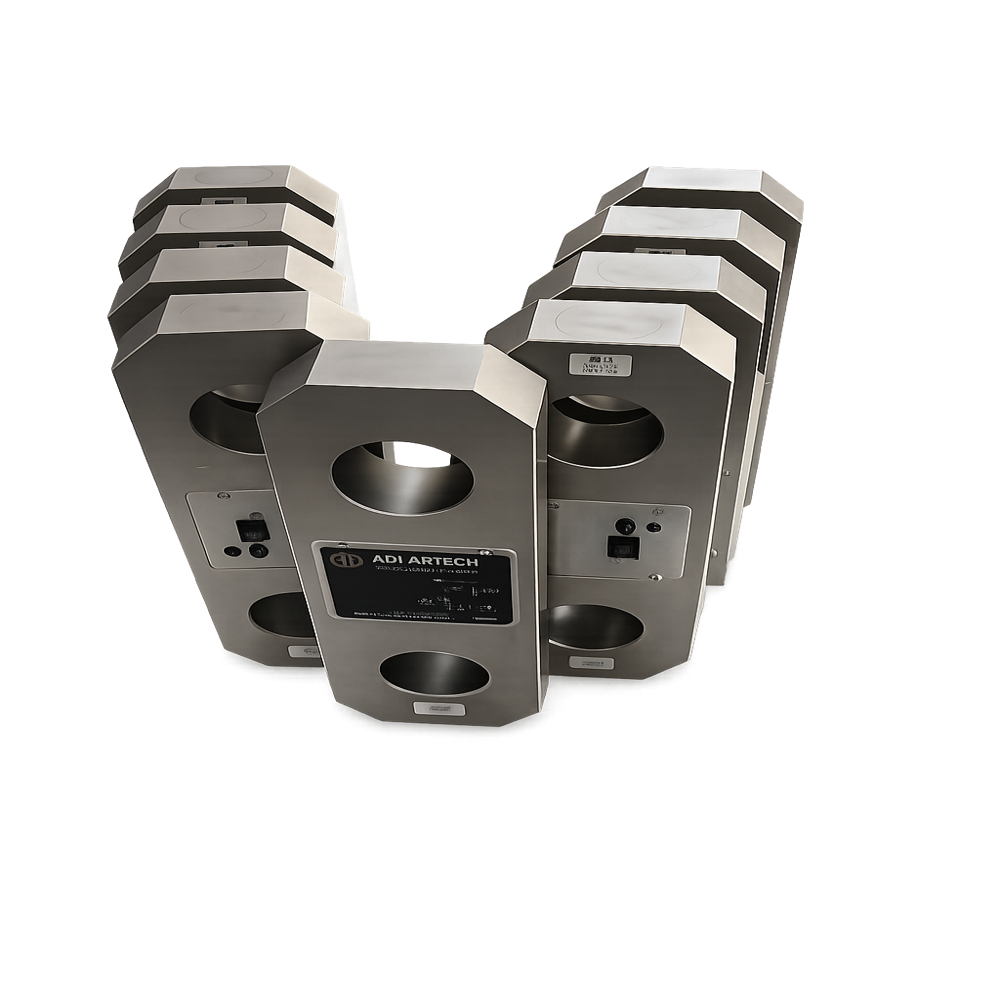

The 20410 Flat Wireless Link Load Cell is an ultra-precision, strain gauge-based wireless tension load cell designed for heavy-duty industrial applications. Built from high alloy tool steel with electroless nickel plating, it offers excellent resistance to shock, overload, and harsh environmental conditions.

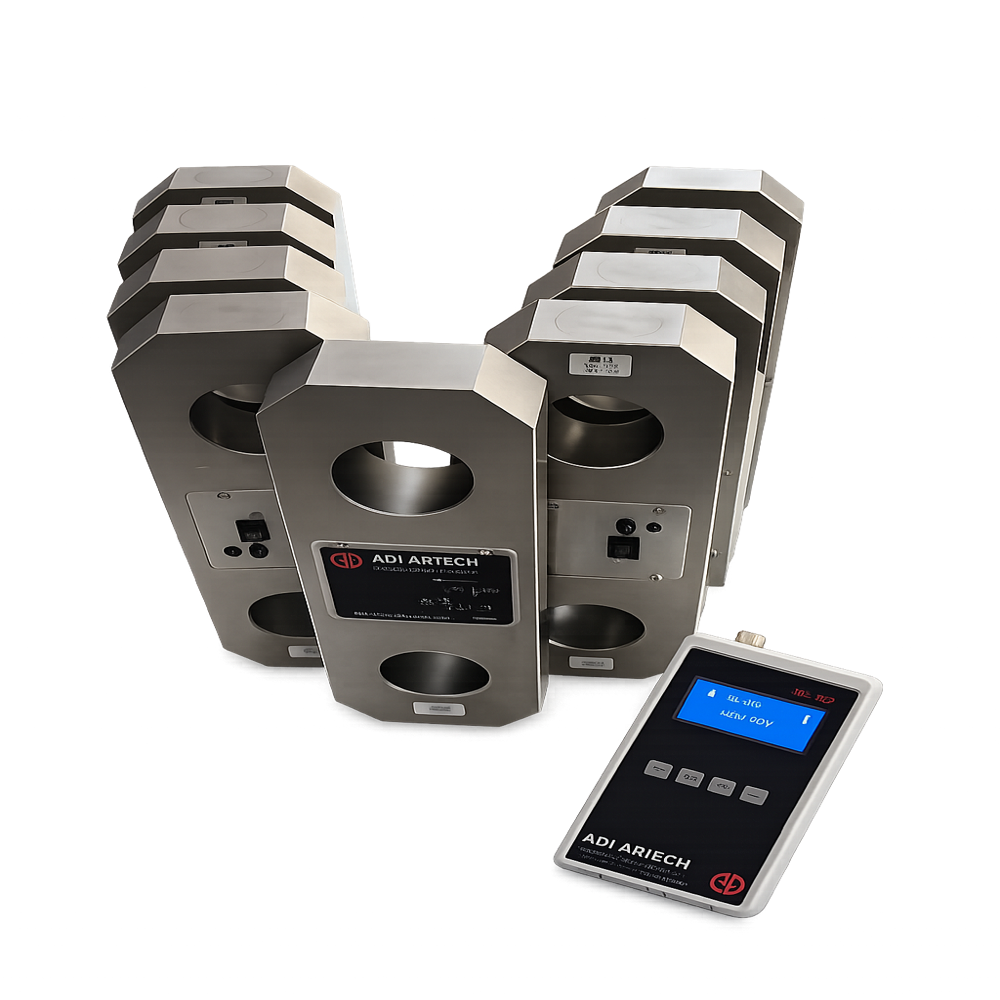

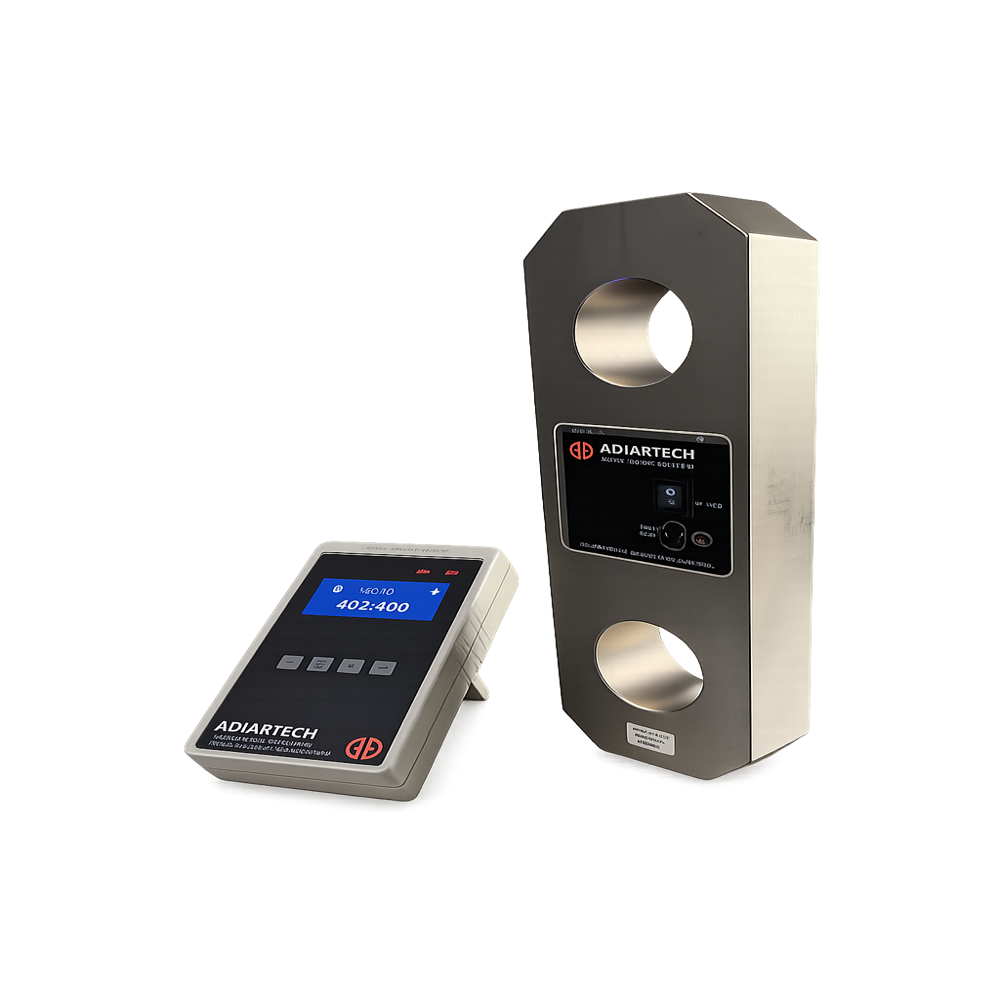

This compact and rugged load cell is widely used for crane weighing, rope tension measurement, towing force measurement, and dynamometer applications. It features an in-built rechargeable battery (approx. 100 hours operation) and an integrated RF telemetry system that transmits data wirelessly to a remote handheld display (up to 50 meters range).

Available in capacities from 1.5 TF to 100 TF, it provides reliable performance for material handling, cargo handling, and force measurement applications.

Key Highlights

Capacity Range: 1.5 TF to 100 TF

Wireless RF Telemetry (50 m range)

In-built Rechargeable Battery

Nominal Output: 1.0 mV/V

IP65 Environmental Protection

Safe Overload: 150%

Ultimate Overload: 200%

High Temperature Version Available (Optional)

FAQs

1 What is this load cell mainly used for?

It is used for rope tension measurement, crane weighing, towing force monitoring, and hanging scale applications.

2 Is it wireless?

Yes. It comes with an integrated RF telemetry system and a remote handheld display unit.

3 What is the operating range of the wireless system?

The wireless communication range is approximately 50 meters between the load cell and display.

4 How is it powered?

It operates on an in-built rechargeable battery, offering around 100 hours of operation per charge.

5 What type of loading can it measure?

It is primarily designed for tension loading, but compression can be applied through suitable pin arrangements.

6 What protection class does it meet?

It meets IP65, providing protection against dust and water jets.

7 Is it suitable for outdoor crane applications?

Yes. Its rugged tool steel construction and wireless design make it ideal for outdoor and industrial crane operations.

8 What capacities are available?

Standard capacities include:
1.5, 3, 5, 10, 20, 30, 50, 80, and 100 TF

9 Can it be used in high-temperature environments?

Yes. A high-temperature version is available on request.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Crane Scale Load Cell' category

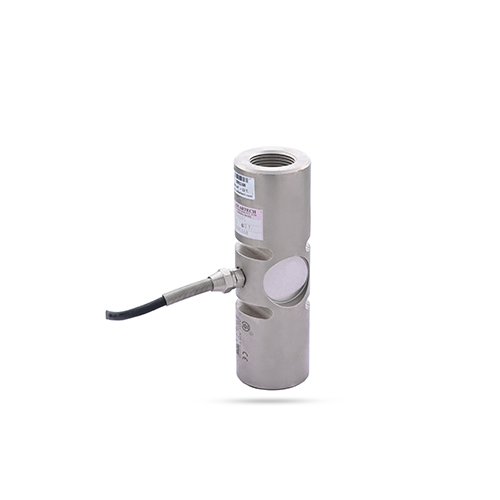

Tension Link with Female threadings Price : 12500.0 INR/Number Minimum Order Quantity : 1 Output Voltage : 2 .0 Mv/v Volt (V) Type : Tension Link with Female Threadings Compensated Temperature : 0to 60 C Celsius (oC) Storage Temperature : 1to 60 C Celsius (oC) Operating Temperature : 10 to 60 C Celsius (oC) Operating Voltage : 10 vdc Volt (V) Product Type : Tension Link Load Cell Accuracy : 0.2% FSO % Material : High Alloy Tool Steel (Electroless Nickel Plated) Output : Analog Sensor Application : Line tension measurement, hanging weighing, hydraulic force measurement, testing machine calibration, thrust measurement, industrial process control Theory : Resistance Sensor Classification : Strain gauge based load cell (Tension & Compression) Capacity : 1450 Ton Resistance : Input Resistance: 775 15 , Output Resistance: 700 3 Operate Method : Strain gauge sensing with mechanical deformation under load Power : 10 VDC Volt (v) Usage : Inline force and tension measurement applications Voltage : Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v) Color : Silver Dimension (L*W*H) : 100*38 Millimeter (mm) Weight : 3 KG(Approx.) Kilograms (kg)
