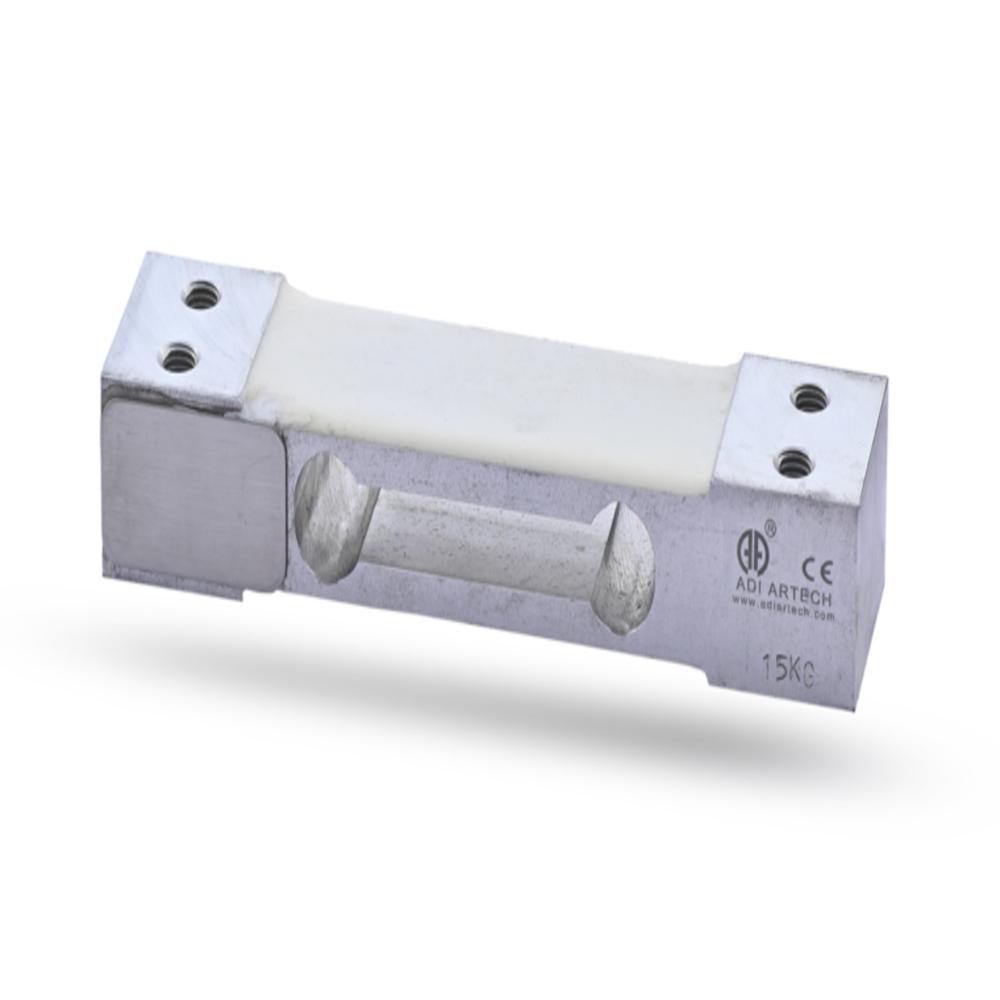

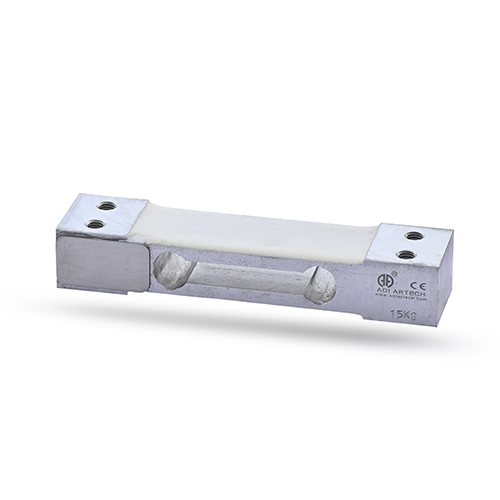

Single Point Table Top Load Cell

• Product Type: Single Point Table Top Load Cell

• Technology: Strain Gauge Based (Bending Beam Principle)

• Material: Aluminum Alloy

• Environmental Protection: IP65

• Excitation Voltage: 10 VDC (Max 15 VDC)

• Nominal Output: 2.0 mV/V

• Capacity Range: 3, 6, 10, 15, 20, 30, 40, 60 Kg

• Accuracy:

• Non-Linearity: < 0.025% FSO

• Hysteresis: < 0.02% FSO

• Non-Repeatability: < 0.01% FSO

• Temperature Compensated Range: 0C to 60C

• Input Resistance: 400 20

• Output Resistance: 350 10

• Safe Overload: 150% of rated capacity

• Ultimate Overload: 250% of rated capacity

• Platter Size Support: 300 300 mm

• Applications: Bench scales, counting scales, postal scales, check weighers

FAQs Single Point Table Top Load Cell

1 What is a Single Point Load Cell?

It is a load cell designed to measure weight accurately even if the load is placed off-center on the platform.

2 Why is it used in table top scales?

Because it supports platform sizes (like 300300 mm) with minimal off-center error, making it ideal for compact scales.

3 What is the working principle?

It works on the strain gauge principle where deformation under load changes resistance, generating a proportional electrical signal.

4 What does 2.0 mV/V mean?

It means the output signal is 2 millivolts per volt of excitation at full load.

5 What is FSO?

FSO stands for Full Scale Output, which represents the maximum rated output of the load cell.

6 Can it handle overload?

Yes.

• Safe overload: 150%

• Ultimate overload: 250%

7 Is it waterproof?

It meets IP65, meaning protection against dust and water splashe

.

8 What industries use it?

• Retail weighing

• Courier & postal services

• Counting and packaging applications

• Small industrial weighing setups
