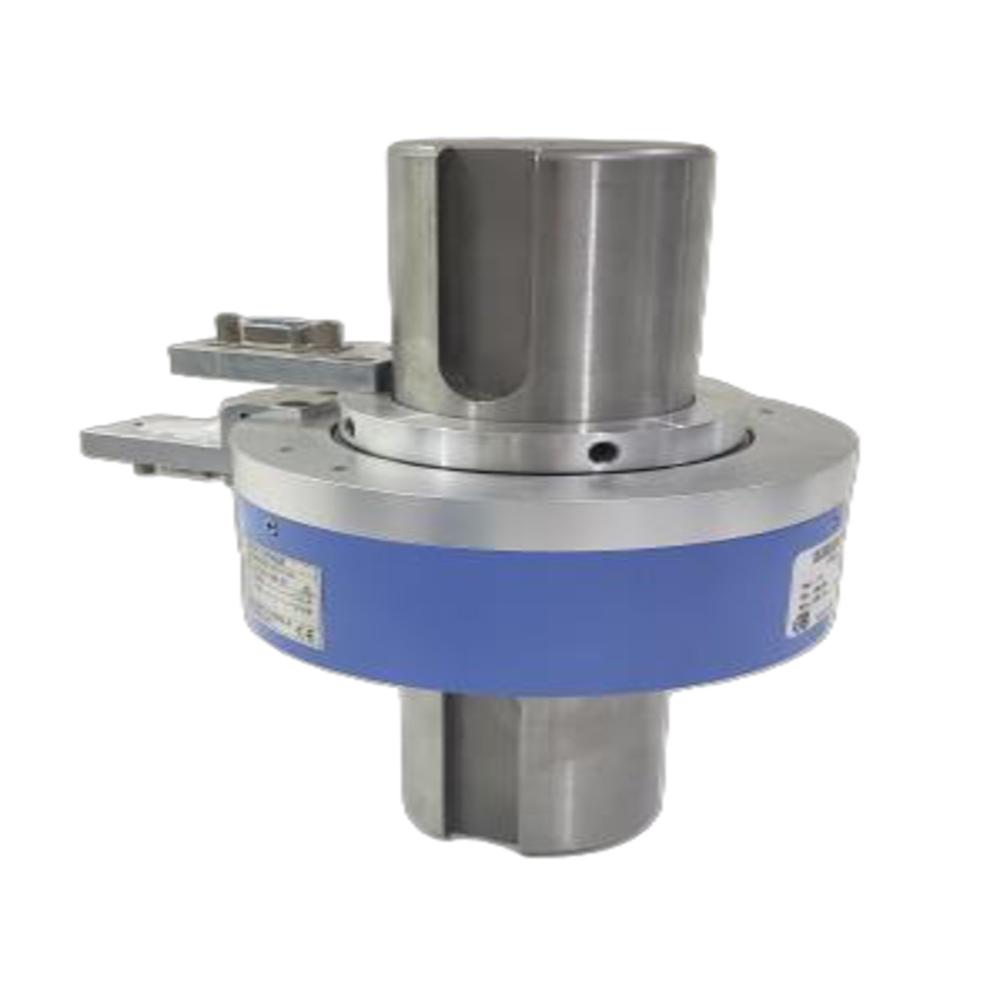

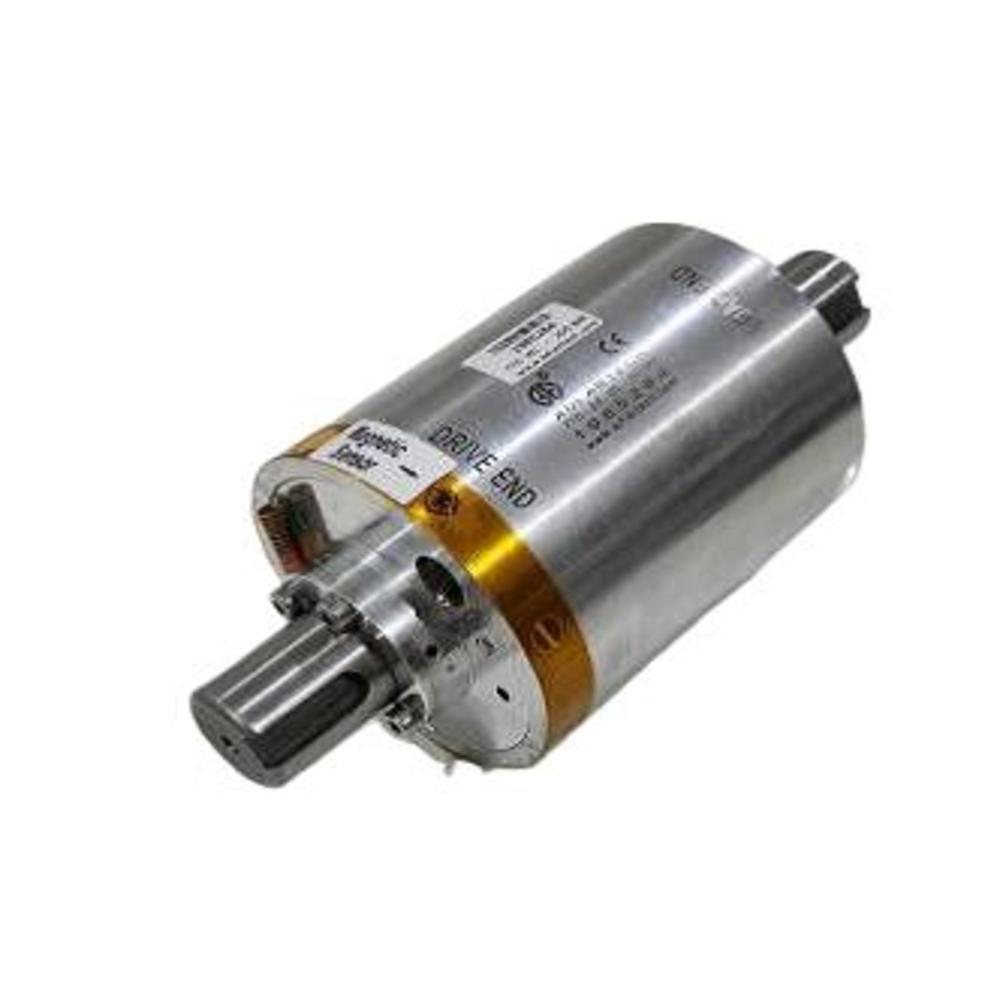

STATIC TORQUE TRANSDUCERS WITH ANGLE

Product Description

The TTSSS Static Torque Transducer with Angle is a high-precision torque measurement device designed for industrial and research applications. It measures static torque from 050 Nm up to 010 kNm, along with rotational angle measurement (0360) having a resolution of 0.5.

Built from Stainless Steel 17-4 PH, the sensor is rugged, corrosion-resistant, and suitable for harsh industrial environments. It operates on a strain gauge principle with full temperature compensation between 10C to 50C, ensuring stable and accurate performance.

The torque shaft is integrated with a rotary encoder for precise angular measurement. The sensor is easily mountable on a test bench using a keyway system. Square drive versions are also available.

Manufactured by ADI ARTECH TRANSDUCERS PVT. LTD., an ISO 9001:2015 certified company.

Key Features

• CE Certified

• Capacity range: 50 Nm to 10 kNm

• Angle Measurement: 0360 (0.5 resolution)

• Nominal Output: 2.0 mV/V

• Excitation Voltage: 10 VDC (Max 15 VDC)

• High Accuracy:

• Non-Linearity: < 0.1% FSO

• Hysteresis: < 0.1% FSO

• Non-repeatability: < 0.1% FSO

• Safe Overload: 150% FSO

• Ultimate Overload: 250% FSO

• Environmental Protection: IP65

• Cable Length: 5 meters

• Axial & Bending force compensated

Applications

• Motor torque measurement

• Shaft & axle torque testing

• Industrial valve and actuator torque testing

• Automotive & aerospace test rigs

• Fastener torque verification

• Offshore valve testing systems

 Frequently Asked Questions (FAQs)

1 What type of torque can this sensor measure?

It is designed for static torque measurement and can also provide angular measurement up to 360.

2 What is the accuracy level?

The transducer offers high precision with:

• Non-linearity < 0.1% FSO

• Hysteresis < 0.1% FSO

• Temperature effect on output < 0.05% FSO/C

3 What material is used for construction?

The body is made from Stainless Steel 17-4 PH, offering excellent strength and corrosion resistance.

4 Can it measure rotational speed (RPM)?

Yes, optional versions are available for online rotating torque with RPM or angle measurement.

5 What output options are available?

Optional compatible instruments support:

• 420 mA output

• 02 Volt output

• RS-485 interface

• USB output

• Bluetooth / Wireless telemetry

6 What is the operating temperature range?

• Compensated range: 10C to 50C

• Suitable for industrial environments with IP65 protection.

7 Is customization available?

Yes, the transducer can be customized based on customer requirements including mounting, output, and configuration.

8 What is the safe overload capacity?

• Safe Overload: 150% of Full Scale Output

• Ultimate Overload: 250% of Full Scale Output
