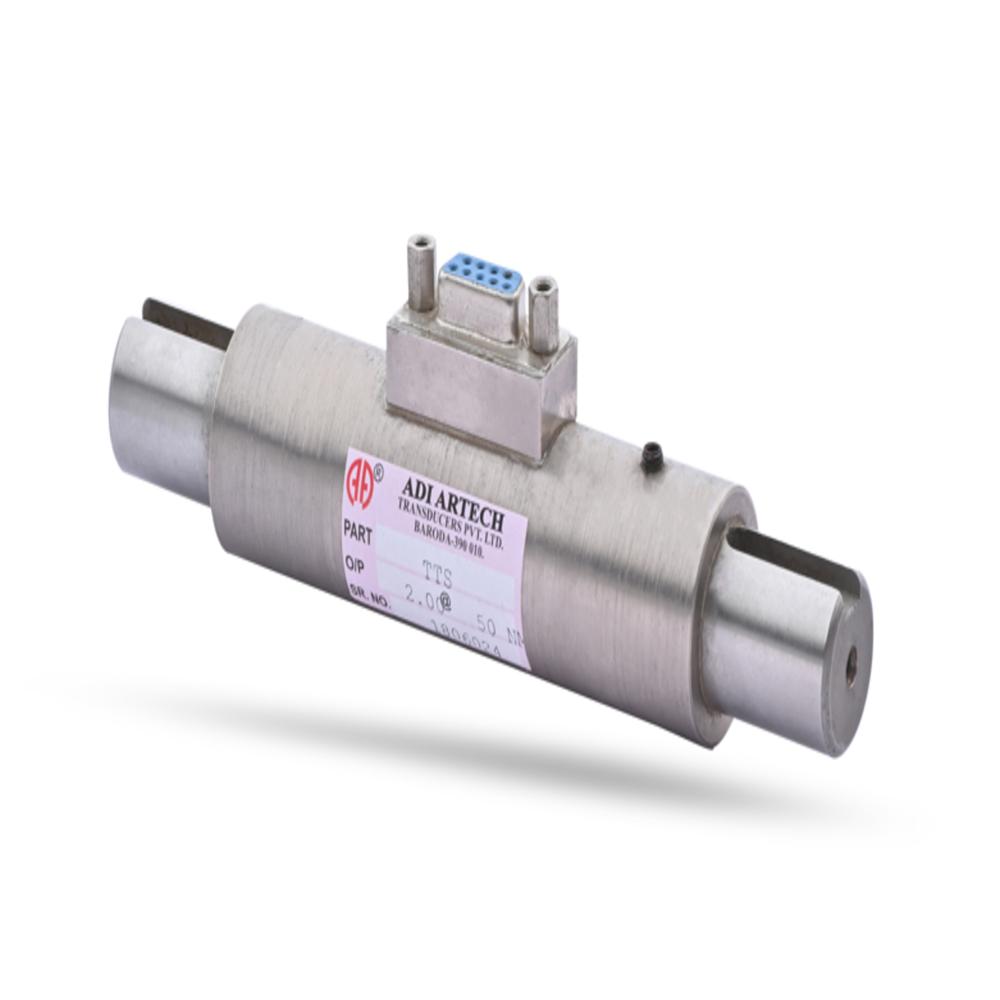

TORQUE-THRUST MEASUREMENT TRANSDUCER

The Dynamic Torque cum Thrust Transducer is a precision sensor designed to simultaneously measure torque and axial thrust in industrial testing applications. Built using high-strength stainless steel (17-4 PH) and strain-gauge technology, it provides high accuracy, stability, and durability for demanding environments.

The transducer is temperature compensated and designed to minimize errors from axial and bending forces, ensuring reliable measurements during testing processes. It is suitable for a wide range of applications including valve testing, fastener testing, gearbox performance analysis, drilling tests, thrust bearing evaluation, and aerospace propulsion testing.

Available in multiple torque and thrust capacities, the sensor can also be customized to meet specific dimensional or load requirements.

FAQs

1. What does a torque cum thrust transducer measure?

It measures both rotational torque and axial thrust force simultaneously, allowing precise analysis of mechanical systems where both loads occur together.

2. What industries typically use this sensor?

It is commonly used in automotive testing, aerospace, manufacturing, research laboratories, and industrial machinery testing.

3. What is the construction material of the transducer?

The sensor is made from Stainless Steel 17-4 PH, providing high strength and resistance to shock, overload, and harsh industrial conditions.

4. What measurement ranges are available?

The transducer is available in multiple torque and thrust ranges, starting from low capacity testing up to high-capacity industrial measurements.

5. What output signal does the sensor provide?

The sensor provides mV/V strain-gauge output, which can be interfaced with compatible instruments or converted to 4-20 mA, voltage output, or digital interfaces.

6. Can the transducer be customized?

Yes, the sensor can be custom designed to match specific dimensions, mounting styles, and load capacities.

7. What are the common mounting configurations?

It can be supplied with shaft-to-shaft, flange-to-flange, or shaft-flange combinations depending on the application.

8. Is a digital version available?

Yes, digital versions are available with RS-485, USB, wireless telemetry, and software for data monitoring and analysis.
