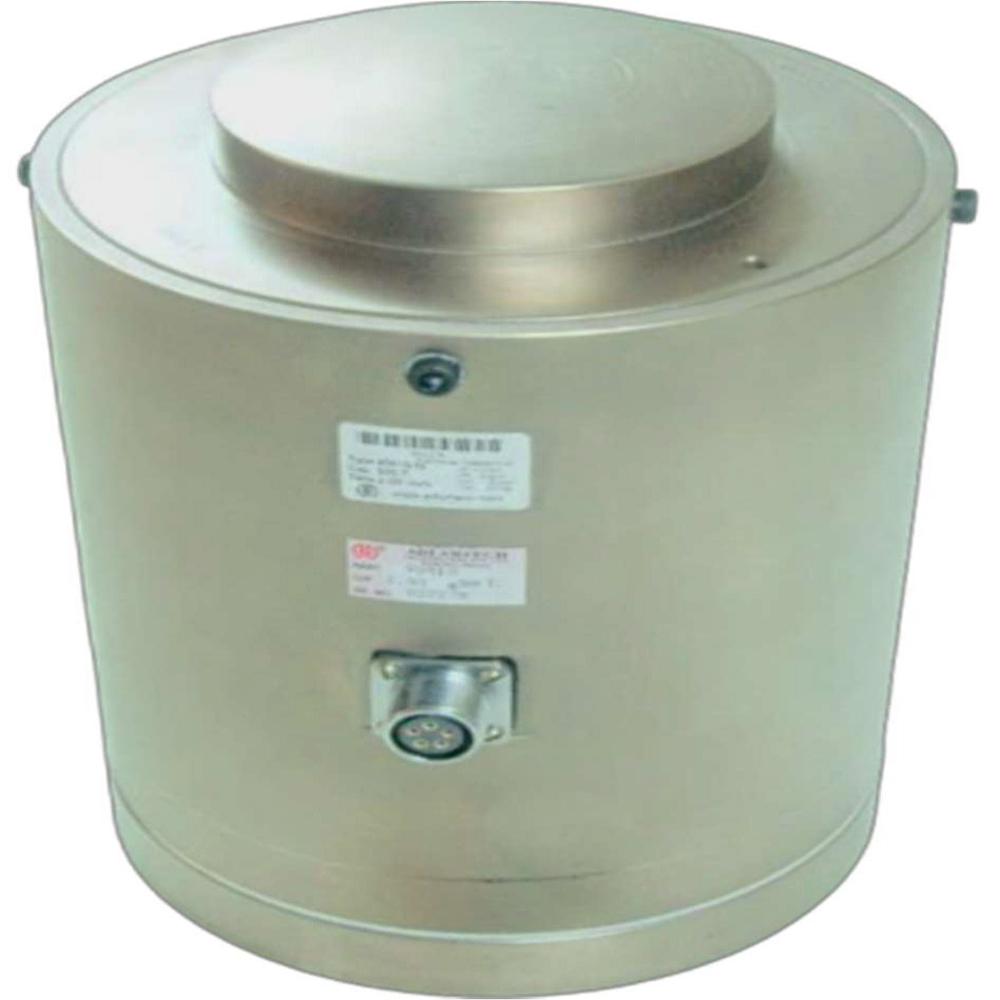

Compression Type Load Cell

Model 90710-B is a high-precision strain gauge-based compression load cell designed for calibration and force measurement applications.

It is widely used as a master load cell in calibration laboratories and for compression testing machines. Built with robust materials and offering high accuracy as per ISO 376 standards, it ensures reliable performance even in demanding industrial environments.

FAQs (Frequently Asked Questions)

1. What type of load cell is Model 90710-B?

It is a compression type column load cell used for measuring compressive force.

2. What are the main applications?

• Compression force testing

• Hydraulic press systems

• Calibration laboratories

• Civil & construction material testing

• Pile and structural testing

3. What is the capacity range available?

The load cell is available from 300 kN to 10,000 kN.

4. What accuracy classes are available?

It offers high accuracy as per ISO 376:

• Class 1

• Class 0.5

• Class 00 (highest accuracy)

5. What is the output of the load cell?

The standard output is 2.0 mV/V.

6. What material is used for construction?

It is made of electroless nickel-plated tool steel or SS 17-4 PH, ensuring durability and strength.

7. What is the environmental protection rating?

The load cell provides IP67 protection, making it suitable for harsh environments.

8. What is the operating temperature range?

• Operating: 0C to 55C

• Compensated: 10C to 50C

9. Can it handle overload conditions?

Yes:

• Safe overload: 150% of rated capacity

• Ultimate overload: 200% of rated capacity

10. Is a high-temperature version available?

Yes, a high-temperature version can be provided on request.

11. What accessories are available?

• Handheld display unit (Model HH-06)

• Digital Load Controller (DLC-6 / DLC-6M)
