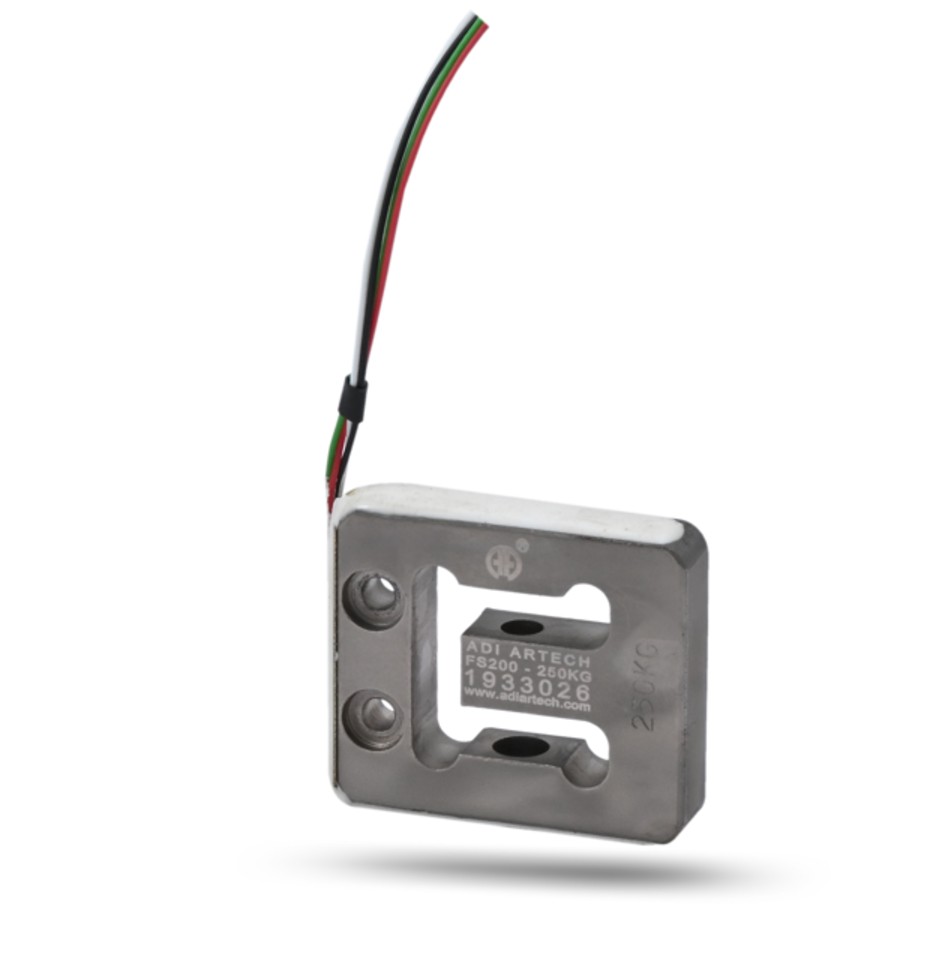

Force Sensor

Name: Force Sensor
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

3500.0 INR/Number

Get a Price/Quote

Product Details:

Material Aluminum Alloy (All capacities except 250 Kgf) Electroless Nickel Plated Tool Steel (250 Kgf)
Power 10 VDC Volt (v)
Capacity 0.3, 1, 3, 5, 10, 25, 50, 75, 100, 250 Kg
Product Type Force Sensor
Resistance Input Resistance: 375 Ohms (Typical), Output Resistance: 350 Ohms (Typical)
Operate Method Strain Gauge Based Force Measurement
Application Hand held force gages, Medical instrumentation, Controlled feed systems, Test equipment, Thread tension control in textile industry
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Force Sensor Price And Quantity

Minimum Order Quantity 1 Number, Number, Number
Price 3500.0 INR/Number

Force Sensor Product Specifications

Operating Temperature 10 C to 50 C Celsius (oC)
Accuracy 0.2% FSO %
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Output Analog Sensor
Usage Portable and industrial force measurement
Application Hand held force gages, Medical instrumentation, Controlled feed systems, Test equipment, Thread tension control in textile industry
Output Voltage 1.0 mV/V (for 0.3 Kgf) 1.5 to 2.0 mV/V (Other capacities) Volt (V)
Classification Strain Gauge Based Force Sensor
Type Compression / Force Measurement Sensor
Compensated Temperature 00 C to 50 C Celsius (oC)
Capacity 0.3, 1, 3, 5, 10, 25, 50, 75, 100, 250 Kg
Operate Method Strain Gauge Based Force Measurement
Product Type Force Sensor
Resistance Input Resistance: 375 Ohms (Typical), Output Resistance: 350 Ohms (Typical)
Operating Voltage 10 VDC Volt (V)
Material Aluminum Alloy (All capacities except 250 Kgf) Electroless Nickel Plated Tool Steel (250 Kgf)
Power 10 VDC Volt (v)
Theory Resistance Sensor
Storage Temperature 10 C to 50 C Celsius (oC)

Force Sensor Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number, Number, Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

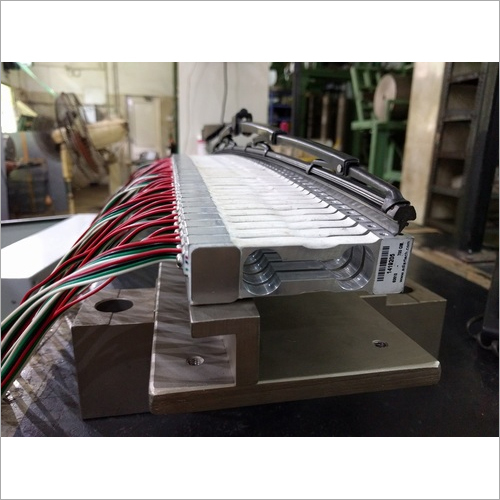

Series of sensors are arranged in wiper blade profile fitted on metallic base. All sensors are connected to the instrument panel fitted with series of WiFi transmitters. Signals of force exerted by wiper blade when place on sensors is transmitted to the remote receiver fitted to the PC. Force profile is generated on the monitor as per force exerted by rubber blade.

Product details

Cable Length	300 mm
Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 65
Finish & Construction	All but 250Kgf. - Aluminum Alloy 250Kgf.- Tool Steel Electro less Ni. plated
Input Resistance	375 Ohms
Insulation Resistance	> 1000 Mega Ohms
Output Resistance	350 Ohms
Temperature Effect on Output	< 0.04% FSO/ 0C
Temperature Effect on Zero	< 0.04% FSO/ 0C
Material	Aluminium

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Customized Load Cells and Sensors' category

BENDING BEAM LOAD CELL Price : 11500.0 INR/Number Minimum Order Quantity : 1 Output : Analog Sensor Usage : WEB TENSION MEASURING Theory : Resistance Sensor Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Accuracy : 0.025 % FSO % Operating Temperature : 050 Celsius (oC) Output Voltage : 2mv/v Volt (V) Application : Check Weighers, Tank & Hopper Weighing, Batching & Packaging Machines, Bag Weighers, Bench Scale, Floor Scale Classification : Strain gauge based load cell Capacity : 10,20,40,50,75,100,150,200 Kg Compensated Temperature : 1050 Celsius (oC) Type : STRAIN GAGE BASED BENDING BEAM LOAD CELL Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 370 15 , Output Resistance: 350 2 Product Type : HERMETICALLY SEALED LOAD CELL Operate Method : Strain gauge based bending beam principle with full temperature compensation Material : Stainless Steel 174 PH Power : 10VDC Volt (v) Storage Temperature : 060 Celsius (oC)

Send Inquiry

Side Mounted Shear Beam type Load Cell Price : 3500.0 INR/Number Minimum Order Quantity : 1 Output : Analog Sensor Usage : Force and Web Tension Measurement Theory : Resistance Sensor Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Accuracy : 0.05% FSO % Operating Temperature : 10 to 50 Celsius (oC) Output Voltage : 2mV/V Volt (V) Application : Web Tension Sensor , Force Gage, Check Weigher, Small Bagging Machines Classification : Strain Gauge Based Load Cell (Shear / Bending Beam Type) Capacity : 20,50 Kg Compensated Temperature : 1050 Celsius (oC) Type : Low Profile Side Mounted Bending / Shear Beam Load Cell Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 350 5 Ohms, Output Resistance: 350 5 Ohms Product Type : Side Mount Bending Beam Load Cell Operate Method : Strain Gauge Based Side Mounted Bending / Shear Beam Principle Material : Aluminum Alloy Power : 10VDC Volt (v) Storage Temperature : 060 Celsius (oC)

Send Inquiry

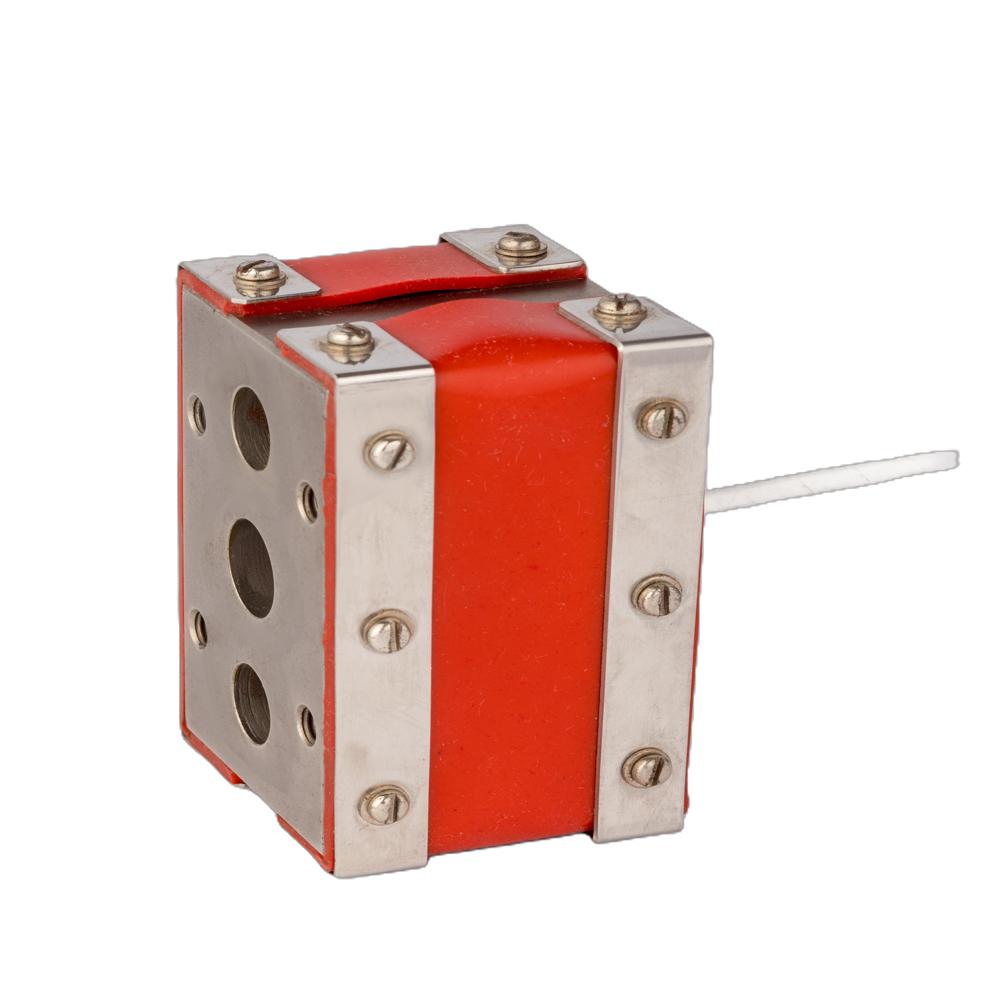

Side Mounted Bending Beam Load Cell Price : 35000.0 INR/Number Minimum Order Quantity : 1 Output : Analog Sensor Usage : Measurement of static loads in industrial and materialhandling systems Theory : Resistance Sensor Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Accuracy : 0.75% FSO % Operating Temperature : 0 C to 50 C Celsius (oC) Output Voltage : 0.45 to 1.0 mV/V Volt (V) Application : Soil Testing Machines, Hopper Weighing , Tank Weighing , Forklift Load Measurement ,Material Handling Systems Classification : Industrial Load Cell, IP65 Environmental Protection Capacity : 50,75,100,150,200,300,500 Kg Compensated Temperature : 0 C to 50 C Celsius (oC) Type : Side Mounted Beam Type Load Cell Operating Voltage : 10 VDC (Max 15 VDC) Volt (V) Resistance : Input Resistance: 390 20 , Output Resistance: 350 10 Product Type : Side Mounted Beam Load Cell Operate Method : Sidemounted load measurement using strain gauges Material : Electroless Nickel Plated Tool Steel (Optional: Stainless Steel 174 PH) Power : 10 VDC Volt (v) Storage Temperature : 10 C to 50 C Celsius (oC)
