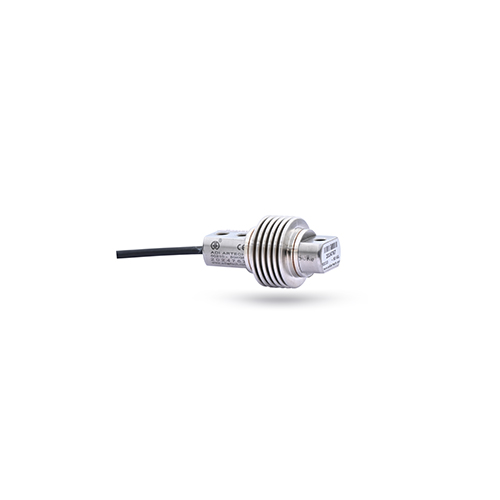

BENDING BEAM LOAD CELL

11500.0 INR/Number

Get a Price/Quote

Product Details:

Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Usage WEB TENSION MEASURING
Power 10VDC Volt (v)
Material Stainless Steel 17-4 PH
Operate Method Strain gauge based bending beam principle with full temperature compensation
Resistance Input Resistance: 370 15 , Output Resistance: 350 2
Classification Strain gauge based load cell
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

BENDING BEAM LOAD CELL Price And Quantity

Price 11500.0 INR/Number
Minimum Order Quantity 1 Number

BENDING BEAM LOAD CELL Product Specifications

Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Usage WEB TENSION MEASURING
Power 10VDC Volt (v)
Output Analog Sensor
Material Stainless Steel 17-4 PH
Type STRAIN GAGE BASED BENDING BEAM LOAD CELL
Accuracy 0.025 % FSO %
Operate Method Strain gauge based bending beam principle with full temperature compensation
Resistance Input Resistance: 370 15 , Output Resistance: 350 2
Classification Strain gauge based load cell
Theory Resistance Sensor
Dimension (L*W*H) 71*36 Millimeter (mm)
Storage Temperature 0-60 Celsius (oC)
Output Voltage 2mv/v Volt (V)
Compensated Temperature 10-50 Celsius (oC)
Operating Temperature 0-50 Celsius (oC)
Product Type HERMETICALLY SEALED LOAD CELL
Weight 500 Grams (g)
Operating Voltage 5-10 Volt (V)
Capacity 10,20,40,50,75,100,150,200 Kg
Application Check Weighers, Tank & Hopper Weighing, Batching & Packaging Machines, Bag Weighers, Bench Scale, Floor Scale
Color Silver

BENDING BEAM LOAD CELL Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Western Europe, Middle East, Africa, Asia, Australia, Eastern Europe
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

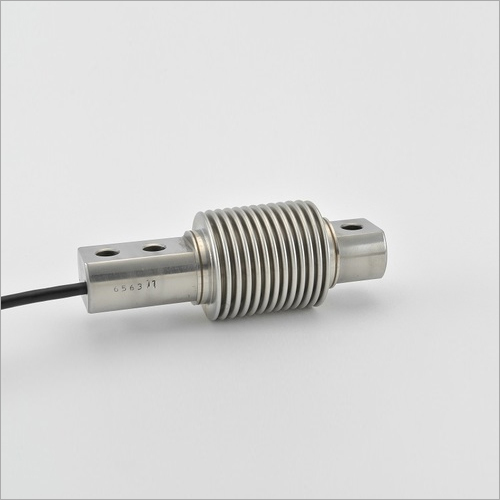

50210/50310 is miniature round beam load cell
This is available in two different sizes to meet vide industrial applications
It is hermetically sealed by SS bellow for IP 68 degree of protection class

Stainless steel 17-4 PH material of construction for harsh industrial corrossion
It is low profile to fit into small and ristricted machine space.
Finds applications into various industries SUCH AS Weighing, Packaging, Cement and Fertilizer.

Compatible Electronic Systems are available optionally
Stand alone digital display indicator
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment
Data acquisition system and software.

Product details

Creep (30 minutes)	<+-0.03% FSO
Environmental Protection Class	IP 68
Hysteresis	<+-0.02% FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0 - 60 Degree C
Ultimate Overload	200% of Rated Capacity
Zero Balance	+- 1% FSO
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Precision Performance for Web Tension Measurement

Engineered for rigorous industrial use, this bending beam load cell delivers outstanding accuracy and repeatability crucial to web tension measuring processes. With a low output voltage and strain-gage technology, it ensures stable signal transmission and reliable readings in demanding environments.

Flexible Temperature and Voltage Operation

The load cell operates efficiently within a wide voltage range (510V) and maintains performance across various temperature conditions. Compensated temperature calibration guarantees stable readings from 10C to 50C, making it suitable for diverse applications in Indias climate.

Trusted Supply Network Across India

Manufacturers, distributors, and traders across India source and export this load cell, ensuring availability and local support for installation and maintenance. Its proven reliability has made it a standard choice for industrial and manufacturing sectors needing web tension control.

FAQs of BENDING BEAM LOAD CELL:

Q: How does a strain-gage-based bending beam load cell function in web tension measurement?

A: This load cell detects the strain generated from tension applied to a beam. The strain gauge changes resistance under force, which is converted to an analog voltage output (2mV), accurately reflecting tension levels in web processing applications.

Q: What are the benefits of using this load cell for web tension measurement?

A: Its high accuracy (0.025) and stable output ensure precise tension control, reducing material waste and improving product quality in industrial web handling systems.

Q: When is it appropriate to install a bending beam load cell in my production line?

A: Installation is ideal during setup or upgrades of web handling processes where continuous, reliable tension monitoring is required to maintain system efficiency and quality.

Q: Where can I source these load cells within India?

A: These load cells are available through a vast network of manufacturers, dealers, suppliers, traders, and wholesalers operating throughout India, ensuring efficient sourcing and prompt technical support.

Q: What is the recommended operating and storage environment for this load cell?

A: It should be operated within 0C to 50C and stored between 0C to 60C. For optimal accuracy, compensated temperature usage falls between 10C and 50C.

Q: What is the process for integrating the load cell with industrial web tension systems?

A: Integration involves mounting the sensor to the tensioning location, connecting it to a signal processing unit compatible with its analog 2mV output, and calibrating it for desired accuracy and operation voltage (510V).
