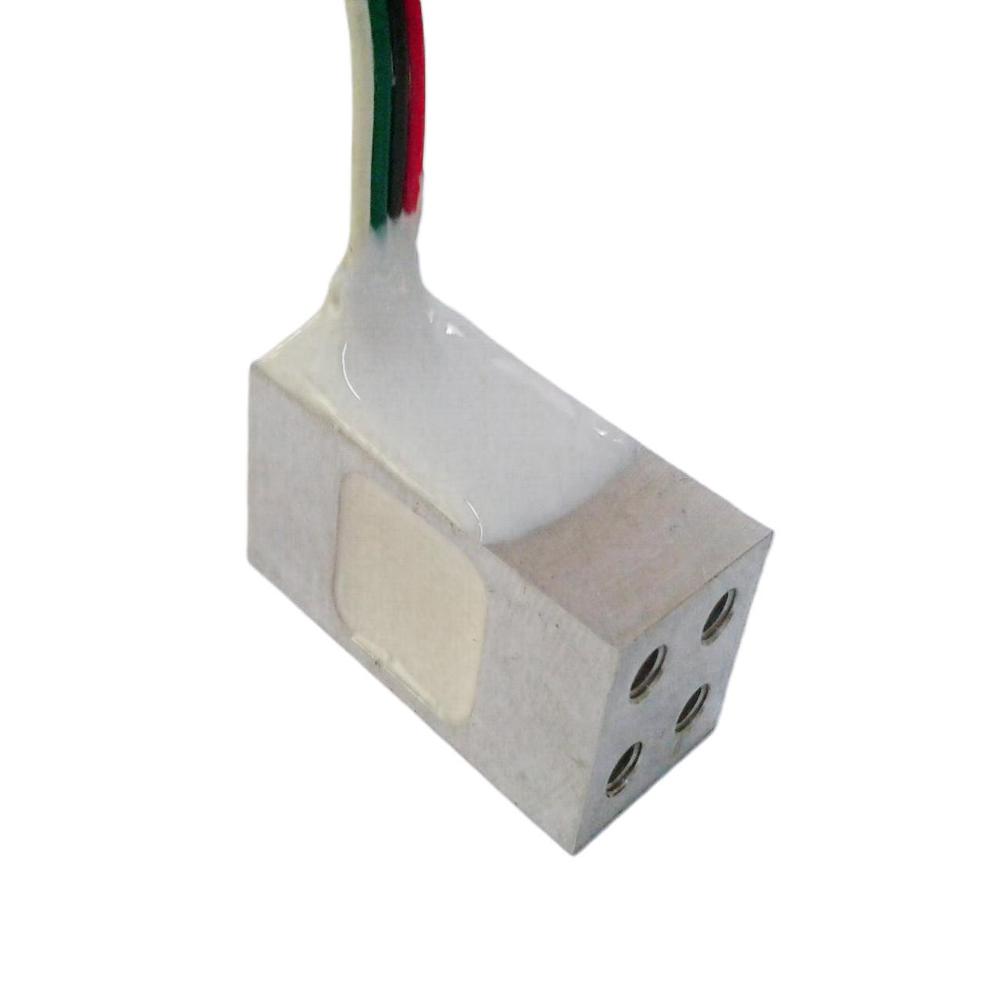

Side Mounted Shear Beam type Load Cell

3500.0 INR/Number

Get a Price/Quote

Product Details:

Classification Strain Gauge Based Load Cell (Shear / Bending Beam Type)
Application Web Tension Sensor , Force Gage, Check Weigher, Small Bagging Machines
Capacity 20,50 Kg
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Product Type Side Mount Bending Beam Load Cell
Usage Force and Web Tension Measurement
Resistance Input Resistance: 350 5 Ohms, Output Resistance: 350 5 Ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Side Mounted Shear Beam type Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 3500.0 INR/Number

Side Mounted Shear Beam type Load Cell Product Specifications

Compensated Temperature 10-50 Celsius (oC)
Operating Voltage 5-10 Volt (V)
Capacity 20,50 Kg
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Output Voltage 2mV/V Volt (V)
Operate Method Strain Gauge Based Side Mounted Bending / Shear Beam Principle
Usage Force and Web Tension Measurement
Resistance Input Resistance: 350 5 Ohms, Output Resistance: 350 5 Ohms
Product Type Side Mount Bending Beam Load Cell
Output Analog Sensor
Material Aluminum Alloy
Storage Temperature 0-60 Celsius (oC)
Power 10VDC Volt (v)
Accuracy 0.05% FSO %
Type Low Profile Side Mounted Bending / Shear Beam Load Cell
Operating Temperature 10 to 50 Celsius (oC)
Theory Resistance Sensor
Classification Strain Gauge Based Load Cell (Shear / Bending Beam Type)
Application Web Tension Sensor , Force Gage, Check Weigher, Small Bagging Machines

Side Mounted Shear Beam type Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST REPORT

Product Description

Side Mounted Shear Beam Type Load Cell

Model: 60920
Capacity: 0 - 20 Kgf To 0 - 50 Kgf
Load Direction: Tension & Compression - Universal
Type: Side Mount Load Cell

Industries-

Yarn & Filament Industries
Printing Industries
Textile
Bagging Machinery's

Application-

Check Weighing
Force Gage
Hand Held Push / Pull Force Gage
Hanging Scale
Industrial Automation Equipments
Low Profile Floor Scale
Machine Automation
Medical Instrumentation
Radial Force Monitor
Small Bagging Machines
Web Tension Measurement

Description-

This Is Side Mounted Load Cell.
It'S Shear Web Design Makes It Sturdy For Severe Load Applications.
It Is Constructed From High Aluminum Alloy.

Features-

It Is Very Small And Compact For Use In Area Where Space Is Constrains.
This Is Customized Load Cell.
We Can Customized It For You , If You Provide Us Drawing And Description.
For More Details , Please Contact Us.

Product details

Allowable Side Load	50%
Material	Stainless Steel
Nominal Output	3.0 m V/ V
Temp. Compensated Range	0-60 0C
Temperature Effect on Output	< 0.0015% FSO/ 0C
Temperature Effect on Zero	< 0.0020% FSO/ 0C
Ultimate Overload of Rated Capacity	250%
Safe Overload	150%
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	350 +- 3 Ohms
Input Resistance	392 +- 15 Ohms
Load Capacity	20 KG TO 20 T
Brand	ADI ARTECH TRANSDUCERS PVT. LTD.
Shape	S
Type	S TYPE LOAD CELL
Design	Robust
Usage/Application	Industrial

Superior Accuracy for Industrial Use

With a precision of 0.1%, this shear beam load cell ensures exact tension measurementcritical for process control in textile and plastic manufacturing. Its analog output facilitates seamless integration into existing automation systems.

Versatile Operating Conditions

Engineered to perform in a range of industrial settings, the load cell operates efficiently between 10C to 50C and endures storage conditions from 0C up to 60C, making it suited for diverse production environments in India.

Reliable and Durable Construction

Built with quality materials and advanced resistance sensor theory, the side mounted shear beam load cell offers long-lasting performance while maintaining high accuracy, minimizing maintenance and maximizing uptime for your operations.

FAQs of Side Mounted Shear Beam type Load Cell:

Q: How does the Side Mounted Shear Beam Load Cell measure web tension in textile and plastic applications?

A: The load cell uses a resistance sensor to detect force as web tension is applied, converting mechanical strain into a proportional analog voltage output (2mV). This allows precise monitoring and control of tension during the production process, critical in textile and plastic manufacturing.

Q: What are the operating and storage temperature ranges for this load cell?

A: This load cell is designed to function optimally at operating temperatures between 10C and 50C, and can be safely stored in environments ranging from 0C to 60C without compromising performance.

Q: When should the Side Mounted Shear Beam Load Cell be used in manufacturing processes?

A: It is best utilized whenever accurate web tension measurement is required, such as during material handling, winding, or slitting in textile and plastic production lines, ensuring uniform product quality and reduced material wastage.

Q: Where can I source this load cell in India?

A: The load cell is widely available in India through authorized dealers, exporters, manufacturers, producers, suppliers, traders, and wholesalers specializing in industrial measurement equipment.

Q: What are the benefits of using a shear beam type load cell for web tension measuring?

A: Key benefits include high measurement accuracy (0.1%), robust performance under various production conditions, simple integration into standard analog systems, and enhanced process consistency, all crucial for efficient and quality manufacturing.

Q: How do I integrate the load cell into existing automation systems?

A: This load cell provides an analog voltage output compatible with most industrial controllers. Connect the sensor to the controllers analog input, calibrate according to tension requirements, and monitor real-time data for effective process management.
