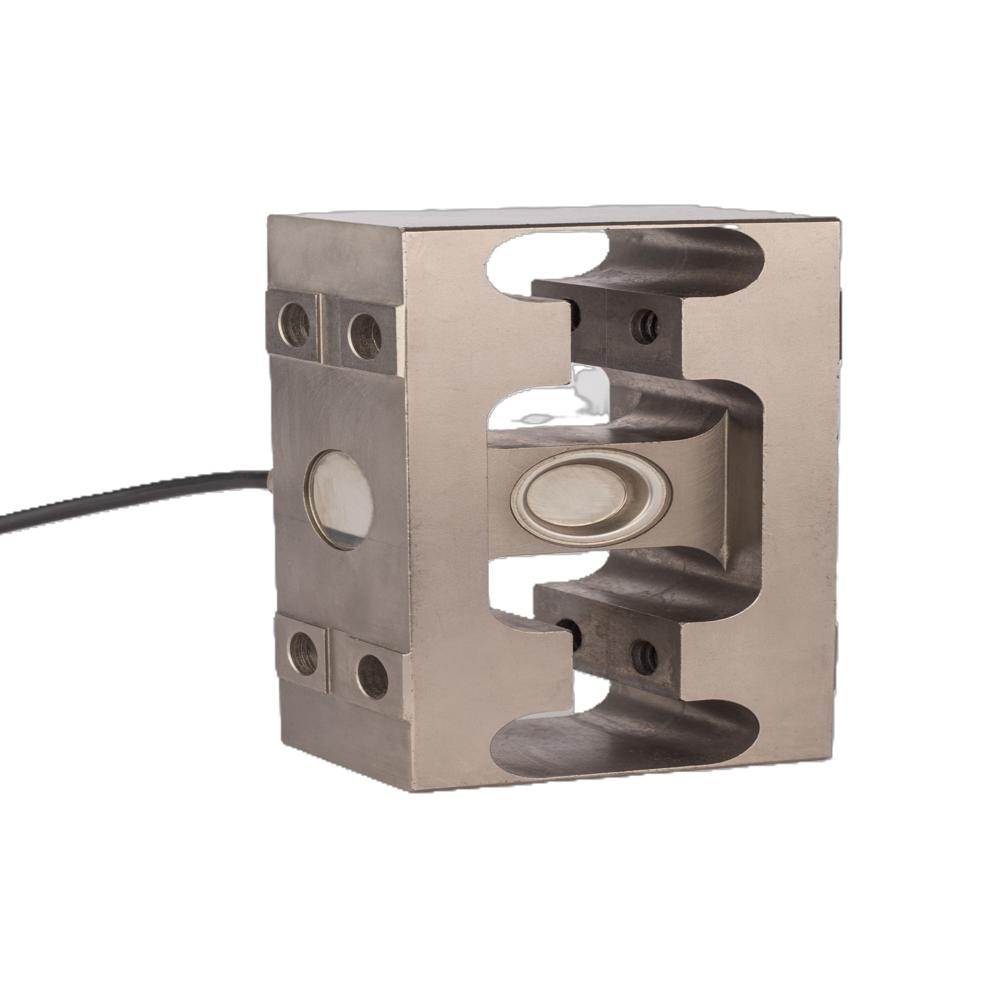

Side Mounted Shear Beam Load Cell

Name: Side Mounted Shear Beam Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

25000.0 INR/Number

Get a Price/Quote

Product Details:

Resistance Input Resistance: 390 20 , Output Resistance: 350 10
Material Electroless Nickel Plated Tool Steel
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Capacity 750,1000,1500,2000,3000,5000 Kg
Usage Static load measurement in weighing and material handling systems
Classification Industrial Load Cell, IP-65 Environmental Protection
Power 10 VDC Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Side Mounted Shear Beam Load Cell Price And Quantity

Price 25000.0 INR/Number
Minimum Order Quantity 1 Number

Side Mounted Shear Beam Load Cell Product Specifications

Application Platform Scales, Hopper Weighing , Tank & Silo Weighing , Forklift Load Measurement , Material Handling Systems
Product Type Side Mounted Shear Beam Load Cell
Accuracy 0.05% FSO %
Output Analog Sensor
Operate Method Side-mounted shear beam load measurement using strain gauges
Operating Temperature 0 C to 50 C Celsius (oC)
Classification Industrial Load Cell, IP-65 Environmental Protection
Type Side Mounted Shear Beam Type Load Cell
Power 10 VDC Volt (v)
Compensated Temperature 0 C to 50 C Celsius (oC)
Usage Static load measurement in weighing and material handling systems
Operating Voltage 10 VDC (Max 15 VDC) Volt (V)
Storage Temperature 10 C to 50 C Celsius (oC)
Output Voltage 2 mV/V Volt (V)
Capacity 750,1000,1500,2000,3000,5000 Kg
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Resistance Input Resistance: 390 20 , Output Resistance: 350 10
Theory Resistance Sensor
Material Electroless Nickel Plated Tool Steel

Side Mounted Shear Beam Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST REPORT

Product Description

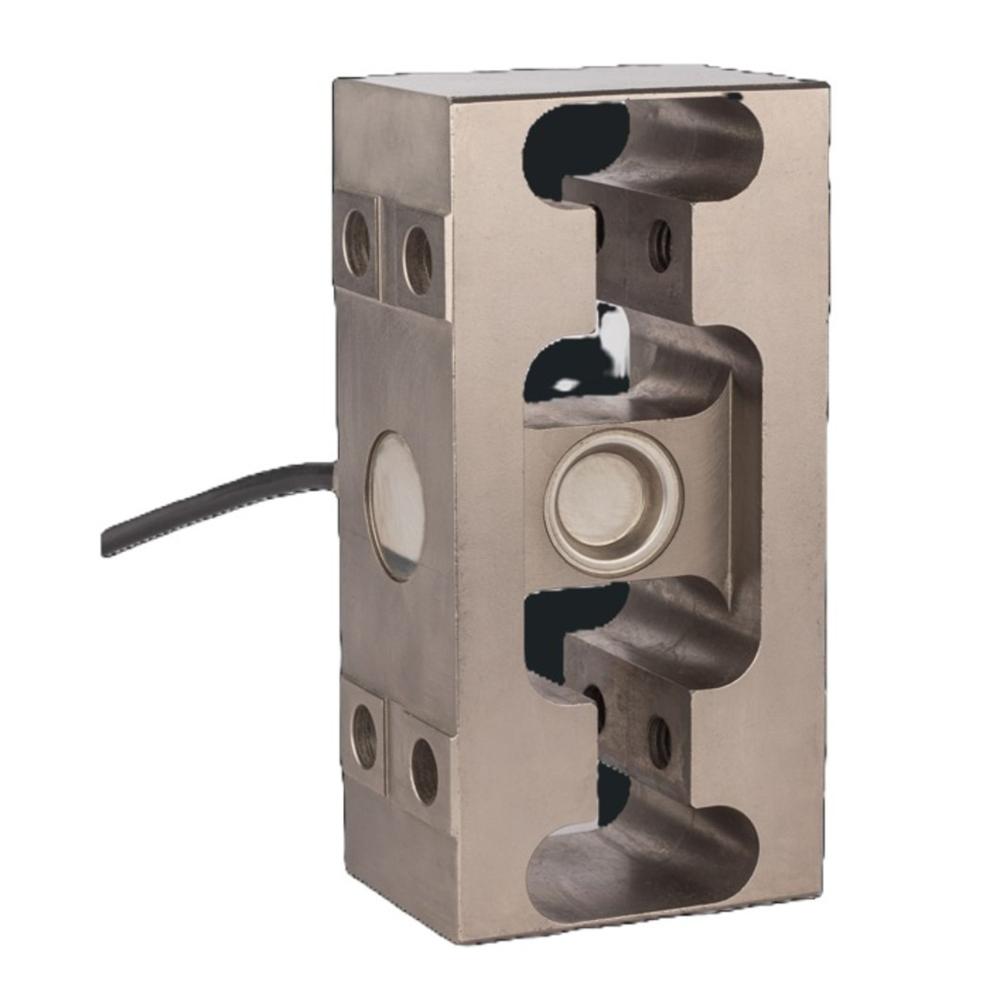

Side Mounted Shear Beam Load Cell

Model: 60930
Capacity: 0-300Kgf To 0-5000Kgf
Load Direction : Tension & Compression - Universal
Type : Side Mount Load Cell

Industries

Weighing
Material Handling
Bagging Machinery's
Automation Machinery's

Application

Bag Weighing Machine
Check Weighing
Conveyor Systems
Hopper , Tank , Silo Weighing
Machine Automation
Material Handling

Description

Side Mounted Shear Beam Load Cell
300 To 5000 Kgf Capacity Offered

Features

Suits To Applications Where Mounting Is From Side.
Ideally Fitted To The Fork Lift Weighment.
This Is Customized Load Cell To Fit To Specific Needs.
We Can Customized Your Required Load Cell If You Provide Us Drawing And Description Of Fitting Etc.
For More Details Please Contact Us.

Product details

Allowable Side Load	50%
Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 68
Finish & Construction	Electro less Nickel Plated Tool Steel
Insulation Resistance (50V)	>1000 Mega Ohms
Nominal Output	2.0 m V/V
Temp. Compensated Range	0-60 Degree C
Ultimate Overload	300% of Rated Capacity
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms
