Customized Load Cells And Sensors

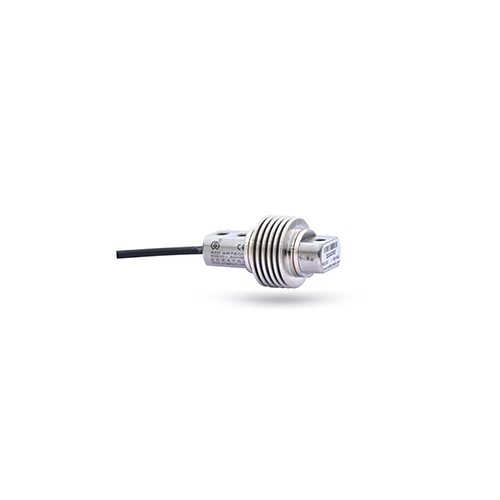

• Accuracy
• 0.025 % FSO %

• Application
• Check Weighers, Tank & Hopper Weighing, Batching & Packaging Machines, Bag Weighers, Bench Scale, Floor Scale

• Capacity
• 10,20,40,50,75,100,150,200 Kg

• Classification
• Strain gauge based load cell

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Dimension (L*W*H)
• 71*36 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge based bending beam principle with full temperature compensation

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv/v Volt (V)

• Power
• 10VDC Volt (v)

• Product Type
• HERMETICALLY SEALED LOAD CELL

• Resistance
• Input Resistance: 370 15 , Output Resistance: 350 2

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED BENDING BEAM LOAD CELL

• Usage
• WEB TENSION MEASURING

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 500 Grams (g)

• Accuracy

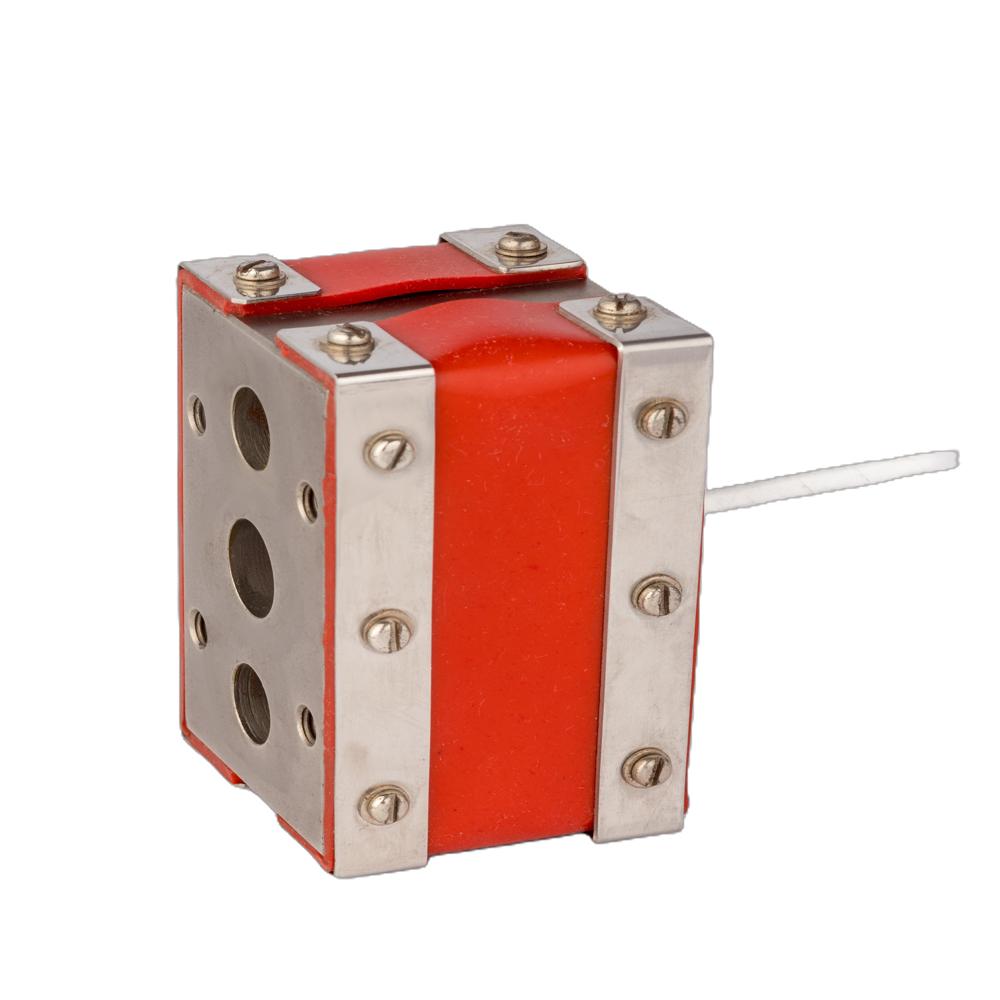

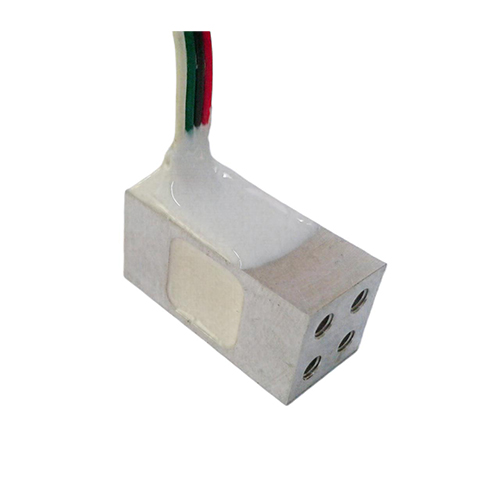

• 0.05% FSO %

• Application
• Web Tension Sensor , Force Gage, Check Weigher, Small Bagging Machines

• Capacity
• 20,50 Kg

• Classification
• Strain Gauge Based Load Cell (Shear / Bending Beam Type)

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Aluminum Alloy

• Operate Method
• Strain Gauge Based Side Mounted Bending / Shear Beam Principle

• Operating Temperature
• 10 to 50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mV/V Volt (V)

• Power
• 10VDC Volt (v)

• Product Type
• Side Mount Bending Beam Load Cell

• Resistance
• Input Resistance: 350 5 Ohms, Output Resistance: 350 5 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Low Profile Side Mounted Bending / Shear Beam Load Cell

• Usage
• Force and Web Tension Measurement

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.2% FSO %

• Application
• Hand held force gages, Medical instrumentation, Controlled feed systems, Test equipment, Thread tension control in textile industry

• Capacity
• 0.3, 1, 3, 5, 10, 25, 50, 75, 100, 250 Kg

• Classification
• Strain Gauge Based Force Sensor

• Compensated Temperature
• 00 C to 50 C Celsius (oC)

• Material
• Aluminum Alloy (All capacities except 250 Kgf) Electroless Nickel Plated Tool Steel (250 Kgf)

• Operate Method
• Strain Gauge Based Force Measurement

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.0 mV/V (for 0.3 Kgf) 1.5 to 2.0 mV/V (Other capacities) Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Force Sensor

• Resistance
• Input Resistance: 375 Ohms (Typical), Output Resistance: 350 Ohms (Typical)

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Compression / Force Measurement Sensor

• Usage
• Portable and industrial force measurement

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.75% FSO %

• Application
• Soil Testing Machines, Hopper Weighing , Tank Weighing , Forklift Load Measurement ,Material Handling Systems

• Capacity
• 50,75,100,150,200,300,500 Kg

• Classification
• Industrial Load Cell, IP-65 Environmental Protection

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Electroless Nickel Plated Tool Steel (Optional: Stainless Steel 17-4 PH)

• Operate Method
• Side-mounted load measurement using strain gauges

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 0.45 to 1.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Side Mounted Beam Load Cell

• Resistance
• Input Resistance: 390 20 , Output Resistance: 350 10

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Side Mounted Beam Type Load Cell

• Usage
• Measurement of static loads in industrial and material-handling systems

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

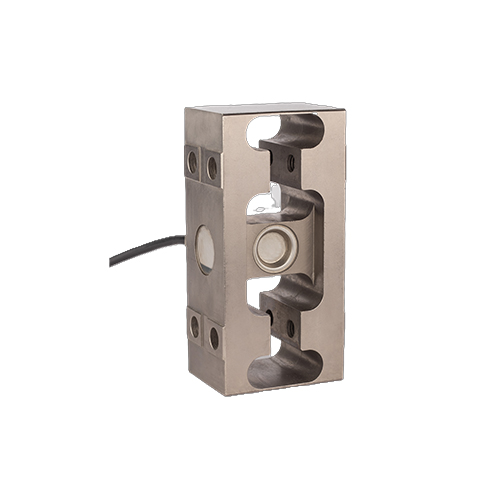

• Accuracy
• 0.05% FSO %

• Application
• Platform Scales, Hopper Weighing , Tank & Silo Weighing , Forklift Load Measurement , Material Handling Systems

• Capacity
• 750,1000,1500,2000,3000,5000 Kg

• Classification
• Industrial Load Cell, IP-65 Environmental Protection

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Electroless Nickel Plated Tool Steel

• Operate Method
• Side-mounted shear beam load measurement using strain gauges

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Side Mounted Shear Beam Load Cell

• Resistance
• Input Resistance: 390 20 , Output Resistance: 350 10

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Side Mounted Shear Beam Type Load Cell

• Usage
• Static load measurement in weighing and material handling systems

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.05% FSO %

• Application
• Fastener Testing, Civil Engineering Testing , Bolt Force Measurement , Injection Molding Machine ,Material Testing , Press Calibration, Robotics & Industrial Automation , Tablet Manufacturing Machine, Prestressed Concrete Tension Measurement, Suspended / Hanging Load Weighing

• Capacity
• 1, 1.5, 2, 3, 5, 10, 15, 20, 30, 50, 100, 150, 200, 300 Ton

• Classification
• Strain Gauge Based Force Sensor

• Color
• Metallic (Nickel Plated Steel Finish)

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Material
• Electroless Nickel Plated Tool Steel

• Operate Method
• Compression force measurement through central hollow bore. Force is generated by tightening a fastener/bolt passing through the hole.

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Through Hole Compression Load Cell

• Resistance
• Input Resistance: 770 20 Ohms, Output Resistance: 700 3 Ohms

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Through Hole / Hollow Compression Type

• Usage
• Bolt tightening force measurement, suspended load measurement, calibration, industrial force monitoring

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• Class 1: 0.1% FSO, Class 0.5: 0.05% FSO, Class 00: 0.025% FSO %

• Application
• Compression force testing, Hydraulic press Force calibration ,laboratories, Civil & construction material testing, Pile & structure testing

• Capacity
• 300 kN to 10,000 kN Kg

• Classification
• Calibration / Compression Type Load Cell (ISO 376:2011 Class 1, 0.5, 00)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Electro-less nickel plated tool steel / SS 17-4 PH

• Operate Method
• Strain gauge based (compression force sensing)

• Operating Temperature
• 0 C to 55 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Load Cell (Compression Calibration Grade)

• Resistance
• Input Resistance: 770 5 , Output Resistance: 700 3

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Column type Compression Load Cell

• Usage
• Force measurement (compression)

• Voltage
• 10 VDC (Max 15 VDC) Volt (v)

• Application
• Electronic Weighing Machines,Industrial Weighing Systems,Automobile Industry,Medical Equipment,Aerospace and Defense,Retail and Commercial Applications

• Capacity
• 100 GRAM - 100 TON Kg

• Classification
• Strain gauge Based Load cell

• Compensated Temperature
• 10 - 60 Celsius (oC)

• Material
• Nickel Plated Tool Steel, Stainless Steel, Aluminium Alloy

• Operating Temperature
• 0 - 50 Celsius (oC)

• Operating Voltage
• 10 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Product Type
• Load Cell

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Strain gauge type Load cell

• Usage
• Weighing Scales,Tank and Hopper Weighing,Truck and Railway Weighbridges,Crane and Hoist Monitoring,Process Automation,Conveyor Belt Weighing,Aerospace and Automotive Testing

• Voltage
• 10 VDC Volt (v)
